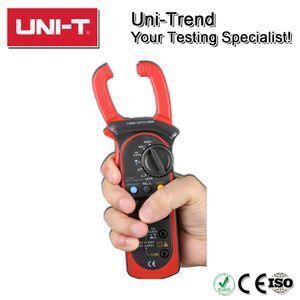

Best Digital clamp meter UNI-T UT203

  • Supplier: Sinotronics Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Ms. Joyce Zhang
  • Price: $18.00 / >=40 pieces
  • Min. Order: 40 pieces
Product details
Data Hold:YES;Model Number:UT203;
Payment Terms:L/C,D/P,T/T,Western Union,Paypal;Display Count:3999;
Dimensions:208*76*30mm;Auto Range:YES;
Weight:220g;Measuring Current Range:40A/400A;
Measuring Resistance Range:400Ω/4K/40K/400K/4M/40MΩ;Jaw Capacity:28mm;
Port:SHANGHAI, NINGBO;Auto Power Off:YES;
Product Net Weight:220g;Operating Temperature:0℃~50℃;
Relative Mode:Yes;Brand Name:UNI-T;
Measuring Capacitance Range:none;Low Battery Indication:YES;
Measuring Voltage Range:400mV/4V/40V/400V/600V;Packaging Detail:We can provide the product packing according to your request.;
Supply Ability:5000 Piece/Pieces per Month;Continuity Buzzer:YES;
Display Type:Analog and Digital;Place of Origin:Guangdong China (Mainland);
Diode:YES;Measuring Inductance Range:none;
--------------------

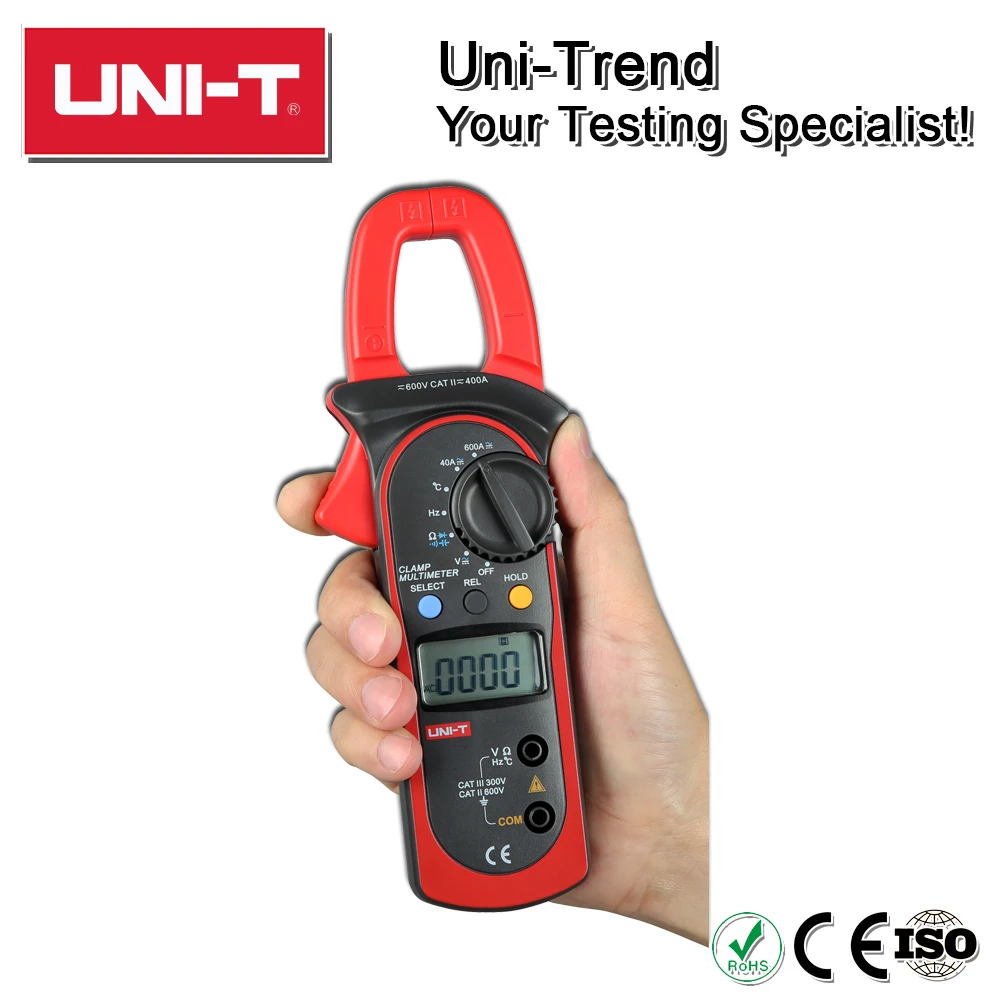

Product image



Product data

UT200 AC / DC digital clamp meter, with AC and DC voltage, DC current, resistance, capacitance, frequency, temperature, connected and the function of diode measurement, is a full range of overload protection circuit, complete functions, excellent performance of electronic / electrical meter.

Can be widely used in electronic, electric power, petrochemical, smelting, manufacturing, oil and other industries, is the ideal tool for equipment maintenance and repair.

Product parameters



SpecificationsRangeBest Accuracy
Model UT203
AC Current (A)40A/400A±(2.5%+5)
DC Current (A)40A/400A±(2%+3)
AC Voltage (V)4V/40V/400V/600V±(1%+5)
DC Voltage (V)400mV/4V/40V/400V/600V±(0.8%+1)
Resistance (Ω)400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ±(1%+2)
Frequency (Hz)10Hz~1MHz±(0.1%+3)
Features
Display Count 3999
Auto Range
Jaw Capacity 28mm
Duty Cycle0.1%~99.9%
Diode
Auto Power Off
Continuity Buzzer
Low Battery Indication
Data Hold
Relative Mode
Setup
Input Impedance for DCVAround 10MΩ
General Characteristic
Power9V Battery(6F22)
LCD Size35.6X 18mm
Product ColorRed and Grey
Product Net Weight260g
Product Size208mm X 76mm X30 mm

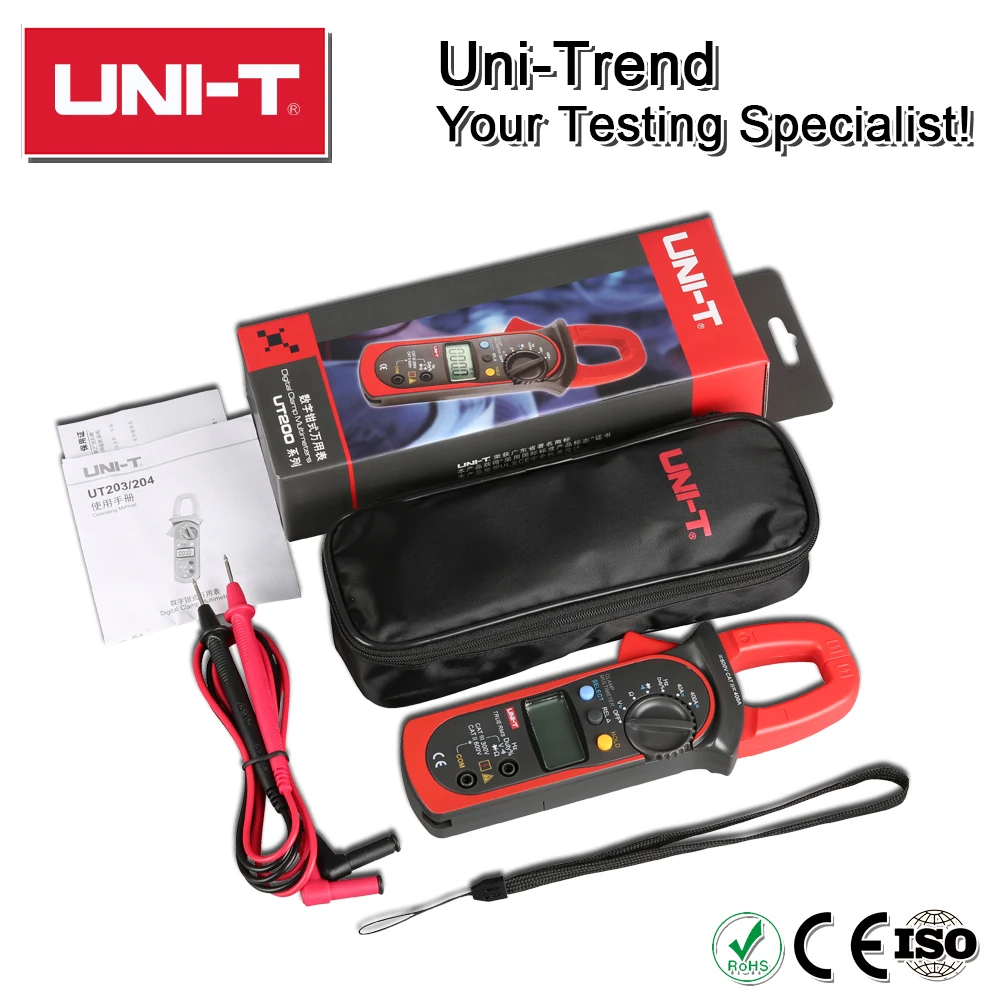

Standard AccessoriesBattery, Test Lead,Carrying Bag
Standard Individual PackingGift Box, English Manual
Standard Quantity Per Carton40 PCs
Standard Carton Measurement540mm X 495mm X 335mm  (0.09 CBM Per Standard Carton)
Standard Carton Gross Weight25Kg

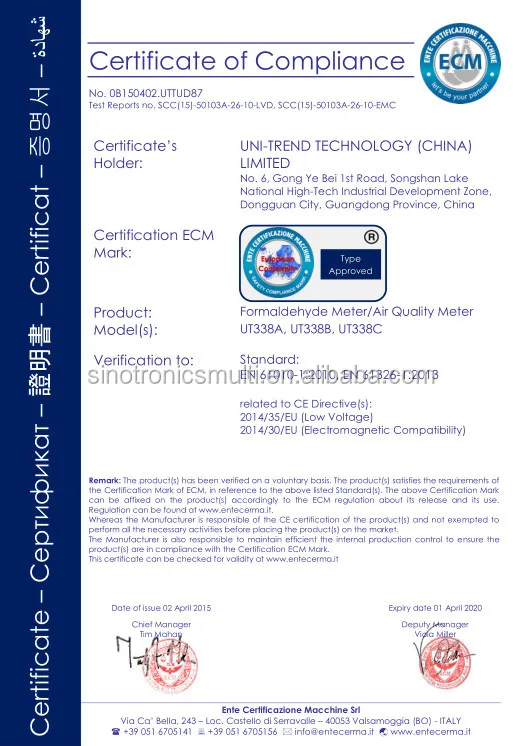

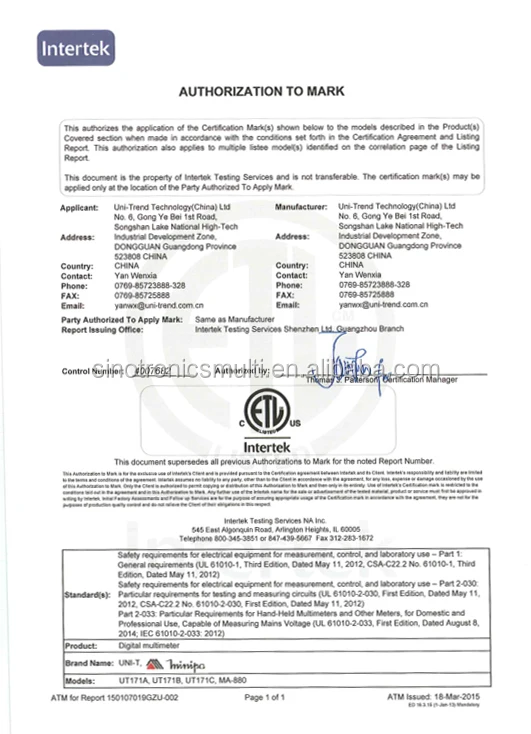

Qualification

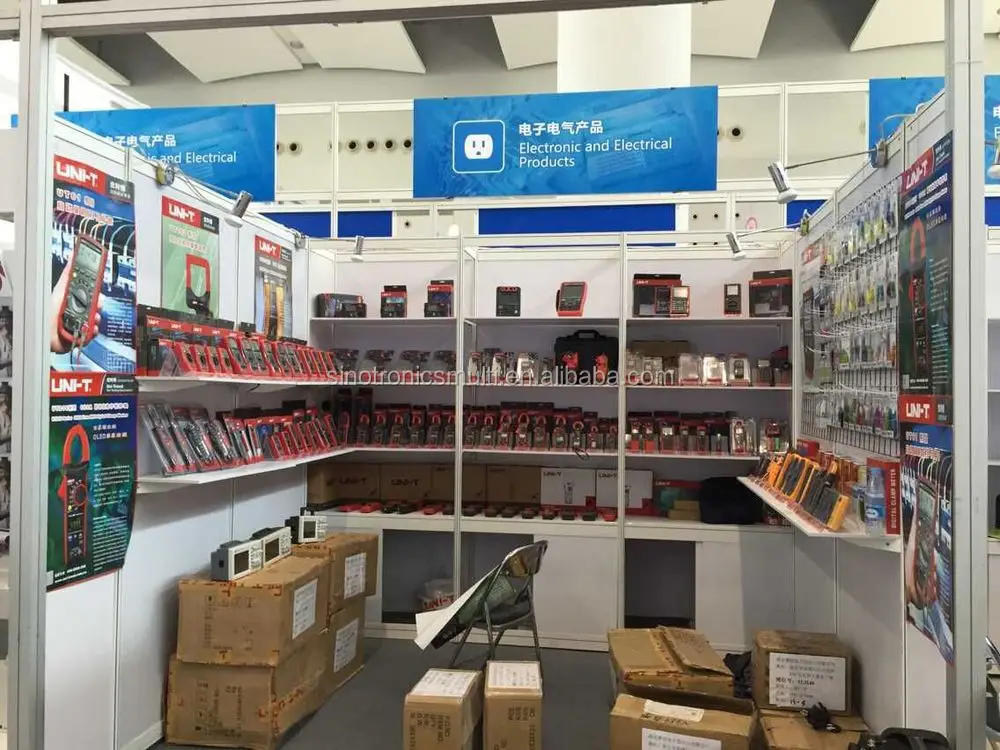

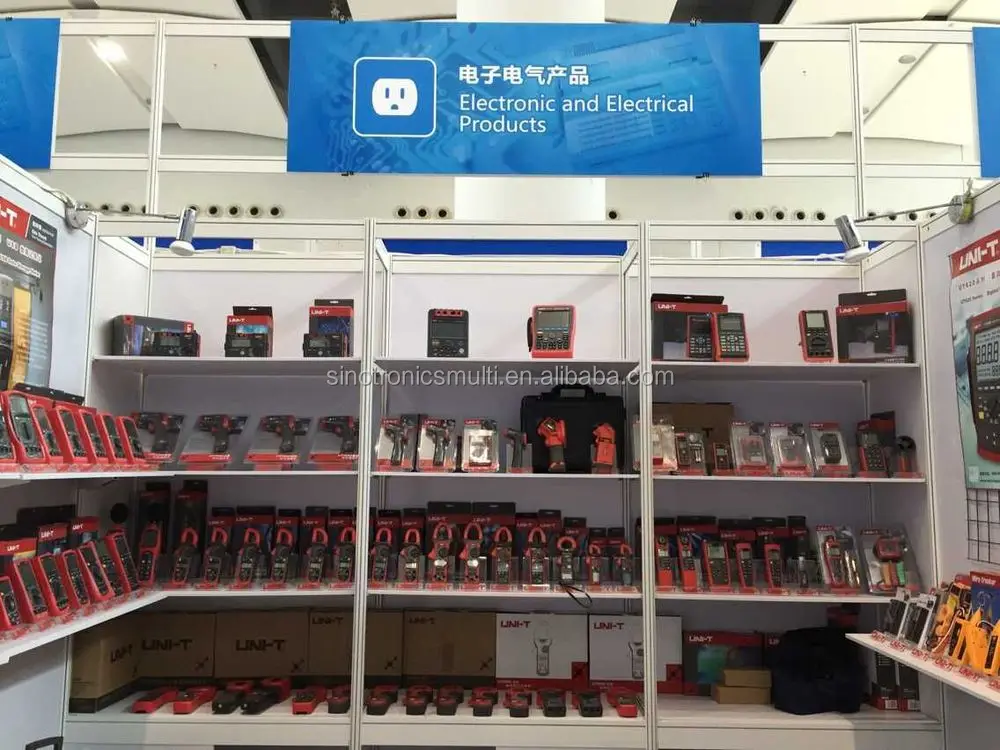

Exhibition photo

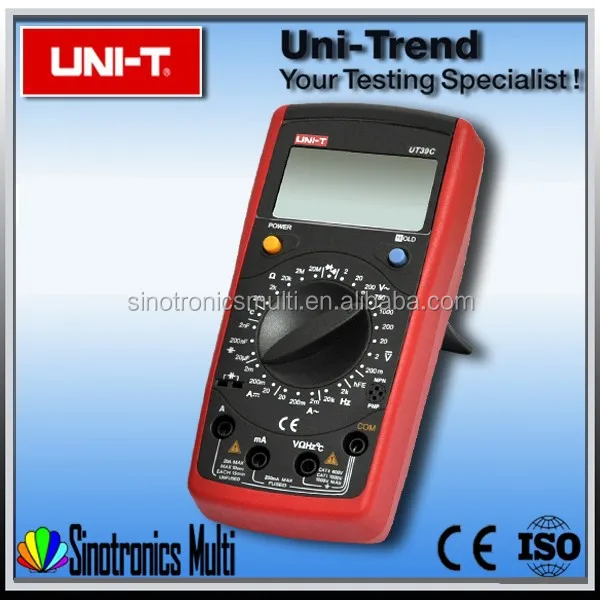

Other excellent prod
