Mini clamp meter UT210E
- 1.00 >=10 units
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| port: | Shenzhen | Supply capacity: | 10000 pieces per month |
| model: | UT210E Mini Clamp Meter, UT210E | brand: | unit |
| Origin: | China | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Product Description

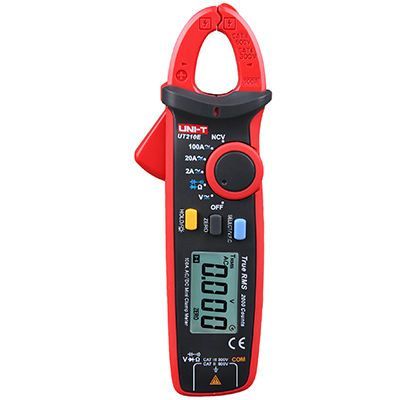

UT210E Mini Clamp Meter
The UT210 Series Mini Clamp Meters are designed to work well in confined space environments. These are essential tools for machining
Electrical equipment repair, appliance installation and electrician duties.
1. VFC, low pass filter
2. NCV
3. Ergonomic and lightweight
4. Automatic range, 2~3 times/second sampling rate
5. True RMS
6. Zero mode
7. LCD backlight, data retention
8. Automatic shutdown, low battery indication
The UT210 Series Mini Clamp Meters are designed to work well in confined space environments. These are essential tools for machining
Electrical equipment repair, appliance installation and electrician duties.
1. VFC, low pass filter
2. NCV
3. Ergonomic and lightweight
4. Automatic range, 2~3 times/second sampling rate
5. True RMS
6. Zero mode
7. LCD backlight, data retention
8. Automatic shutdown, low battery indication
Specification
Specification | scope | UT210A | UT210B | UT210C | UT210D | UT210E | ||||||
AC current (A) | 200A | ±(2.5%+20) | ±(2.5%+20) | ±(2%+10) | ±(2.5%+8) | |||||||
100A | ±(2.5%+5) | |||||||||||
DC current (A) | 200A | ±(2%+3) | ||||||||||
100A | ±(2%+3) | |||||||||||
AC voltage (V) | 600V | ±(1%+3) | ±(1%+3) | ±(1%+3) | ||||||||
DC voltage (V) | 600V | ±(0.7%+3) | ±(0.7%+3) | ±(0.7%+3) | ||||||||
Resistance (Ω) | 20 megohms | ±(1%+2) | ±(1%+2) | ±(1%+2) | ||||||||
Frequency (Hz) | 60kHz | ±(0.1%+4) | ||||||||||
Capacitance (F) | 20 millifarad | ±(4%+5) | ±(4%+5) | ±(4%+5) | ||||||||
temperature | -40~1000℃ | ±(1%+3) | ±(1%+3) | |||||||||
-40~1832°F | ±(1.5%+5) | ±(1.5%+5) | ||||||||||
feature | ||||||||||||
display quantity | 2000 | 2000 | 2000 | 2000 | 2000 | |||||||
On-off buzzer | √ | √ | √ | √ | √ | |||||||
auto range | √ | √ | √ | |||||||||
open jaw | 16mm | 16 mm | 17mm | 17 mm | 17mm | |||||||
Diode test | Around 3.0V | √ | √ | √ | ||||||||
general characteristics | ||||||||||||
strength | 1.5V battery (R03) x 2 | |||||||||||
exhibit | 39.3 mm x 26.5 mm | |||||||||||
Product color | red and gray | |||||||||||
Product Weight | UT210A/B: 150g (including battery); UT210C/D/E: 170g | |||||||||||
Product Size | UT210A/B: 158mm×60mm×33.5mm; UT210C/D/E: 175mm×60mm×33.5mm | |||||||||||
Standard accessories | Battery, test lead (UT210C/UT210D/UT210E), point contact temperature probe (UT210C/UT210D) | |||||||||||
Standard Individual Packaging | Gift box, English manual, handbag (UT210C/UT210D/UT210E) | |||||||||||
Standard quantity per box | 40 | |||||||||||
Standard carton measurement | UT210A/B: 345mm×245mm×300mm; UT210C/D/E: 385mm×345mm×305mm | |||||||||||
Standard carton gross weight | UT210A/B: 8kg; UT210C: 14.8kg; UT210D: 8.2kg; UT210E: 13.6kg | |||||||||||
