VICTOR 610B+ 1000V 1000A 5999 Counting Handheld VFC True RMS NCV Flashlight Digital Clamp Meter

Supplier: Xi'an Beicheng Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Lin Lin
Price: $20.00 / 1 - 999 pieces
$19.00 / 1000 - 2999 pieces
$18.00 / >=3000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Measuring current range:	60A/600A/1000A	place of origin; place of origin:	Shanxi, China
Measuring capacitance range:	4nF	color:	black and orange
Battery:	1.5V*2	Package preview:
Measuring voltage range:	600mV/6V/60V/600V/1000V	Packaging Details:	Outer box size (cm): 4827.541 Packing: 24pcs/box GW: 13KG/box
weight:	About 313g, about 245g	aspect:	2307540mm
Supply capacity:	200000 pieces per month	Display type:	numbers only
exhibit:	5999 count	Standard quantity per box:	24
model:	Victor 610B+	port:	Shenzhen
net worth:	Yes	Measuring resistance range:	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/20MΩ/60MΩ
payment terms:	wire transfer	Measuring inductance range:	40nF/400nF/4uF/40uF/400uF/1mF
brand:	winner	Operation method:	auto range
Operating temperature:	0-40℃	Product Size:	2307540mm

Product Description

Victor 610B+ AC/DC 1000V 1000ADigital Clamp Meter 5999 Count VFC True RMS NCV Live Flashlight Clamp Multimeter

The instrument is a 6000-count, hand-held, auto-ranging, true-rms clamp-on digital meter. circuit

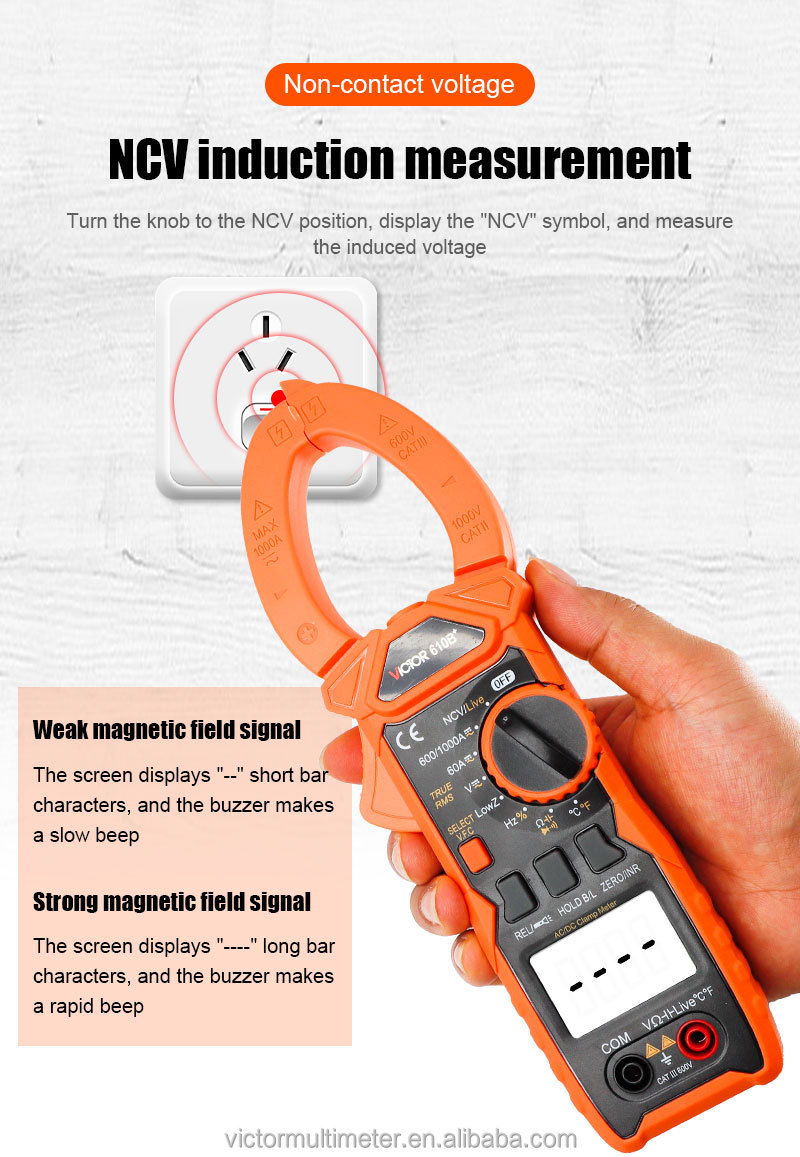

The design of the instrument is based on the large-scale integrated circuit ∑/△ analog-to-digital converter (ADC), and has a full-scale overload protection circuit. It can be used to measure parameters such as AC and DC voltage, low-pass filter VFC voltage, low impedance Low Z voltage, AC and DC current, resistance, diode, continuity test, capacitance, frequency, duty cycle, temperature, etc., and has data hold and relative value Measurement, surge current measurement function, flashlight function, NCV function, fire wire judgment, undervoltage display and automatic shutdown function.

general characteristics
Display: Max. show:5999
Sample rate: approx. 3 times/second.
Polarity indication: automatic negative polarity indication
Over-range indication: LCD display "OL"
Low battery indication: " " appears
Working environment: 0℃～40℃, RH<75%.
Storage environment: -10℃～50℃, RH<80%.
Power supply: (AAA battery) 1.5V×2
Size: 230×75×40mm
Weight: Approx. 313 grams.
Accessories: user manual, battery, probe.

Specification

Model	610B+			610℃+
DC voltage	600mV/6V/60V/600V	±(0.5%+7)	600mV/6V/60V/600V	±(0.5%+7)
DC voltage		1000V	±(1.0%+6)	1000V	±(1.0%+10)
AC voltage	6V/60V	±(1.0%+10)	6V/60V	±(1.0%+10)
AC voltage		600V/750V	±(1.0%+12)	600V/750V	±(1.0%+12)
resist	600Ω/6kΩ/60kΩ/600kΩ/6MΩ	±(1.0%+5)	600Ω/6kΩ/60kΩ/600kΩ/6MΩ	±(1.0%+5)
		20MΩ	±(1.5%+15)	20MΩ	±(1.5%+15)
		60MΩ	±(2.5%+20)	60MΩ	±(2.5%+20)
low impedance	6V/60V	±(1.0%+10)	6V/60V	±(1.0%+10)
low impedance		300V	±(1.0%+12)	300V	±(1.0%+12)

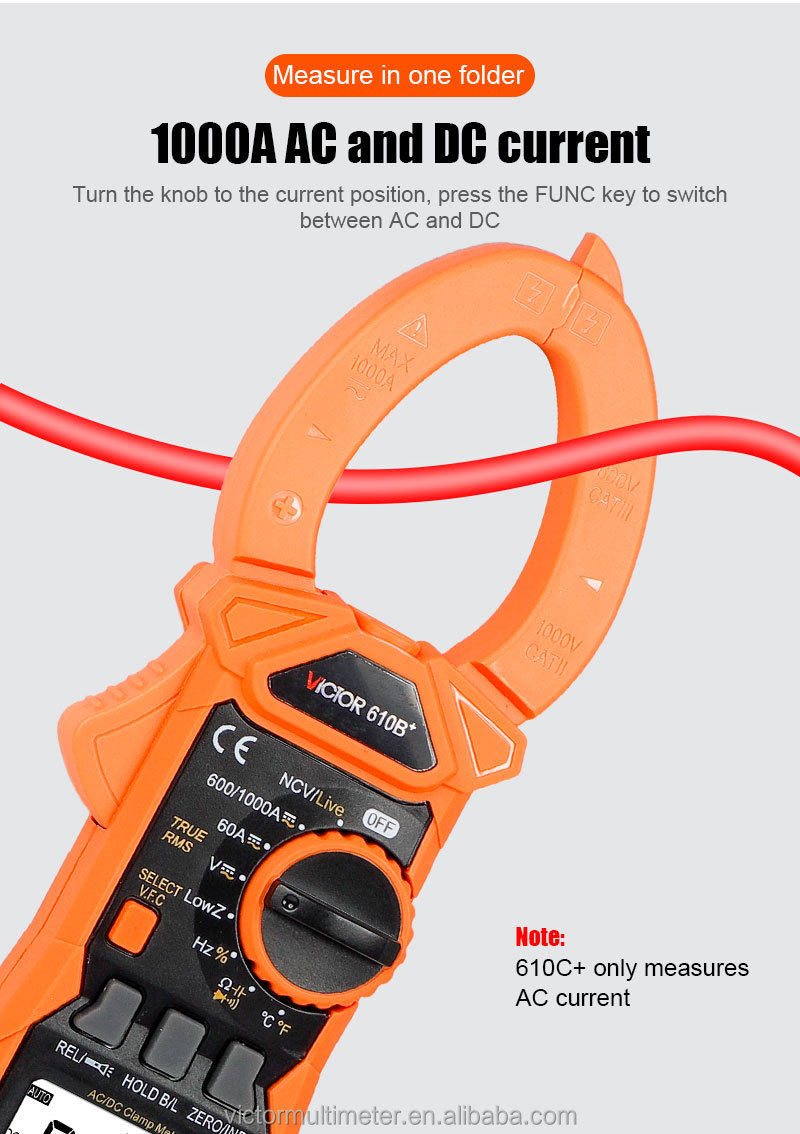

DCA	60A/600A/1000A	±(4.0%+10)	/	/
ACA	60A/600A/1000A	±(4.0%+10)	6A/60A/600A/1000A	±(4.0%+10)
frequency	10Hz~10MHz	±(0.3%+3)	/	/
capacitance	1nF	±(5.0%+40)	/	/
capacitance		10nF/100nF/1uF/10uF/100uF/1mF/10mF	±(5.0%+10)	/	/
temperature	-20℃~1000℃ (-4-1832)℉	±(2.0%+5)	/

Continuity alarm	√	√
data retention	√	√
low voltage display	√	√
Automatic shut-down	√	√
biggest smallest		√

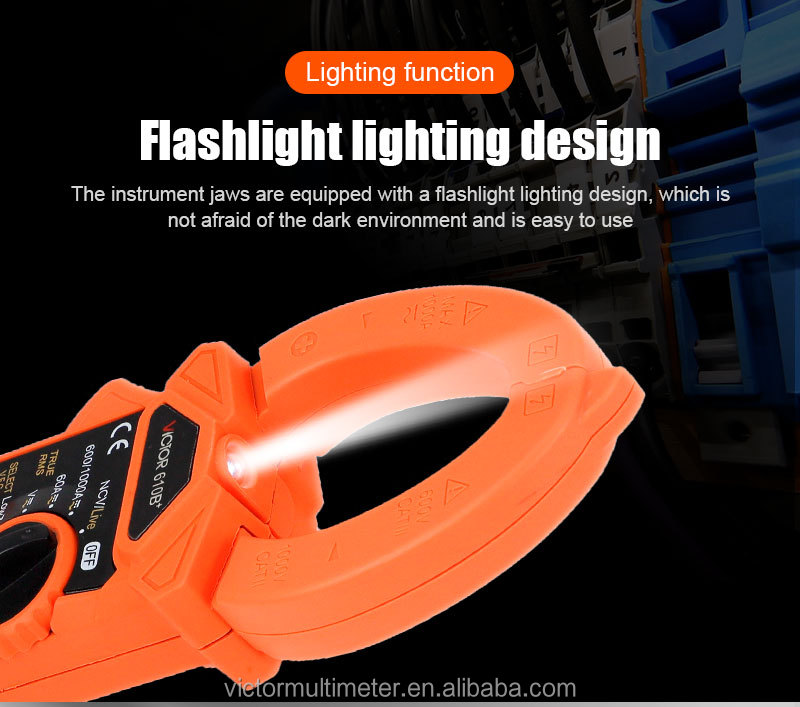

flashlight	√	√
overload protection	√	√

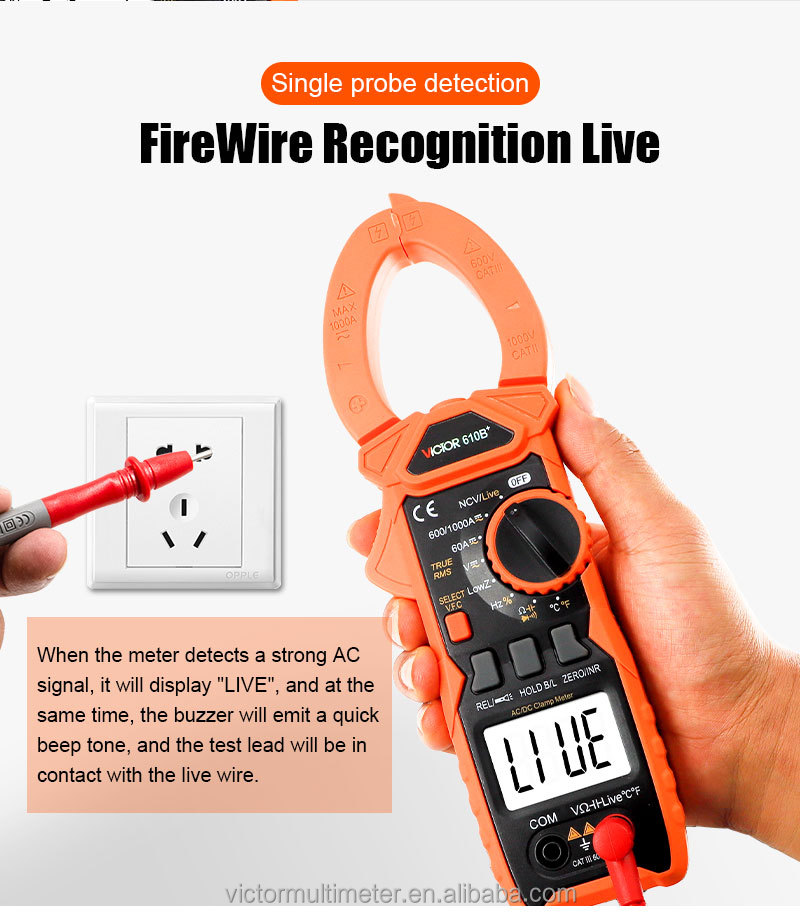

Fire detection	√	√
influx	√

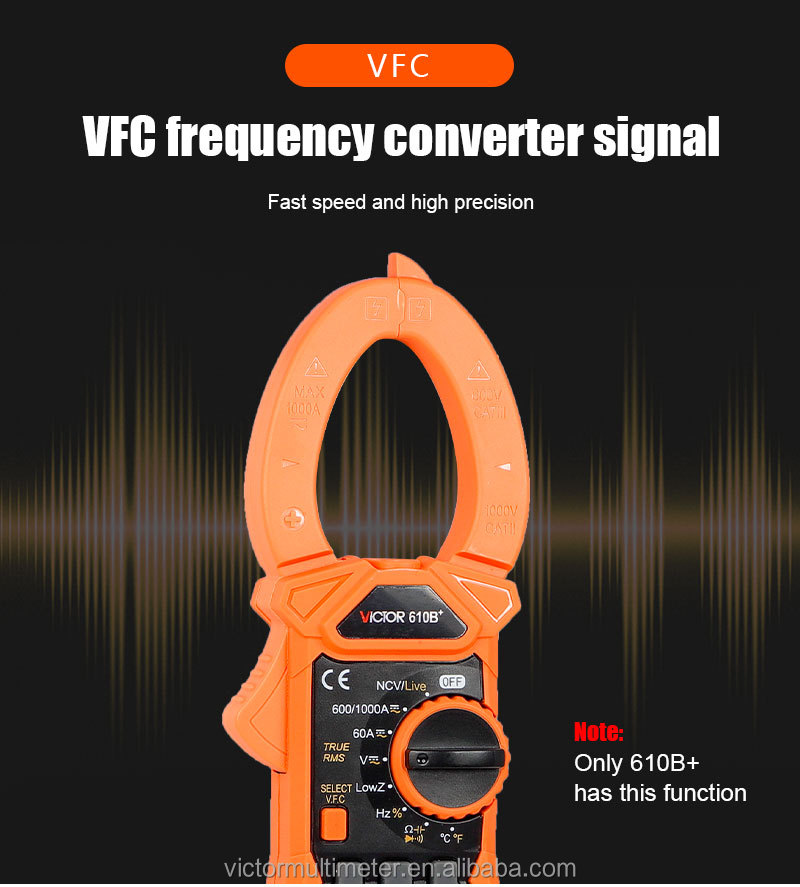

VFC	√
coronavirus	√	√
True RMS	√	√
Automatic shut-down	about 15 minutes	about 15 minutes
exhibit	LCD monitor, max. Display 5999, update 3 times/s	LCD monitor, max. Display 5999, update 3 times/s

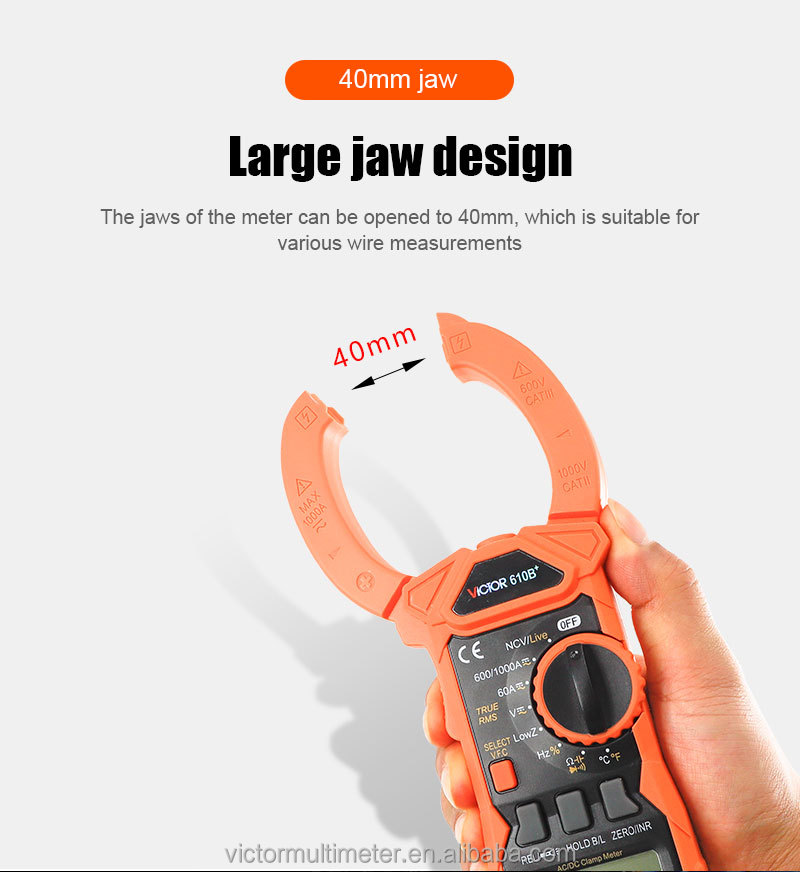

jaw opening	40mm	40mm
polarity indication	Cathode automatic display	Cathode automatic display
overload indication	OL indication on LCD	OL indication on LCD
low battery display	Indicated on the LCD	Indicated on the LCD
Operating temperature	0℃~40℃, less than 80%RH	0℃~40℃, less than 80%RH
Storage temperature	-10℃~50℃, less than 80%RH	-10℃~50℃, less than 80%RH
Battery Type	(AAA size) 1.5V×2	(AAA size) 1.5V×2
size	2307540mm	2307540mm
weight	About 313g	About 313g
