Automatic Resistance Roll Seam Welders for Chimney Welding, Stainless Steel and Carbon Chimney Welders
- 3000.00 set
| port: | Guangzhou | Rated Capacity: | 75KVA |
| Rated duty cycle: | 50% | Welding speed: | 1-8000mm/min |
| Delivery Details: | 2-3 weeks | After-sales service provided: | Engineers available to repair machinery overseas |
| Supply capacity: | 50 sets per month | Weld diameter: | 80-1000mm |
| stroke: | 450 mm | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash |
| color: | blue or customized | Packaging Details: | steel+wood |
| Welding current: | AC or optional DC | model: | FN series |

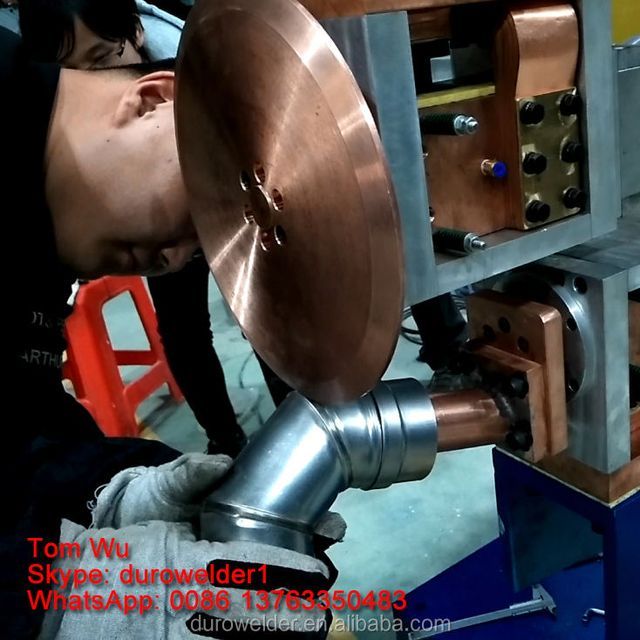

| usage: | Welded curved stainless steel or carbon chimneys | brand: | Douro Welder |
| cooling system: | internal cooling | Primary voltage: | 380V/220V/415V/440V 50Hz |
| Origin: | Guangdong, China | aspect: | 1600*1200*1500 mm |
application:
Widely used in metal manufacturing and processing industries such as hardware, electrical appliances, automobiles, basins, and cans.
For example,
Tank products: Watertight tanks, airtight tanks, fuel tanks, water storage tanks, tank longitudinal seam welding, circumferential seam welding, transverse seam welding, etc.
sink products: Built-in sinks, top-mounted sinks, handmade sinks, etc.
Mesh Products: Fine mesh lap welding, fine mesh filter seam welding, stainless steel filter mesh, wire mesh welding, etc.
steel plate: Metal plate welding, stainless steel plate welding, galvanized plate seam welding, etc.
Welding materials: low carbon steel, stainless steel, galvanized steel, etc.
Welding thickness range: 0.1-2.0mm (single metal plate)
Machine Features:
1. There are two standard models: transverse welded model and longitudinal welded model.
2. One machine can be used for both horizontal seam welding and longitudinal seam welding, only need to change the direction of the upper seam wheel head, and change the lower welding head and welding arm.
3. Drive one head and release the other. Both sewing wheels have the same tangential speed.
The main technical parameters:
thing
Model |
Rated Capacity |
rated primary voltage |
rated frequency |
short circuit current |
Electrode travel |
welding speed |
Electrode pressure |
motor power |
Motor Power |
cool down water flow |
weight | |
kVA | V | hertz | A | mm | m/min | KN | V | watt | l/min | Kilogram | ||
FN-50 | 50 | 380 | 50/60 | 13000 | 50 | 0.6-4 | 2.5 | 3-380V | 90 | 30 | 500 | |
FN-75 | 75 | 380 | 50/60 | 16000 | 50 | 0.6-4 | 3.9 | 3-380V | 150 | 30 | 650 | |
FN-100 | 100 | 380 | 50/60 | l8000 | 50 | 0.6-4 | 4.7 | 3-380V | 150 | 30 | 880 | |
FN-150 | l50 | 380 | 50/60 | 23000 | 50 | 0.6-4 | 6.1 | 3-380V | 150 | 30 | 1050 | |
FN-200 | 200 | 380 | 50/60 | 26000 | 50 | 0.6-4 | 6.1 | 3-380V | 150 | 30 | 1250 |
