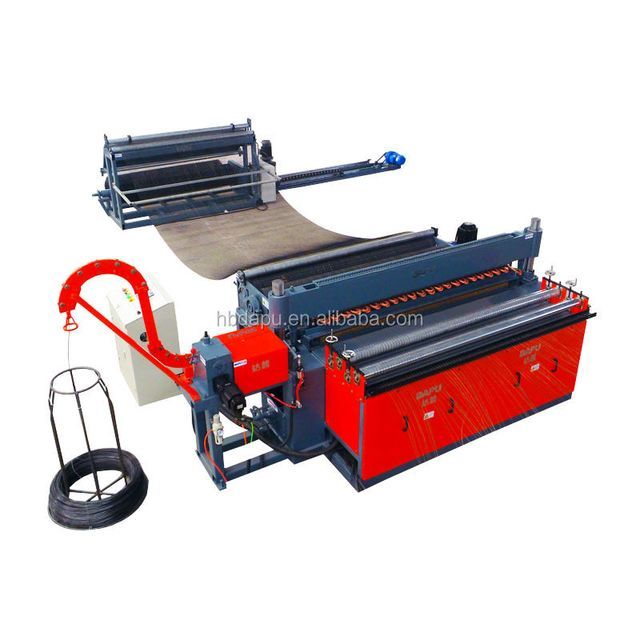

Ordinary self-fur welded mesh machine

Product details
Power (kW):5.5kwShowroom location:India, Mexico, Russia, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan
After warranty service:Video technical support, online support, spare parts, on-site maintenance and repair servicespayment terms:L/C, T/T, Western Union, RMB and Cash
Welding speed:60-180 times/minCertification:CE certification
Applicable industries:Building materials stores, machinery repair shops, manufacturing plants, construction, energy and miningFinished goods:roll net
aspect:3.5*1.6*1.7mRated Capacity:adjustable
port:Xingang, ChinaMain selling points:Patented product
Health status:newPrimary voltage:380V/220V/415V/440V
Warranty:2 yearsMaterial:Galvanized wire, black wire or stainless steel wire
power supply:Minimum 80kwAfter-sales service provided:Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support, video technical support
Control System:PLC+touch screen (DP-DNW-4)Voltage:220V/380V/415V/440V/Customized
Welding type:resistance weldingOrigin:Hebei china
color:customer requestPackaging Details:1. The main engine and auxiliary equipment are packed in plastic, and the spare parts are packed in wooden boxes. 2. The main engine is fixed in the container by wire rope to make it stable.
Weight (kg):3500 kgPackage preview:
Nominal Duty Cycle:adjustableLocal service location:India, Mexico, Russia, Kazakhstan, Kyrgyzstan, Uzbekistan, Tajikistan
Supply capacity:25 sets per monthusage:Electric galvanized wire mesh roll welding machine for construction
brand:oura
describe
describe

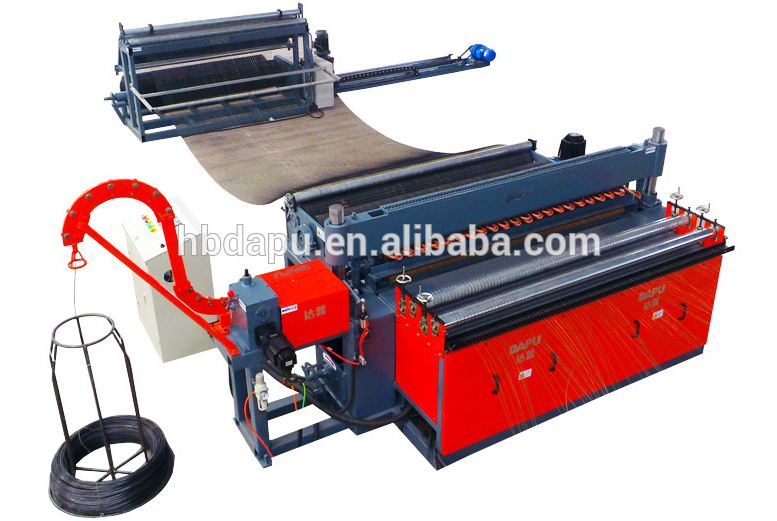

newConventional self-fur welded mesh machineIt is newly designed for larger diameter range and different mesh sizes. The netting system is different from the traditional netting system, it is pulled by a rubber shaft. The mesh size can be any size between 25-200mm.

Technical Parameters
Technical Parameters

ModelDP-DNW-2DP-DNW-3DP-DNW-4
Wire diameter0.65-1.2mm, 0.8-2mm1-2.5mm, 1.3-2.8mm1-3.5mm
line line space1/2", 1", 2"
(12.5mm, 25mm, 50mm)

1",2",3",4",5",6"

(25,50,75,100,125,150mm)

1”-6”

(25mm-150mm)
cross line space1/2", 1", 2"
(12.5mm, 25mm, 50mm)
1/2", 1", 2"
(12.5,25,50,75,100,125mm)

1”-6”

(25mm-150mm)
Mesh width1.2m, 1.5m, 1.8m, 2m
4 feet, 5 feet, 6 feet, 7 feet
1.5m, 1.8m, 2m, 2.5m
5 feet, 6 feet, 7 feet, 8 feet
1.2m, 1.5m, 1.8m, 2m
4 feet, 5 feet, 6 feet, 7 feet
main motor2.2kw, 4kw, 5.5kw5.5kw, 7.5kw5.5kw, 7.5kw
welding transformer60/70kva*4,5,6,7pcs85/100kva*5,6,7,8pcs125kva*4,5,6,7pcs
welding speedMax.120-180 times/minMax.60-100 times/minMax.60-100 times/min
weight2T/2.5T/2.8T/3.2T2.8T/3.2T/3.5T/4T3T, 3.5T, 4T, 4.2T

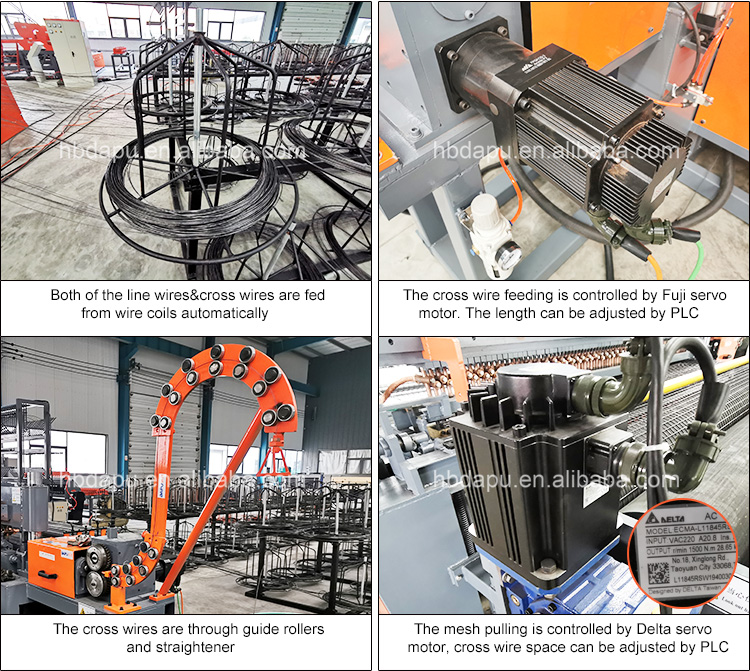

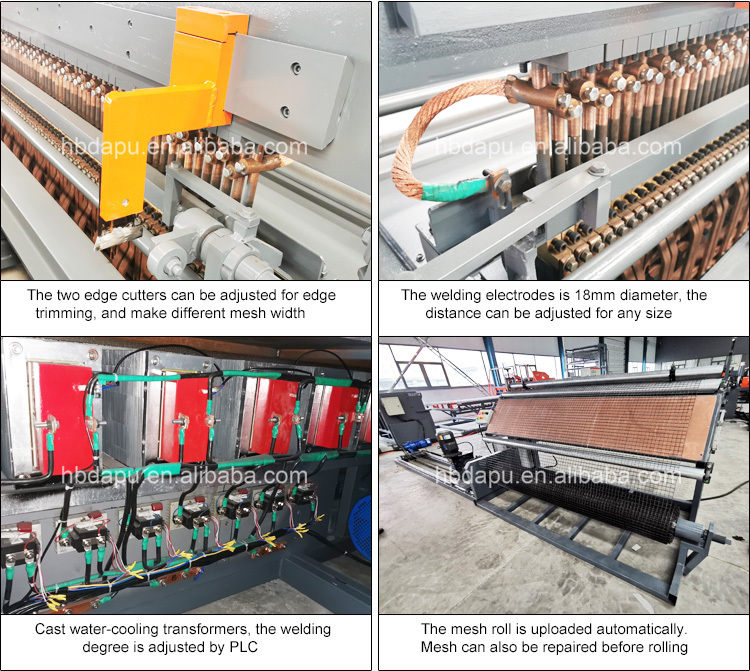

machine advantage
machine advantage

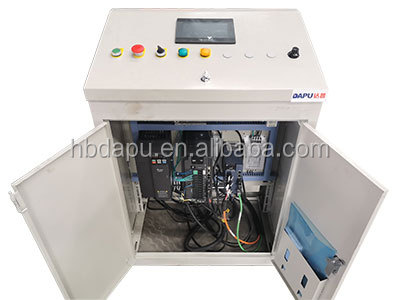

main electrical components
main electrical components




  • Delta (Taiwan) PLC
  • Weinview (Taiwan) touch screen
  • Schneider (France) low-voltage electrical appliances
  • Schneider (France) relay
  • Schneider (France) air switch
  • Mean Well (Taiwan) Power Supply
  • Delta (Taiwan) Inverter
  • Fuji (Japan) servo driver
  • Delta (Taiwan) servo driver

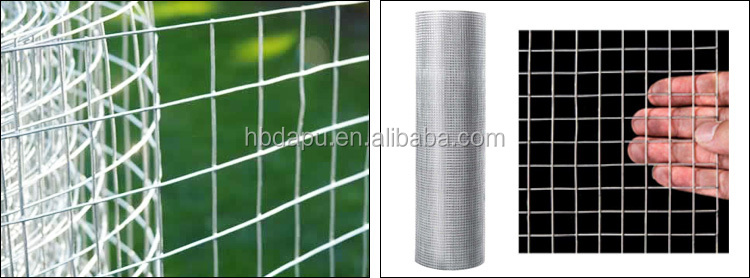

finished product
finished product




load image
load image




After-sales service
After-sales service
