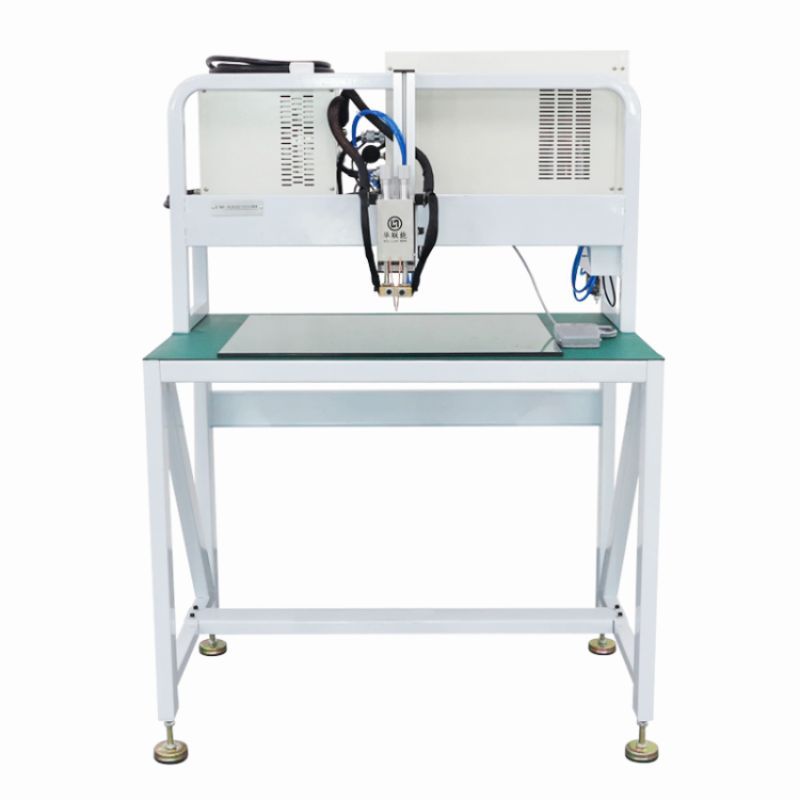

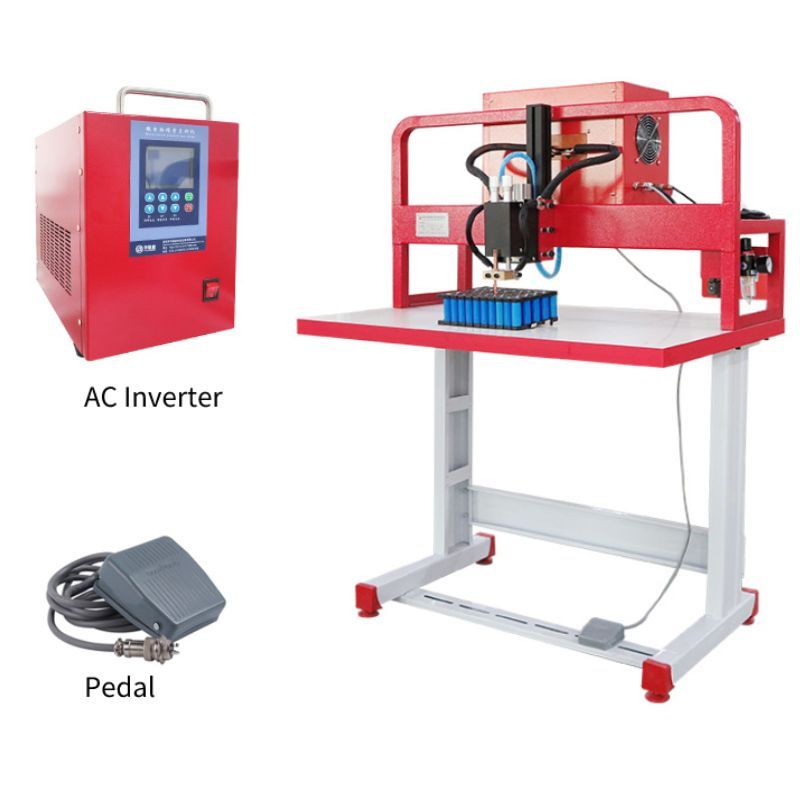

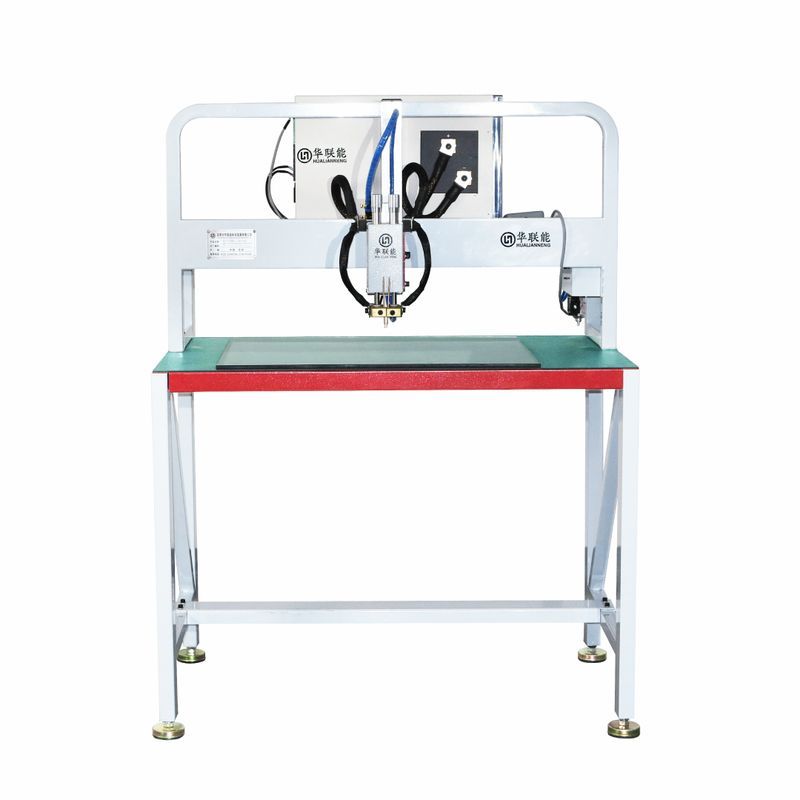

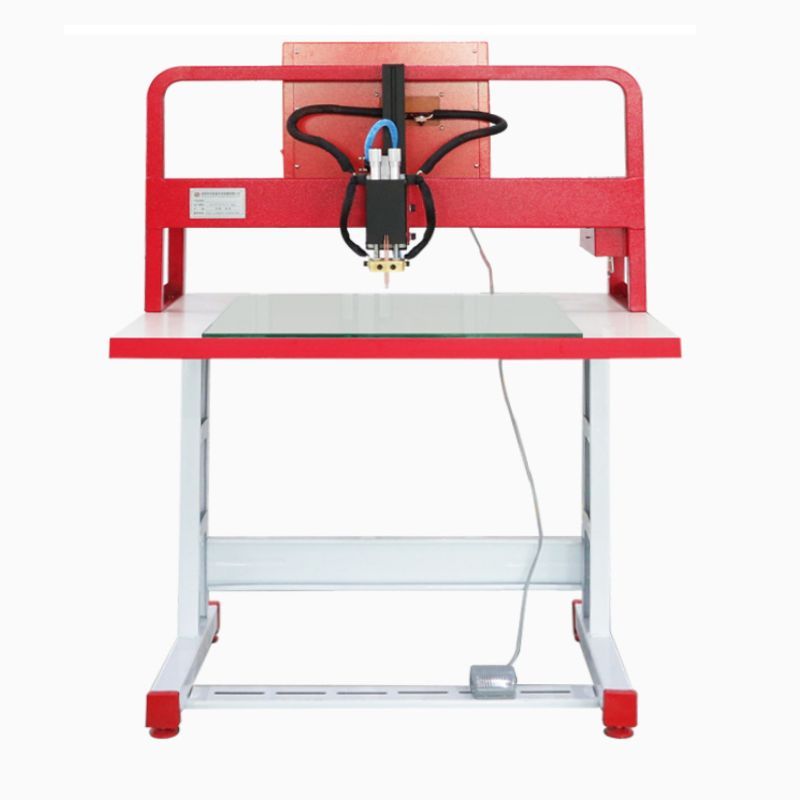

Battery Welding Machine Resistant Welder 18650 21700 26650 32700 Battery Pack Welder

Supplier: Shenzhen Hualianneng Technology Development Co., Ltd
Region: Guangdong, China
Contact: Mr Martin Brady
Price: $1250.00 / 1 - 1 pieces
$800.00 / 2 - 10 pieces
$750.00 / 11 - 100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Double Pulse Spot Welding Machine is the perfect battery tab spot welding system for battery pack rebuilding, assembly and manufacturing.

HLN-LM-JL is mainly used for manully welding the battery and the nickel strip in the cylindrical battery PACK, the welding tension between the cell and the nickel is ≥30N, suitable for spot welding lithium battery for electric motorcycle,electric
car, solar street lighting and electric tools.

The dual pulse feature provides strong, clean, repetitive welds. The first pulse heats the weld surface to eliminate contaminants and to seat the welding electrode tips. The second pulse then performs a strong spot weld. This process is designed specifically for battery pack spot welding.

Item	AC Double Pulse Spot Welding Machine For Lithium Ion Battery Pack AC Spot Welder 18650 Battery Welding Machine
Model	HLN-LM-JL01
Operation Voltage	AC220V±10% 50HZ
Rated Power	≤3000W
Operation Condition	Temperature: 0℃~+50℃,Humidity: below 90%
Welding Stroke	150mm(Adjustable)
Current Range	0-99A(Adjustable)
Nickel Thickness	≤0.2 mm
Compression Method	Pneumatic & Spring
Pneumatic Pressure	0.3-0.5Mpa
Control Mode	Current Control(Adjustable)
Cooling Method	Forced Air Cooling
Actuate Ratio	99%
Weight	70Kg
Dimension	650(L)800(W)1260(H) mm
If you're looking for specification sheet please contact Martin, at wechat/whatsapp +86 18685360482
