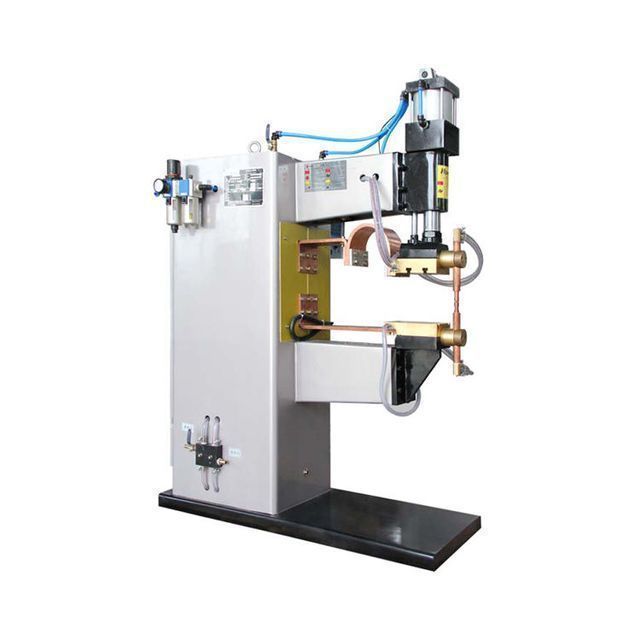

AC high-efficiency intermediate frequency inverter DC spot welding machine/pedal resistance spot welding machine

Supplier: Shanghai Trintfar Intelligent Equipment Co., Ltd.
Region: Shanghai, China
Contact: Mr Trintfar trintfar
Price: $4400.00 / 1 - 99 sets
$1500.00 / >=100 sets
Min. Order: 1 set

Click here to contact

Product details

color:	Customized according to your requirements	Main selling points:	easy to operate
Video shipment inspection:	if	Core component warranty:	3 years
Mechanical test report:	if	usage:	spot welding
aspect:	adjustable	Health status:	new
Weight (kg):	400 kg	Cooling water consumption:	12 l/min
After warranty service:	Video Technical Support	weight:	270Kg-700Kg
port:	Shanghai	Nominal Duty Cycle:	50%
Maximum compression:	12000N	Rated Capacity:	25KVA-400KVA
Showroom location:	not any	Origin:	China Shanghai
product name:	Long arm AC resistance spot welding machine spot welding machine price	Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food & Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy & Mining, Food & Beverage Stores, Other, Advertising company
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Package preview:
Marketing Type:	New Products 2021	Power (watts):	adjustable
Supply capacity:	2000 sets per month	Packaging Details:	wooden box
Electrode travel:	100mm	Core components:	pressure vessel
Warranty:	3 years	Maximum welding input:	450KVA
brand:	Tring Law

Product Description

This type of AC spot welder utilizes general mains electricity to reduce voltage and increase current. This low voltage high current is transmitted from the electrode to the junction of the two workpieces. On the connecting rod, due to the resistance of the workpiece, a high temperature will be generated, so the metal will generate high heat, and the workpiece will be in a molten state. So as to achieve the purpose of welding two workpieces.

feature:

* The one-piece tube cylinder is specially designed to ensure welding stability and speed
* Multi-channel water cooling system ensures the reliability of long-term work.
* Spot and projection welding functions.
* Regulated voltage and current computer control system, multiple discharge (MTD), to meet various work requirements
easy.
* Can weld iron, copper, aluminum

thing Model	DN-25	DN-35	DN-50	DN-75	DN-100	DN-150	DN-200
Rated capacity KVA	25	35	50	75	100	150	200
Rated primary voltage V	380	380	380	380	380	380	380
rated frequency hertz	50/60	50/60	50/60	50/60	50/60	50/60	50/60
welding input kVA	38	54	70	146	216	340	450
Rated duty cycle %	50	50	50	50	50	50	50
Arm length mm	340	380	380	380	380	450	450
maximum compression no	2500	4700	4700	7300	7300	12000	12000
Electrode stroke mm	60	80	80	80	80	100	100
Welding ability Low-carbon steel mm	2.0+2.0	2.5+2.5	3.0+3.0	4.0+4.0	4.5+4.5	5.0+5.0	6.0+6.0
