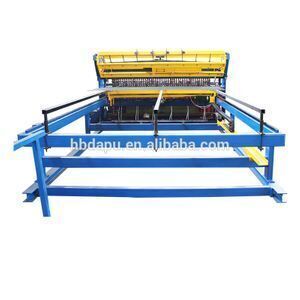

3d fence mesh panel production line

Product details
Rated Capacity:125KVA*6;Wire diameter:2.5-6mm;
Longitude wire space:50-300mm;Rated Duty Cycle:10%;
Usage:fence mesh panel machine;Supply Ability:20 Set/Sets per Month 3d fence mesh panel production line;
Port:Tianjin Port, China;Voltage:220V/380V/415V/440V;
Dimensions:5.4*3.2*1.7m;Warranty:2 Years;
After-sales Service Provided:Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;Place of Origin:Hebei China;
Mesh type:Panel mesh;Cross wire space:Min.25mm/12.5mm;
Warrany:1 year;Primary Voltage:380V/220V/415V/440V;
Brand Name:DAPU;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,cash;
Packaging Detail:1. The main machine and auxiliary equipments will be with plastic package, spare parts in carton box. 2. The main machine will be fixed in the container by steel wire rope to make it stable.;Certificate:CE;

Mesh welding machine series:

Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine etc.

Mesh weaving machine series:

Chain link fence machine, barbed wire machine, razor barbed wire machine,wire drawing machine, expanded metal mesh machine, grassland wire mesh machine, gabion mesh machine, hexagonal wire mesh machine,steel fiber making machine etc.

Main welding machine

 The machine can be ordered according to your wire diameter,mesh hole size and mesh width.





Electric welded wire mesh machine



    Model:DP-DNW

    Wire diameter:0.4-2.8mm

    Line wire pitch:6.25-150mm

    Cross wire pitch:6.25-150mm

    Mesh width:0.9m,1.2m,1.5m,2m,2.5m

    Main motor:2.2kw,4kw,5.5kw,7.5kw

    Welding speed:Max.60-180 times/min

    Welding transformer:60-80kva*3*4*5*7*8pcs

    Weight:2T/2.5T/3T/3.5T/4T/5T

    Mesh type:roll mesh



+


Fence mesh panel welding machine



    Model:DP-FP-2500A/3000A

    Wire diameter:2.5-6mm

    Line wire pitch:50-300mm

    Cross wire pitch:Min.12.7mm

    Welding width:Max.3000mm

    Mesh length:Max.4m

    Welding torch:41/48pcs

    Welding speed:Max.80 times/min

    Welding transformer:150kva*6/10pcs

     Mesh type:panel mesh

+




Welding wire mesh machine in roll



    Model:DP-FP-2500BN

    Wire diameter:2.5-6mm

    Line wire pitch:50-300mm

    Cross wire pitch:Min.50mm

    Welding width:Max.2500mm

    Roll length:Max.100m

    Welding speed:Max.75 times/min

    Welding torch:48pcs

    Welding transformer:150kva*6pcs

    Mesh type:roll mesh

+




Reinforced mesh welding machine



    Model:DP-FP

    Wire diameter:3-12mm

    Line wire pitch:50-300mm

    Cross wire pitch:Min.12.7mm

    Mesh length:Max.12m

    Mesh width:Max.3000mm

    Welding torch:Max.24/30/48/61pcs

    Welding transformer:150kva*6/8/12/15pcs

    Welding speed:Max.80 times/min

    Mesh type:panel mesh

+




Chicken cage welding machine



    Model:DP-AW-1200E/1500E/1600E

    Mesh width:Max.1600mm

    Wire diameter:2.5-3.5mm

    Line wire pitch:50-300mm

    Cross wire pitch:Min.20mm or smaller

    Welding speed:Max.120 times/min

    Welding torch:25/30/32pcs

    Welding transformer:125kva*3/4pcs

    Weight:2.5T/3T/3.2T

    Mesh type:panel mesh/roll mesh

Mesh weaving machine

Wire mesh weaving machine include barbed wire making machine,razor barbed wire machine,chain link fence machine,gabion box machine,hexagonal wire mesh machine,grassland fence mesh machine,expanded metal mesh machine etc.

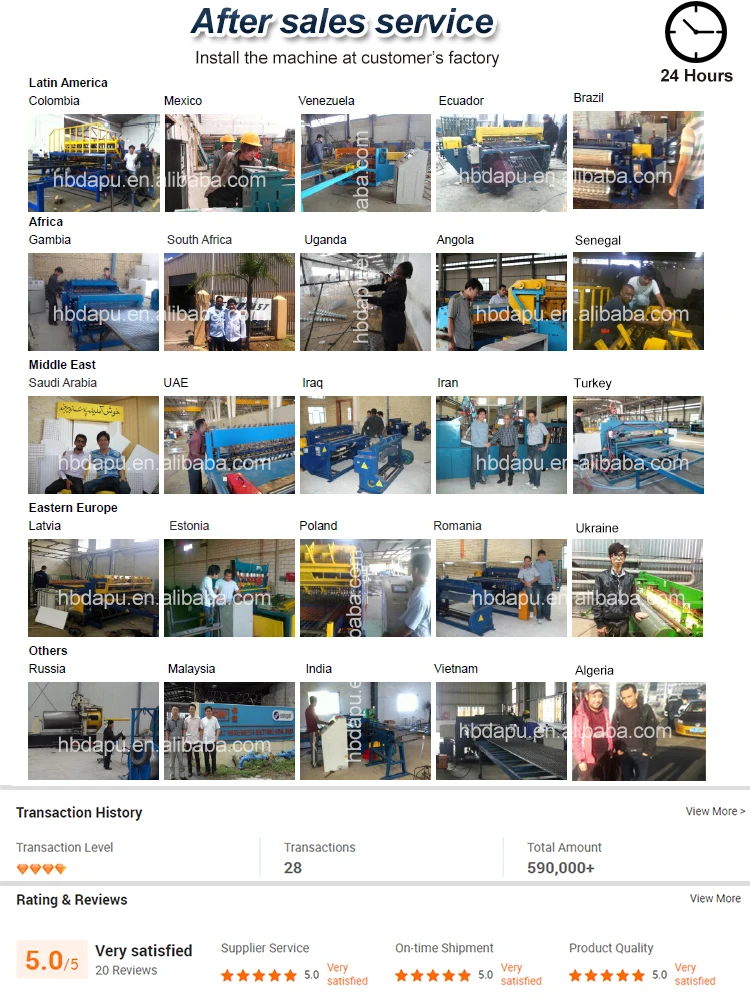

After sales service
Install the machine at customer's  factory

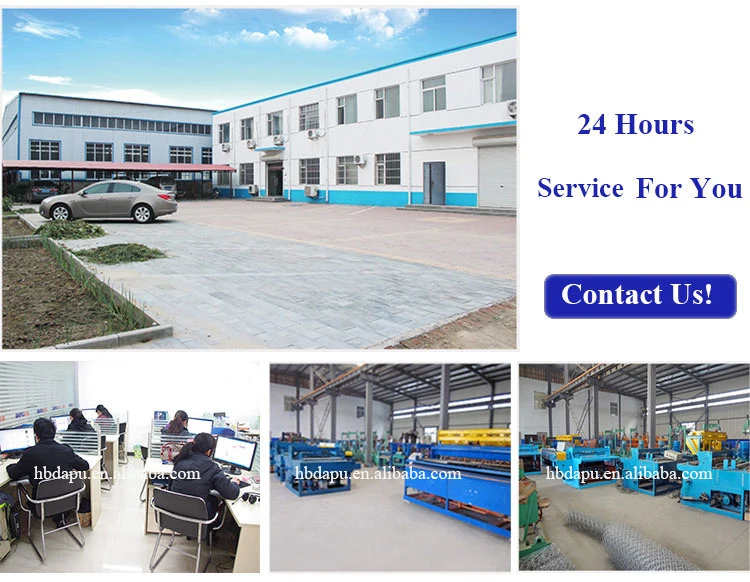

Company Information

FAQ

 Q:Where is your factory located?

A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
QHow many years are your company engaged in the wire mesh machines?
A: More than 25 years. We have our own technology develop department and testing deparment.
QCan your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They are very experienced.
QWhat's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
