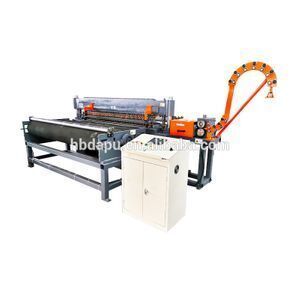

Roll mesh wire mesh making machine for sale

Supplier: Hebei Dapu Import & Export Trade Co., Ltd.
Region: Hebei, China
Contact: Ms Laura Lee
Price: $10800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	DAPU;	Rated Duty Cycle:	10%;
Primary Voltage:	380V/220V/415V/440V 50Hz/Hz;	Applicable Industries:	Hotels,Manufacturing Plant,Food & Beverage Factory,Farms,Home Use,Construction works ;
Packaging Detail:	Roll mesh wire mesh making machine for sale Main welding machine packed with plastic package, electrical cabinet in the wooden case, auxiliary equipment in the container.;	Wire diameter:	0.65-2.5mm;
Color:	Yellow & Blue;	After Warranty Service:	Online support,Spare parts,Field maintenance and repair service;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Cash, RMB payment offline order.;	Place of Origin:	Hebei China;
Transformer:	70kva/80kva/100kva*5/6/7/8;	Weight (KG):	4000 KG;
Local Service Location:	India;	Power supply:	Min. 80kva;
Aperture/pitch:	1", 2", 3", 4" 25, 50, 75, 100mm;	Warranty:	1 year;
Rated Capacity:	60kva4;60kva5, 60kva*7;	Supply Ability:	35 Set/Sets per Month Roll mesh wire mesh making machine for sale;
After-sales Service Provided:	Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Mesh width:	Max. 2.5m;
Pressure mold:	Spring pressure;	Key Selling Points:	Multifunctional;
Showroom Location:	India;	Condition:	New;
Welding speed:	80-180 rows/min;	Dimensions:	CE;
Usage:	welded wire mesh;	Weight:	2T, 2.5T, 3T, 3.5T;
Port:	Xingang port;	Motor:	4kw; 5.5kw;7.5KW;

Description

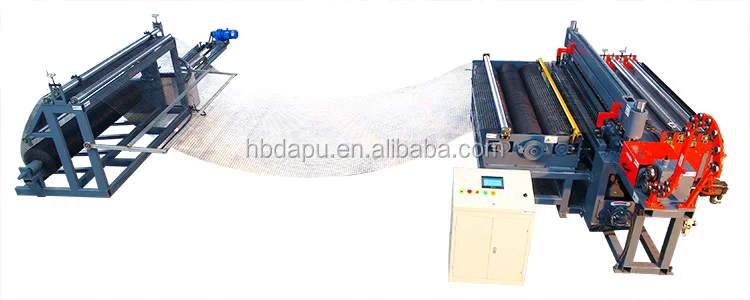

The roll mesh wire mesh making machine with rubber shaft is new designed suit for bigger range of diameter and different mesh hole size. Different from the traditional mesh pulling system. By using rubber shaft pulling, the mesh aperture can be any size among 25-200mm.

Technical Parameters

Model	DP-DNW-2	DP-DNW-3	DP-DNW-4
Wire diameter	0.65-1.2mm,0.8-2mm	1-2.5mm,1.3-2.8mm	1-3.5mm
Line wire space	1/2”, 1”, 2” (12.5mm, 25mm, 50mm)	1”,2”,3”,4”,5”,6” (25,50,75,100,125,150mm)	1”-6” (25mm-150mm)
Cross wire space	1/2”, 1”, 2” (12.5mm, 25mm, 50mm)	1/2”, 1”, 2” (12.5,25,50,75,100,125mm)	1”-6” (25mm-150mm)
Mesh width	1.2m,1.5m,1.8m,2m 4ft,5ft,6ft,7ft	1.5m,1.8m,2m,2.5m 5ft,6ft,7ft,8ft	1.2m,1.5m,1.8m,2m 4ft,5ft,6ft,7ft
Main motor	2.2kw, 4kw, 5.5kw	5.5kw, 7.5kw	5.5kw,7.5kw
Welding transformer	60/70kva*4,5,6,7pcs	85/100kva*5,6,7,8pcs	125kva*4,5,6,7pcs
Welding speed	Max.120-180times/min	Max.60-100 times/min	Max.60-100times/min
Weight	2T/2.5T/2.8T/3.2T	2.8T/3.2T/3.5T/4T	3T,3.5T,4T,4.2T
