automatic hydraulic style Clothes hanger making machine

Supplier: Guangzhou DuroWelder Limited
Region: Guangdong, China
Contact: Ms Kalen Lee
Price: $1.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	wooden box, steel profile structrue box;	Brand Name:	Durowelder;
Delivery Detail:	15 working days;	Port:	Guangzhou, Shengzhen, Hong Kong;
Model Number:	CMF5;	Supply Ability:	50 Set/Sets per Month;
Place of Origin:	Guangdong China;	Key word:	automatic clothes hanger making machine;
Payment Terms:	T/T,Western Union;

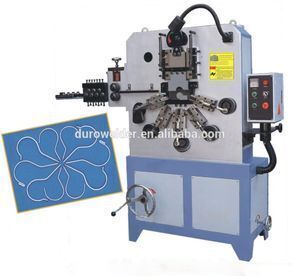

automatic clothes hanger making machine

Automatic Metal Strip and Wire Forming Machine

Equipment Main Characteristics:

1 Automatic Strip & Wire Forming Machine,also named as Wire Bending Machine,mainly used for bending metal wire or metal strip into various 2D or 3D shapes.

2 There are two models:Cam Type and Hydraulic Type.

Cam Type Bending Machine,high speed, high efficiency,are mainly used for bending small diameter wire and thinner strip into various simple shape.

Hydraulic Type Bending Machine,can bend the metal wire and strip into any kind of shape,especially suitable for the big diameter wire and big thickness strip into various two-dimensional(2D) or three-dimensional(3D) sophisticated shape.

3 The whole process is finished automatically, can also be equipped with hole-punching function.

4 Widely used for decorations,light fittings,handicrafts,various of hardware manufacturing and other industries,such as hanger hooks,key chains,refrigerator rack,stainless steel fruit baskets,and other metal wire and strip forming and bending.

Main Technical Parameters:

Equipment Name	Model No.	Wire Diameter	Cross-Sectional Area	Max Machining Length	Production Rate (pcs/min)	Power
Cam Type Metal Forming Machine	CFM3	Φ1-3mm	≤7.0mm2	180mm	40-90	1.1KW
	CFM4	Φ1-4mm	≤12.6mm2	220mm	40-90	1.5KW
	CFM5	Φ1.5-5mm	≤19.6mm2	320mm	30-90	2.2KW
	CFM7	Φ1.5-7mm	≤38.5mm2	400mm	30-90	3.0KW
Hydraulic Type Metal Forming Machine	HFM6	Φ1-6mm	≤T2*W20mm	500mm	20-40	10KW
Hydraulic Type Metal Forming Machine	HFM8	Φ1-8mm	≤T3*W30mm	1000mm	20-30	14KW
