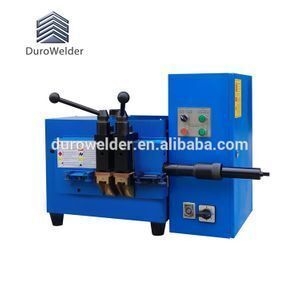

High Quality Band Saw Butt Welding Machine
- 200.00 set
| Can be Customized: | Yes; | Certification: | CE ISO; |
| Brand Name: | DUROWELDER; | After-sales Service Provided: | Video technical support; |
| Usage: | Butt Welding Band Saw and Similar Work piece; | Warranty: | 1 Year; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Packaging Detail: | Wooden Case; |
| Dimensions: | 80*60*70cm; | Power: | 4.5KW; |
| Supply Ability: | 10 Set/Sets per Month; | Current: | none; |
| Condition: | New; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Available welding size: | 50mm saw blade; | Place of Origin: | Guangdong China (Mainland); |
| Input Voltage: | 380V or customized; | Warranty: | One Year; |
| Port: | Guangzhou; |
The machine is designed and produced with independent intellectual property rights for semi-automatic butt welding the band saw blade through further research and innovation according to years of experience and suggestions from the end users basing on the German IDEAL Saw Blade Welding Machine.
The complete set of bandsaw blade butt welding devices includes 1set of Movable Working Table, 1set of Bandsaw Blade Cutting Machine, 1set of Main Butt Welding Machine and 1set of Welding Seam Grinding Machine.
Grinding process
1. BAS-050MM Bandsaw Blade Butt Welder Main Principle and Features
Manual clamping, the motor drives the cam to upsetting and butt welding, then annealing manually.
1. Adopt manual clamping handle device and motorized cam mechanism, no need air source and air compressor, convenient to use.
2. Butt Flash is produced by motorized cam disc.
3. Upsetting force is produced by precisely adjustable spring loaded mechanism.
4. Annealing voltage is freely adjustable and Annealing time can be set from 0 to 10 minutes.
5. Automatic pressure relief during annealing process.
6. Basing on producing request, also can install the water cooling system to the basic and key welding electrodes.
2. Butt Welder Main Technical Parameter
Technical Parameters | BAS-050MM | |
Rated Power at 50% Rated Duty Cycle | 4.5KVA | |
Max Butt Welding Width | Wood-cutting Bandsaw Blade | 3-50mm |
Bi-metal Bandsaw Blade | 3-42mm | |
Tungsten Alloy Bandsaws Blade | 3-42mm | |
Stainless Steel Bandsaw Blade | 4-35mm | |
H.S.S Bandsaw blade | 4-35mm | |
Band knives for leather and foam | 4-50mm | |
Steel Strip | 3-50mm | |
Welder Approx. Weight | 280KG | |
Over Dimension | L:170CM*W:70CM*H:140CM | |
Other Accessories Machines
I. AHE-080MM Series Bandsaw Blade Shearing and Cutting Machine
II. SMH-060MM Series Bandsaw Blade Welding Seam Grinding Machine
III.WT-1200KG Series Movable Working Table
