90mm to 250mm HDPE manual butt welding machine pe pipe hot joint machine

Product details
Core components:motorApplicable industries:Building material stores, manufacturing plants, farms, construction, energy and mining
Marketing Type:New Products 2020aspect:90mm-250mm
brand:weldingcolor:customer request
Heating plate power:2.55KWWarranty:1 year
Heating plate temperature:0~270℃Model:Welding-S250-4
Operating Voltage:220V, 50HzWelding range (mm):90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm
usage:PE pipe weldingCore Components Warranty:2 years
Video external inspection:ifplace of origin; place of origin:Shandong China
delivery time:2-5 daysTotal power:3.45KW
Weight (kg):65kgPackaging Preview:
payment terms:Western Union, D/P, T/T, MoneyGramPower (kW):3.45KW
Main selling point:easy to operatepack:Plywood case
Health status:newShowroom location:not any
port:Shanghai/QingdaoMechanical test report:if
Input voltage:220VPackaging Details:Standard export plywood box or as per your requirements for SHBD 200 Termofusion Hdpe Pipe Fusion Welder
Cutter power:0.9KW
90mm to 250mm HDPE manual butt welding machine pe pipe hot joint machine
Manual manual butt welding machine pipe joint machinehdpe manual welding machine
Product Description
this90mm to 250mm HDPE manual butt welding machine pe pipe hot joint machineIt can weld pipes and pipe fittings made of PE, PP and PVDF, with simple operation and suitable for any complex working conditions. It consists of basic frame, hydraulics, planer, heating plate, planer and heating plate holder and optional parts.
Model
SHBD250
SHBD315
SHBD450
Welding Diameter(mm)
110,125,140,​​160,
180,200,225,250
160,180,200,225,
250,280,315
280,315,355,
400,450
Heating plate temperature
270°C
270°C
270°C
heating plate surface
Temperature (170-250°C)
<±5°C
<±5°C
<±5°C
Pressure adjustment range
0-6.3MPa
0-6.3MPa
0-6.3MPa
Cylindrical cross-sectional area
1100mm2
2000mm2
2237mm2
Operating Voltage
220V, 50Hz
220V, 50Hz
380V, 50Hz
Heating plate power
2.1KW
3.1KW
5.2KW
Milling cutter power
1.36KW
1.36KW
1.5KW
Hydraulic station power supply
0.75KW
0.75KW
1.5KW
total power
4.21KW
5.21KW
8.2KW

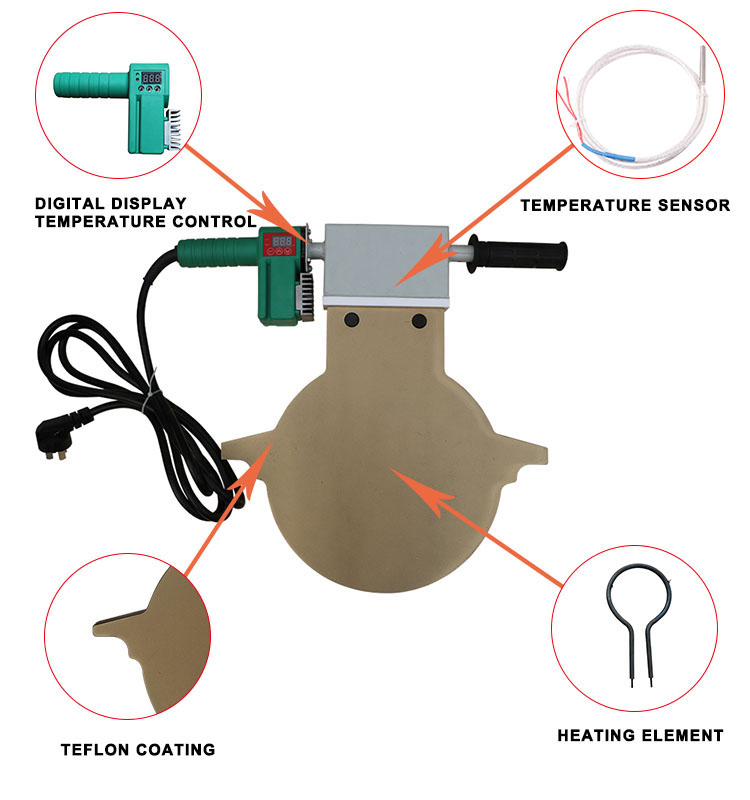

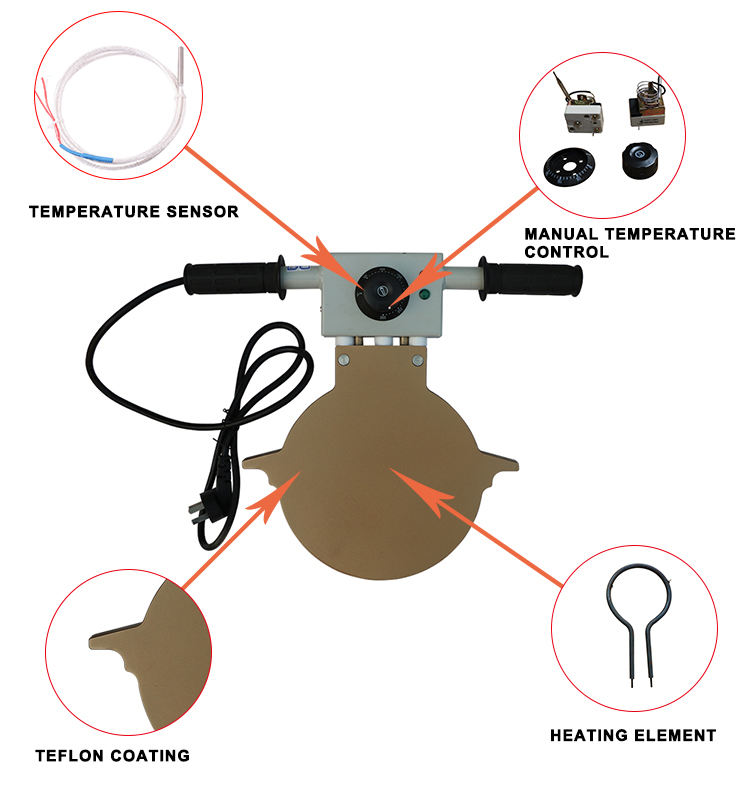

1. Using Teflon coating material imported from Japan, after two coating and three processes.
2. The heating plate is made of solid core and thickened non-stick tube, and the heat transfer is uniform.
3. Compared with other manufacturers, the thickness of the heating plate is increased by 5mm, and the heat storage and thermal conductivity are strong.

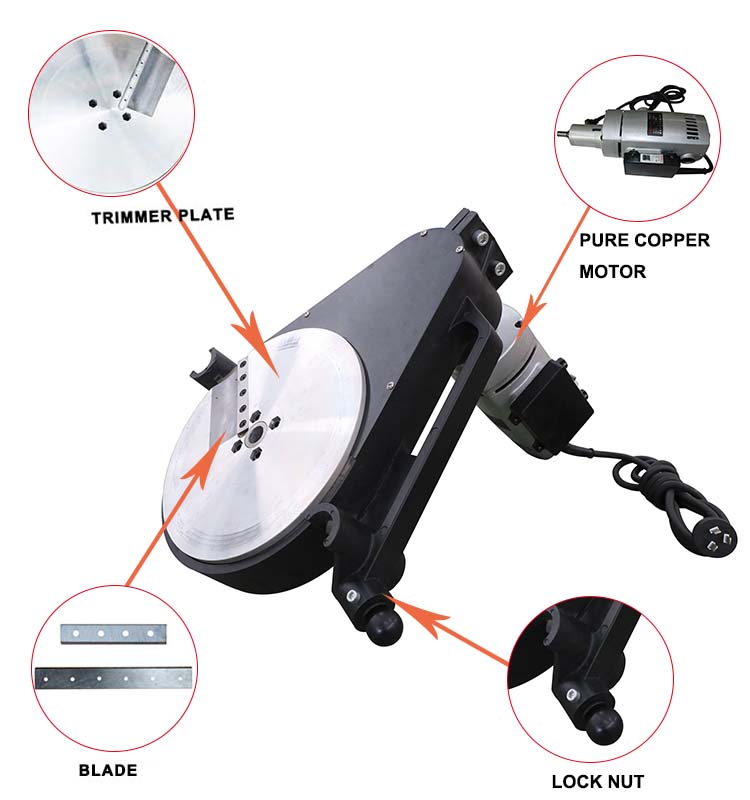

1. High-power milling cutter, mirror cutter head, powerful motor, high concentricity, and stable milling.
2. The milling motor adopts high-power Bosch drill bit, which is strong and does not slip
3. The milling cutter is equipped with a limit switch, which can only be rotated when it is placed in the frame to prevent accidental injury.
WELDS 160 welding machine hdpe pipe 160 joint manual butt welding machine

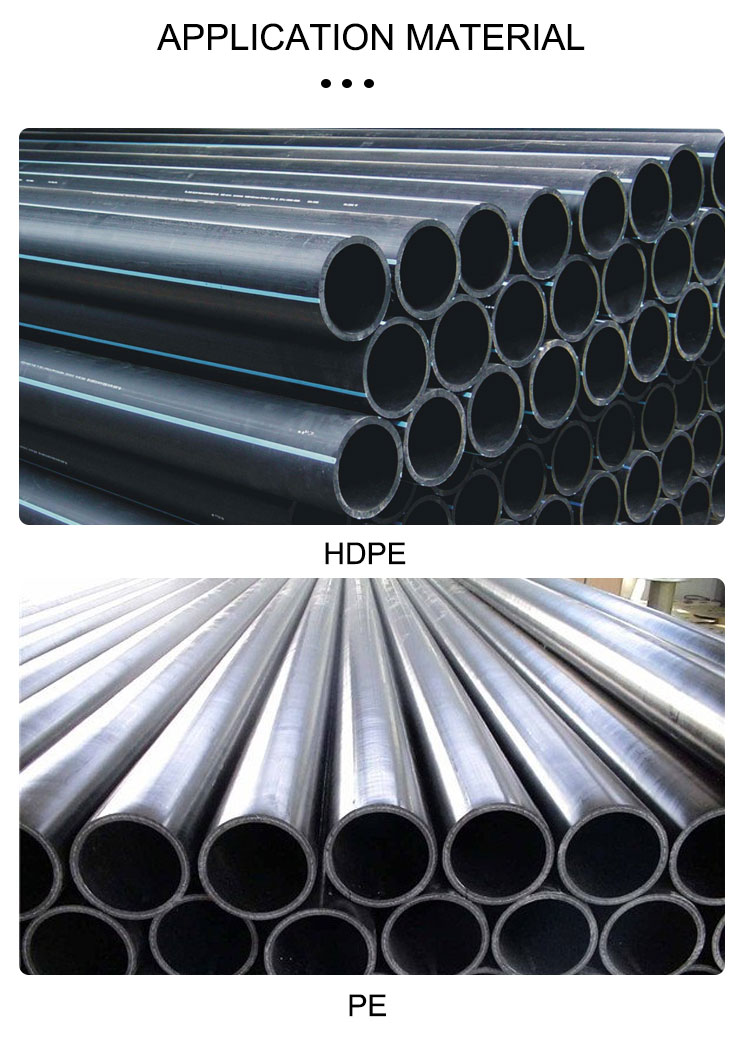

(1) Suitable for welding PE, PP, PVDF and other plastic pipes and fittings. (2) Easy to use (3) The welding position can be changed, which is convenient for welding various pipe fittings.

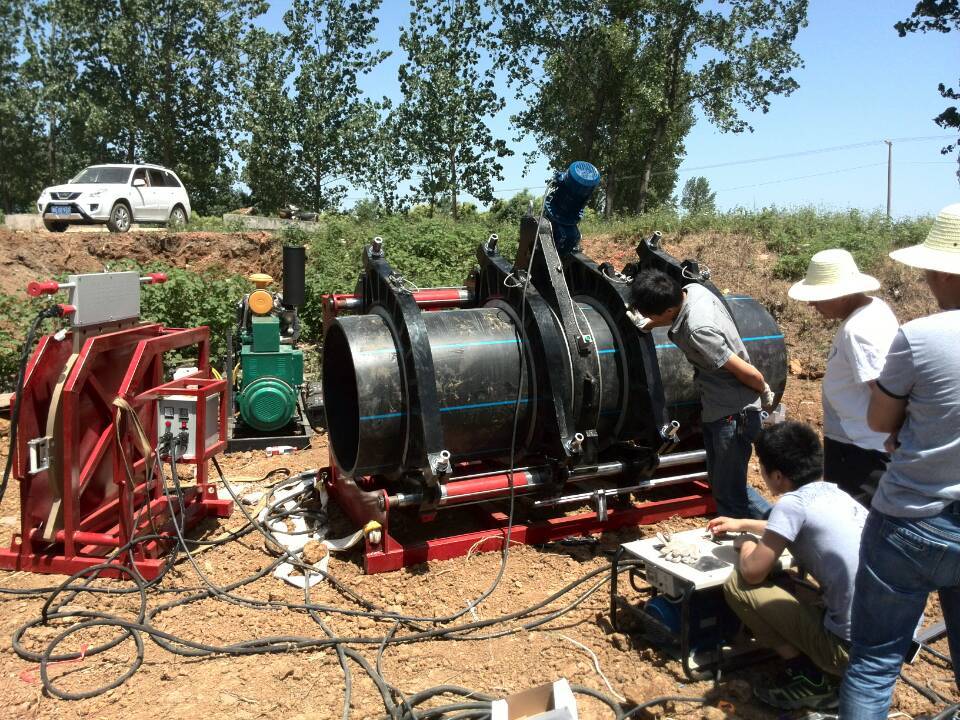

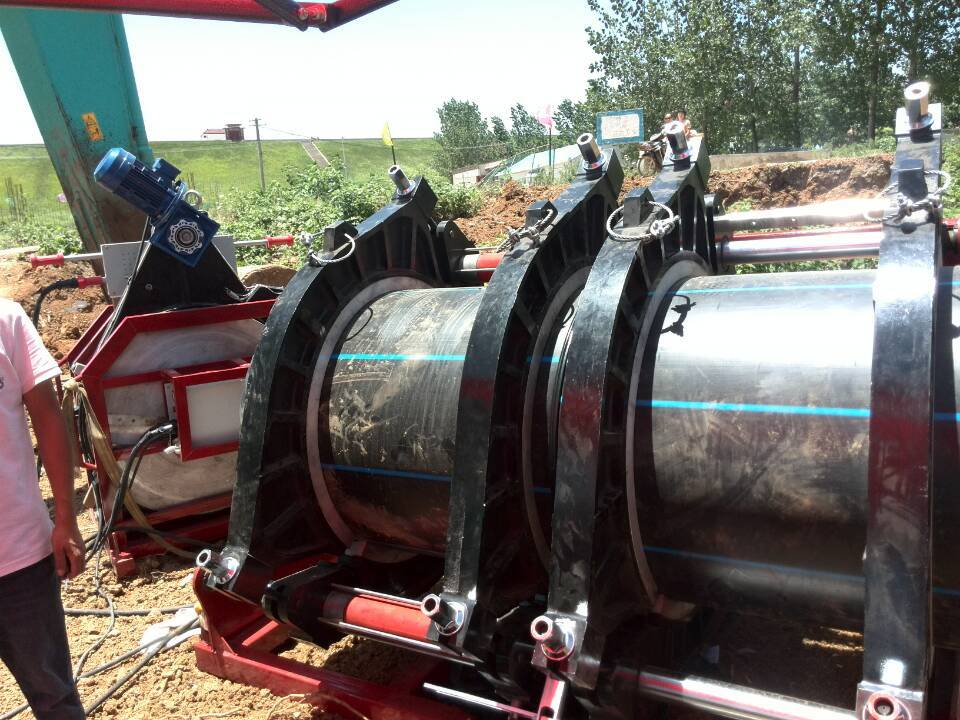

successful project
Southeast Asia Project
Southeast Asia Project
Russian project
1) Advanced Laboratory
2) Mature fusion welding technology
3) Spare parts warehousing quality inspection, inspection during production, whole machine inspection and debugging before leaving the factory.
4) Cooperate with well-known universities, participate in the drafting of GB national standards, provide training for domestic and foreign fusion welding technicians, and support free online video guidance.
5) Sufficient spare parts inventory, short delivery time, within 50 sets, delivery time 7-10 working days, in line with ROHS

(1) CE, SGS, ISO9001 certificate (2) Provide online video technology teaching of fusion welding (3) 2-year warranty (4) Provide customized welding machine
1. Shipping: 3 days after receipt of payment
2. Packing: Standard export plywood box
3: Our machine will be wrapped with plastic film and finally put into a wooden box. This type of packaging avoids easy rusting.
