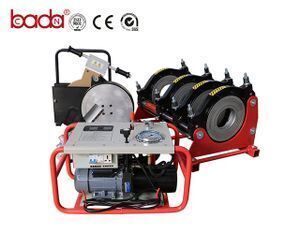

315 pe pipe hot melt hdpe pe butt fusion welding machine for 90mm to 315mm

Product details
Name:pe pipe hot melt hdpe pe butt fusion welding machine;Applicable Industries:Building Material Shops,Manufacturing Plant,Farms,Construction works ,Energy & Mining;
Brand Name:BADA;Marketing Type:Hot Product 2019;
Place of Origin:Shandong China;Local Service Location:none;
Dimensions:160mm~315mm;Input Voltage:220V;
Supply Ability:300 Unit/Units per Month;Certification:CE;
Key Selling Points:Low Maintenance Cost;After-sales Service Provided:Engineers available to service machinery overseas,Online support,Video technical support;
Power (kW):5.21;Weight (KG):272;
Condition:New;Showroom Location:none;
Color:red or blue or other;Current:50Hz;
Payment Terms:L/C,T/T,Western Union;Usage:Welding polyethylene pipe;
Video outgoing-inspection:Provided;Available welding diameter:160mm,180mm,200mm,225mm,250mm,280mm,315mm;
Warranty of core components:1 Year;Core Components:Engine,Motor;
Packaging Detail:standard plywood export boxes or as your request.;Port:Qingdao,China;
Machinery Test Report:Provided;Warranty:One year,1 Year;
After Warranty Service:Video technical support,Online support,Spare parts;

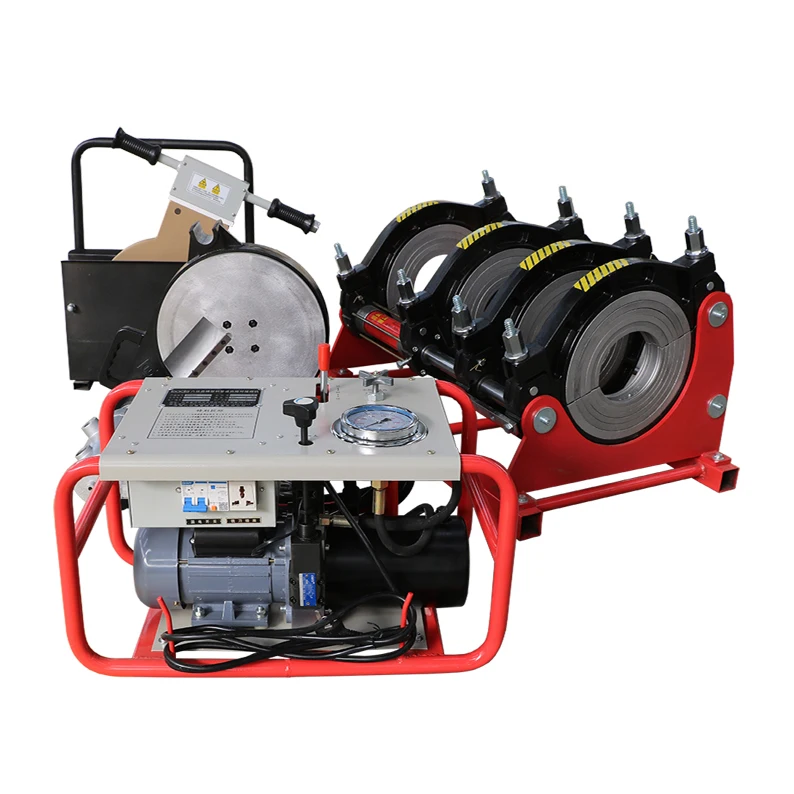

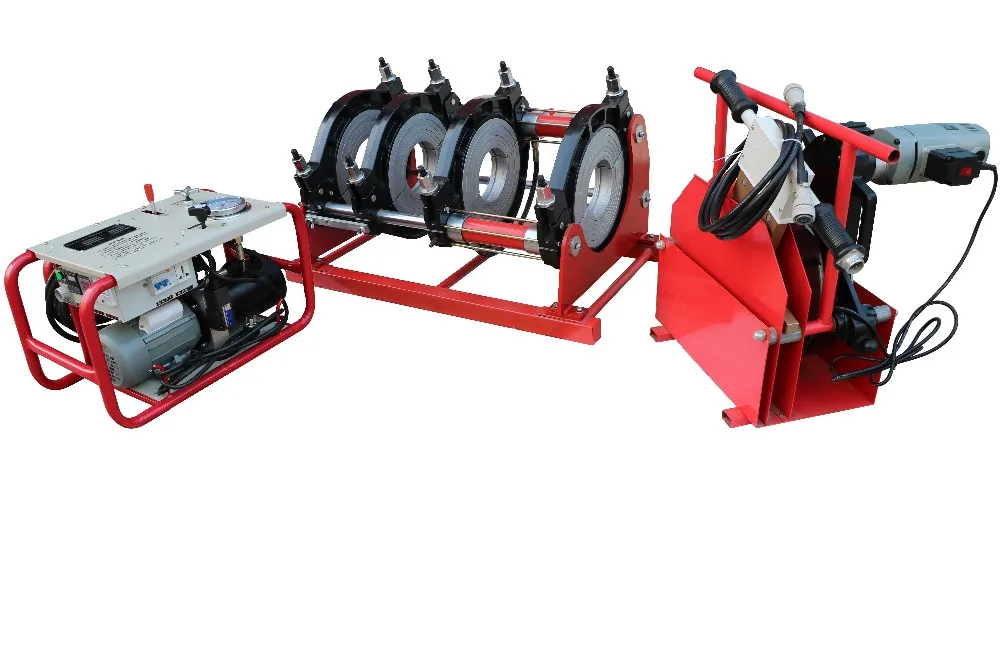

SHBD315 PE pipe hot melt hdpe pe butt fusion welding machine

 315 pe pipe hot melt hdpe pe butt fusion welding machine---Application:



PE pipes welding machine;

HDPE pipes welding machine;

PP pipes welding machine;

PB pipes welding machine;

PVDF pipes welding machine;

any other plastic pipes available for welding... ...



315 pe pipe hot melt hdpe pe butt fusion welding machine---Further parameters:



Model

SHBD250

SHBD315

SHBD450

Welding diameters (mm)

110,125,140,160,
180,200,225,250

160,180,200,225,
250,280,315

280,315,355,

400,450

Heating plate temperature

270°C

270°C

270°C

Heating plate surface
temperature(170-250°C)

<±5°C

<±5°C

<±7°C

Pressure adjustment range

0-6.3MPa

0-6.3MPa

0-6.3MPa

Cross-sectional area of the cylinder

1100mm2

2000mm2

2237mm2

Working Voltage

220V,50Hz

220V,50Hz

380V,50Hz

Heating plate power

2.1KW

3.1KW

5.2KW

Milling cutter power

1.36KW

1.36KW

1.5KW

Hydraulic station power

0.75KW

0.75KW

1.5KW

Total Power

4.21KW

5.21KW

8.2KW





Performance and characteristics

  • Aluminum is the main part of the machine. The standard is ZL104.
  • The main electrical components are imported or domestic best components.
  • The hydraulic seal system adopts imported products. Fast joint adopts flat mouth type, more environmental protection and more durable.
  • The electric heating plate adopts PTFE coating, good stability and independent temperature  control system. temperature difference control to domestic machine minimum range.
  • The milling cutter adopts the strong motor, the special material blade, makes the cutting effect more perfect.
  • The hydraulic station is equipped with accumulator, the valve used is imported product, the machine fixture is wide fixture, the aviation plug is imported, and the frame has a hook design.

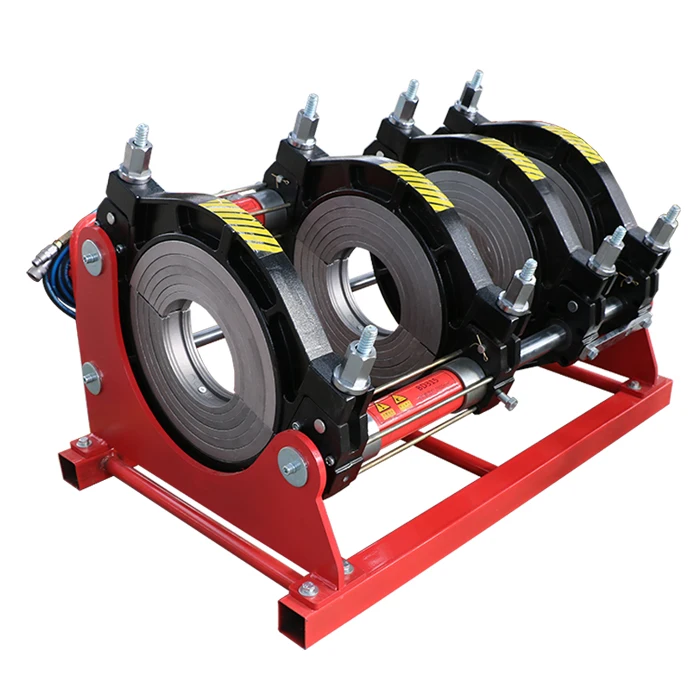

SHBD315 pe pipe hot melt hdpe pe butt fusion welding machine---Frame

SHBD315 pe pipe hot melt hdpe pe butt fusion welding machine---Support

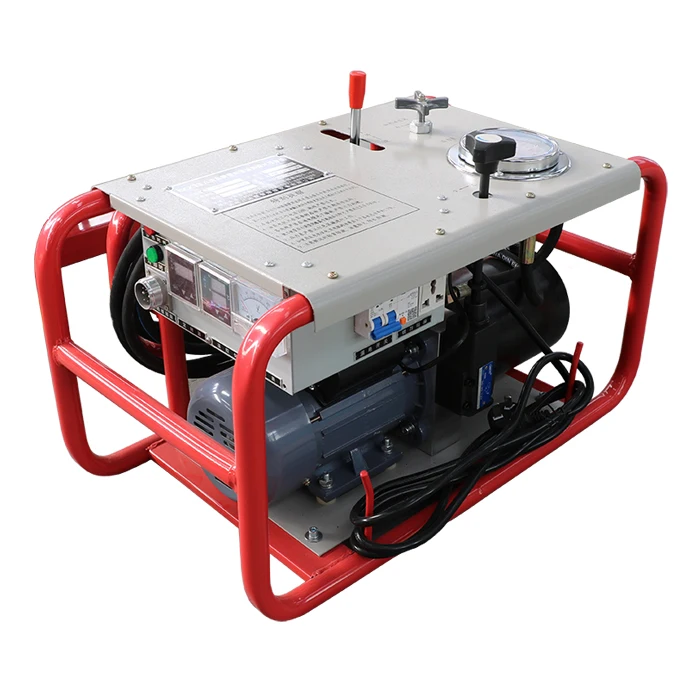

SHBD315 pe pipe hot melt hdpe pe butt fusion welding machine---Hydraulic unit

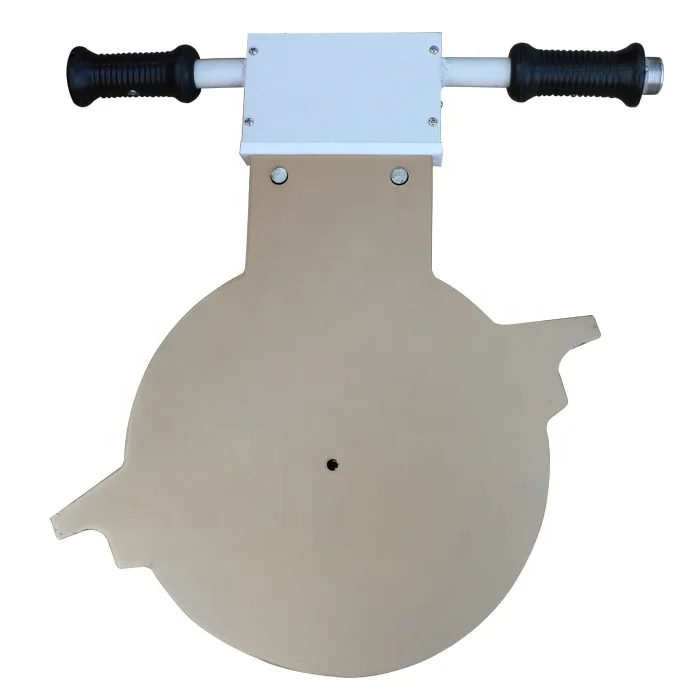

SHBD315 pe pipe hot melt hdpe pe butt fusion welding machine---Heating plate

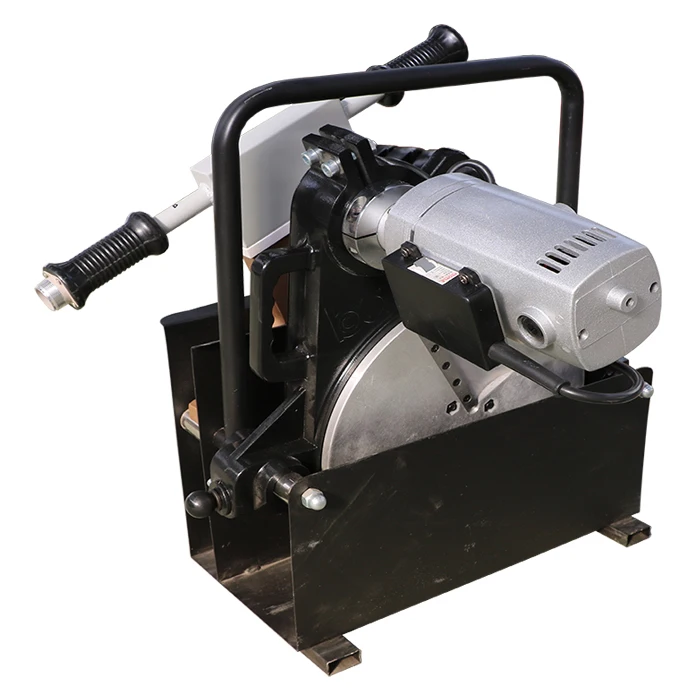

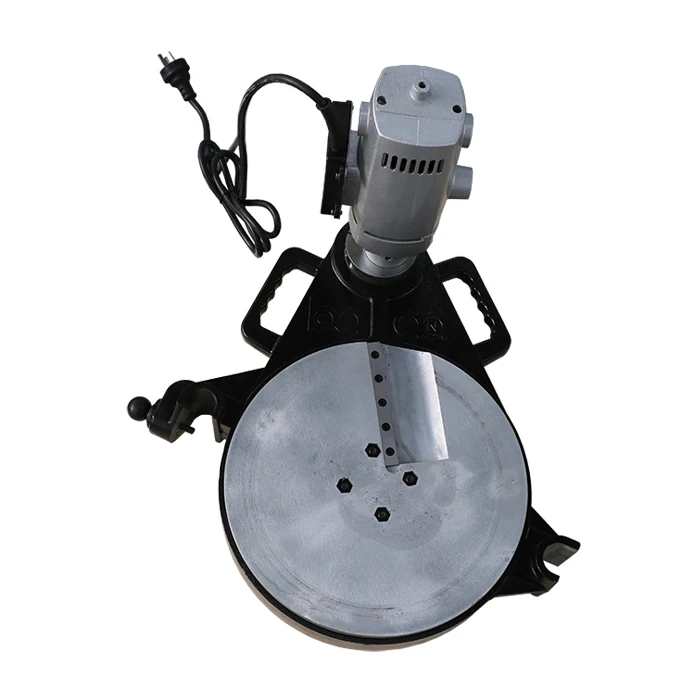

SHBD315 pe pipe hot melt hdpe pe butt fusion welding machine---Milling cutter



Our strengths

  • Electric milling cutter, safety limit switch, prevent milling cutter from accidentally starting.
  • Frame main part is aluminum alloy material ,45°tilt design.
  • Low start pressure, high reliability sealing structure.
  • Welding position can be changed to facilitate the welding of various pipe fittings.
  • Independent dual-channel timer, can record heat absorption and cooling two time periods, timing end alarm, convenient for users.
  • Large dial, high precision shockproof pressure gauge, more clear reading.

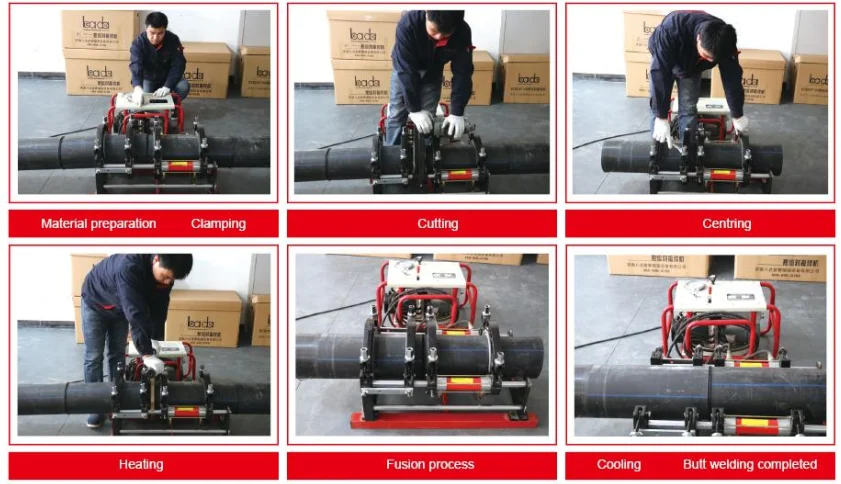

315 pe pipe hot melt hdpe pe butt fusion welding machine---- Operation instruction:



Our Services

 1. One year warranty, life-long maintenance.

 2. In warranty time, if non-artificial reason damaged can take old change new for free. Out of warranty time, we can offer maintenance service(charge for material cost).

3. Engineers available to service machinery overseas.

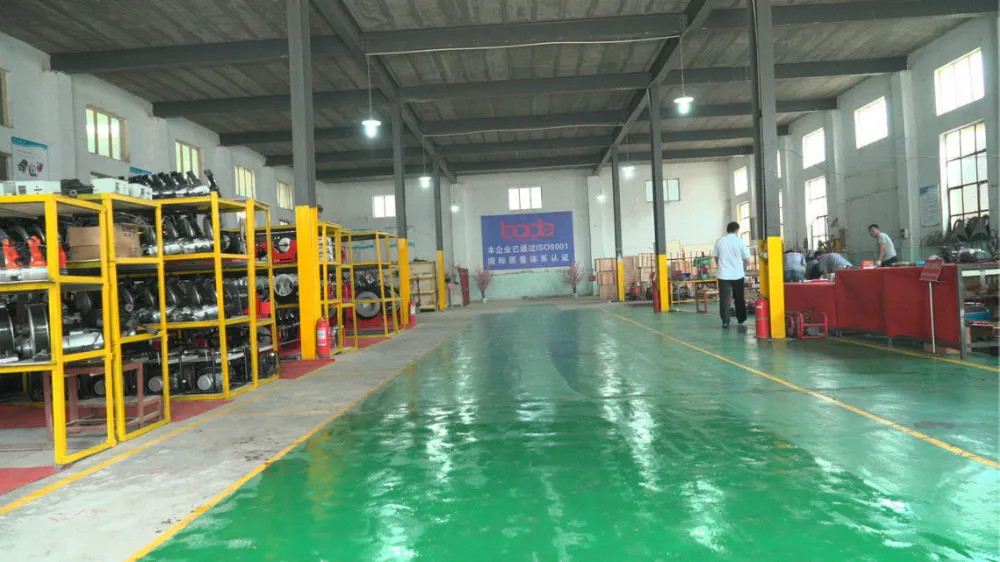

Company Information

Jinan Bada Plastic Pipe Welding Equipment Co.,Ltd is a professional manufacturer specialized in producing and selling BADA brand plastic pipe and pipe fitting welding machine,automatic butt fusion welding machine, pipe fitting welding machine, saddle-shaped taper pipe butt fusion welding machine, plastic pipe multi-angle cutting saw, electrofusion welding machine, portable socket welder, and other pipe auxiliary building machines.

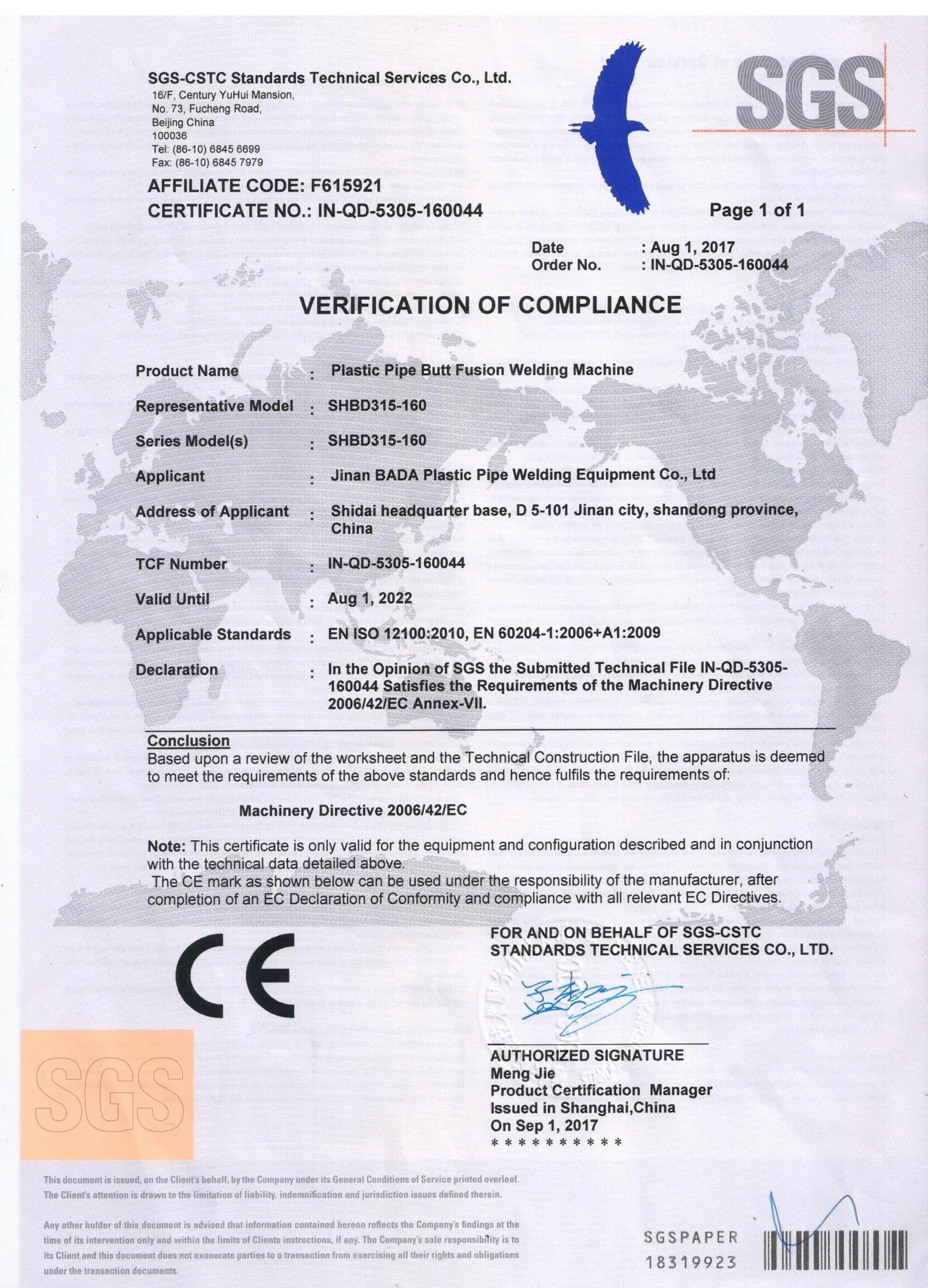

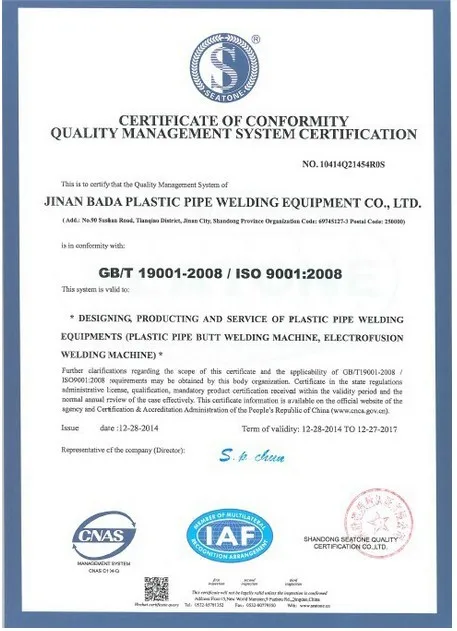

Certifications
