plumbingheat fusion machine Plumbing abutment Hot melting Butt fusion SHBDST160 hand-held poly pipe welders for sale

Product details
The tem difference of the heating plate:±5℃;Delivery Detail:Shipped in 7 days after payment;
Input Voltage:220V;COLOR:Black+red;
Milling cutter power:0.85KW;Current:8.4A;
Usage:Welding plastic pipe;M.G.:58;
After-sales Service Provided:Engineers available to service machinery overseas;Payment Terms:L/C,D/P,T/T,Western Union,MoneyGram;
origin:CHINA;Place of Origin:Shandong China;
Condition:New;Dimensions:78*47*60;
Supply Ability:500 Set/Sets per Month;Operating voltage:220V 50HZ;
Certification:CE ISO;Power:1.85kw;
Brand Name:BADA;Port:Qingdao Port CHINA;
Heating plate power:1.0KW;The tem of the heating plate(℃):0~270℃;
Packaging Detail:standard export plywood boxes or as your request;Welding range:40mm-50mm-63mm-75mm-90mm-110mm-125mm-140mm-160mm;
Volume:78*47*60cm;Model Number:SHBDST160-2;
Product Description

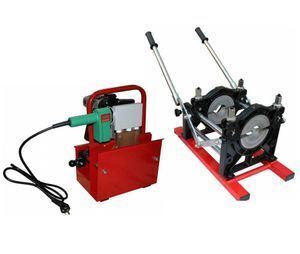

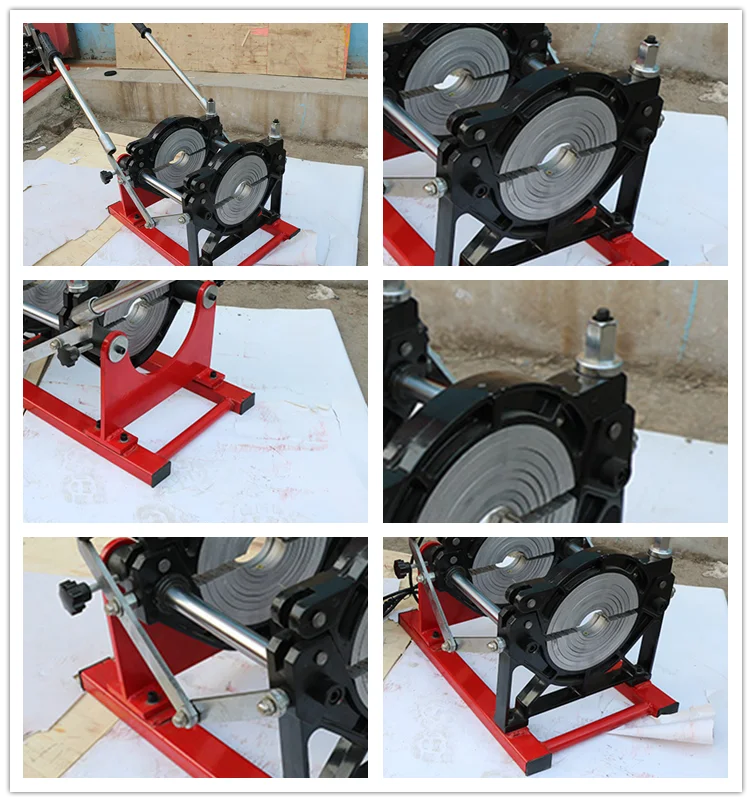

 SHBDS 160-2 MANUAL BUTT FUSION WELDING MACHINE



Manual 160-2 hdpe pipe butt fusion welding machine :


1.apply to hdpe pipe


2. hdpe pipe butt fusion welding machine


3.high efficience



Further parameters:

Model

SHBDST 160-2

Welding range(mm)

40-50-63-75-90-110-125-140-160

Operating voltage

220V  50HZ

The tem of the heating plate(℃)

0~270℃

The heating plate(170-250℃)

±5℃

Heating plate power

1.0KW

Milling cutter power

0.85KW

Total power

1.85KW

M.G.

58

Volume

78*47*60cm



160mm pe hdpe butt fusion welding machine---Our advantages:

1. The raw material of the machine frame is aluminum ZL104, it is light but strong, is one of  the best material for machine.



2. The main electrical apparatus elements are best of china, many are imported from abroads.

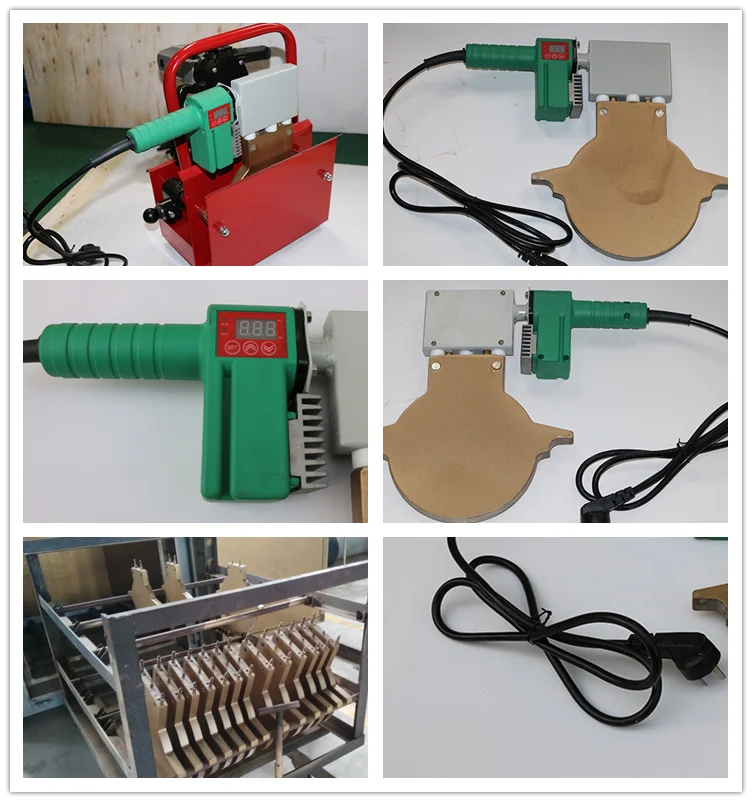

3. Removable PTFE coated heater with separate temperature control system, the temperature can be controlled to a minimum range.



4. The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect.

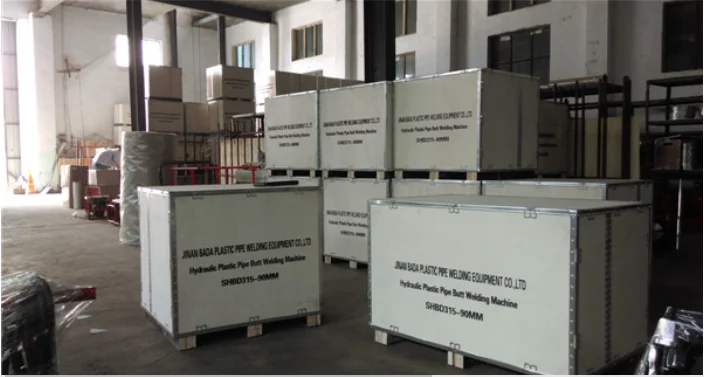

Packaging & Shipping

Our machine will be spread a layer of oil, and then be wraped by plastic film, put into a wooden box at last. This type of packages is avoid getting rusty easily.















Our Services

 1. One year warranty, life-long maintenance.



 2. In warranty time, if nonartificial reason damaged can take old change new for free. Out of warranty time, we can offer maintenance service (charge for material cost).



 3.Engineers available to service machinery overseas but all the costs to the buyer to pay.

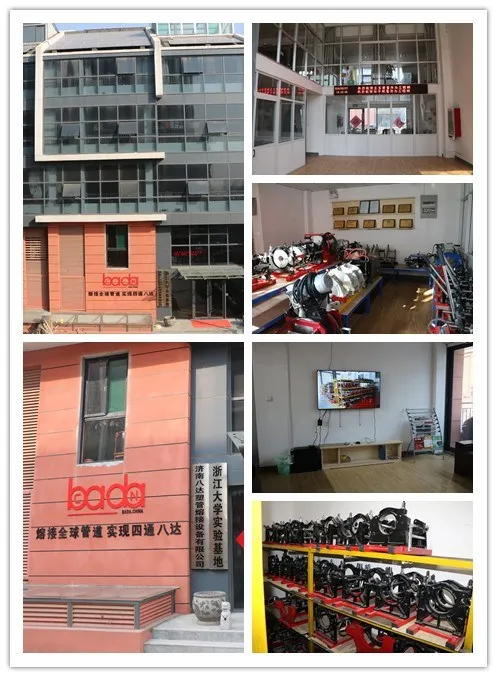

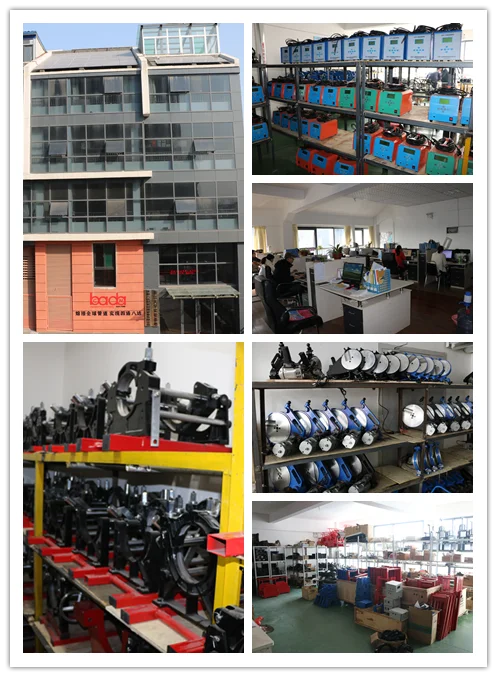

Company Information

Jinan Bada Plastic Pipe Welding Equipment Co.,Ltd is located in Jinan city, which is the capital of Shandong province. It is a professional manufacturer for hot melt machine producing. The main products are Bada series butt fusion welding machine, automatic butt fusion welding machine, pipe fitting welding machine, saddle-shaped taper pipe butt fusion welding machine,plastic pipe multi-angle cutting saw, PPR socket welder and other auxiliary building machines.

We have the most advanced technology and producing experience. The products have passed the ISO9001 quality system certification and CE certification.
