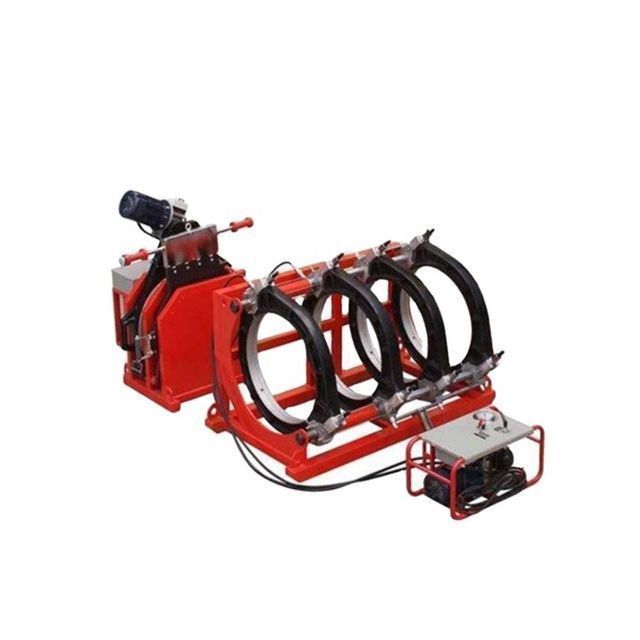

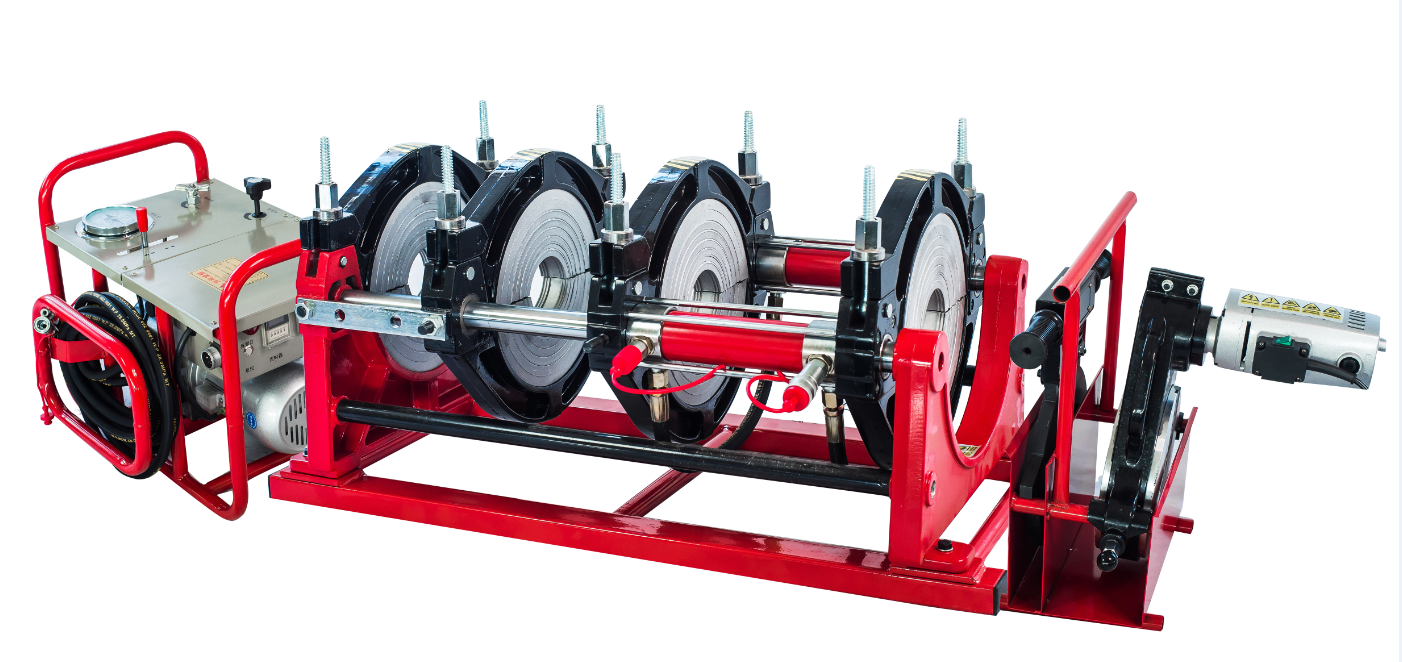

HDPE pipe poly plastic Thermofusion PE 90-315mm hdpe butt welding heat welding machine

Product details
Input voltage:220/380VApplicable industries:Building supplies stores, construction work, energy and mining
Origin:henCore component warranty:1 year
Weight (kg):210 kgpayment terms:L/C, Western Union, T/T
port:any port in chinaWelding range:63-1200mm
Operating Voltage:220V/380V 50/60HZCore components:hydraulic device
After warranty service:one yearMarketing Type:New Products 2021
Showroom location:not anyHeating plate temperature:0~270
pack:wooden boxPower (kW):4.95
Video shipment inspection:ifcolor:Red
Welding method:Hydraulic butt welding machineHealth status:new
product name:PE pipe welding fusion machinePackaging Details:wooden box
usage:pipe weldMechanical test report:if
brand:jsapplication:HDPE PE PPR PVDF welding
Main selling points:long lastingAfter-sales service provided:online support
Warranty:1 year
Model
JS315
Welding range (mm)
160-315mm
Heating plate maximum temperature
300℃
Surface temperature deviation (170-250)
±5℃
Maximum Tolerance for Welded Connections
0.3mm
Operating Voltage
220V
strength
Simplex
working frequency
50-60 Hz
Heating plate power/voltage
3KW
Planning Tool Motor Power/Voltage
1.2KW
Hydraulic unit power/voltage
0.75KW
gross weight
190 kg
net weight
150 kg
total volume
0.72 cubic meters

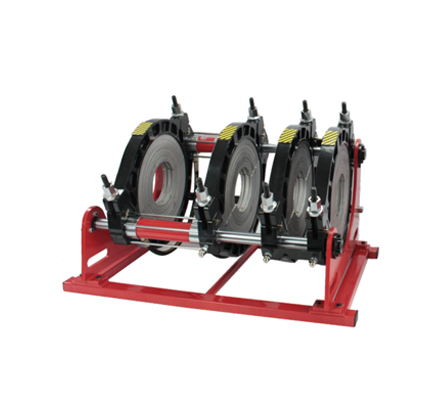

riceBody
The main body supports and centers the plastic tube with two fixed clamps and two movable clamps.

Using the hydraulic pressure on the system, two pistons on the bearing metal rod move the clamp back and forth,
Provides the necessary motion for the welding process.

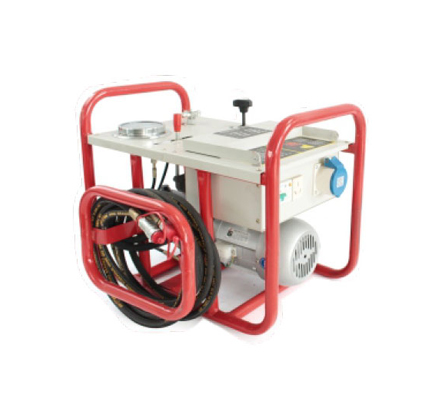

hydraulic unit
Necessary electricity will be transferred! Connect to the heater and milling cutter through the device, and connect to the host computer through the connector
hydraulic.

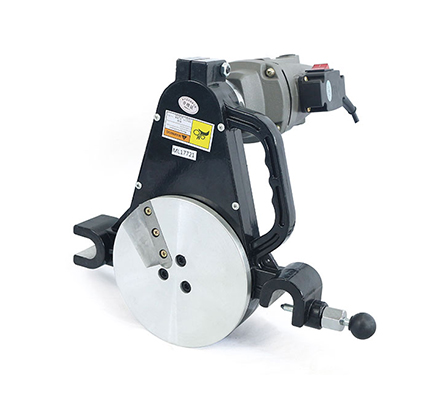

milling cutter
Milling cutters are tools used to clean and smooth the ends of pipes prior to the heating process.

JS315 Butt Welding Machine is specially designed for self-aligning end-face machines, which always produce parallel pipe ends.

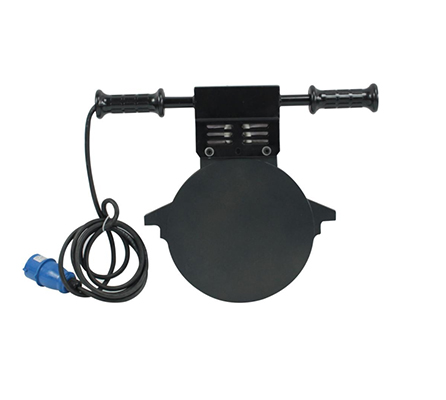

heater
The pipe ends will be heated by this heater before the welding process. The setting of the heater will be done by the thermostat
on a plate. HDC160 Butt Welding Machine adopts PTFE coated heating element, the surface temperature is uniform.

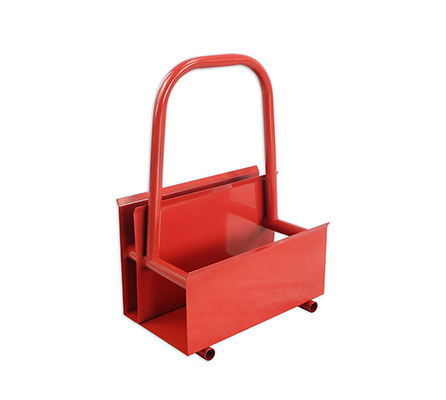

support
The protective case prevents heat loss from the heater and protects the trimmer from external influences.

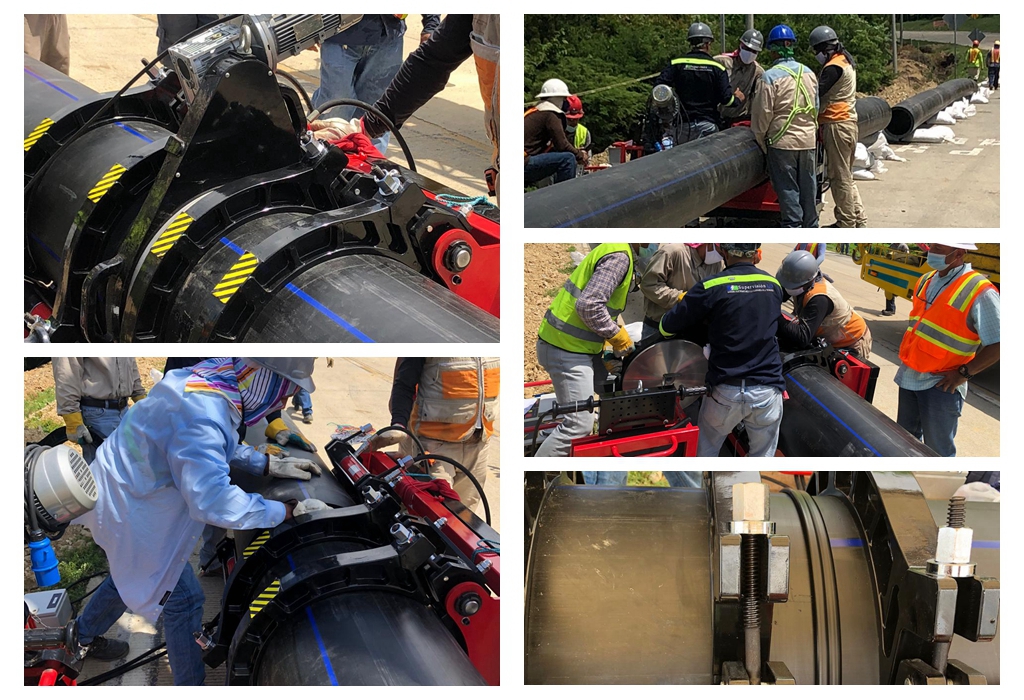

application

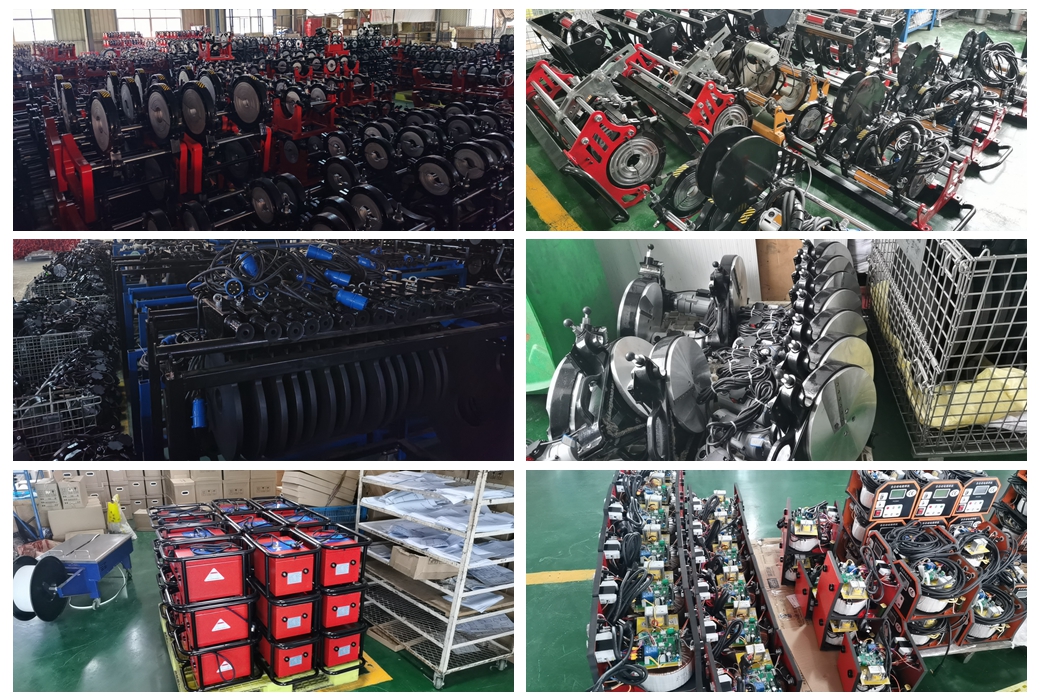

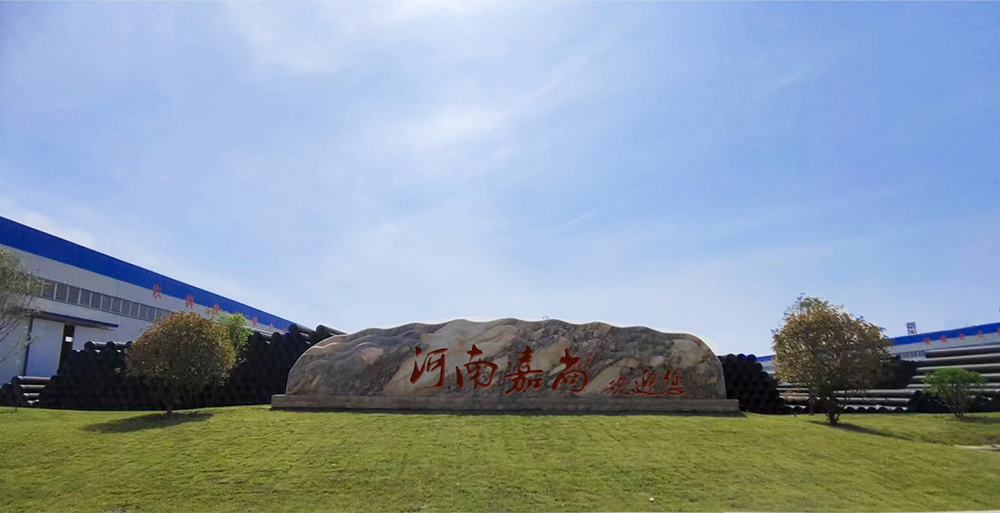

Founded in 2006, Henan Jiashang Plastic Industry Co., Ltd. is a large-scale environmental protection plastic pipe enterprise
It integrates R&D, production and sales. The company is headquartered in Zhengzhou Economic Development Zone, Henan
Province. Covering an area of ​​6,000 square meters, it has first-class research and development capabilities. production technology.

The company's main products are: HDPE/PVC/PPR pipes and fittings, plastic pipe welding machines, which are widely used in construction engineering, municipal engineering, agricultural irrigation and drainage, gas transmission, home improvement, power cable sheathing and other fields.
There are nearly 3,000 kinds of pipes, fittings and valves of different varieties and specifications. in,
The production and sales of PE water supply pipes and HDPE drainage pipes are among the best in the same industry.
At present, the company has more than 200 advanced production units at home and abroad, including 72 automatic pipe production lines, more than 40 computer-controlled injection molding machines, and more than 70 other auxiliary equipment. The annual production capacity of each series of products reaches 200,000 tons.

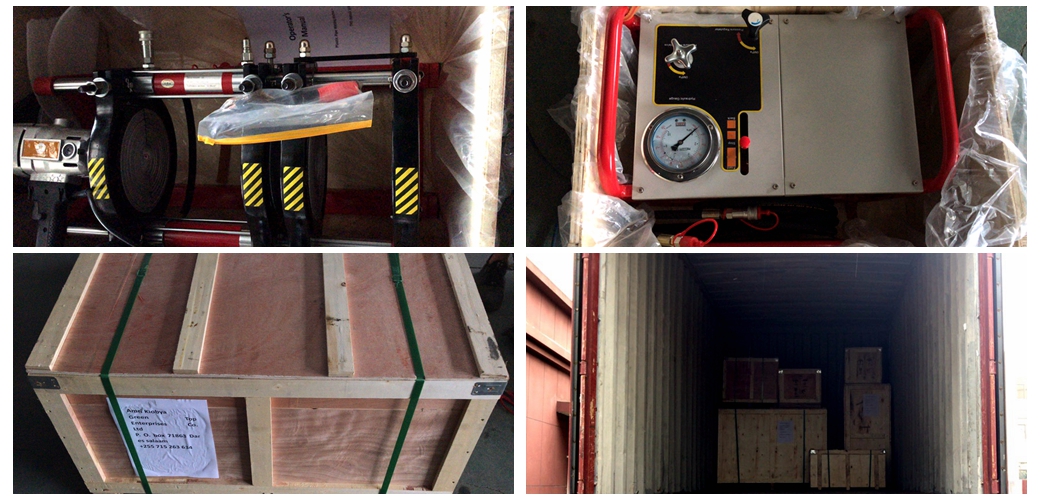

packaging and delivery
Q: What is your MOQ?
A: According to customer's requirement.

Q: Why choose us?
A: We are professional and leader of HDPE pipe factory, we have competitive price and
Lead times are fast and we ensure our quality is second to none.

Q: How to buy products?
A: Contact us by email or trade manager and let us know which product and quantity you need, we will contact you
Instantly. Be more specific about the information you provide and you will get a quote faster and easier.

Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partners from all over the world, we can manufacture your products in China.

Q: What's the payment term?
A: Order amount<=1,000USD, 100% in advance.
Order amount>=US$1,000, 30% T/T in advance, balance before shipment.
For order amount>$20,000, 30% T/T in advance, balance L/C at sight is acceptable.
For order amount>US$100,000, 100% L/C at sight is acceptable.

Q: Any more questions?
A: Please use the form below and send us your questions. Thanks.
