Automatic friction welding/stir welding machine

Supplier: Guangzhou DuroWelder Limited
Region: Guangdong, China
Contact: Ms Kalen Lee
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales service provided:	Video technical support, online support	Movable workpiece length:	5-1000mm
Rotating workpiece length:	20-200mm	type:	friction welding machine
aspect:	Different models and different sizes	Warranty:	1 year
Origin:	China	Maximum upsetting force:	1250kn
Certification:	CE	Maximum spindle speed:	3800 rpm
Workpiece diameter:	4-100mm	weight:	Different models and different weights
Maximum hydraulic cylinder stroke:	200mm	Voltage:	380 volts
usage:	friction welding machine	brand:	Douro Welder
payment terms:	L/C, D/A, D/P, T/T, Western Union	Health status:	new
Applicable industries:	Mechanical repair shops, manufacturing plants, retail, construction, energy and mining	port:	Guangzhou
Rated duty cycle:	50%

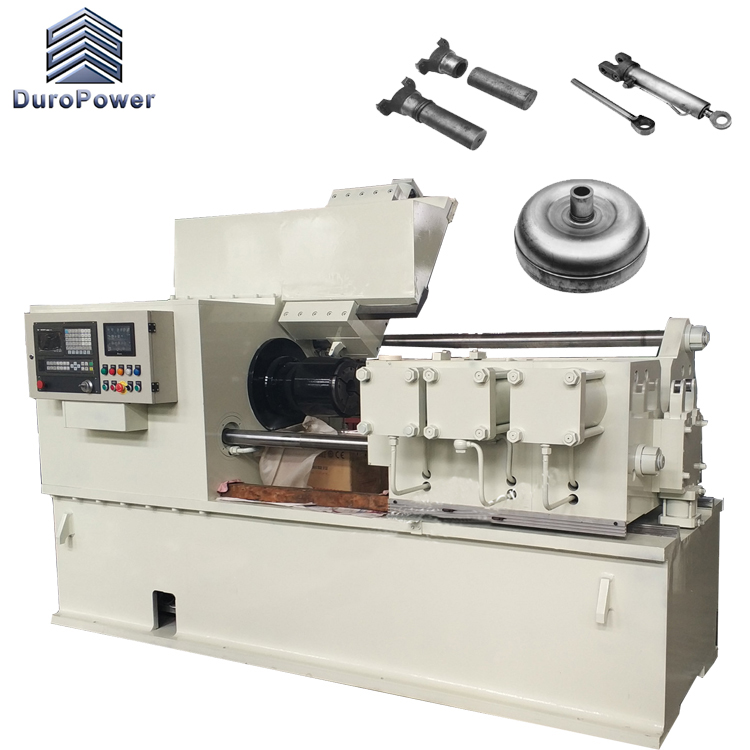

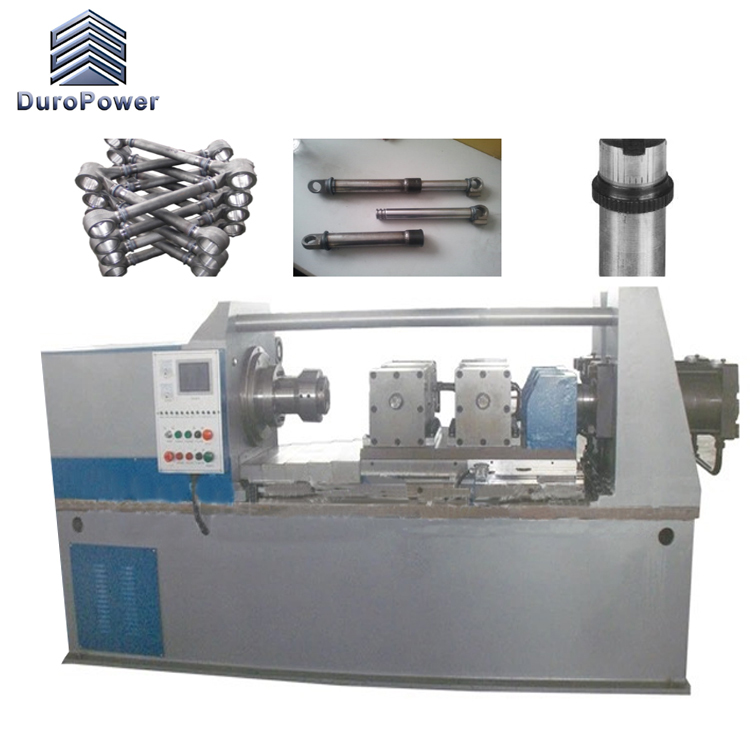

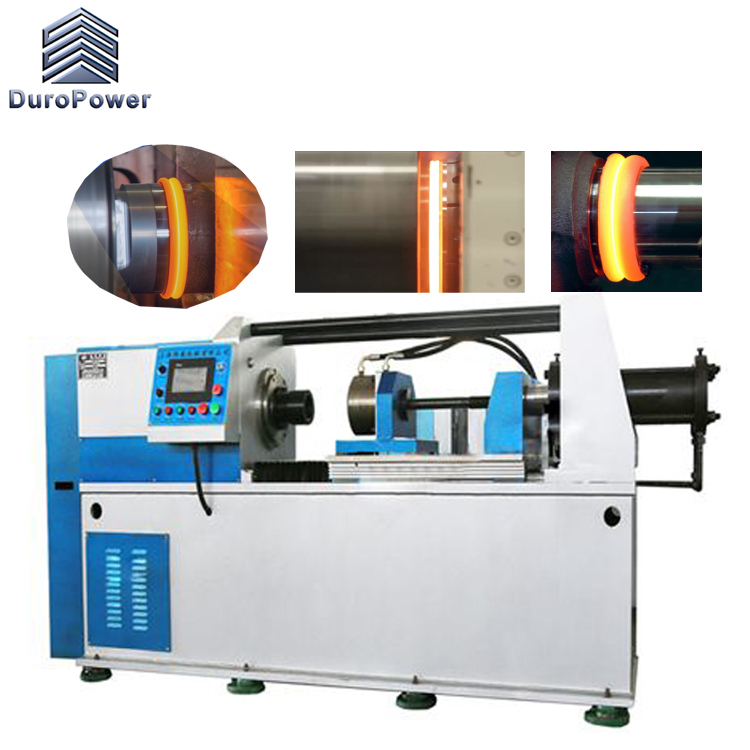

FW series friction welding machine

general instructions

Friction welding is a type of solid state welding. A friction welder converts mechanical energy into heat at the weld point.
Frictional heat at the joining interface raises the metal to forging temperatures. Axial pressure forces the molten iron away from the joint, removing oxides and surface impurities with soft molten iron.
There are two main techniques for friction welding:
One part must be firmly held against a small axial force while the other part is rotated until the cross-section is sufficiently heated, and then the forging force is applied.

The second technique is called inertial welding, where energy is stored in a flywheel, which is accelerated to the required speed by a drive motor. Then, as the flywheel decelerates, an axial force is applied through the rotating components, converting their kinetic energy into heat at the joints, thereby performing the weld.

Key Features and Benefits
Compared with traditional fusion welding, friction welding has high quality welding joints, high welding efficiency and stable quality, and can realize welding of dissimilar materials.

1. The welding precision of the joint is high and the quality is good, and the welding point can reach the same strength as the base metal.
2. It is stable and consistent, and the scrap rate of friction welding is very low, about 1% of the general welding method.
3. Suitable for welding of dissimilar steels and dissimilar metals.
4. Low power, high efficiency and energy saving. Compared with flash welding, the energy saving is about 80~90%.
5. The friction welding work site is hygienic, without sparks, arcs and harmful gases, which is conducive to environmental protection and is suitable for use in automatic production lines together with other advanced metal processing methods.

Model and technical parameters

scope	Maximum upsetting force	Activity Work piece length	Rotary workpiece length	Workpiece diameter	maximum Hydraulic cylinder stroke	Maximum spindle speed	productivity	rated strength	weight
model.	Maximum upsetting force	Activity Work piece length	Rotary workpiece length	Workpiece diameter	maximum Hydraulic cylinder stroke	Maximum spindle speed	productivity	rated strength	weight
FW-15KN	15KN	300 mm	20-150 mm	4-10mm	200mm	3800 rpm	600-800PCS/H	9.5 kW	2000 kg
FW-25KN	25KN	5-50 mm	20-200 mm	4-12mm	200mm	2800 rpm	200-700PCS/H	9.5 kW	2800 kg
FW-40KN	40KN	5-50 mm	20-200 mm	4-18 mm	200mm	2800 rpm	200-700PCS/H	13-19KW	2500 kg
FW-100KN	100KN	50-1000mm	50-200 mm	6-35 mm	200mm	2500 rpm	100-300PCS/H	22.5 kW	3800 kg
FW-200KN	200KN	300 mm	20-250 mm	12-40 mm	200mm	2000 rpm	200-700PCS/H	33.5 kW	5000 kg
FW-320KN	320KN	300 mm	20-200mm	30-55mm	200mm	1600 rpm	200-700PCS/H	47 kW	5800 kg
FW-400KN	400KN	5-50 mm	20-200mm	30-63 mm	200mm	1200 rpm	100-150PCS/H	64 kW	6500 kg
FW-600KN	600KN	300 mm	20-200mm	35-65 mm	200mm	1000 rpm	50-100PCS/H	95 kW	16000KG
FW-800KN	800KN	5-500 mm	20-200mm	40-75 mm	200mm	1000 rpm	30-100PCS/H	113 kW	17000KG
FW-1250KN	1250KN	5-50 mm	20-200mm	50-100 mm	200mm	600 rpm	30-70PCS/H	162 kW	19000KG

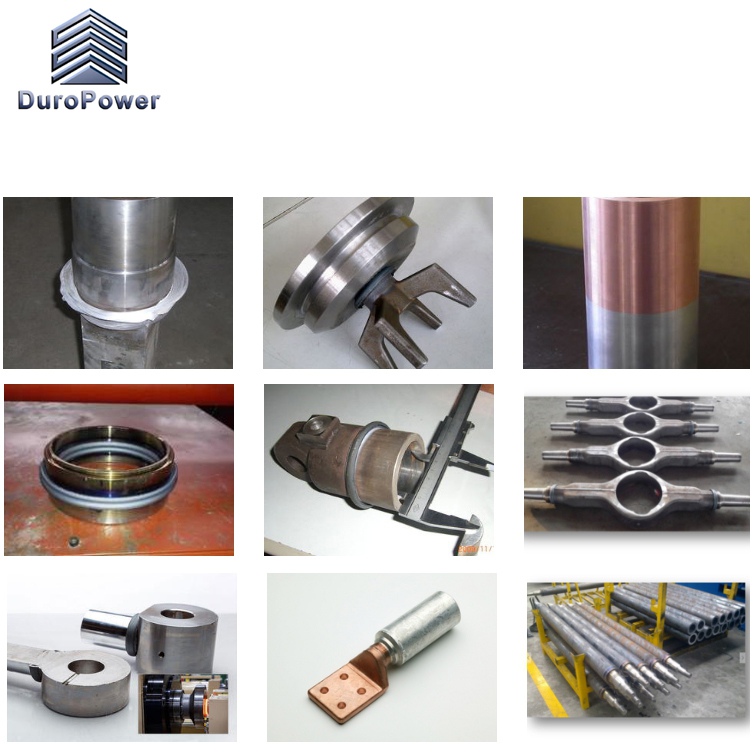

Welding samples

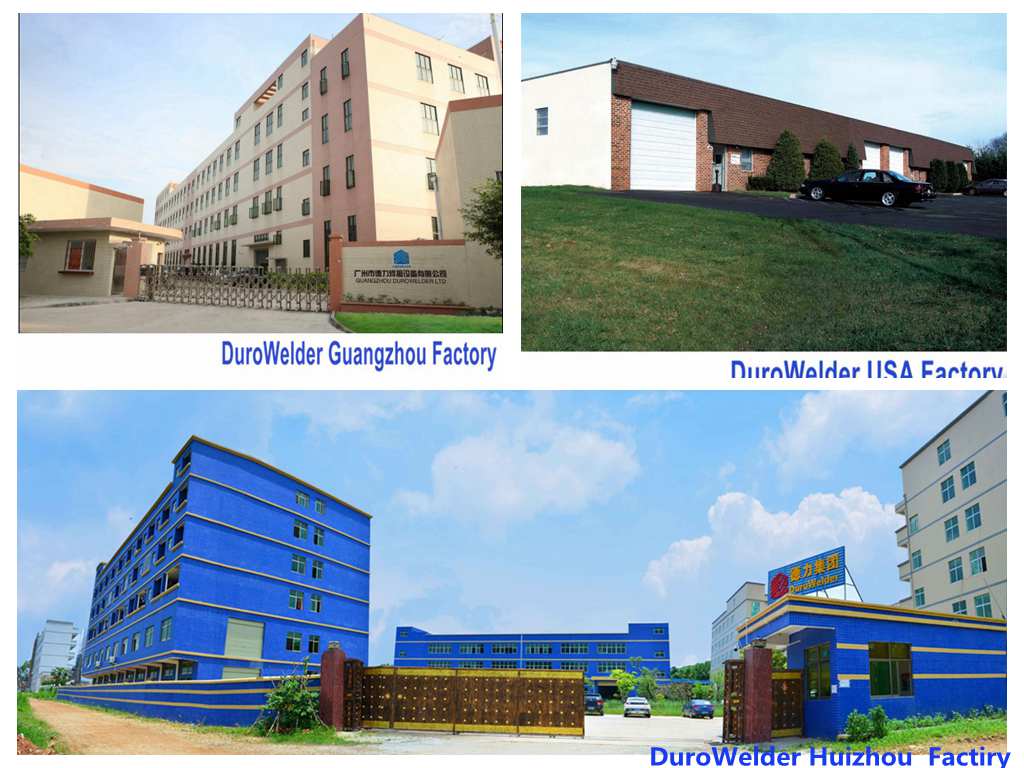

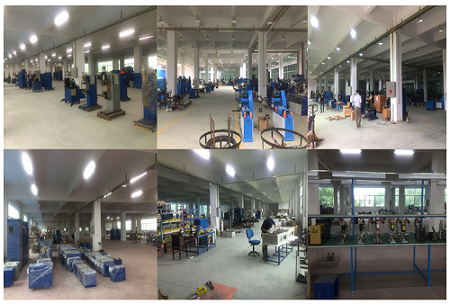

Our factory

1. Why choose our factory?

Our company has advanced production equipment and strong technology. The production process is subject to strict quality control. Our products are sold all over the world, and are well received by domestic and foreign customers for their excellent quality and perfect service.

2. What are the advantages of the product?

High efficiency, energy saving and good quality.

3. What's the benefit for us?

Reasonable price and best service, advanced equipment and strong technology.

4. How to order?

Once you are interested in our products, please contact via online or email as soon as possible. Specific quotations will be provided upon request size and quantity.

5. How about the quality?

All products comply with ISO and national highest standards, and we can also provide CE, certificates if required.

6. What payment methods can be used?

L/C at sight or T/T 30% deposit before production, 70% balance paid before shipment.

7.Warranty

The machine has a one-year warranty.
