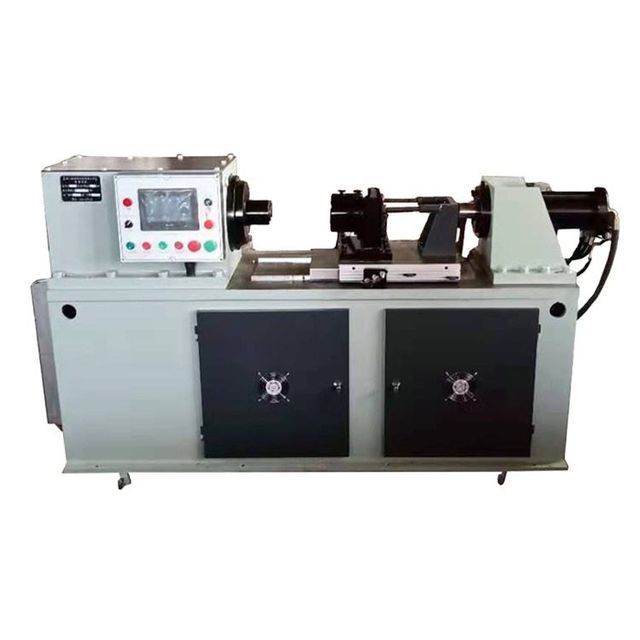

Cable friction welding machine

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $26600.00 / 1 - 1 sets
$26500.00 / 2 - 2 sets
$26400.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Core component warranty:	1 year	brand:	Zhenhuan
Health status:	new	Showroom location:	not any
Origin:	Jiangsu, China	Workpiece diameter:	8-18mm
Core components:	engine	Marketing Type:	normal product
Warranty:	1 year	Speed of work:	2-20mm/s (adjustable)
Moving clip length:	30-100mm	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Weight (kg):	2400 kg	maximum. Table travel:	200mm
Main selling points:	high productivity	Pressure Level:	Second level (friction + forging)
Moving clip:	Special fixture	maximum. Forging force:	40KN
usage:	Welding cable lugs	Packaging Details:	Cable lug friction welding machine can be packed in wooden case
Supply capacity:	10 sets per month	Maximum moving clamping force:	40KN
Voltage:	custom made	Applicable industries:	manufacturing plant
Mechanical test report:	if	Friction time:	0-100S (adjustable)
weight:	2500 kg	port:	Shanghai
type:	friction welding machine	Video outbound inspection:	if

machine description

C4-SF friction welding machine adopts servo motor, which can save energy by 40-55% compared with ordinary asynchronous motor. It is mainly composed of main engine, hydraulic system, cooling system, electrical control system and automation system. The friction welding machine uses friction as the heat source, and through mechanical movement and rapid application of axial pressure, the two pieces are frictionally heated to heat the friction contact surface to a plastic state, stop quickly and apply a large axial pressure, and then maintain an appropriate pressure for a period of time time. Friction machines are professional welding machines that use heat to weld like and dissimilar metals together.

We can supply a complete production line for the manufacture of cable lugs.

main feature

The friction welding machine has remarkable features such as high quality, high efficiency, energy saving, low consumption, and no pollution. The welding quality is stable and reliable, the welding precision is high, the operation is simple, and it is easy to realize automatic control. It is an environmental protection and energy-saving product.

Machine Specifications

serial number.	thing	unit	data
1	maximum. forging force	KN	40
2	Spindle speed	Rotating speed	0-1500 (steplessly adjustable servo motor)
3	Welding workpiece diameter (copper tube, aluminum tube)	mm	8-18 days
4	maximum. Table travel	mm	200 (customized)
5	Swivel fixture clamping length	mm	50-150
6	clip-on	special
7	Fixing clip clamping length	custom made
8	maximum. Mobile Fixture Clamping Force	KN	120
9	maximum. Rotary Clamp Clamping Force	KN	120
10	pressure level	Level 3 (1st level of friction, 2nd level of friction + upsetting)
11	friction time	the s	0-100 (adjustable)
12	Upsetting pressure protection time	the s	0-100 (adjustable)
13	Friction upsetting force	KN	20-100 (adjustable)
14	Speed of work	mm/s	2-20 (adjustable)
15	fast forward speed	m/min	7
16	main motor power	kilowatt	13
number 17	Hydraulic motor power	kilowatt	5.5
18	Axial length error after welding	mm	±0.5
19	productivity	piece/hour	300-800
20	Machine Coverage	mm	3000X2200
twenty one	machine weight	Kilogram	3000

machine configuration

serial number.	thing	Replenish	brand
1	PLC		mitsubishi
2	other electrical equipment		Schneider
3	Hydraulic station	C-10	Uvilli
4	Hydraulic Components		VTOL/Ward
5	servo motor		Meschke
6	driver		Invent
7	guide	HGH 25	Shangyin
8	touch screen		Shangyin
9	bearing		NSK/NTN
