brand: | Zhenhuan | Packaging details: | The low voltage transformer foil winding machine will be packaged in seaworthy wooden crates and loaded in a 20' container |
Video outbound inspection: | if | Correction method: | server system |
Core component warranty: | 1 year | port: | Shanghai |
Health status: | new | Dimensions (length*width*height): | 4000×2300×1800mm |
Inner diameter of finished foil roll: | 85mm | Rewinding speed (rpm): | 30 |
Weight (kg): | 4500 | Shaft length (mm): | 800 |
Supply capacity: | 60 sets per year | Counting accuracy: | 0.1 lap |
Whether CNC: | CNC system | Insulation quantity: | 2 |
Welding method: | argon arc welding | Number of decoilers: | 1 |
Foil correction accuracy: | +/-0.1mm | Material: | copper |
Maximum rewinding width (mm): | 800 | Uncoiler loading: | 1000kg |
Terminal insulation quantity: | four units | Package preview: | |
Foil cutting speed: | 1.5m/min | Warranty: | 1 year |
Coil type: | Round, oval | Winding spindle motor power: | 11 kilowatts |
Cutting method: | Disc blade cutting | Winding time: | Greater than 4000N.m |
Mechanical test report: | if | CNC system: | Mitsubishi |
Main selling points: | automatic | Foil and busbar welding methods: | Automatic argon arc welding |
PLC, servo motor, frequency converter: | Mitsubishi | Finished foil roll outer diameter: | 700mm |
Place of origin: | China Shanghai | Marketing type: | 2020 new products |
Core components: | Programmable controller, motor | payment terms: | L/C, Western Union, D/P, D/A, T/T |
Applicable industries: | manufacturing plant | Showroom location: | not any |
Thickness range (mm): | 0.3-2 |

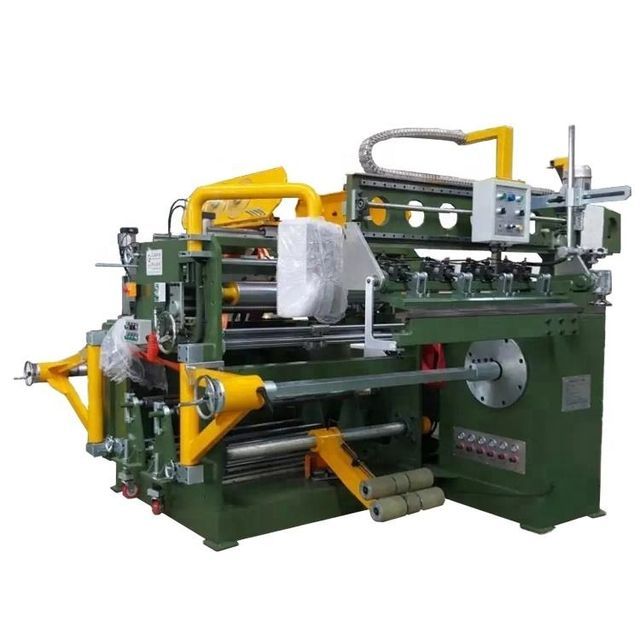

BRJ-800 low voltage transformer foil winding machine
Low-voltage foil winding machines are used to wind copper foil or aluminum foil coils used in transformers and reactors.
Low voltage foil winding machines for low voltage transformers usually have three foil widths: 1400mm, 1100mm and 800mm.
Transformer LT coils are available in double-layer foil winding machines and single-layer foil winding machines.
Low voltage foil winding machineUse copper foil or aluminum foil as conductor, wide-band insulation as interlayer insulation; narrow-band insulation of terminal insulation. They are wound into coils. In addition, the inner and outer leads will be soldered and the outer surface wrapped.
|Low voltage transformer foil winding machine|Low voltage transformer foil winding machine|
Main technical data of low voltage foil winding machine:
No. |
thing |
Specification |
|
1 |
Coil size |
||
1.1 |
Axial length, mm |
180-800 |
|
1.2 |
Axial length (including lead), mm |
330-850 |
|
1.3 |
Outer diameter (excluding row), mm |
700 |
|
1.4 |
maximum. Outer diameter, mm |
800 |
|
1.5 |
minute. Inner diameter, mm |
85 |
|
2 |
foil |
||
2.1 |
Material |
Copper/aluminum foil |
|
2.2 |
Width, mm |
180-750 |
|
2.3 |
Thickness, mm |
copper |
0.3-2 |
aluminum |
0.5-3 |
||
3 |
Uncoiler |
||
3.1 |
Inner diameter, mm |
400\500 |
|
3.2 |
Outer diameter, mm |
900 |
|
3.3 |
Capacity, kg |
1000 |
|
4 |
Winding machine |
||
4.1 |
Working torque, N/m |
≥4000 |
|
4.2 |
Winding motor power, kW |
11 |
|
4.3 |
Speed mode |
Frequency conversion stepless |
|
4.4 |
Winding axis, mm |
50x90x1850 |
|
4.5 |
Winding speed, rpm |
0-30 |
|
5 |
Welding method |
TIG welding, automatic |
|
|
Welding speed, m/min |
0-1 |
|
6 |
cutting device |
Disc blade |
|
|
Cutting speed, m/min |
1.5 |
|
|
Cutting length, mm |
700 |
|
7 |
Interlayer insulation shaft |
two sets |
|
|
Shaft diameter, mm |
less than 400 |
|
|
Inner diameter, mm |
76 |
|
|
Shaft length, mm |
700 |
|
8 |
Terminal isolation device |
||
|
quantity |
Four sets (available on request) |
|
|
outer diameter |
Less than 350mm |
|
|
the inside diameter of |
56 mm |
|
|
width |
15-200mm |
|
9 |
Control System |
PLC automatic control |
|
10 |
Counting accuracy |
0.1 lap |
|
11 |
Correction method |
server system |
|
11.1 |
Correction accuracy |
±0.1mm |
Main configuration of low voltage foil winding machine:
1) PLC: Mitsubishi, original from Japan
2) Servo system: Mitsubishi, original from Japan
3) Frequency converter: Mitsubishi, original from Japan
4) Touch screen: Made in Taiwan
5) Electrical components: Chinese joint venture Schneider brand
6) Main pneumatic components: Made in Taiwan
7) Linear guide rail: SBC brand, from South Korea
|Low voltage transformer foil winding machine|Low voltage transformer foil winding machine|

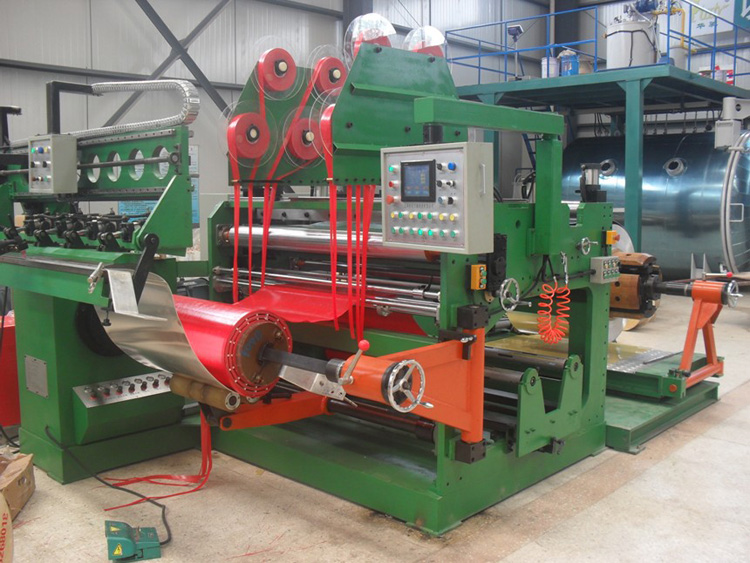

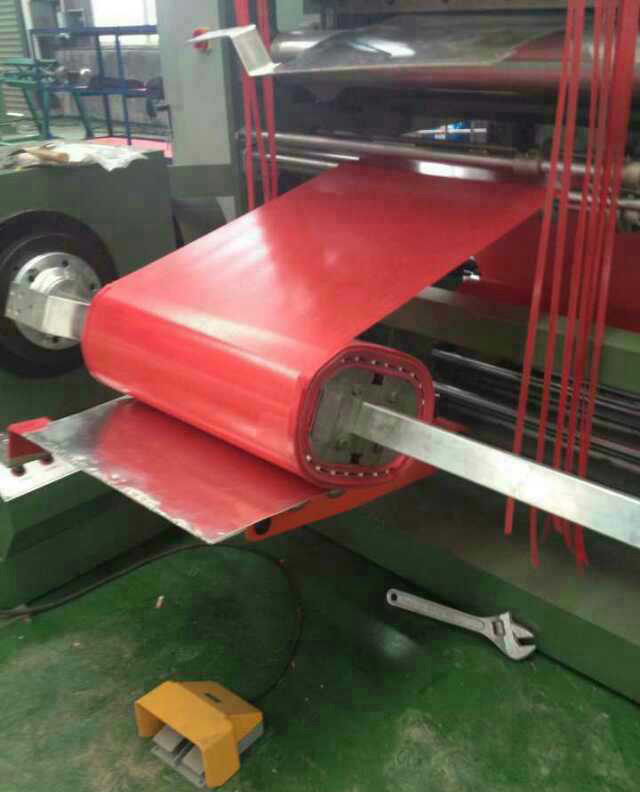

Low voltage transformer foil winding machine at work:

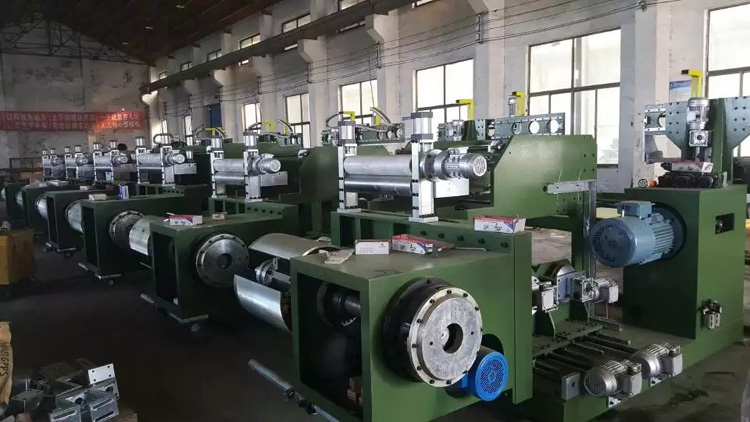

Our factory's low voltage transformer foil winding machine:
|Low voltage transformer foil winding machine|Low voltage transformer foil winding machine |
Our company will become your reliable and professional supplier of low voltage foil winding machines for transformers in China.We have been in this industry for over 16 years and supply foil winding machines worldwide. We have obtained credit and reputation certification from BV, SGS, and TUV.
|Low voltage transformer foil winding machine|Low voltage transformer foil winding machine |
Please contact us for specific quotations on low-voltage transformer foil winding machines:
|Low voltage transformer foil winding machine|Low voltage transformer foil winding machine|
