Round air duct 6-50mm corrugated pipe machine

Supplier: Nantong Zhenhuan Trade Co., Ltd.
Region: Jiangsu, China
Contact: Mr Franks Cao
Price: $18000.00 / 1 - 2 sets
$17000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

brand:	EN	Wall thickness:	0.2~0.5mm
strength:	14kw	Origin:	Jiangsu, China
Pipe material:	Stainless steel	Voltage:	380/220V
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	port:	Shanghai
Corrugation depth:	1.75mm~2.1mm	Diameter range:	6~50mm
Warranty:	1 year	Mechanical test report:	if
Supply capacity:	100 sets per year	Total line length:	about 15 meters
Core components:	engine	Package preview:
Production speed:	2.5~6 seconds/ripple (according to different diameters)	main motor power:	4.0kW
Drawing device:	Frequency conversion traction motor 1.5kW	Main selling points:	automatic
Video shipment inspection:	if	weight:	2500 kg
Applicable industries:	Hotels, home furnishing, building materials stores, manufacturing plants, construction projects, restaurants	Corrugator:	Motor power 4kW
Core component warranty:	1 year	Showroom location:	not any
Production capacity:	2.5~6 seconds/ripple	Marketing Type:	normal product

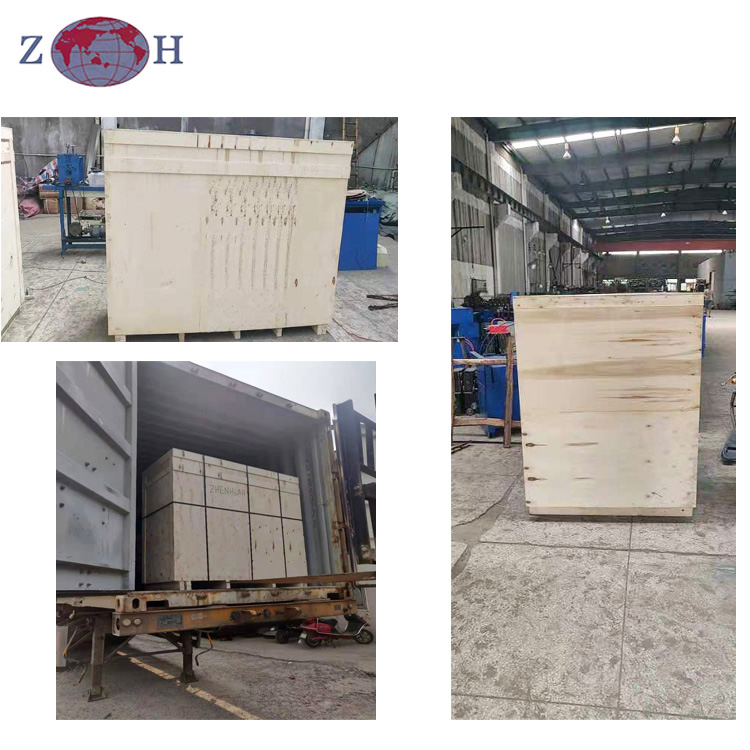

Packaging Details:	Corrugated pipe making machine will be packed in sea shipping wooden box	Dimensions (LWH):	14850×600×1200mm

This corrugated pipe making machine is specially used to produce deep corrugated pipe/pipe/hose for various purposes.

Main features of flexible steel bellows machine:

fully automatic
Ripple height adjustable
Panasonic TIG welding
quadratic ripple function

The composition of bellows making machine

Uncoiler → main tube forming unit → welding unit → wire drawing device → corrugation unit → fixed-length cutting unit → pipe connection device

Main technical parameters of bellows machine

No.	thing	data
1	Applicable bellows diameter range	8~25mm
2	Applicable strip thickness	0.15~0.5mm
3	Argon arc welding speed	maximum. 4 m/min
4	TIG welding machine	Panasonic WS5-160A
5	Applicable corrugation height	1.5~2.1mm
6	Corrugation speed	2.5~6 seconds/ripple
7	Whole line production speed	About 100m/h @DN15, DN20 About 80m/h @ DN25, DN32
8	total electricity	About 14kW
9	The workshop is fully occupied	About 14m x 4m
10	Whole line thickness	about 2500kg
11	Containers required for shipping	1 x 20'GP

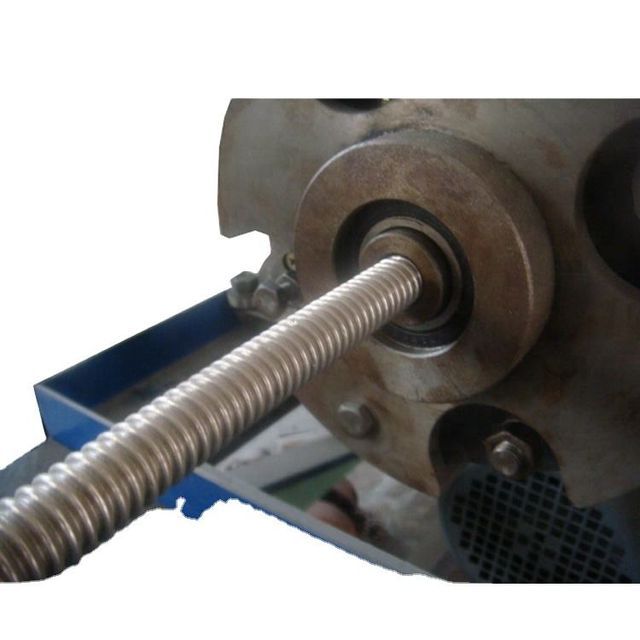

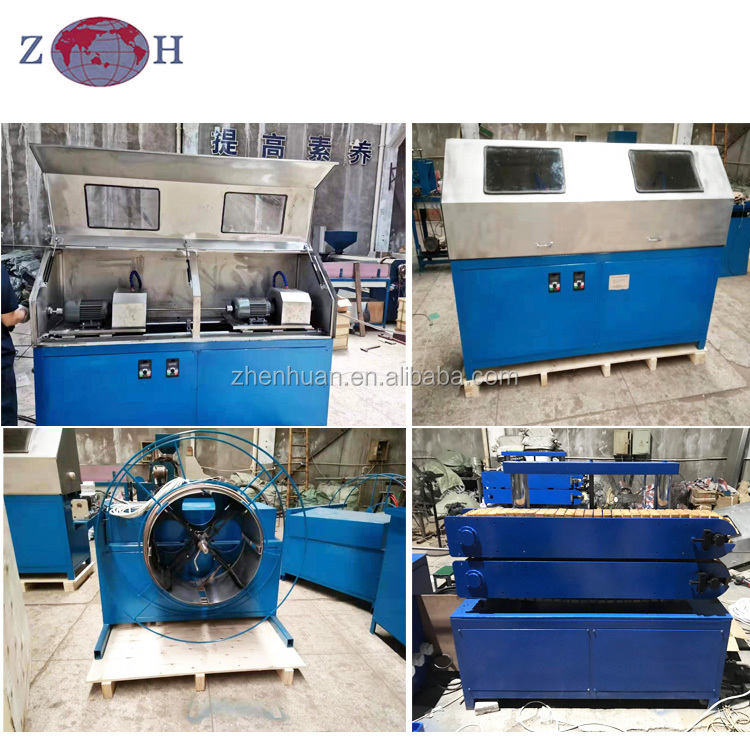

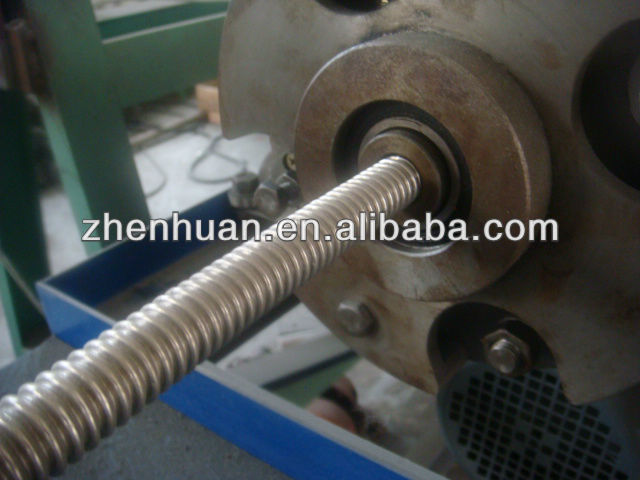

The photo of bellows making machine

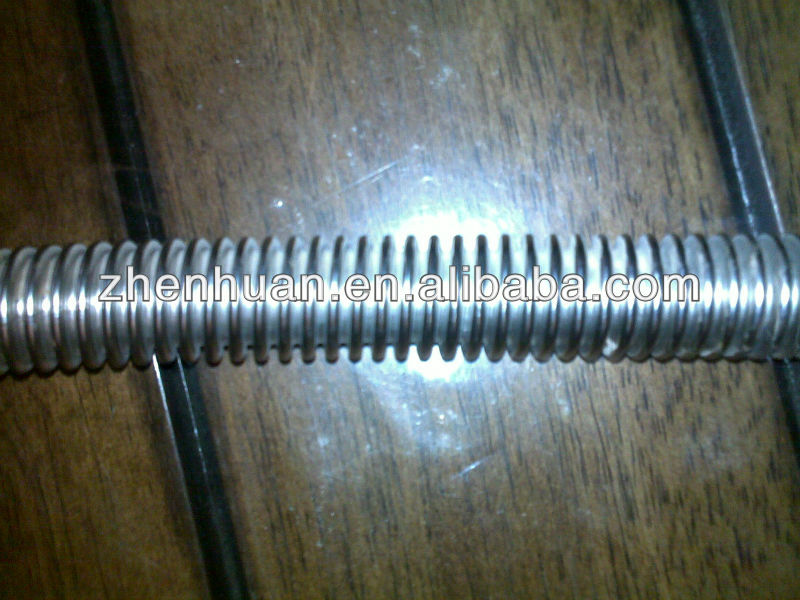

Sample photos made by bellows machine

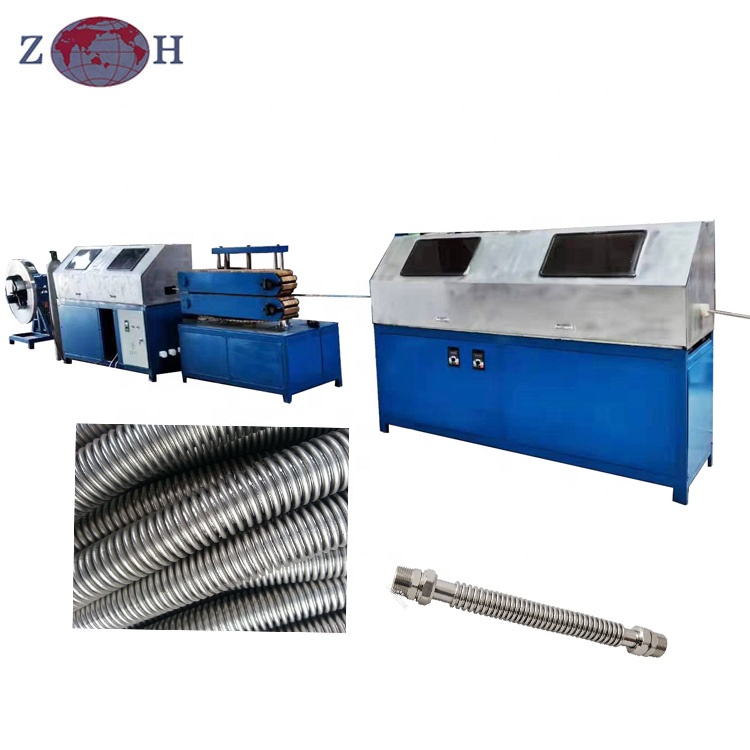

Bellows complete set of equipment
