Pittsburgh Seaming Cabinets
- 450.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Core components: | engine | Core component warranty: | 1 year |
| Supply capacity: | 1000 pieces per month | Marketing Type: | 2020 New Products |
| Package preview: | Applicable industries: | construction project | |
| Certification: | CE | Origin: | Zhejiang, China |
| After-sales service provided: | online support | port: | Ningbo |
| weight: | 6.5 kg | After Warranty Service: | online support |
| Packaging Details: | Plastic box + carton | Showroom location: | not any |
| Mechanical test report: | not available | Warranty: | 1 year |
| Local service locations: | not any | Main selling points: | Best seam finish |
| strength: | 1400 | payment terms: | wire transfer |
| Video outbound inspection: | if | brand: | blue rocket |
| Production capacity: | 4-10m/min | Sheet thickness (mm): | 0.4-1.25mm |
| Dimensions (L*W*H): | 49.5x21.5x30.5 cm |
product description

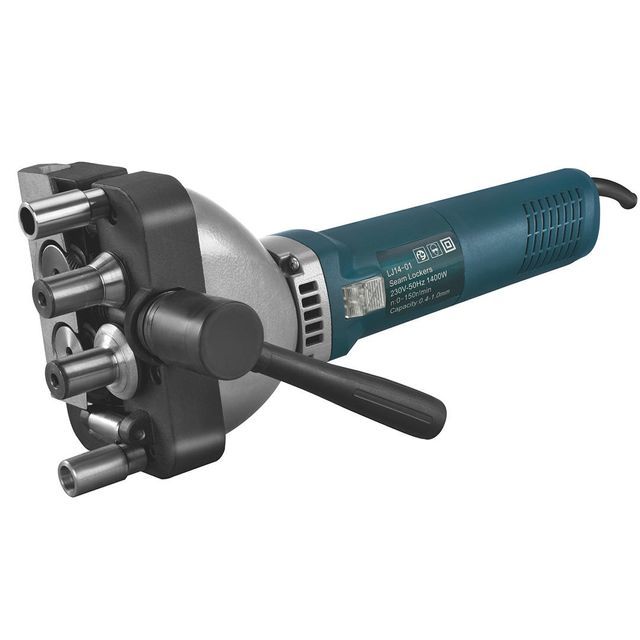

seam lock
This machine is used to close Pittsburgh seams. It is widely used in HVAC piping construction. Our seamed cabinets have the best seamed quality in China. It works better than German products.Our lockstitch machine is the first lockstitch machine in the world that can handle 1.5mm iron sheet.
Our seamlock closed seams are probably the best in the world Highly reliable and durable Wide coverage 0.4-1.5mm - we are the only company that can handle 1.5mm
We are real manufacturer. Products with the same appearance are actually ours. All others are dealers
product specification
No | thing | data | ||
1 | electricity | 220/110V, 50Hz | ||
2 | strength | 1400W | ||
3 | Sheet thickness | 0.4-1.0 mm 0.8-1.25 mm 1.2-1.5 mm | ||
4 | Flange height | 6-13mm | ||
5 | Speed of work | 4-10m/min | ||
6 | Minimum inner radius | 150 mm | ||
7 | Minimum outer radius | 300 mm | ||
8 | weight net weight | 6.5/9.2 kg | ||
9 | Carton size | 49.5x21.5x30.5 cm | ||
10 | Loading 20'/40'/40HQ | 850/1450/2060 pcs |
Product Description
product configuration

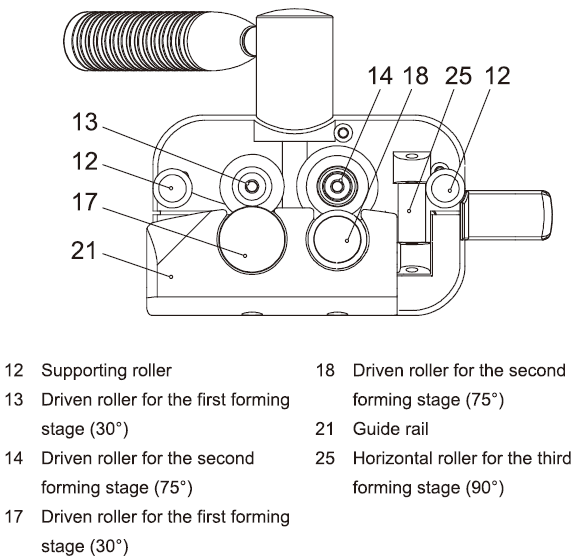

Roller arrangement

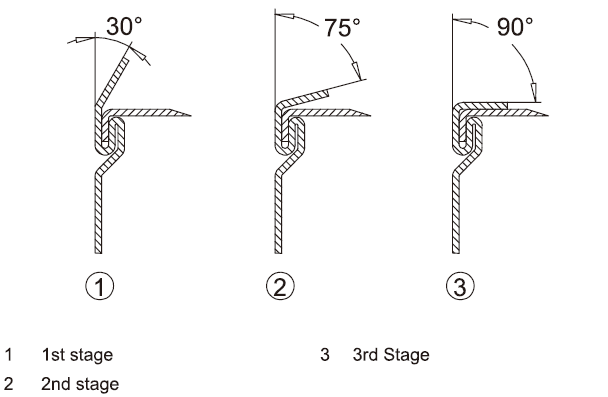

folding process

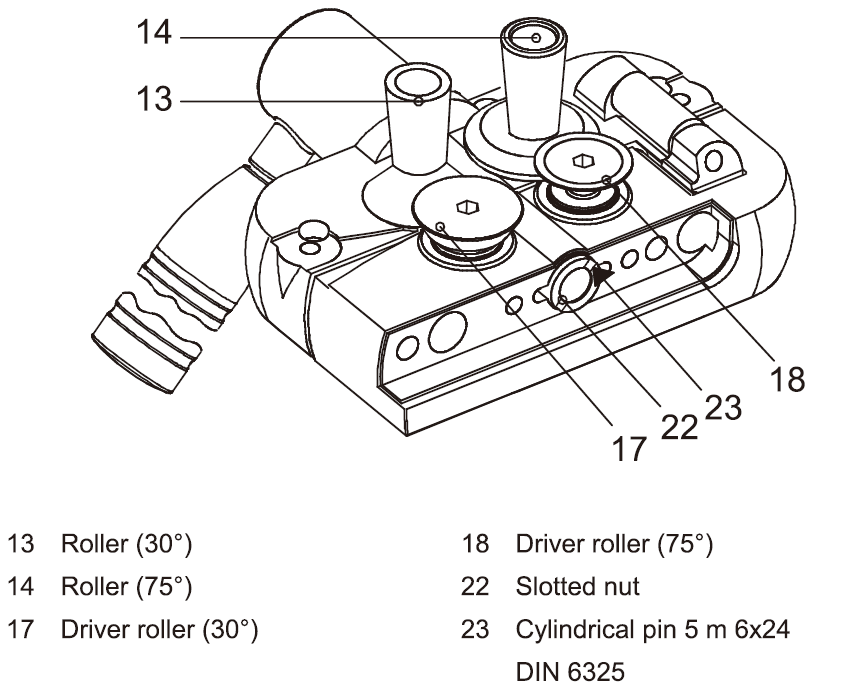

side view
