Fully automatic pneumatic sheet metal air duct self riveting riveting machine

Supplier: Platinum Overseas Trade Inc.
Region: Jiangsu, China
Contact: Mr Sotu Zhu
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Origin:	Jiangsu, China	Voltage:	380V or customized
thing:	blood lock	port:	gorelocker will be shipped from Shanghai Port
Production capacity:	1-30m/min	Applicable industries:	manufacturing plant
payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Elbow Machine	Steel Thickness:	0.4-1.2mm
Pipe type:	Galvanized steel, aluminum steel	Supply capacity:	10 gorelocker machines per month
Certification:	International Organization for Standardization	Function and size:	Double lock 6-10mm, single lock 7mm
application:	Elbow machine	brand:	Bobo
Forming speed:	Maximum speed 120m/min	Cooling device:	Cooling fan, 120w
Warranty:	1 year	strength:	1.5KW
Seam Lock:	double seamed, outside	weight:	350KG
After-sales service provided:	On-site service by overseas engineers, online support, free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, video technical support	Main selling points:	Duct machine
Packaging Details:	gorelocker will be packed in wooden case	Dimensions (LWH):	1050×550×1250mm

Product Description

Applications

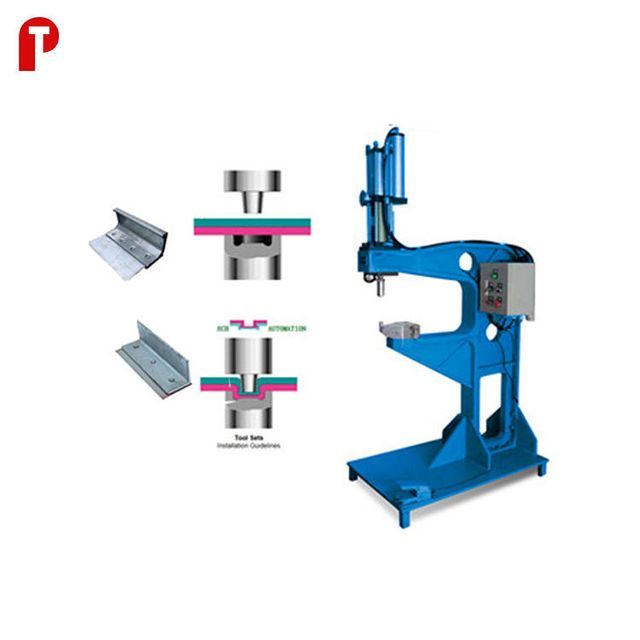

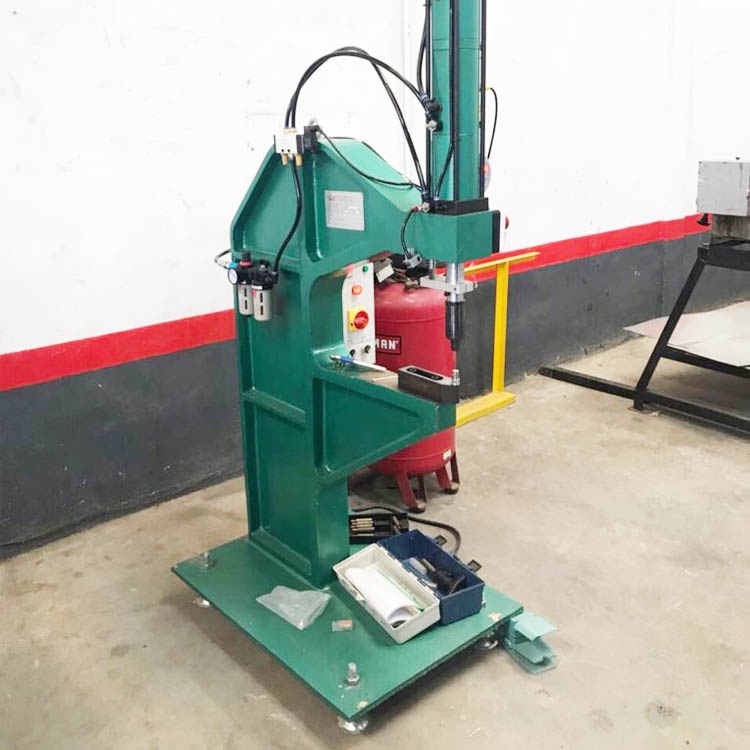

Rivetless riveting machine for ventilation engineering, air duct flange riveting

The whole machine is made of high-quality cast iron, with deep throat, high strength and good rigidity.
Driven by a pneumatic hydraulic booster cylinder, it can be riveted at any point in the stroke;

Technical data
type	DCP1000
Maximum thickness	4mm
Forming speed	7 turns/m
Motor Power	1.5KW*2
weight	500Kg
aspect	2100820890mm

main feature

Throat depth: 500mm;
Throat height: 365mm;
Riveting galvanized sheet with a total thickness of 5mm;
Preload stroke: 150mm;
Pressurization stroke: 6mm;
Power supply: 220V 50HZ city electricity, 0.6Mpa filtered compressed air;
Adjustable pressure: steplessly adjustable from 3 tons to 6 tons;
Frequency of use: 2 seconds/time;
Laser-assisted positioning;
working lamp;
Adjustable air source pressure, automatic drainage function;
Foot switch operation;
Power control, low voltage protection, leakage protection;
Dimensions: 650 wide * 1100 deep * 1950 high;
Equipment weight: 500Kg.

Packaging and Shipping

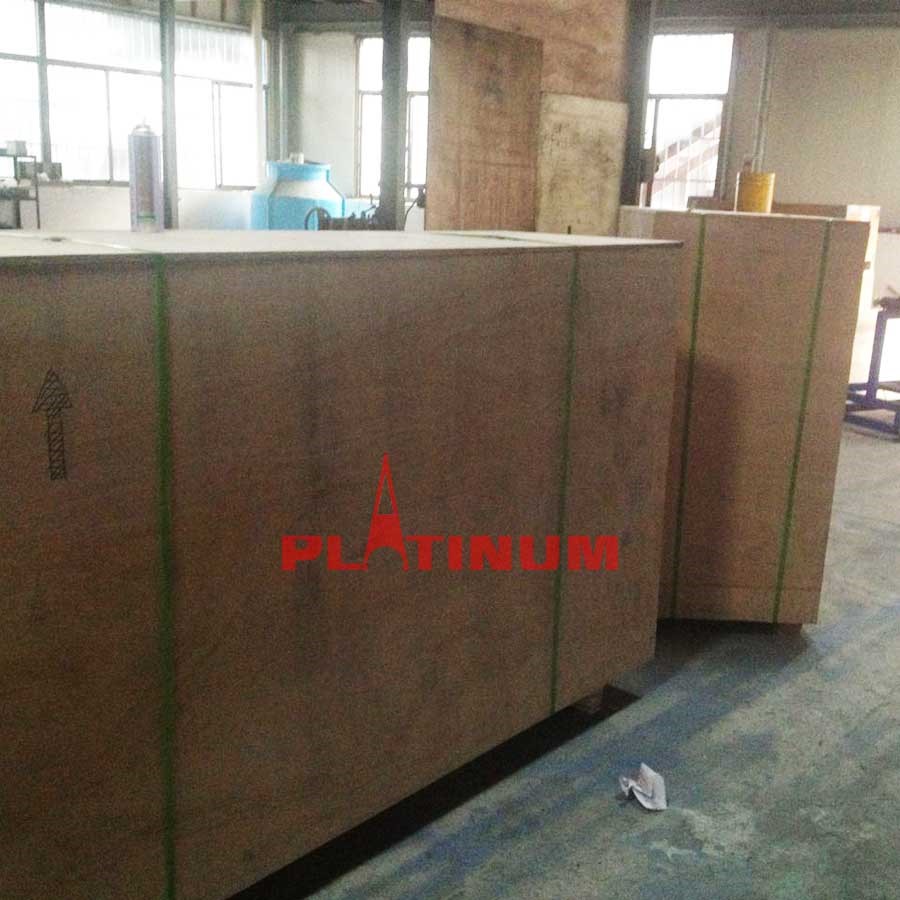

Package
size	22009201100mm
weight	590 kg
packaging details	The normal packing is wooden case (size: LWH). If exported to European countries, wooden boxes will be fumigated. If the container is too tight, we will use PE film for packing or pack according to customer's special requirements.
