HAVC duct seam welding and stitchwelder machine

Supplier: Platinum Overseas Trade Inc.
Region: Jiangsu, China
Contact: Mr Sotu Zhu
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Brand Name:	BOBO;	Arm length:	350-1000 mm;
Place of Origin:	Jiangsu China (Mainland);	Usage:	Duct welder;
Electrode travel:	80mm;	Forming Time:	1S;
Rated load cycle:	50%;	Welder speed:	0.5-3m;
Condition:	New;	Supply Ability:	4 Set/Sets per Month HAVC galvanized sheet duct seam welding machine;
Cooling water:	6L/MIN;	Short ciruit current:	6200A;
Max output capacity:	100KVA;	Port:	HAVC galvanized sheet duct seam welding machine will shipped from shanghai port;
Voltage:	380V;	Power(W):	40KW;
Weight:	2500KG;	Name:	seam welding machine;
Welding Diameter:	50-1000mm;	Packaging Detail:	HAVC galvanized sheet duct seam welding machine will be packed by wooden case;
Certification:	ISO,CE;	Over lap:	6mm;
Welding Mode:	Seam welder;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
Item:	duct seam welding machine;	Dimensions:	100020001700mm;
After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Warranty:	1 Year;

Product Description

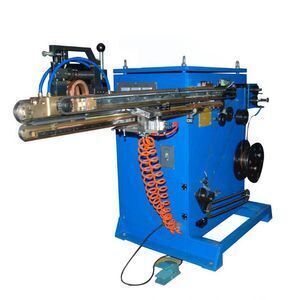

HAVC seam welding machine

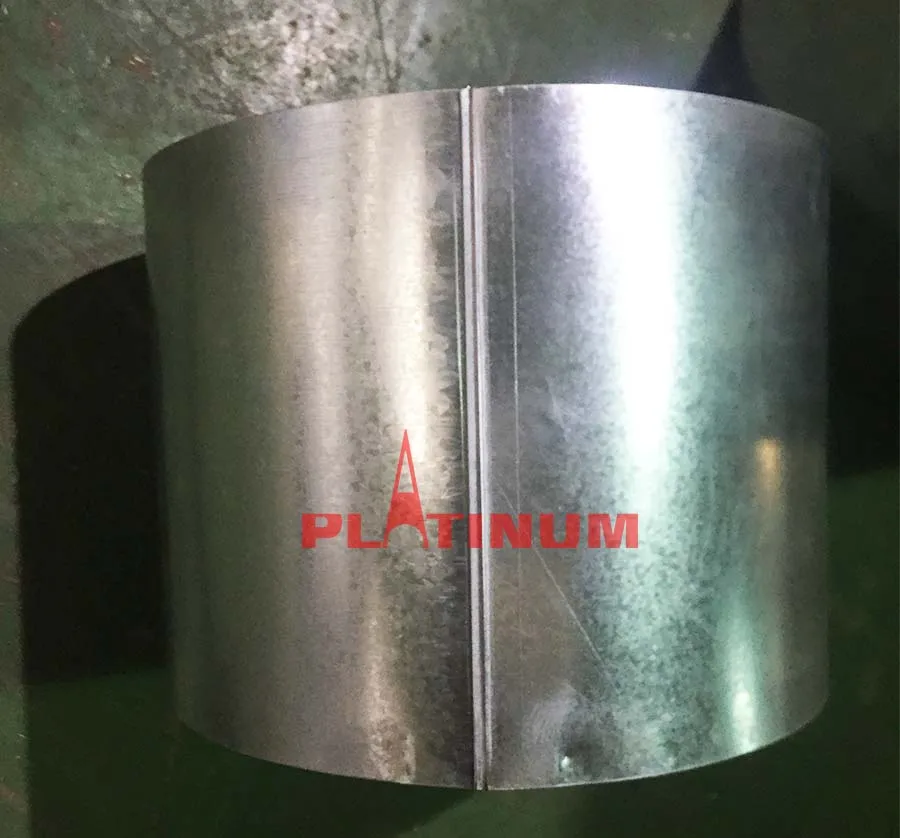

The seam welding machine is used to welding the segment of round duct elbow which made of galvanized,stainless steel,aluminum.

Fetures of HAVC galvanized duct seam welding machine

Cross sea, longitudinal seam and horizontal and vertical seam.
The speed of welding is quick and the efficiency of welding is high.
According to the clients' demand, set the function of continuous weld and pulse weld
Equipped with a high reliability control box,acording to the clients' demand, set the function

Main technical of HAVC galvanized duct seam welding machine

1	Diameter	50-1000mm
2	Thickness	0.4-1.2mm
3	Strip width	137mm
4	Over lap	6mm
5	Suitable material	Galvanized steel, stainles steel,aluminum steel
6	Main motor power	40KW
7	Copper diameter	2-2.2mm
8	Rated load cycle	50%
9	Dimension	1000 x 2000 x 1700mm
10	Weight	about 2500KG

Packaging & Shipping

Packaging:

Stable wooden package protects machine from strike and damage.

Wound plastic film keeps machine out of damp and corrosion.

Fumigation-free package helps the smooth customs clearance.

The big size machine will be fixed in container without package.

Shipping:

For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.

For FCL, we get the container and do container loading by our skillful workers carefully.

For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
