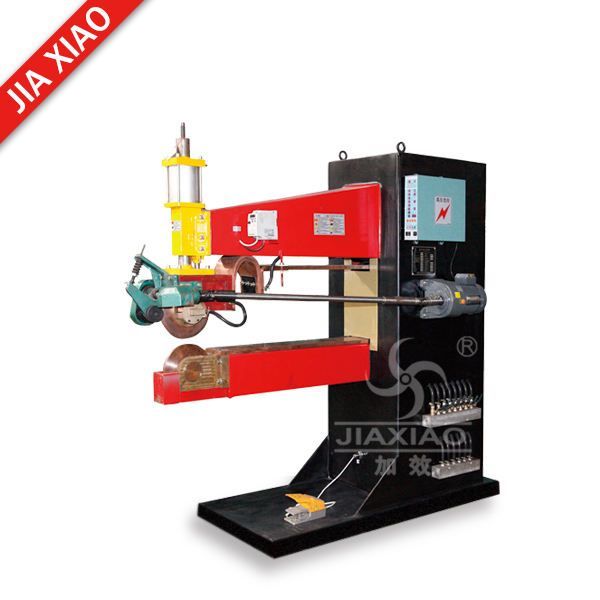

Fuel tank seam welding machine, oil storage tank straight seam welding equipment, resistance seam welding machine
- 2000.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| port: | Ningbo/Shanghai | Welding method: | lap welding |
| Warranty: | twelve months a year | aspect: | 2500*1459*800mm |
| Marketing Type: | New Products 2020 | Video shipment inspection: | if |
| Weld diameter: | custom made | Applicable industries: | manufacturing plant |
| Package preview: | Origin: | Zhejiang, China | |
| Certification: | CCC certification | Forming time: | 0.1s-10s adjustable |
| usage: | seam welder | Packaging Details: | wooden box or iron box |
| Showroom location: | not any | payment terms: | L/C, T/T, Cash |
| Supply capacity: | 1 set per month | Weight (kg): | 500 kg |
| Health status: | new | Core component warranty: | 1 year |
| Local service location: | not any | After warranty service: | Video technical support, online support |
| Main selling points: | Patented product | Mechanical test report: | if |
| Core components: | engine | Voltage: | customer request |
| brand: | wife and children |
Fuel tank seam welding machine, oil storage tank straight seam welding equipment, resistance seam welding machine
The main technical parameters:
|
model. |
FN-35 |
FN-50 |
FN-75 |
FN-100 |
FN-150 |
|
Rated primary voltage |
380V |
380V |
380V |
380V |
380V |
|
Rated Capacity |
35KVA |
50KVA |
75KVA |
100KVA |
150KVA |
|
Rated primary current |
95A |
135A |
200A |
265A |
400A |
|
Secondary no-load voltage |
5.3V |
6.0V |
6.3V |
7.0V |
7.5V |
|
duty cycle |
50% |
50% |
50% |
50% |
50% |
|
maximum. Welding thickness (mm) |
0.5+0.5 |
0.8+0.8 |
1.0+1.0 |
1.2+1.2 |
1.5+1.5 |
|
welding speed |
2 m/min |
2 m/min |
1.5m/min |
1.5m/min |
1.5m/min |
company information
Please feel free to contact me if more information is needed.
WeChat: cj168794
Mobile: 0086*15268688035
