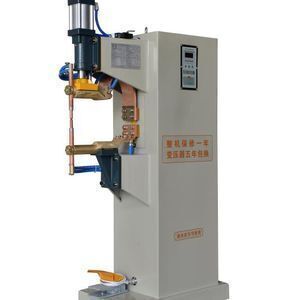

Automatic pneumatic spot welding machine
- 1600.00 set
| Condition: | New; | Warranty: | 1 YEAR; |
| Local Service Location: | none; | Control system: | Microcomputer; |
| Selling Units: | Single item; | Rated Duty Cycle: | 20%; |
| Applicable Industries: | welding; | Showroom Location: | none; |
| Certification: | CCC CE SONCAP; | Usage: | Welding hardware; |
| Machine type: | Resistant Spot Welding Machine; | Working objects: | Metal stainless steel; |
| Working principle: | Pluse; | Weight (KG): | 165 KG; |
| Dimensions: | 860*400*1480mm; | Rated Capacity: | 35KVA; |
| Weight: | 165kg; | Place of Origin: | Zhejiang China; |
| Package Preview: | ; | Arm dimension: | 380mm; |
| Stroke of cylinder: | 60mm; | Single package size: | 95X43X14.5 cm; |
| Power(W): | 35KVA; | Single gross weight: | 215.0 KG; |
| Key Selling Points: | transformer 5 years guarantee; | Packaging Detail: | wooden case or iron box; |
| Voltage: | 380V; | Current: | Alternating current; |
| Brand Name: | Jiaxiao; | After-sales Service Provided: | Online support; |
| Max. Welding Thickness: | 2mm+2mm; | After Warranty Service: | Online support; |
| Cooling Water: | ≥3.0L/min; |
Automatic pneumatic spot welding machine
Main technology parameter:

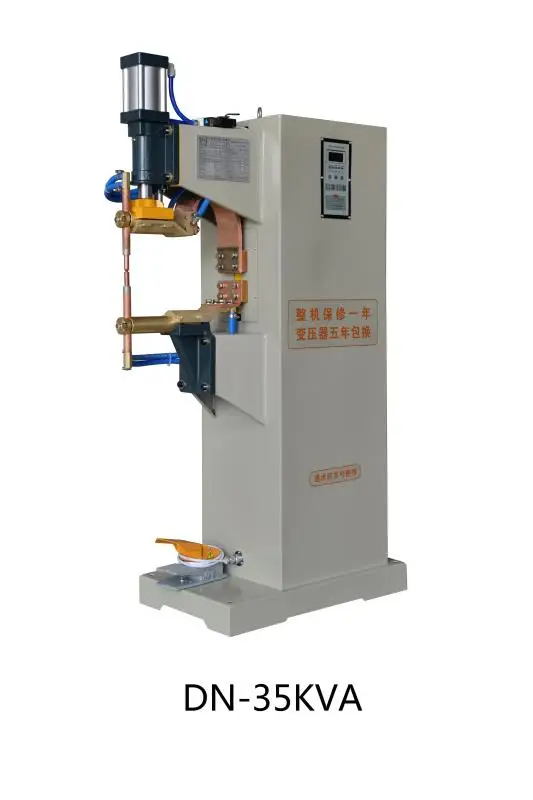

Model | DN-35KVA | DTN-63KVA | DTN-100KVA | DTN-150KVA |
Rated power | 35KVA | 63KVA | 100KVA | 150KVA |
Voltage input | 380V/2phase | 380V/2phase | 380V/2phase | 380V/2phase |
Rated frequency | 50HZ | 50HZ | 50HZ | 50HZ |
Max short circuit current | 16KA | 25KA | 32KA | 38KA |
Max welding input | 83KVA | 180KVA | 268KVA | 368KVA |
Duty cycle | 20% | 20% | 20% | 20% |
Arm dimension (tip to body) | 380mm | 380mm | 380mm | 380mm |
Max pressure | 2500N | 3900N | 6100N | 6100N |
Cylinder stroke | 60mm | 80mm | 100mm | 100mm |
Projection platform | / | 110×130mm | 120×135mm | 120×135mm |
Inner space of projection platform | 220mm | 220mm | 220mm | 250mm |
T slot center distance | / | 80mm | 80mm | 80mm |
Electrode arm | Φ44 | Φ54 | Φ64 | Φ64 |
Electrode holder | Φ20 | Φ25 | Φ30 | Φ30 |
Electrode | Φ13 | Φ16 | Φ20 | Φ20 |
Welding ability | 2+2mm | 3+3mm | 4+4mm | 5+5mm |
Consumer of water cooling | ≥3L/min | ≥4L/min | ≥5L/min | ≥5L/min |
Weight | 165KG | 245KG | 315KG | 410KG |
Outline size | 860×400×1480mm | 920×510×1540mm | 970×560×1710 mm | 970×560×1800mm |
Use:
This type of welding machine widely used in hardware manufacturing, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.
If you need, please contact with me.
Whatsapp: 008615268688035
Wechat: cj168794
Skype: candace_chen
Tel: 0086-15268688035
