Hot selling 100A mini spot welding machine for jewelry welding gold, silver and copper wire portable small welding machine

Supplier: Guangzhou Yali Jewelry Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms sales Yali
Price: $65.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Welding thickness:	0.5-2.0mm metal plate	Function:	for welding
Rated Capacity:	50Hz/60Hz	usage:	for welding metal
Supply capacity:	1000 pieces per month	power supply:	220V
Packaging details:	PE foam, strong sponge, carton, wooden box (can be chosen or not, depends on the customer)	Health status:	new
frequency:	50Hz/60Hz	Marketing type:	2020 new products
Video outbound inspection:	not available	net weight:	7.5kg
port:	Guangzhou	aspect:	2815.522cm
Power (kW):	0.2	Weight (kg):	7.5kg
Warranty:	1 year	current:	100A
Rated working cycle:	100A	maximum. Welding thickness:	0.5-2.0mm
Welding materials:	Gold, silver and steel	payment terms:	Western Union, wire transfer
strength:	200 watts	aspect:	2815.522cm
Core component warranty:	1 year	Mechanical test report:	if
Core components:	PLC, engine, motor	gross weight:	9kg
Showroom location:	not any	Place of origin:	Guangdong, China
brand:	Yali	Voltage:	110V/220V
Package preview:		Main selling points:	Energy saving
Applicable industries:	welding

Product Description

220V steel point laser welding machine fully automatic CNC handheld pulse argon arc welding machine for welding jewelry

feature:

The TIG spot welder includes five preset basic programs for gold (Au), cobalt-chromium alloys (co-Cr), hybrid welding (e.g.
precious metals to non-precious metals), titanium (Ti) and orthodontics. In addition to compact size, safe and stable system, and easy operation,
Easy to operate, low noise and easy to maintain. It requires minimal work space, and adjustable power and pulse settings allow
Adjust penetration depth and solder joint diameter. If there is no operation for 5 days, the unit will switch to Ortho mode
minutes to prevent any damage to the work piece. It is ideal for jewelry and dental soldering.

application:
Argon arc spot welding machine can be used for welding:
1. Gold, silver, platinum, palladium, titanium and other precious metal alloys and high-grade steel
2. Restrict the use of aluminum, tin and brass alloys.
3. Alloys with different properties.
This machine is suitable for all types of dental welding work, jewelry welding work, new restorations and repairs,
The scope of application is at least equivalent to that of laser welding machines, and the machine cost is much cheaper than laser welding machines.

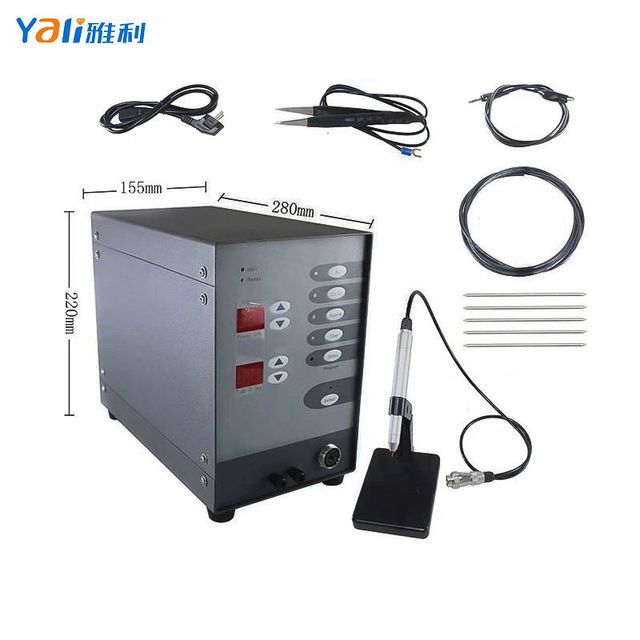

Accessories:
- 1 X spot welding machine
- 1 X Soldering pen with workbench
- 1 X Gas Pressure Reducer
- 1 tweezers clip
- 1 X Tungsten Needle
- 1 X Needle Polisher
- 1 X trachea*2m

product specifications

thing					100A high power spot welding machine
power supply					110V-220V 50Hz/60Hz
strength					200W
Welding current					0-100A
welding voltage					40V
Welding time					3ms-30ms
Air supply pressure					≥0.1Mpa
Maximum argon consumption					5 liters/minute
Maximum welding thickness					0.5-2.0mm
