12V Fully Automatic 18650 Lithium Battery Spot Welding Machine Full Accessory Set with Spot Welding Pens

Supplier: Shenzhen Baoan Shajing Sixiang Electronic Firm
Region: Guangdong, China
Contact: Ms Ted Zhou
Price: $9.72 /piece
Min. Order: 1 piece

Click here to contact

Product details

Power (kW):	/	Showroom location:	not any
Marketing Type:	New Products 2020	Mechanical test report:	not available
Sales unit:	single product	Video shipment inspection:	not available
Core components:	diy full set of accessories	Spot Welding Pen Line:	6 square 25 cm or 10 square 30 cm (choose one)
Single package size:	1X1X1 cm	Health status:	new
maximum. Welding thickness:	/	Origin:	Guangdong, China
usage:	diy full set of accessories	aspect:	/
Gross weight per piece:	0.390 kg	Weight (kg):	0.5 kg
Packaging Details:	security package	brand:	SX
Nominal Duty Cycle:	/	Voltage:	12V
Main selling points:	/	Applicable industries:	Mechanical repair shop, manufacturing plant, printing plant
Power requirements:	Lead-acid batteries	Voltage:	12V
Rated Capacity:	/	serial number. :	YC671421744087Y
Core component warranty:	1 year	Warranty:	1 year

All products will be carefully checked and well packed in high quality cartons before shipment.
We send tracking information to all customers by email. Information is provided immediately after shipment for status tracking.

Note to Buyers: Customs fees and import duties are the responsibility of the buyer.

Specification

The version is:
1. Lead-acid battery version

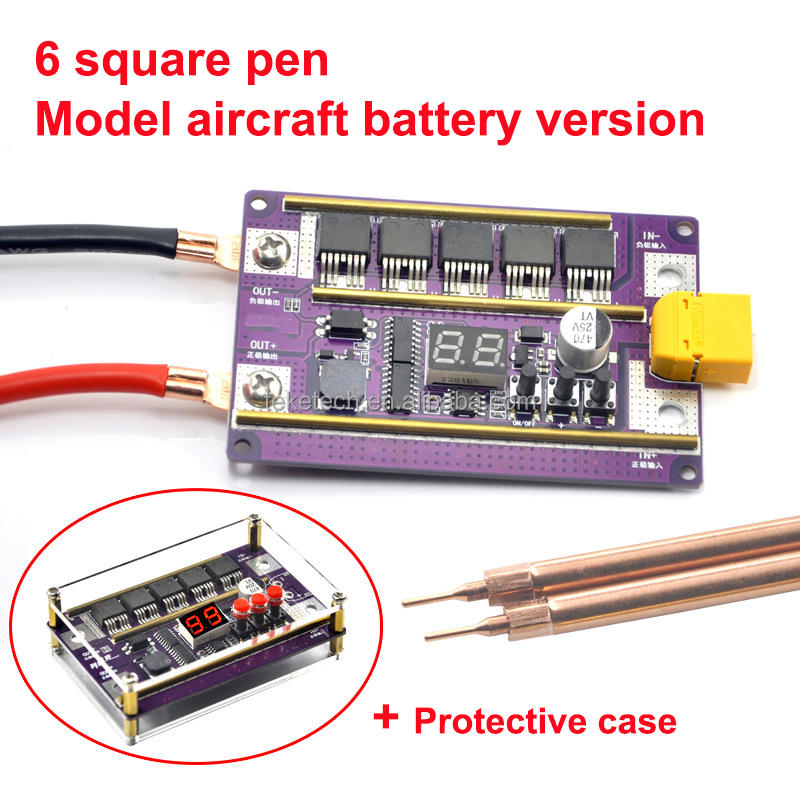

2. Model airplane battery version

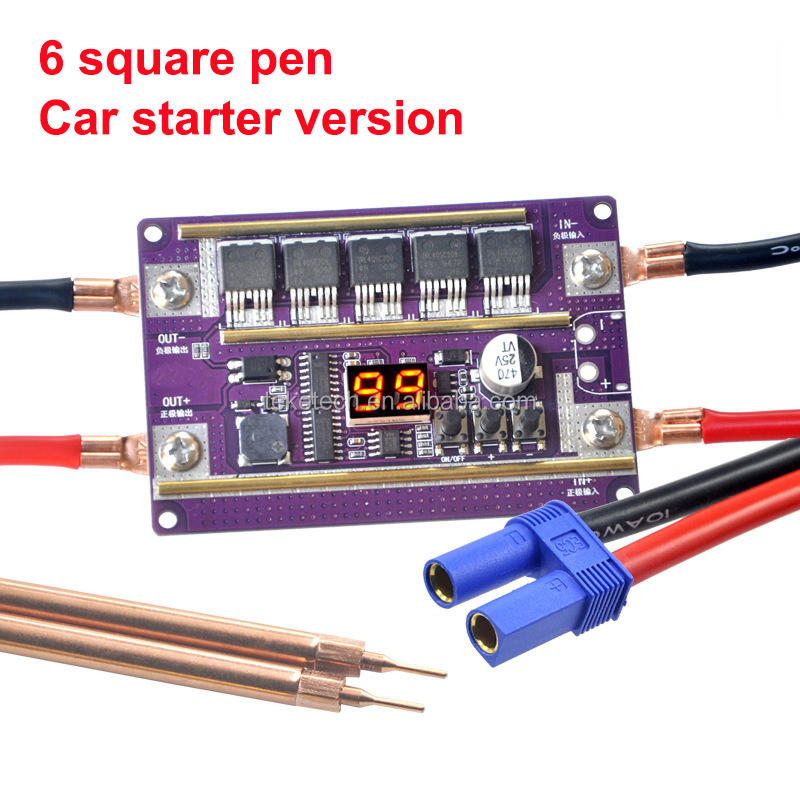

3. Car Entry Edition
4. Compatible version, 4 versions.
Each version has 4 specifications! ! !

have:
6 square pens,
6 square pens (with protective case),
10 square pens,
10 square pens (with protective case).

Special Note: Compatible version has three general power supply methods, lead-acid battery version, model aircraft version
The battery version, the entry version can choose one of the power supply methods.

6 square pens can spot weld 0.05-0.2mm nickel-plated sheet, and 10 square pens can spot-weld 0.05-0.3mm nickel-plated sheet.

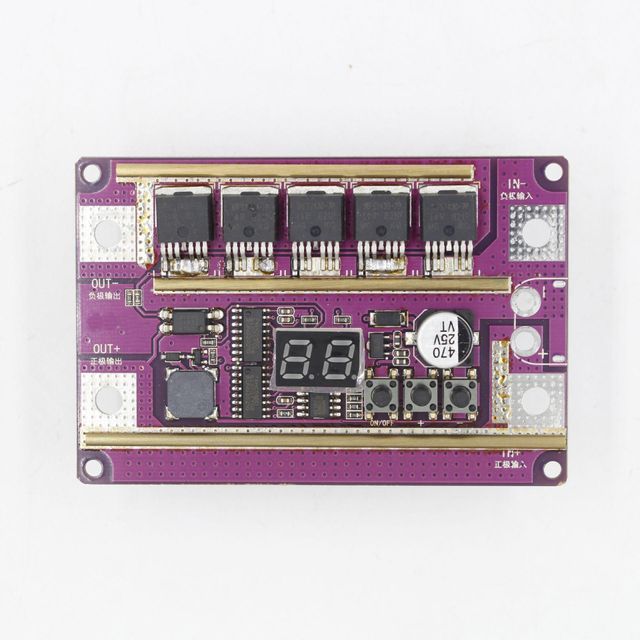

This is a high-quality spot welding machine control board, high-power output design, 99 adjustable output power, more
Precision welding, nickel/nickel plate can weld thousands of points continuously. Solder joints are accurate,
Beautiful, support 0.05-0.3mm nickel, iron, stainless steel welding. This spot welding machine can be used for spot welding
Welding of 14650/17490/18650/21700/26650/32650 cylindrical lithium batteries and nickel metal hydride batteries.

feature:
Using 5 MOS tubes, the maximum current can reach 2390A.
High power output design, 99 adjustable output power, more accurate welding, thousands of points can be welded continuously
On nickel sheet/plate.
Welding is the principle of using high current and high temperature to rapidly melt and cool the nickel foil part.
Equipped with 2 copper bars, which greatly increases the flow capacity.
The solder joints are accurate and beautiful, and support the welding of 0.05-0.3mm nickel, iron and stainless steel.
This spot welding machine can be used for 14650/17490/18650/21700/26650/32650 cylindrical lithium batteries and
NiMH batteries

Power supply: own power supply
1.1 Old lead-acid battery 12V20AH----100AH (new battery cannot exceed 45AH) and 20AHI old lead-acid battery cannot
more than a year. The older it is, the greater its capacity.
Or: 4-5 strings of super Farad capacitors
Or: Macromonomer

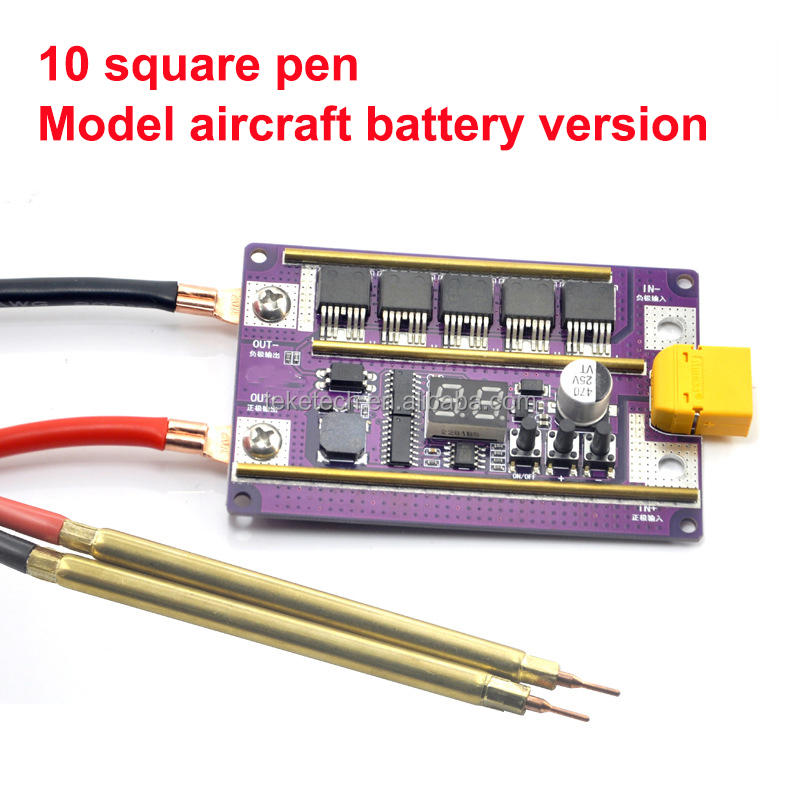

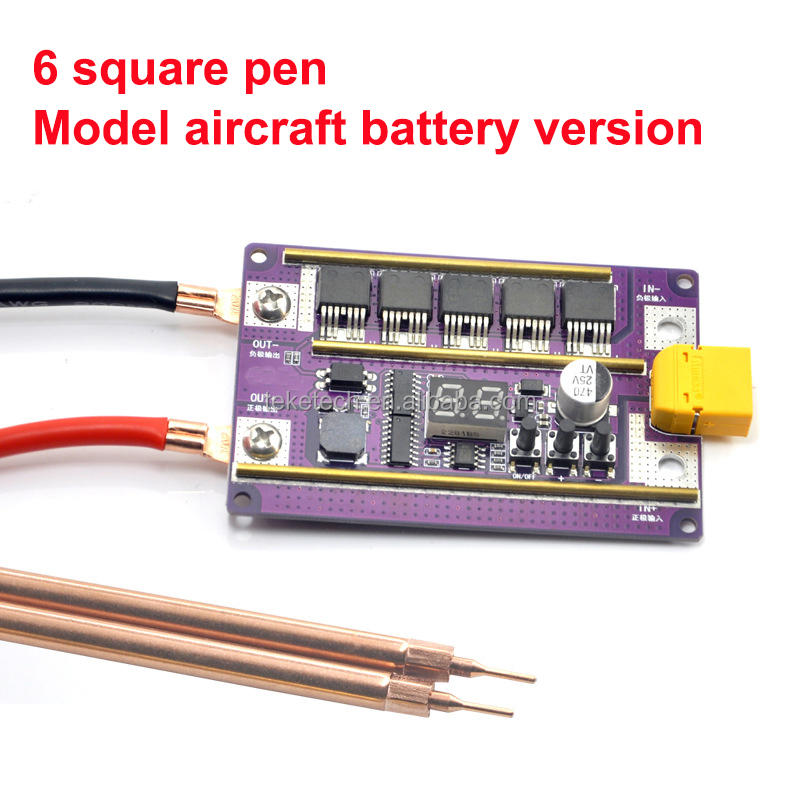

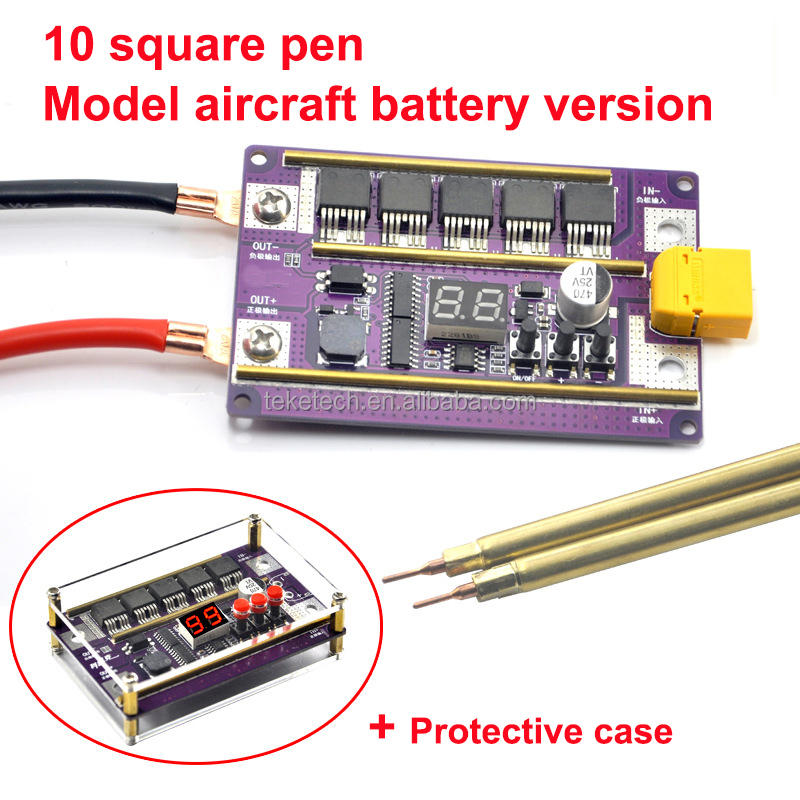

2. Aircraft battery: 3S-4S 25C-60C output line to 6-10 square XT60 head

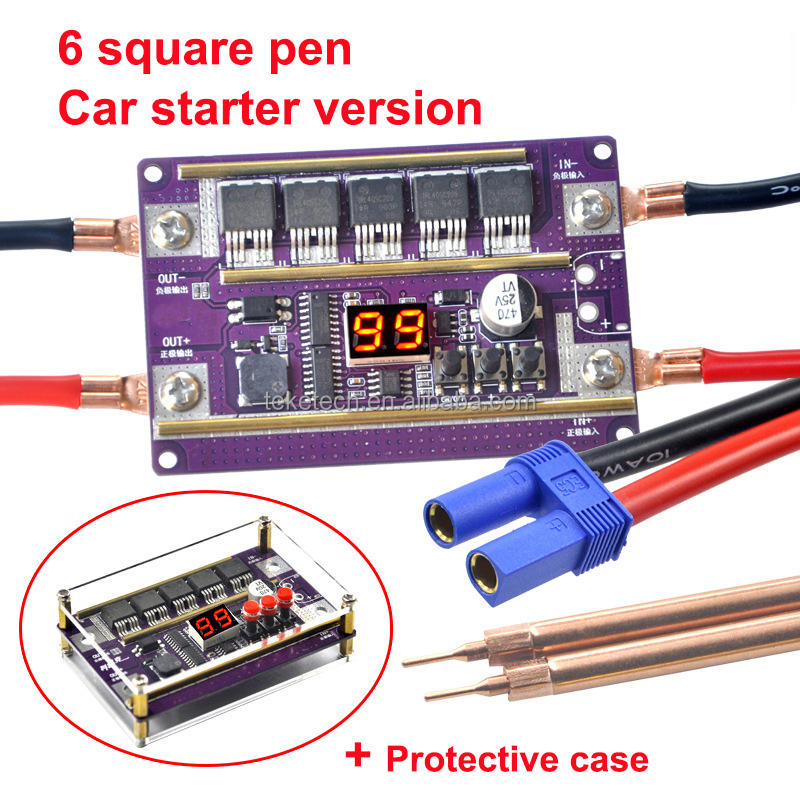

3. The 12V starter that can start the car normally must have an EC5 interface.
4. The compatible version needs to choose a power supply like the above three

Prohibited use: switching power supply, transformer, charger, water battery, charging treasure, power spot welding machine, etc.
Damage to the spot welder control board.

Version:

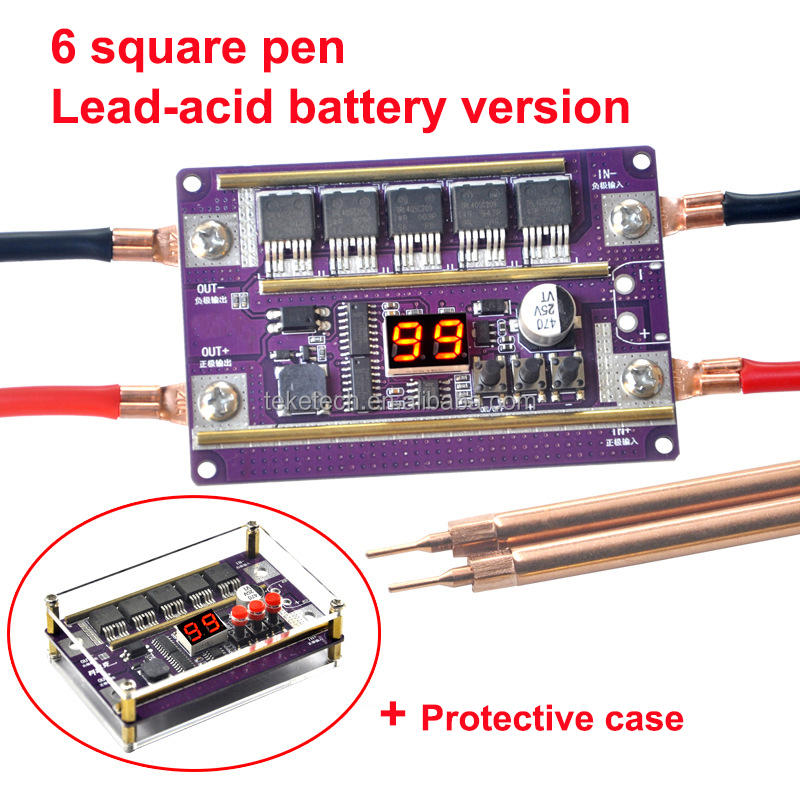

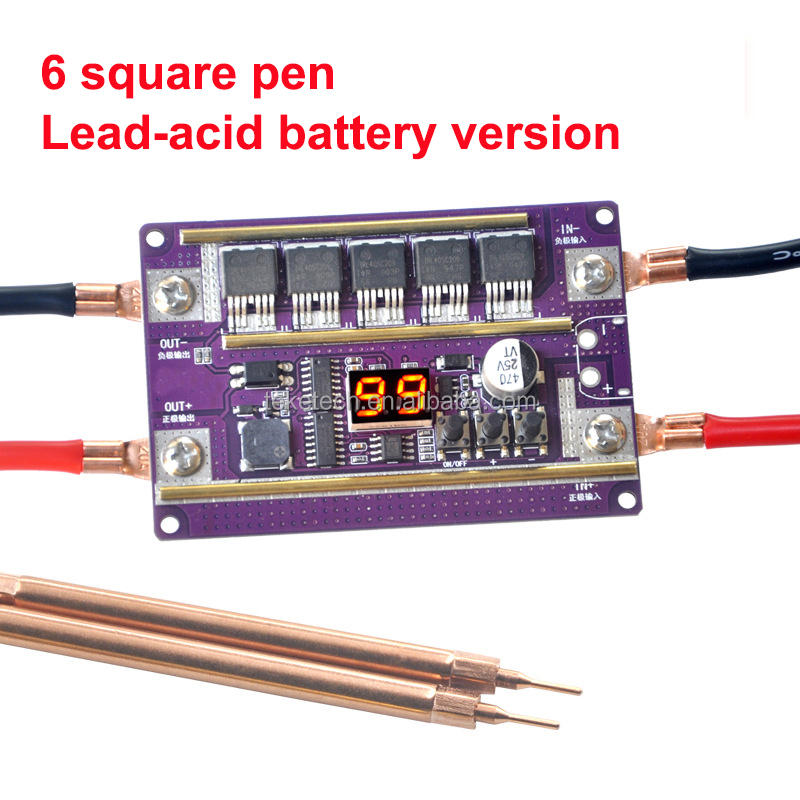

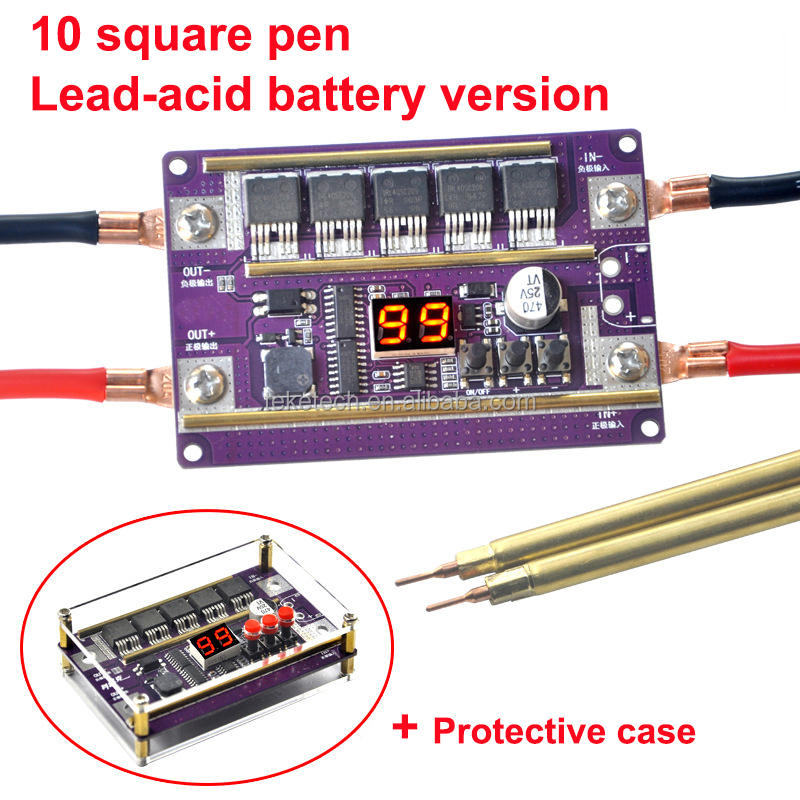

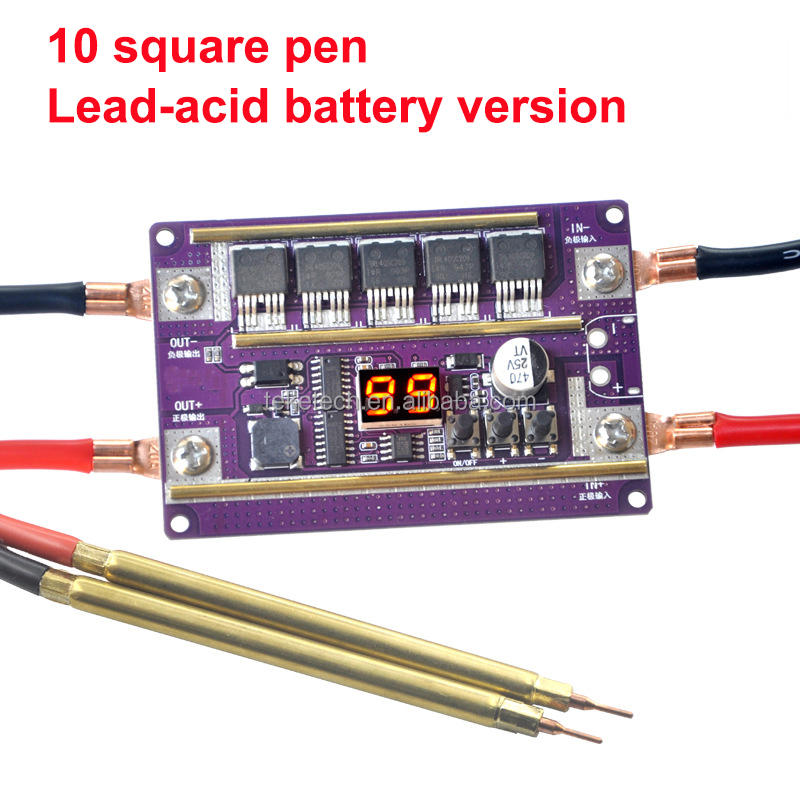

Lead-acid battery version
Spot welding pen line: 6 square 25 cm or 10 square 30 cm (choose one)
Spot welding thickness: 0.05-0.2mm for 6 square spot welding pens
10 square spot welding pen can point 0.05-0.3mm
