AC Resistance Welding Machine AC Low Carbon Steel Stainless Steel Roll Seam Welding Machine
- 3900.00 unit
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Mechanical test report: | if |
| Warranty: | 4 years | Welding method: | horizontal |
| place of origin; place of origin: | China Shanghai | Weight (kg): | 400 kg |
| Core components: | PLC, engine, motor, gear | brand: | Lukosi |
| Main selling points: | precise temperature control | Power (kW): | 25 |
| usage: | seam welding | aspect: | 1600*1500*1900mm |
| Forming time: | 0.5 seconds | Supply capacity: | 7000 units per year |
| Showroom location: | Brazil, Pakistan, India, Romania | Weld diameter: | 5-60cm |
| Package preview: | port: | Shanghai | |
| Applicable industries: | Mechanical repair shops, manufacturing plants, construction, energy and mining | Video shipment inspection: | if |
| Voltage: | 380V | Marketing Type: | New Products 2020 |
| Health status: | new | Core component warranty: | 3 years |
| Packaging Details: | wooden |
Product overview

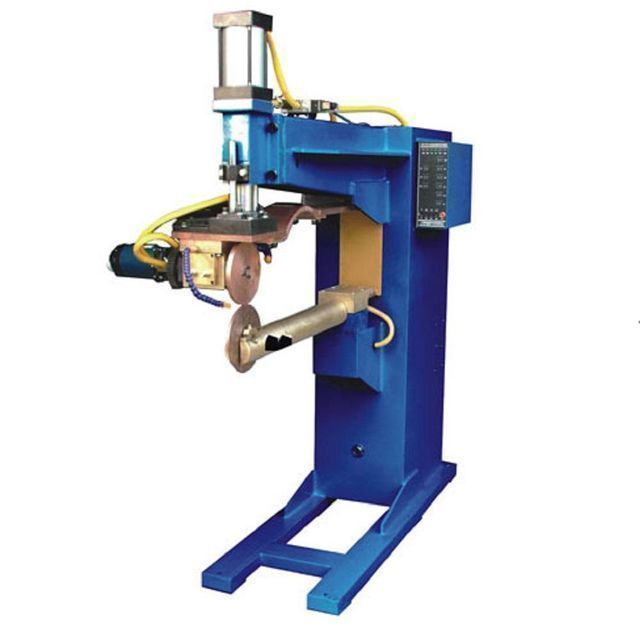

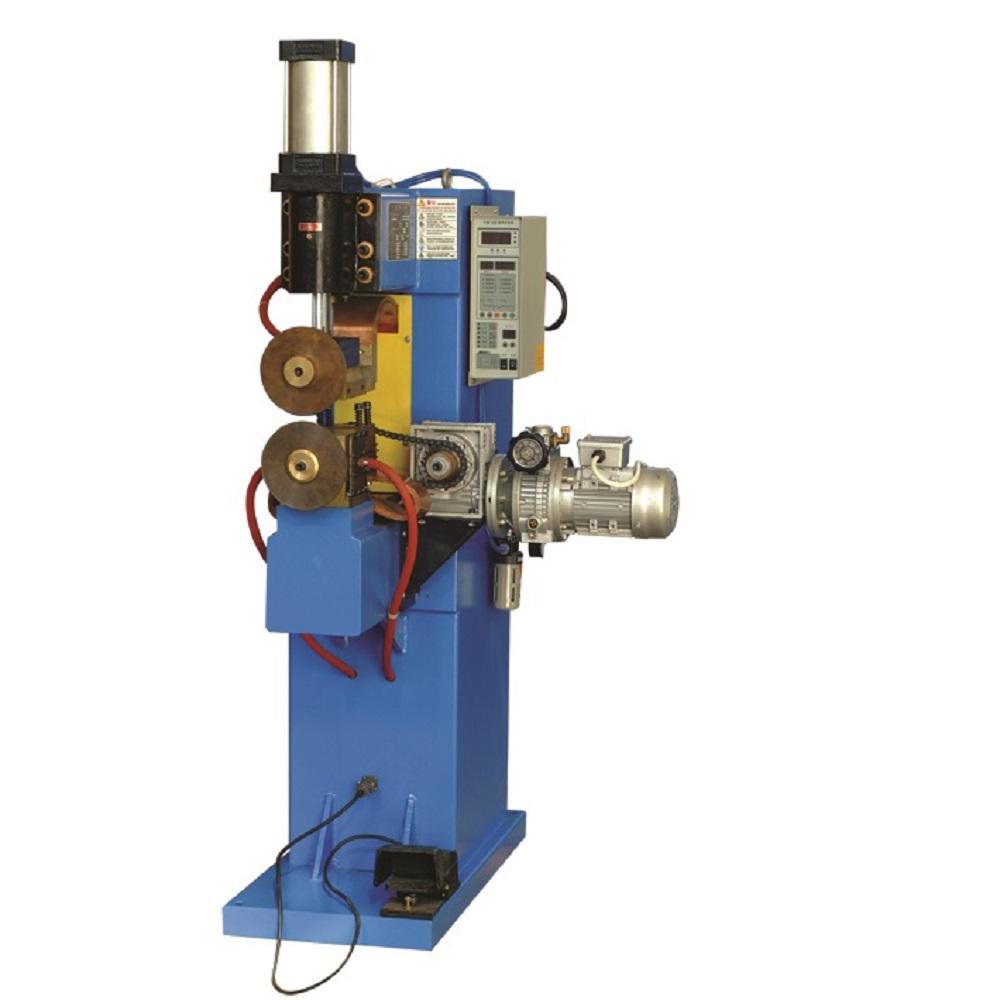

AC Resistance Welding Machine AC Low Carbon Steel Stainless Steel Roll Seam Welding Machine
FN pneumatic seam welding machine can be divided into horizontal welding and vertical welding, and is widely used in flanging welding of structural parts such as thin steel plates, barrels, fuel tanks, mesh cloth, and bicycle baskets.
List of functions
Structural features
Pneumatic pressurization is reliable, easy to operate, and the welding speed can be adjusted steplessly. Equipped with a welding controller, it has precise control and setting functions for welding time, interval time, welding current energy, etc. 1. The three-phase regulator controls the welding speed evenly without jitter. 2. Vertical and horizontal welding can adapt to various operations and working conditions. 3. Sturdy construction withstands heat and maintains solderability. 4. Rotating conductance or silver bearings provide good contact and reduce energy loss. 5. Widely used in metal processing industries such as home appliances and automobiles.product specification
Model | Rated Capacity (kVA) | Input voltage (five) | Input Current (One) | Duty cycle (%) | Rated pressure (Mpa) | Cooling water flow(L/min) | Welded low carbon steel capacity reference (mm) |
FN-25 | 25 | 3P 380 | 65.8 | 50 | 0.6 | 2 | 0.8+0.8 |
FN-50 | 50 | 3P 380 | 131.6 | 50 | 0.6 | 2 | 1.2+1.2 |
FN-75 | 75 | 3P 380 | 197.4 | 50 | 0.6 | 3 | 1.5+1.5 |
FN-100 | 100 | 3P 380 | 263.2 | 50 | 0.6 | 3 | 1.8+1.8 |
FN-160 | 160 | 3P 380 | 421.1 | 50 | 0.6 | 4 | 2.0+2.0 |

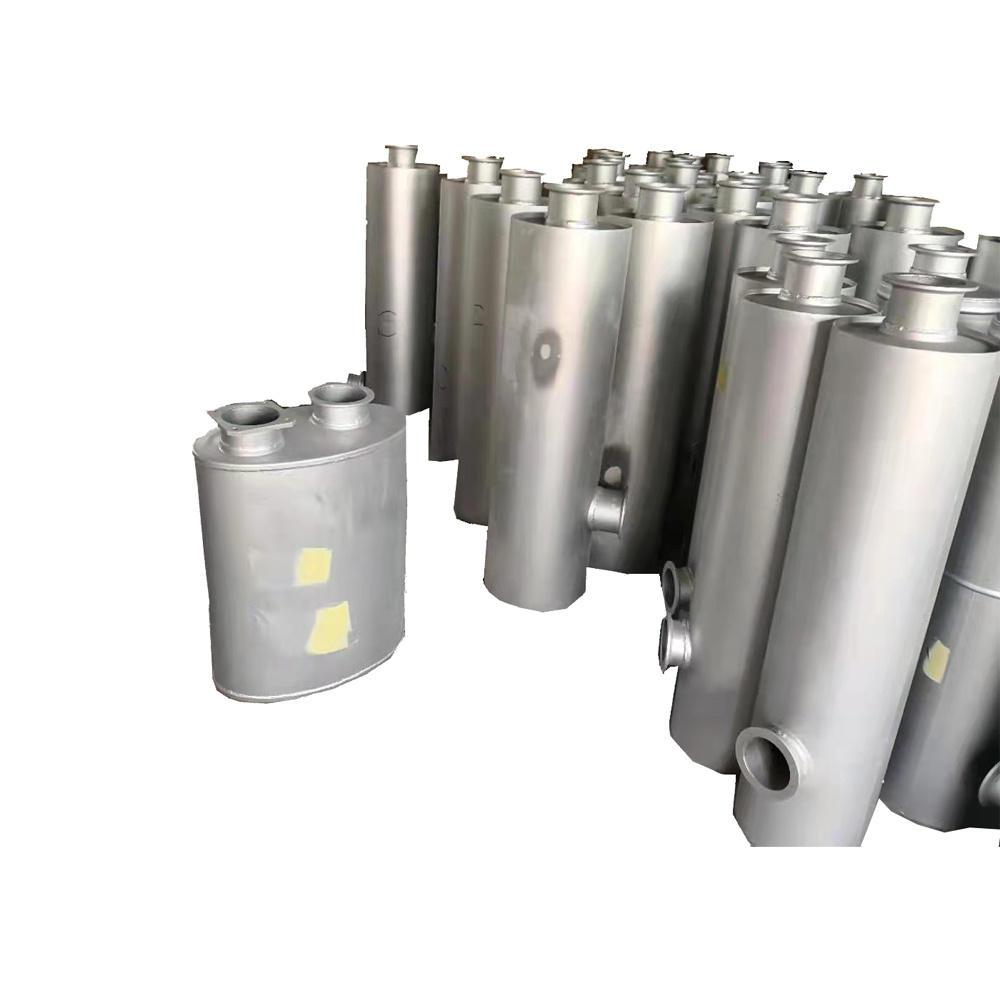

Welding samples
tank
container
tank
successful project
Indian project
malaysia project
brazil project
