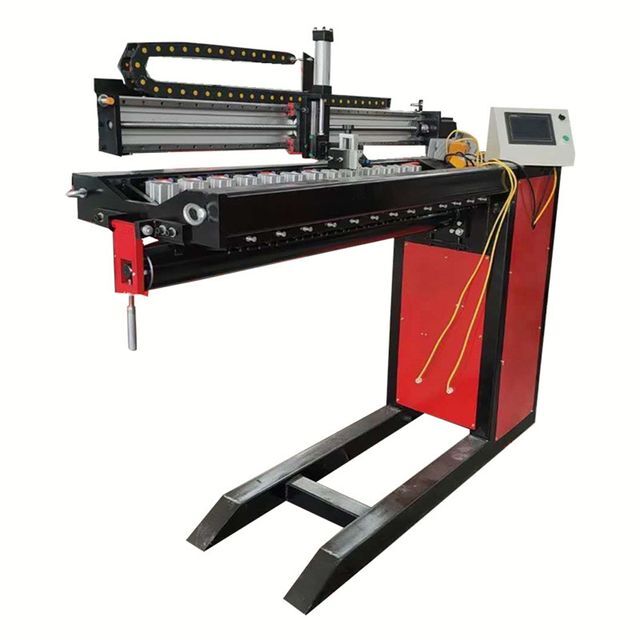

1000MM automatic arc groove longitudinal seam welding machine straight rolling seam welding machine

Supplier: Shanghai Lucosy Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr Michael Fu
Price: $7100.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Main selling point:	Precise temperature control	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
brand:	Lucosi	Molding time:	0.5S
Welding Diameter:	10-60cm	Core components:	PLC, engine, motor, gear
Warranty:	4 years	place of origin; place of origin:	China Shanghai
Core Components Warranty:	3 years	Voltage:	380V
Showroom location:	Brazil, Pakistan, India, Romania	Marketing Type:	New Products 2020
Health status:	new	Video external inspection:	if
Packaging Preview:		Packaging Details:	wooden
port:	Shanghai	Applicable industries:	Mechanical Repair Shops, Manufacturing Plants, Construction Engineering, Energy and Mining
Weight (kg):	280kg	usage:	seam welding
Mechanical test report:	if	Supply capacity:	7000 units per year
Welding method:	horizontal	Power (kW):	25
aspect:	160015001900mm

Function list

1000MM automatic arc groove longitudinal seam welding machine straight rolling seam welding machine

The straight seam automatic welding machine can realize automatic welding of workpieces, improve production efficiency and welding quality, reduce labor costs, and improve the working environment of welding workers.

Structural features

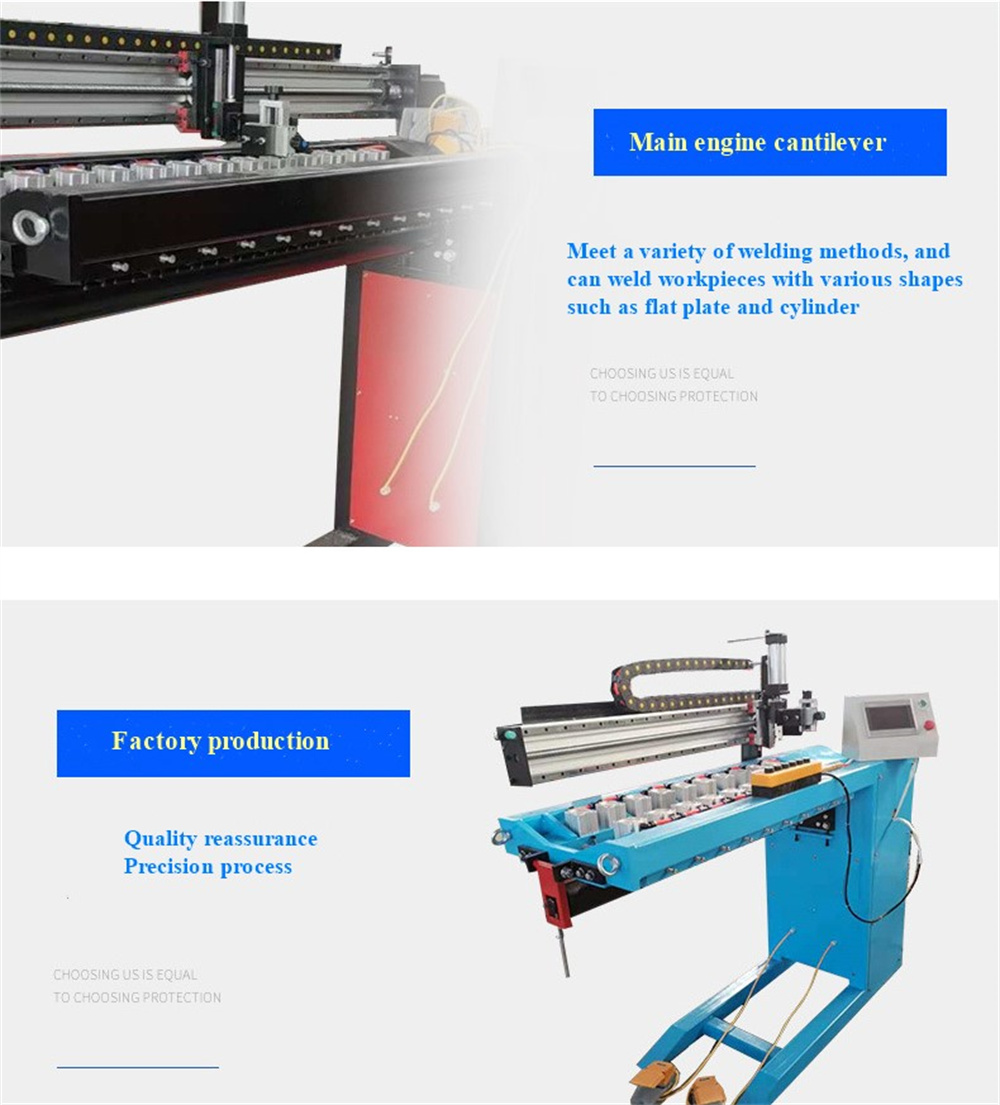

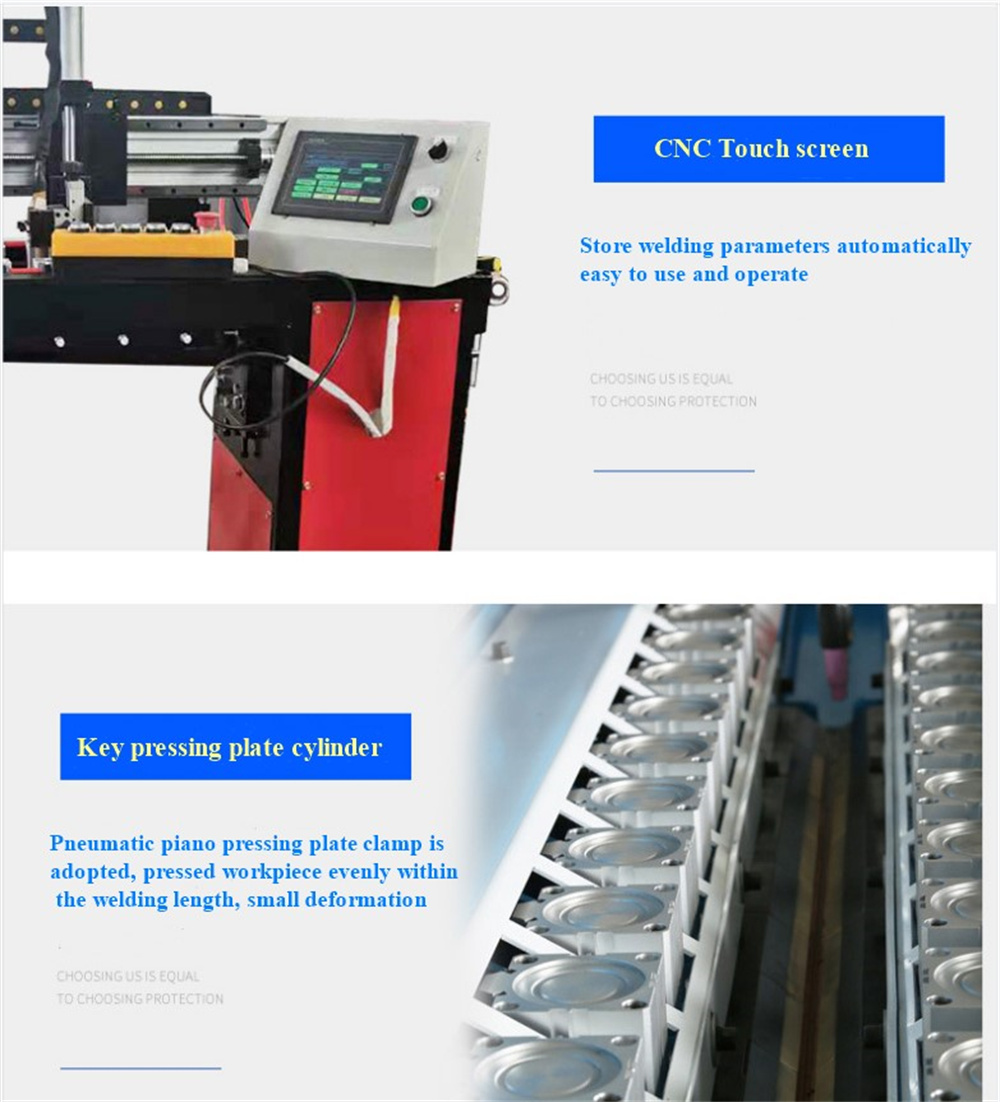

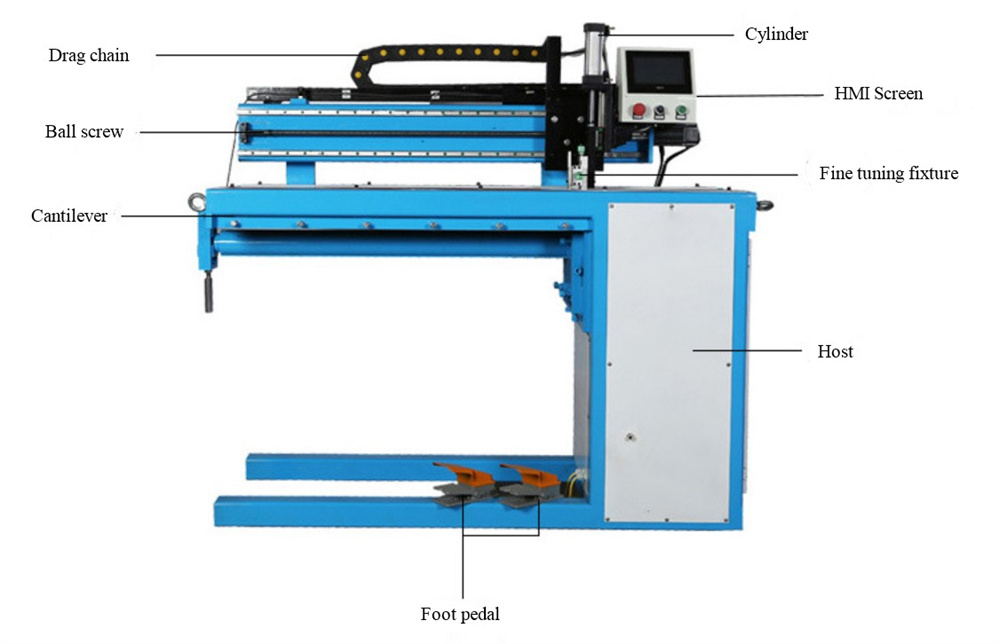

1. Pneumatic piano pressing plate clamp is used, which is evenly pressed within the welding length and has small deformation. 2. Back protection copper block and forming groove ensure stable gas protection. 3. PLC control, easy to operate. 4. The DC motor drives the welding torch to move, the gear rack drives, and the welding speed is infinitely adjustable. 5.GroundTrack surface and welding stability. 6. Using CNC touch screen to automatically store welding specifications, easy to use and simple to operate. 7. All copper core production, energy saving and consumption reduction. 8. It is suitable for welding of TIG, MIG, MAG, plasma arc welding power source. 9. The large chassis dissipates heat well. 10. Years of production experience, product quality assured

product description

Product Specifications

Model	LSW-300	LSW-500	LSW-800	LSW-1000	LSW-1200	LSW-1500
Input voltage	Single-phase 220VAC, three-phase 380VAC, 50/60Hz can be customized
Maximum welding length	300mm	500mm	800mm	1000mm	1200mm	1500mm
Workpiece diameter	50-800mm	70-800mm	90-800mm	100-800mm	100-800mm	120-800mm
Workpiece thickness	0.3-3mm	0.4-3mm
Welding speed	300-2000mm/min
Walking accuracy	0.1/0.2mm
