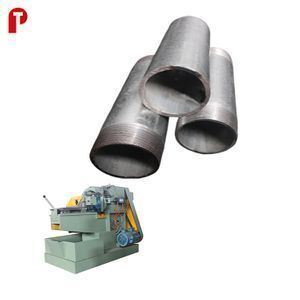

High-efficient stainless steel seamless pipe threader cutter

Supplier: Platinum Overseas Trade Inc.
Region: Jiangsu, China
Contact: Mr Sotu Zhu
Price: $16000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimensions:	170011501300mm;	Brand Name:	BOBO;
Diameter of the pipe thread:	1 1/4"(1/2)" ~ 2";	Supply Ability:	50 Set/Sets per Year High-efficient stainless steel seamless pipe threader cutter;
Weight:	1300KG;	Weight of the machine:	1300KG;
Size of Hydraulic Station:	620420780mm;	Place of Origin:	Jiangsu, China;
Spindle motor power:	5.5KW;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,High-efficient stainless steel seamless pipe threader cutter;
Spindle speed:	0-----90r/min;	Size of the machine:	170011501300mm;
Applicable Pipe Thread:	1 1/4"(1/2)" ~ 2";	item:	High-efficient stainless steel seamless pipe threader cutter;
After-sales Service Provided:	Engineers available to service machinery overseas;	Packaging Detail:	High-efficient stainless steel seamless pipe threader cutter is packaged with wooden case;
No-Load Speed:	0-82r/min;	Dragging plate:	180mm;
Rated Input Power:	5.5KW;	Port:	High-efficient stainless steel seamless pipe threader cutter will be delivered from Shanghai;
Oil pump motor power:	2.2kw;	Rated Voltage:	380V;
Frequency:	50HZ;	Model Number:	BO-50A;

Advantage & service

Product Description

High-efficient stainless steel seamless pipe threader cutter

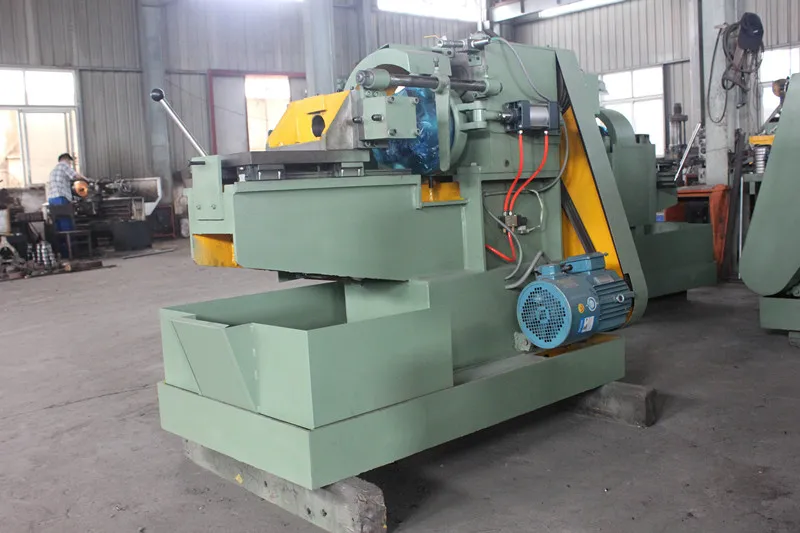

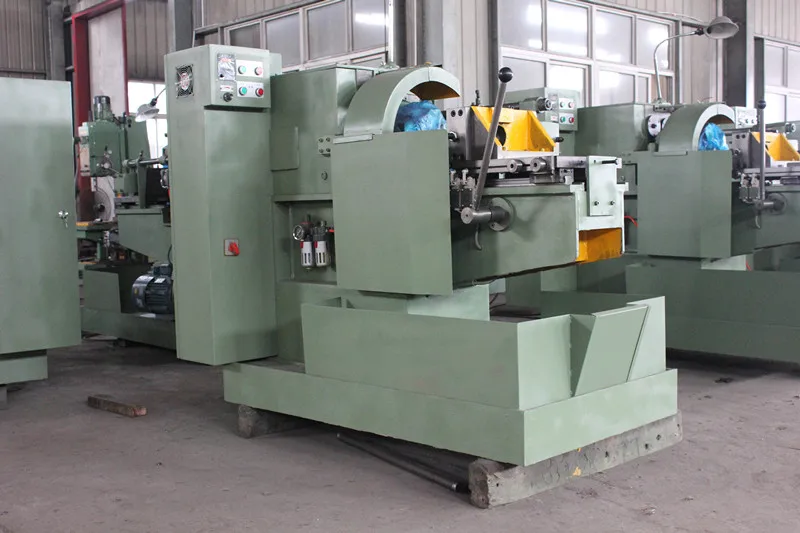

This threading machine adopts frequency conversion speed regulation, pneumatic feed and retreat cutter, hydraulic clamping and loosening workpiece, linear ball guide rail, automatic stopper mechanism and precise control of thread length. This machine has low labor intensity, high working efficiency and good thread quality.

Feature of High-efficient stainless steel seamless pipe threader cutter

Easy to operate
Wide processing range
High precision
Economical and practical
High productivity

Main technical data of High-efficient stainless steel seamless pipe threader cutter

Modle	Diameter of the pipe thread	Dragging plate	Spindle motor power	Spindle speed	Weight
BO-32A	1/2"(1/8)" ~ 1"(1 1/4)"	180mm	4kw	0-230r/min	1100kg
BO-50A	1 1/4"(1/2)" ~ 2"	180mm	5.5kw	0-82r/min	1300kg
BO-100	2 1/2" ~ 4"	150mm	18.5kw	0-30r/min	2800kg
BO-150	5" ~ 6"	150mm	22kw	0-30r/min	3200kg
