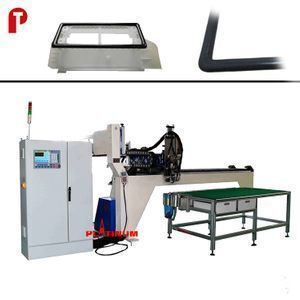

pu foam dispensing machine for strip sealing,gasekt sealing of lock enclosure,electrical boxes

Supplier: Platinum Overseas Trade Inc.
Region: Jiangsu, China
Contact: Mr Sotu Zhu
Price: $40000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Working pressure:	0-4MPa;	Mixing ratio:	1:1-1:10;
Measuring accuracy:	±0.1%;	Item:	gasket seal machine;
Re-positioning accuracy:	±0.05mm;	Output capacity:	0.05-1.5g/s;
Seal gasket width:	2-8mm;	Packaging Detail:	The gasket seal machine is delivered is packaged in wooden case.;

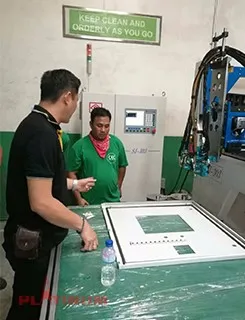

After-sales Service Provided:	Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;	Supply Ability:	15 Set/Sets per Month;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,high efficient gasket scasting machine;	Brand Name:	PT;
Warranty:	1 Year;	Filtration accuracy:	0-5um;
Port:	The gasket seal machine is delivered from Shanghai port;	Requested air pressure:	0.5-0.8MPa;
working speed:	0-20m/min;

Trade Assurance

Product Describtion

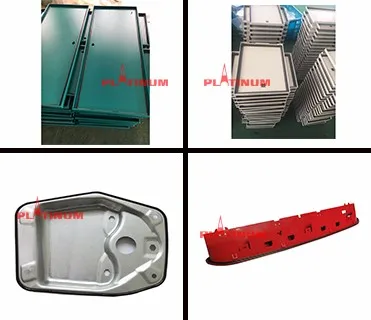

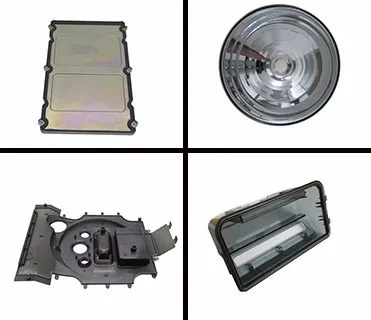

Application

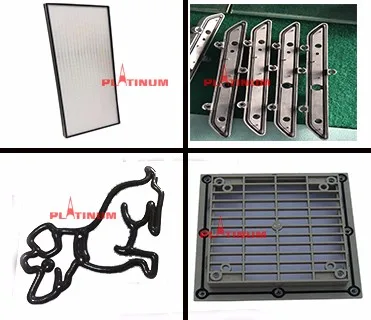

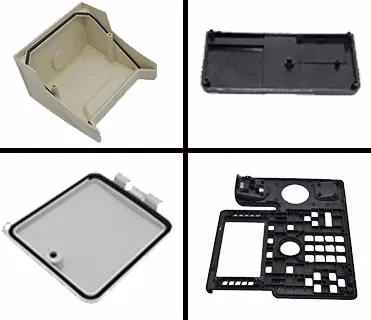

The machine is used to produce:electrical boxes, auto parts, radiators, refrigerator doors, vacuum cleaner accessories, LED lamps, street lamps, explosion-proof lighting, instrument boxes, automotive parts, vacuum cleaners, vacuum cleaner accessories, cleanroom doors, radiators, waterproof boxes, led shades, filters , Micro glue products, cover plate, cover outlet hole seal, transformer shield seal, inverter back cover, inverter base, mine explosion-proof equipment, locks, three-dimensional waterproof box, fan net cover photos, sealed lamp cover, bicycle Accessories, electrical accessories, waterproof joints, filter covers, auto parts, sheet metal parts, transparent waterproof boxes, distribution boxes (State Grid), distribution box sealed cabinet doors, non-standard sheet metal doors, fan covers, car rain Panels, Car Door Handle, Car Speakers, Car Interiors

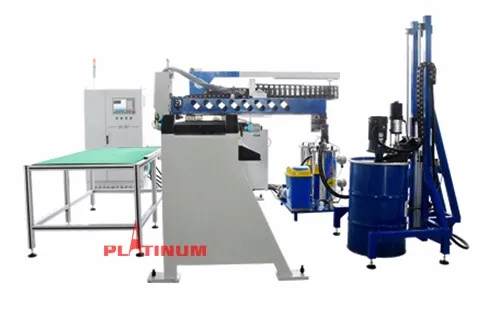

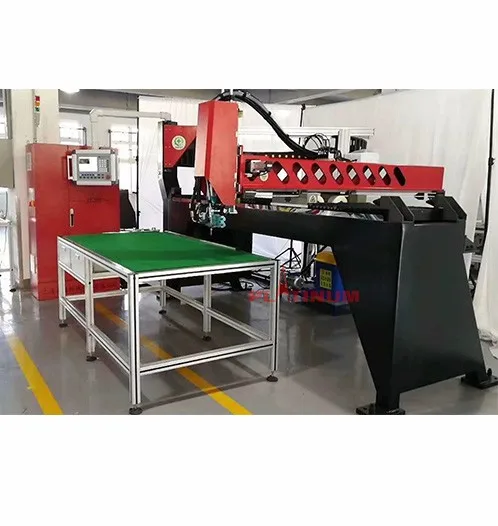

Features

The equipment is driven by a servo motor, and the operation is smooth. The 2D and 3D workpieces can be processed. The CNC multi-dimensional compensation can realize any track gluing.
The high-precision mixing head with independent intellectual property rights has the excellent performance of instantaneous blocking, drip prevention, turbo charging, 360-degree cleaning and no dead angle.
Stainless steel 316 double pressure tank equipped with automatic air replenishment and intelligent constant temperature device protects the raw materials from normal use even under low temperature environment.
Hand-held operation panel is provided for easy and convenient use.

Machine Component

Name	Brand	Type	Quatity
Control system	Local (patent NO:2910179)	SJ-303	1 set
Main control panel	NEC		1 set
Servo motor and drive	Japan PANASONIC	MHMJ042P1S+MBDJT2210	3 sets
		MHMJ042G1V+MBDJT2210	1 set
		MHMJ102P1E+MCDJT3230	2 sets
Reducer	Taiwan BITPASS	HTE80-10-MHMJ042PIS	2 sets
		HTE80-40-MHMD082GIV	1 set
		DH120-20-MHMJ102PIS	2 sets
Linear guide rail	Taiwan HIWIN	HGW30CC2R	2 sets
		HGW25CC2R	2 sets
		HGW20CC2R	2 sets
Metering pump	German BARMAG	GMD301D-40N-100Z 3cc/rev	1 set
		GMD61D-40N-100Z 0.6cc/rev	1 set
Relay	Japan OMRON		1 set
Electrical components	French Schneider		1 set
Five bit solenoid valve	SMC		1 set
Mixed mixing body	Local (patent NO:2838571)	SJ-303	1 set

Nylon plastic towline	Henxin	55175R100	1 set
Special structure explosion proof pipe	SANYANG	2240;2011;87;1211	1 set
Stainless steel barrel	Material 316	40L	2 sets
Special structure water pump	Local	280Type	1 set
Electrical control cabinet	ES	1000mm500mm1800mm	1 set
Pressure sensor	America OMEGA	NS/W 2MPa	2 sets
