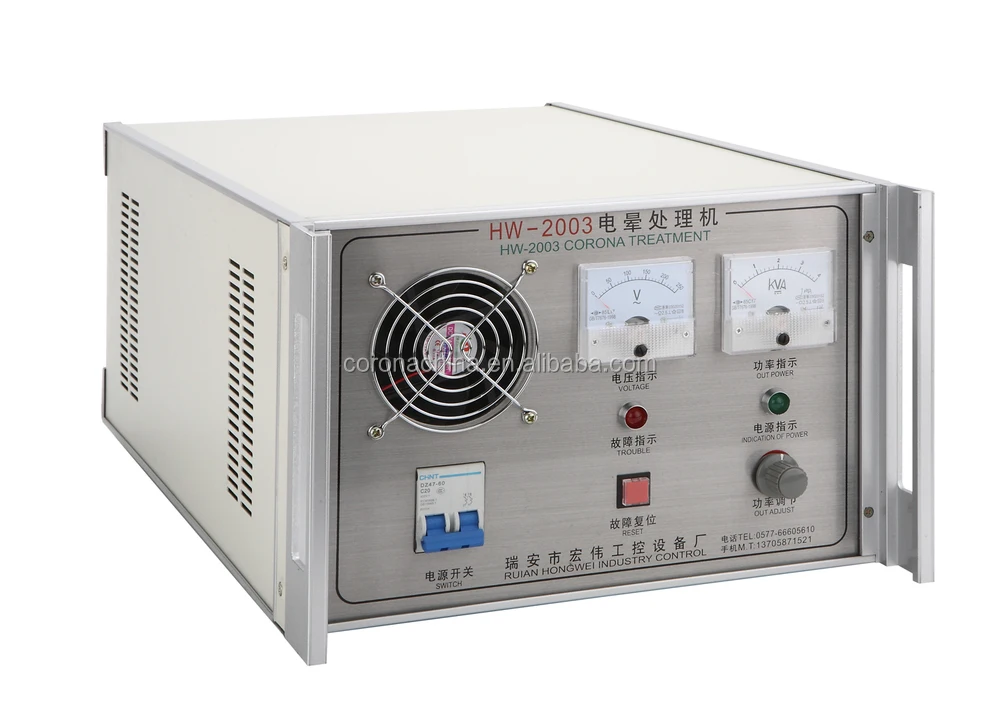

Corona Generator HW-2003G and Corona Station for Blown Film Machine Corona Treater
- 1200.00 set
| Core component warranty: | 1 year | Package preview: | |
| Health status: | new | Output Power: | 3KW |
| port: | Ningbo/Shanghai | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Other, Advertising company |
| Video shipment inspection: | if | Showroom location: | not any |
| Main selling points: | Famous PLC | After-sales service provided: | Video technical support |
| Warranty: | 1 year | Mechanical test report: | if |
| payment terms: | L/C, Western Union, T/T, MoneyGram | Operating frequency: | 25KHZ |
| brand: | Hardware & OEM | Origin: | Zhejiang, China |
| Supply capacity: | 50 sets per week | power supply: | AC220V |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump | Weight (kg): | twenty three |
| Packaging Details: | Packed in box or wooden case | Marketing Type: | normal product |
| The output voltage: | 15kv |
coronaExtrusion Film Processing
(Cast & Blown & Laminated & Printed Film)
featurecorona generator
1. High-voltage fast switching power transistors are used as power conversion devices
2. High efficiency and high working frequency. (8-25KHz)
3. The power output is continuously adjustable.
4. Electronic protection and low speed automatic shutdown.
5. Serving film production, printing, gluing, and composite units.
6. Uniform processing of format width
technical specifications
| type | : | HW2003 |
| power supply | : | AC220V±10%/-15% |
| main frequency | : | 50 Hz ±5% |
| Line speed | : | 30-80 m/min |
| Output frequency | : | 8-25 Hz |
| Maximum output power | : | 3 kW |
| corona output | : | a. Maintain the same speed B. Not affected by the supply voltage |
| Dyne class | : | 38-44 dynes/cm |
| Maximum Processing Width | 1200mm | |
| handling material | : | PP, PE, PS and other plastic films Metal films |
| Vertical and horizontal dimensions | : | 60CM*34CM*24CM |
| net weight | : | 19KGS |
| ambient temperature | : | -10°C ~ +40°C |
| environment humidity | : | 20%~93% non-condensing |
| application | : |
Film blowing machine, printing machine, laminating machine, etc. |

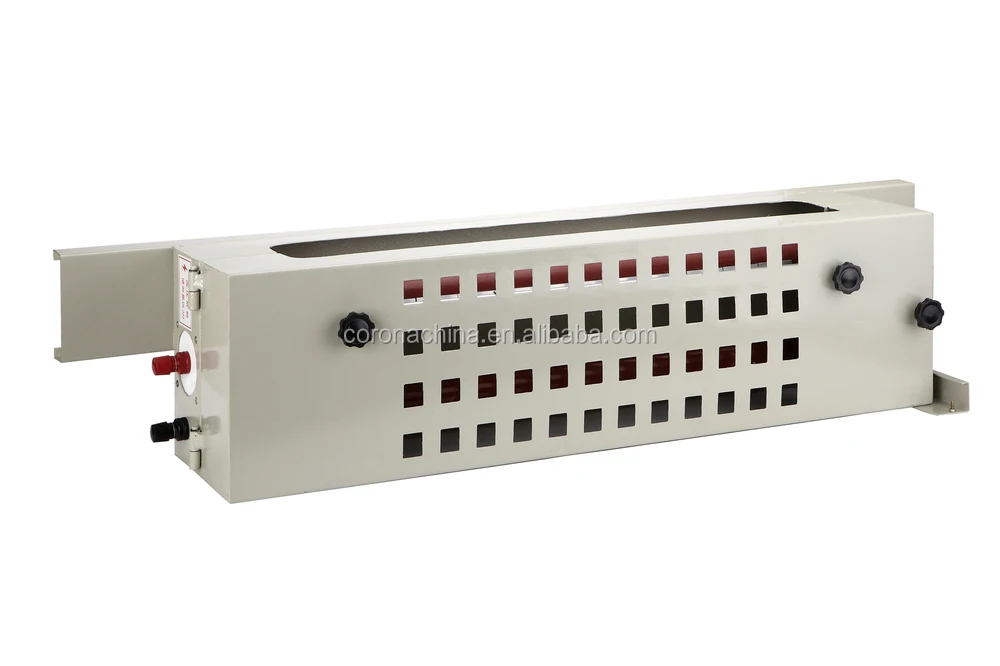

| corona treatment station | : | Available upon request |
benefit
easy to install
accurate output power
Small, compact and economical design
low maintenance
user friendly
Maximum Operator Safety
Optional value-added features
Pneumatically operated processor station.
Zero speed switch protection silicone case.
The ozone extraction system effectively removes ozone and cools the electrodes.
Steel corona stand with anti-rust paint.

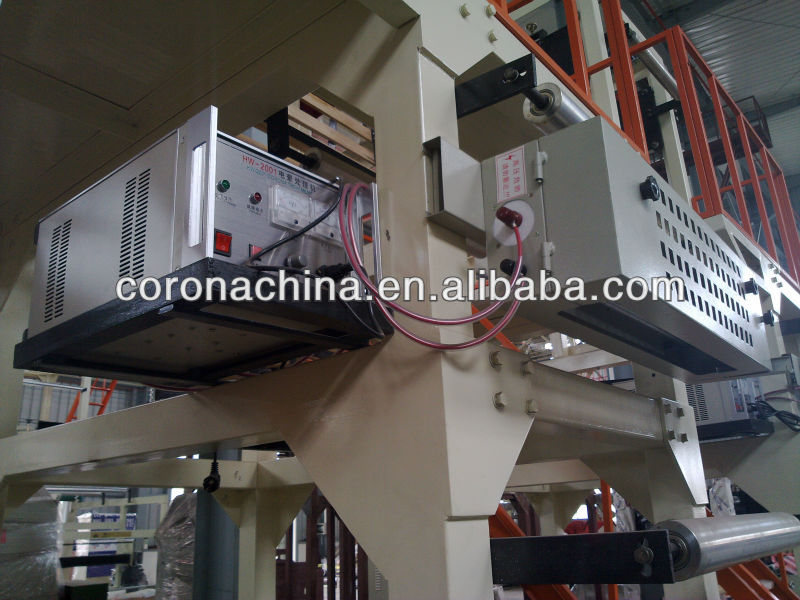

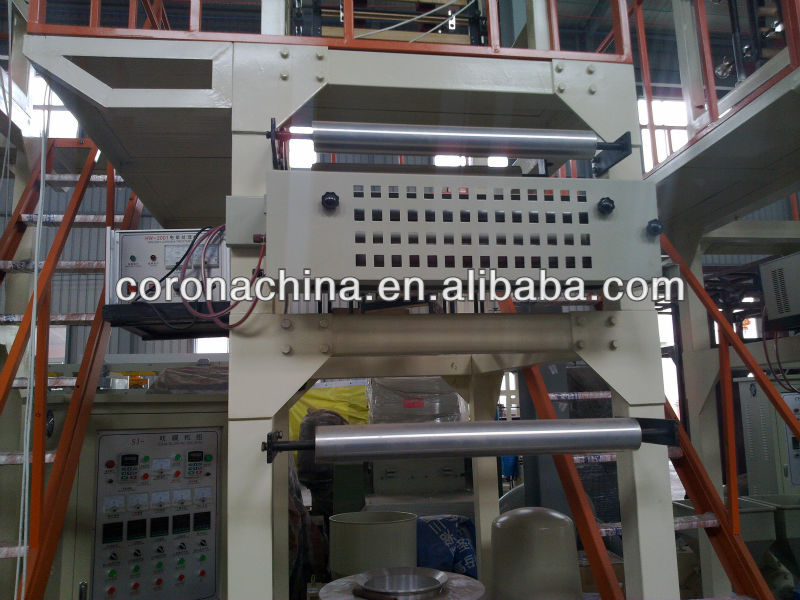

More detailed pictures
