HVAC straight and stitch seam resistance welding machine price for round air duct overlap welder copper wire
- 3300.00 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Port: | Straight and stitch seam welding machine for air duct from shanghai port; | Welding Diameter: | 1250mm; |
| Condition: | New; | Dimensions: | 1.0+1.0mm; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Straight and stitch seam welding machine for air duct; | Brand Name: | PT; |
| Voltage: | 380V; | Arm length: | 350-1200 mm; |
| Rated load cycle: | 50%; | Welding speed: | 0.5-3m; |
| Cooling water: | 6L/MIN; | Supply Ability: | 4 Set/Sets per Month Straight and stitch seam welding machine for air duct; |
| Item: | seam welding machine; | Usage: | Duct seam welding machine; |
| Warranty: | One year; | Over lap: | 6mm; |
| Electrode travel: | 80mm; | Place of Origin: | Jiangsu China; |
| Packaging Detail: | Straight and stitch seam welding machine for air duct will be packed by wooden case; | Copper diameter: | 2.0-2.2mm; |
| Weight: | 2500KG; | Forming Time: | 2S; |
| After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support; | Certification: | ISO,CE; |
| Applicable Industries: | Manufacturing Plant; | Max short ciruit current: | 6200A; |
| Welding Mode: | Seam welding; | Power(W): | 40KW; |
| Max output capacity: | 45KVA; |
Product Description

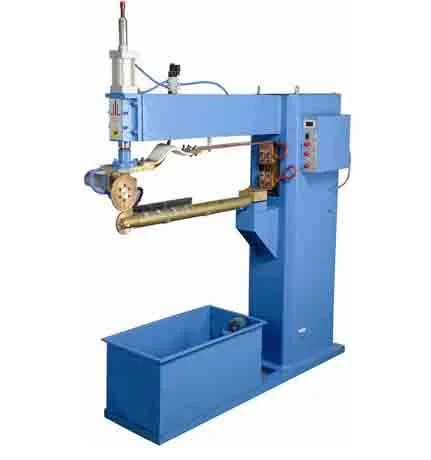

Straight duct seam stitch welding machine
Straight duct seam stitch welding machine for air duct highperformance welding the duct or elbow making.
Fetures of seam welding machine
- It with stitch welding and continue welding functions .
- With high standard welding performance.
- The special design for welding roller keep cooling .
- After welding surface with cleaning and stable ,
Main technical of seam welding machine
1 | Diameter | 100-1000mm |
| 2 | Thickness | 0.4-1.2mm |
| 3 | Range length | 80-1000mm |
| 4 | Over lap | 6mm |
| 5 | Suitable material | Galvanized steel, stainles steel, |
| 6 | Main motor power | 40KW |
| 7 | Copper diameter | 2-2.2mm |
| 8 | Rated load cycle | 50% |
| 9 | Dimension | 1000 x 2000 x 1700mm |
| 10 | Weight | 2500KG |

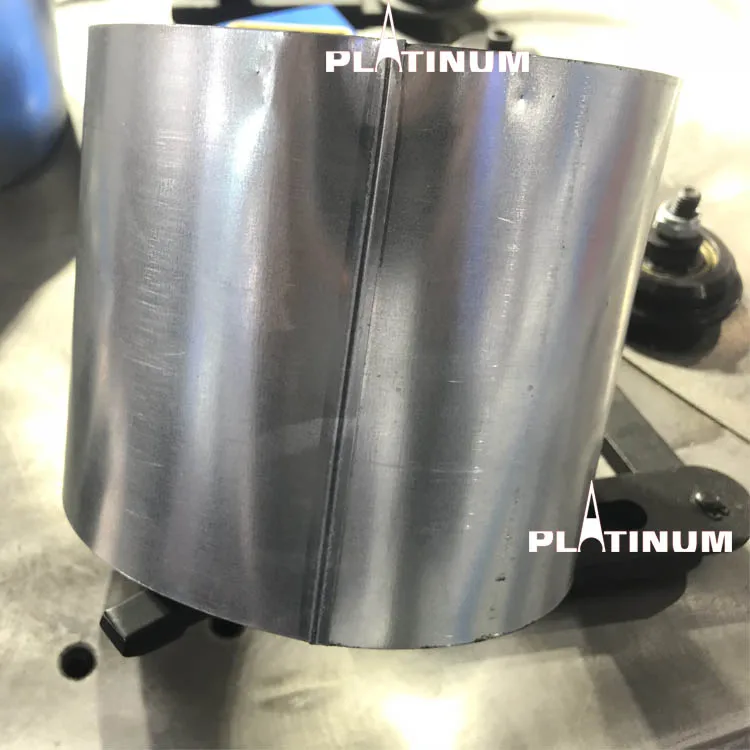

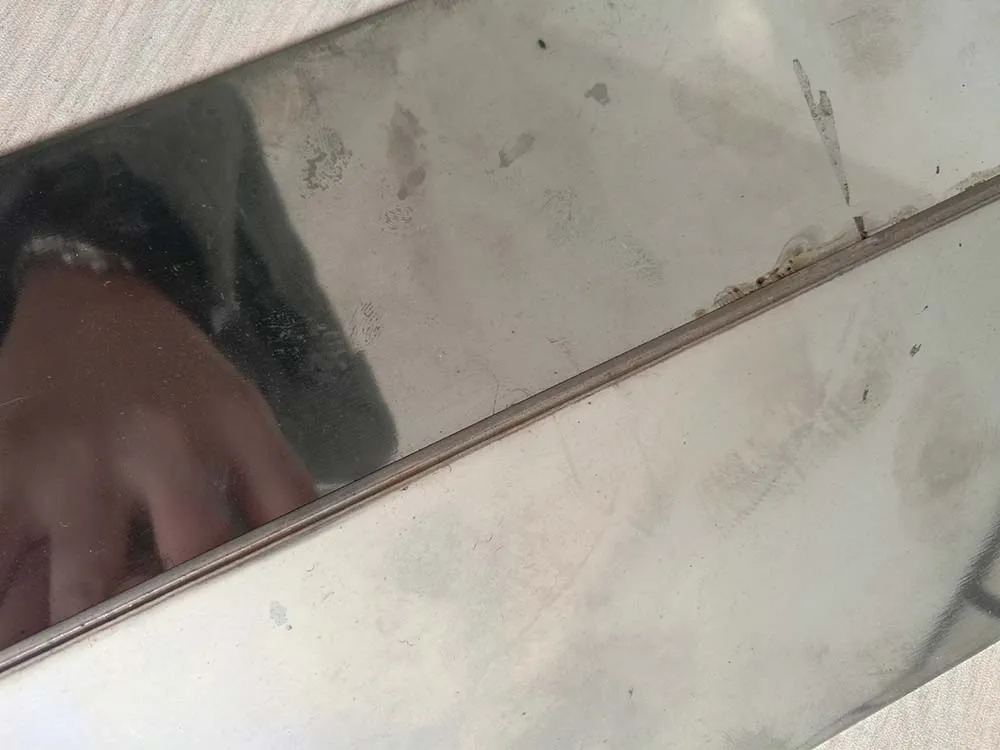

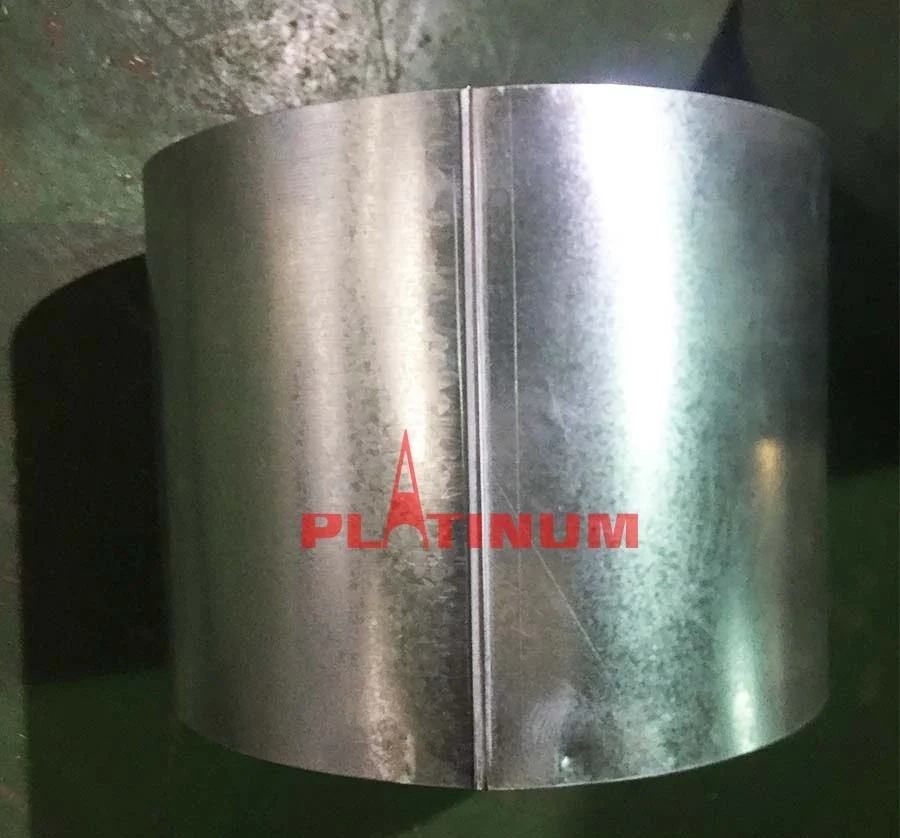

Stainless steel welding Galvanized steel welding
Packing by wooden case for shipping.
Trade Assurance
Related Product

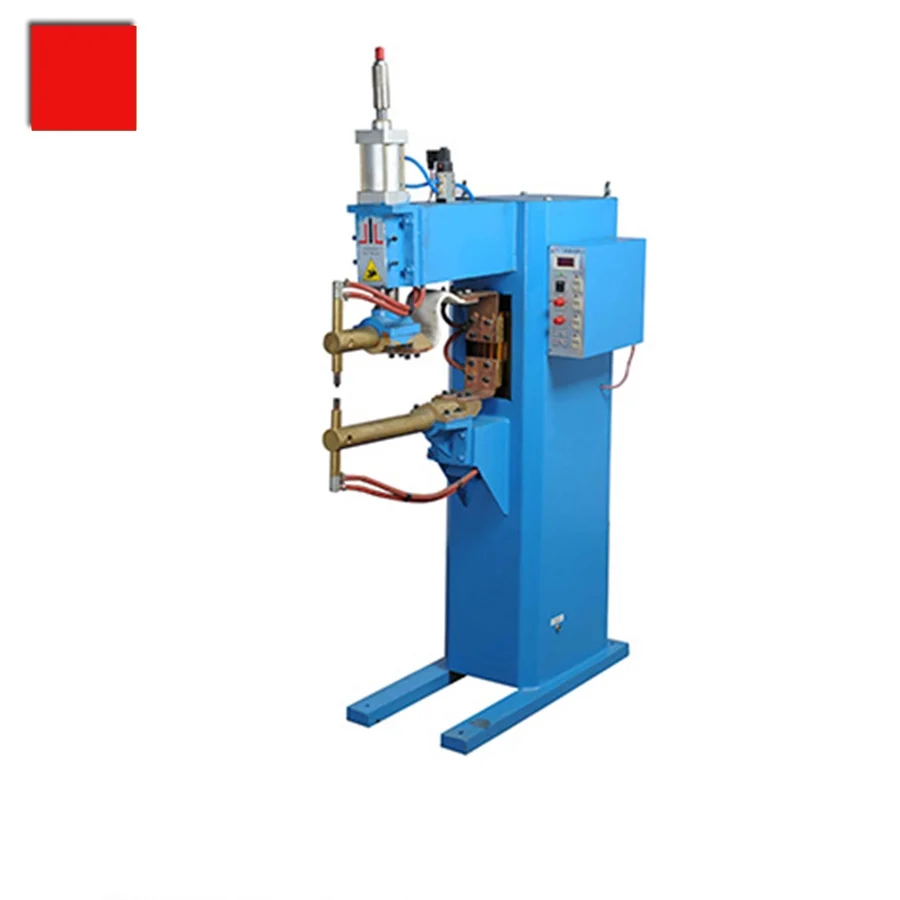

Spot welding machine straight seam welding machine
