Main selling point: | compact | Insulation Manufacturing Machines: | cardboard processing |
Showroom location: | not any | Marketing Type: | normal product |
Transformer testing machine: | Integrated or separate tester | Packaging Details: | Transformer manufacturing equipment packs wooden boxes and loads containers. |
Health status: | new | Transformer application: | Distribution Transformers and Power Transformers |
Transformer voltage class: | 11kV, 33kV (36kV), 72kV, 110kV (132kV) | Supply capacity: | 20 sets per year |
Cutting Thickness (mm): | 0.1 - 0.5 mm | Cutting width (mm): | 40 - 300 mm |
Applicable industries: | manufacturing plant | Weight (kg): | 1500 |
Transformer coil winding machine: | High and low pressure | Core components: | PLC, motor |
Deformation core cutting machine: | Step-by-step, cheap cost | port: | Transformer manufacturing equipment to be loaded in major Chinese seaports Shanghai, Dalian and Tianjin |
payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | Uncoiler loading: | 1000kg |
Transformer Active Parts Dryer: | Vacuum drying oven | Video external inspection: | if |
Mechanical test report: | if | Warranty: | 1 year |
brand: | vibration ring | Core Components Warranty: | 1 year |
Transformer Type: | Oil immersed and dry | CNC system: | programmable logic controller |
place of origin; place of origin: | Jiangsu, China | Cutting length (mm): | 1 - 5000 mm |
Dimensions (L*W*H): | 2200 x 1200 x 1400 mm | Transformer oil filter: | Vacuum oil purification and filling |
Transformer tank making machine: | Corrugated fin machine, strong coating machine | Feed rate (m/min): | 1 - 100 m/min |
Transformer Manufacturing Equipment
We Nantong Zhenhuan Trading Co., Ltd. was established in 2004, specializing in transformer manufacturing machinery for more than 18 years. We can provide complete solutions for transformer production.
We can supply all related transformer manufacturing equipment from A to Z:
1- Transformer core stepping lap cutting machine, silicon steel coil slitting line, transformer core stacking table, etc.

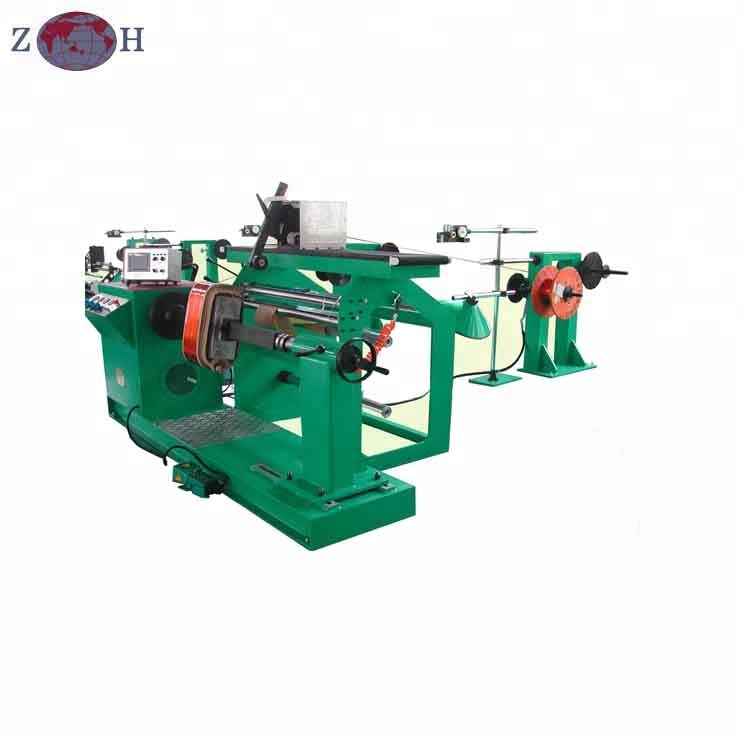

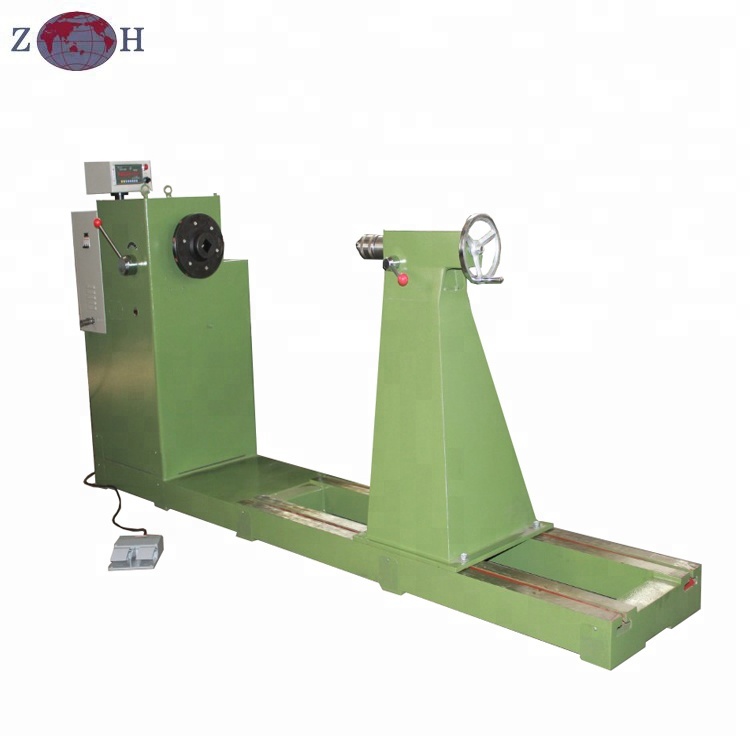

2- Transformer coil winding machine (low voltage coil winding machine and high voltage coil winding machine)
3- Transformer insulation processing machine

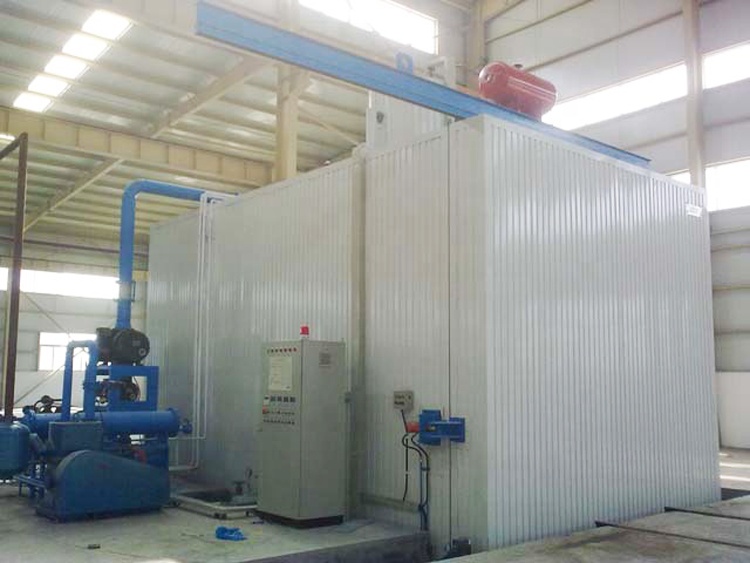

4- Transformer Active Parts Vacuum Dryer
5- Transformer Assembly Rack

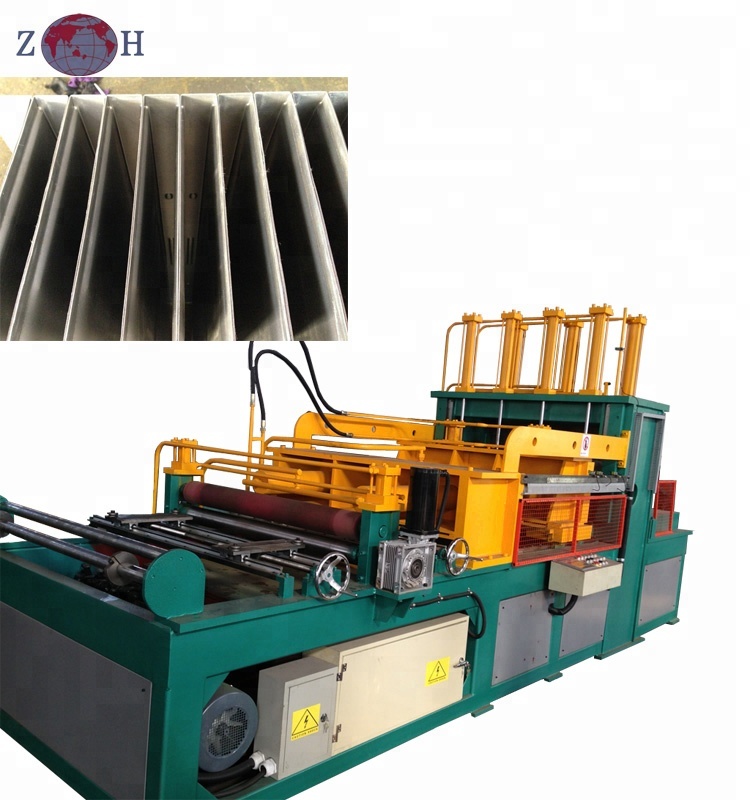

6- Transformer tank making machine (transformer corrugated tank fin forming machine and welding machine)
7- Transformer Test System
8-Current Transformer/Voltage Transformer Manufacturing Machine
9- Amorphous/Nanocrystalline Transformer Making Machine

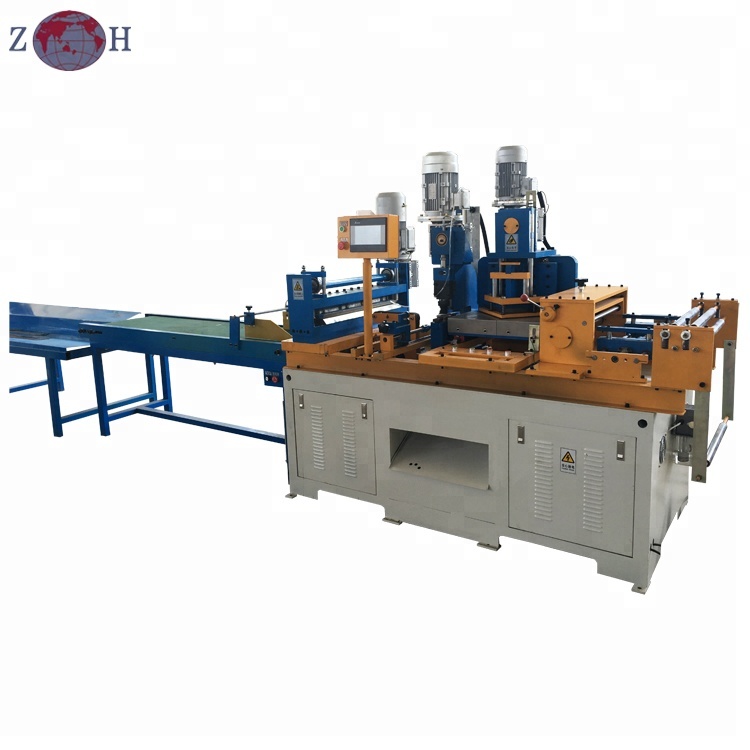

Please check the following technical data for our inexpensive fully automatic compact stepper transformer core cutting machine for your reference:
Do not. |
thing |
data |
1 |
type code |
JN-2003C/3003C/4003C/5003C/8003C |
2 |
CRGO thickness |
0.23-0.6mm |
3 |
CRGO coil width |
30-200/300/400/500/800mm |
4 |
cutting length |
1-999999mm |
5 |
Cut length tolerance |
+/-0.1mm |
6 |
Cutting angle tolerance |
+/-0.03° |
7 |
Hole tolerance |
+/-0.1mm |
8 |
Notch position tolerance |
+/-0.1mm |
9 |
Burr height |
Less than 0.02mm |
10 |
Feed rate |
maximum. 100 m/min |
11 |
Production speed |
30~60 tablets/min |
12 |
Punching/Slotting Dies |
Carbide |
13 |
cutting blade |
Carbide |
14 |
Die and Blade Life |
More than 1.2 million times before grinding |
15 |
maximum. step stroke |
40mm |
16 |
Step amount |
1, 2, 3, 4, 5, 6, 7 |
17 |
servo motor |
Delta Taiwan |
We supply the above transformer manufacturing equipment worldwide, such as UK, Germany, Italy, Greece, Russia, Ukraine, Korea, Singapore, Mexico, Peru, Colombia, Argentina, Brazil, India, Thailand, Bangladesh, etc.
Please contact us for details. We will help you with any project through our professionals and experts.
