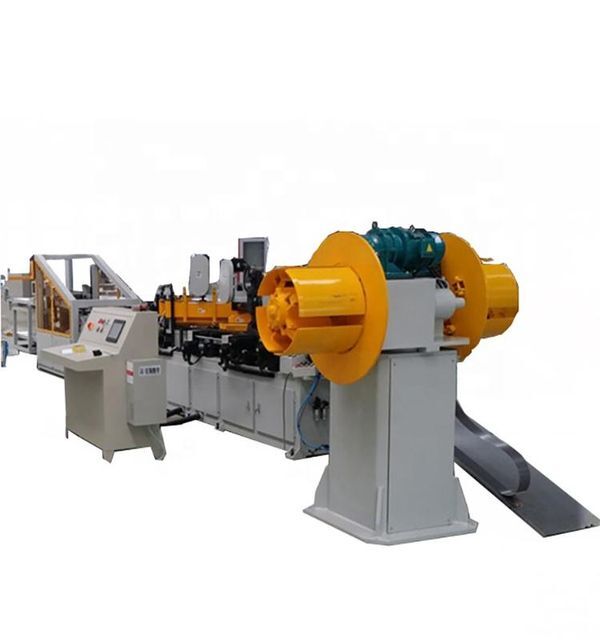

Shearing and punching silicon steel CNC cross-cutting machine to cut long lines
-
Supplier: Zhu Tang (Suzhou) Technology Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Jack Liao -
Price: $50000.00 /set -
Min. Order: 1 set
| port: | Shanghai | Cutting speed: | 120m/min |
| Health status: | new | color: | custom made |
| After Warranty Service: | Video technical support, no service, online support, spare parts, on-site maintenance and repair services | Showroom location: | not any |
| After-sales service provided: | Engineers can go overseas to service machinery, on-site installation, commissioning and training, on-site maintenance and repair services, online support, video technical support, free spare parts | place of origin; place of origin: | Jiangsu, China |
| Video external inspection: | if | Cutting length accuracy: | ±0.10mm |
| Core Components Warranty: | 1 year | Cutting burrs: | less than 0.02 mm |
| Main selling point: | Famous brand PLC | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Marketing Type: | normal product | Applicable industries: | Mechanical Repair Shop, Manufacturing Plant |
| Cutting width: | 40-400mm | Local service location: | not any |
| payment terms: | letter of credit, wire transfer | Supply capacity: | 100 sets per year |
| brand: | bamboo pond | Packaging Details: | Seaworthy packaging |
| strength: | 11kW | Cutting length: | 350-9999mm |
| Mechanical test report: | if | Warranty: | 1 year |
| Cutting angle accuracy: | ±0.05° | Cutting thickness: | 0.23-0.35mm |
Shearing and punching silicon steel CNC cross-cutting machine to cut long lines
introduce

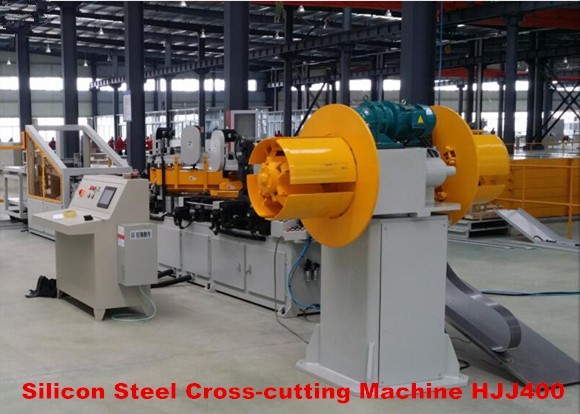

Shearing and punching silicon steel CNC cross-cutting machine cut-to-length line HJJ400 is a special equipment for shearing and punching of transformer core laminations with full oblique seam, half oblique seam and straight seam. It can be used for transformers and other similar products. The silicon steel sheet coil is punched and cut according to the preset sheet shape and size, and the finished sheet is sorted, laminated and sorted at the end of the production line.
main ingredient
1. Uncoiler at both ends (hydraulic tensioning, electric reversing)
2. Spreading device
3. Feeder (servo motor drive, length measuring device)
4. Punch unit
5. Shearing machine unit
6. Outlet Platform
7. Depilator and Sorter
8. Grabber
9. Whole line width adjustment system
10. Pneumatic system
11. Electric control system control cabinet and console
technical parameter
HJJ4 Typical Standard Specifications00 isAs shown below, but can be modified as required.
|
Cutting thickness: |
0.23-0.35mm |
|
Cutting width: |
40-400mm |
|
Cutting length: |
350-9999mm |
|
Cutting speed: |
120m/min |
|
strength: |
11kW |
