Single axis CNC precision automatic high torque aluminum foil winding machine

Supplier: Sanshine (Xiamen) Industrial And Trading Co., Ltd.
Region: Fujian, China
Contact: Ms Ivy Zhuo
Price: $1.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local service location:	U.S.	Video external inspection:	if
payment terms:	T/T, Western Union	Coil Type:	round
Supply capacity:	Annual output of 8,000 precision CNC high-twist aluminum foil winding machines	port:	Xiamen Port
Core Components Warranty:	1 year	Packaging Preview:
Spread width:	230mm	Core components:	PLC, engine, bearing, gearbox, motor
Propagation distance:	0~9.999mm	Maximum winding width (mm):	Do not
Weight (kg):	42	CNC or not:	CNC
maximum. speed:	2500 rpm	brand:	Sanxin
Coil diameter:	200mm	place of origin; place of origin:	Fujian China
Material:	aluminum	Winding speed (rpm):	2500
CNC system:	CNC	After-sales service provided:	On-site maintenance and repair services, on-site installation, commissioning and training, video technical support, online support, free spare parts
Showroom location:	U.S.	Marketing Type:	Hot Products of 2019
Thickness range(mm):	Do not	Warranty:	1 year
memory:	999 steps	net weight:	42 kg
Welding method:	Do not	After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services
Cutting method:	Do not	Main selling point:	high accuracy
Mechanical test report:	if	Wire diameter:	0.05~5.0mm
Applicable industries:	Mechanical Repair Shop, Manufacturing Plant	Number of uncoilers:	Do not
Spindle number:	1	Dimensions (LWH):	70x52x60CM
Health status:	new	Energy source:	AC220V/110V + 10%, 50/60 Hz
Uncoiler loading:	Do not	Packaging Details:	Custom approved precision CNC high torque aluminum foil coil winding machine in wooden case
Counting precision:	0.01

Product Description

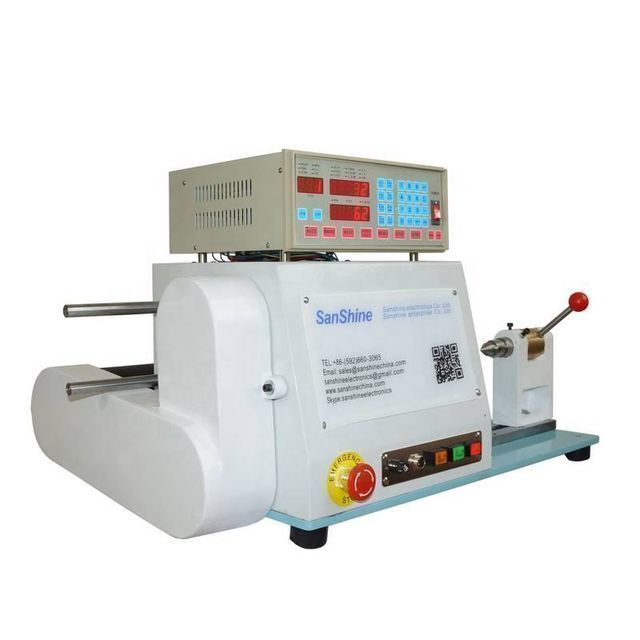

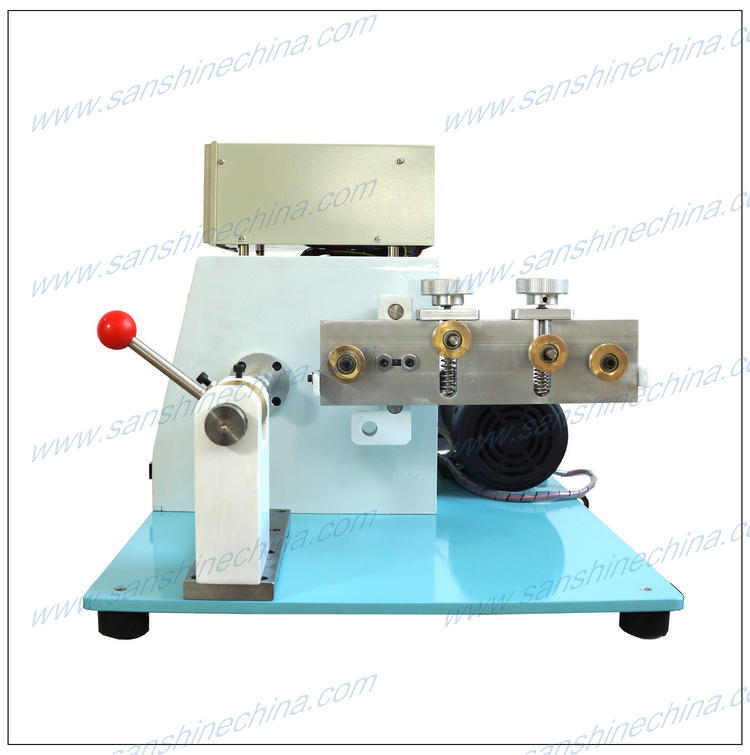

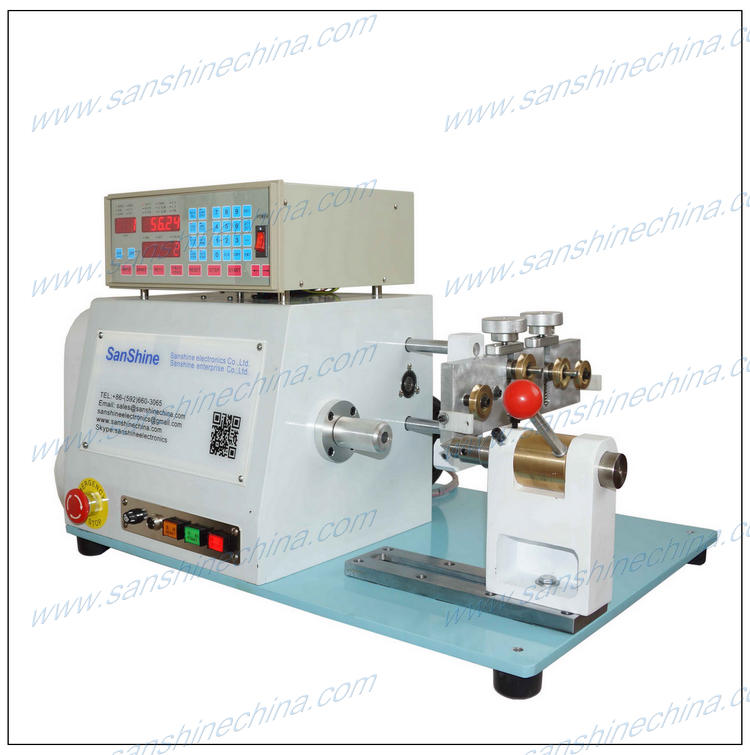

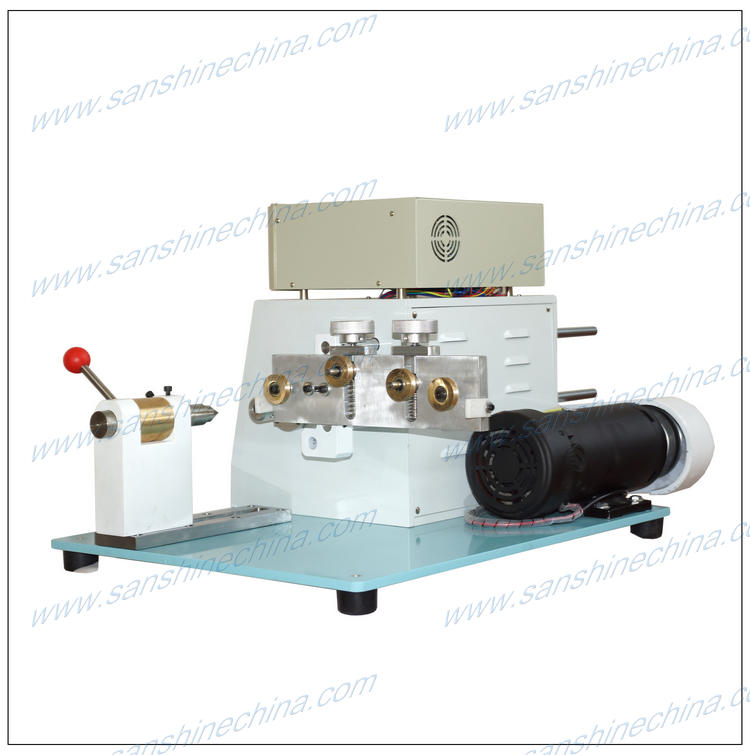

SS851 Precision CNC High Torque Aluminum Foil Winding Machine Description:

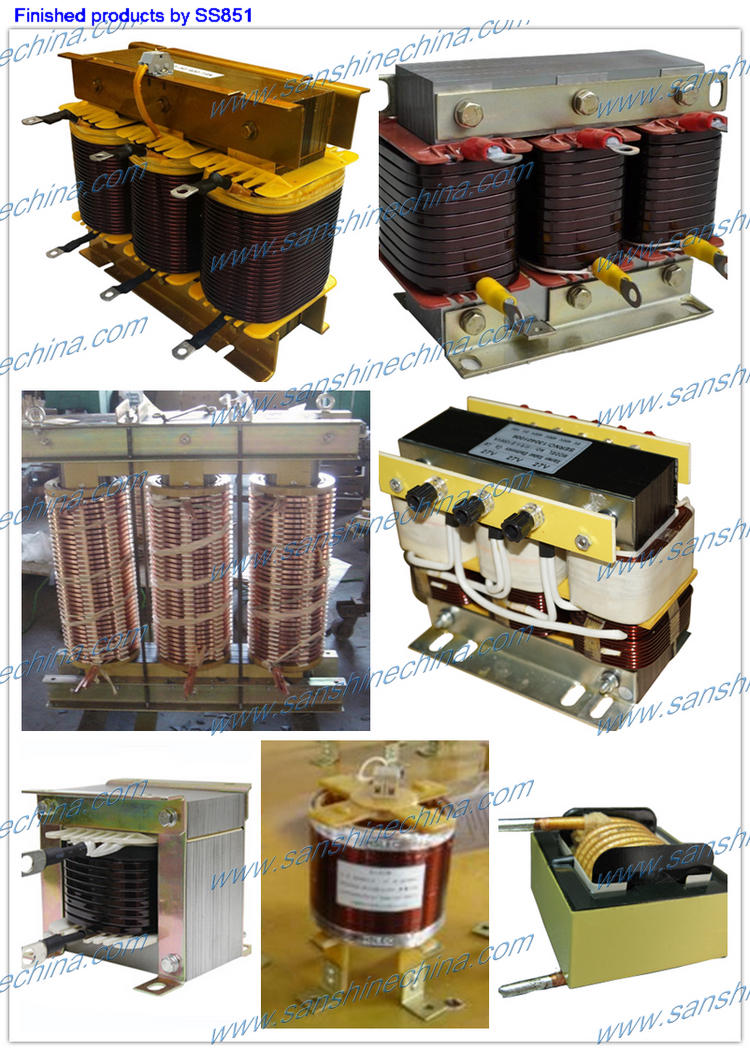

SS851 precision CNC high torque aluminum foil winding machine is a digital programmable coil winding machine using 1/2HP DC motor. The maximum wire diameter can reach 5.0mm. It is the best choice for secondary windings, reactive coils, power transformers and large coils with thick wires.
This series of machines can be customized on request.

Features of SS851 Precision CNC High Torque Aluminum Foil Winding Machine:
1. Microprocessor design, convenient program setting.

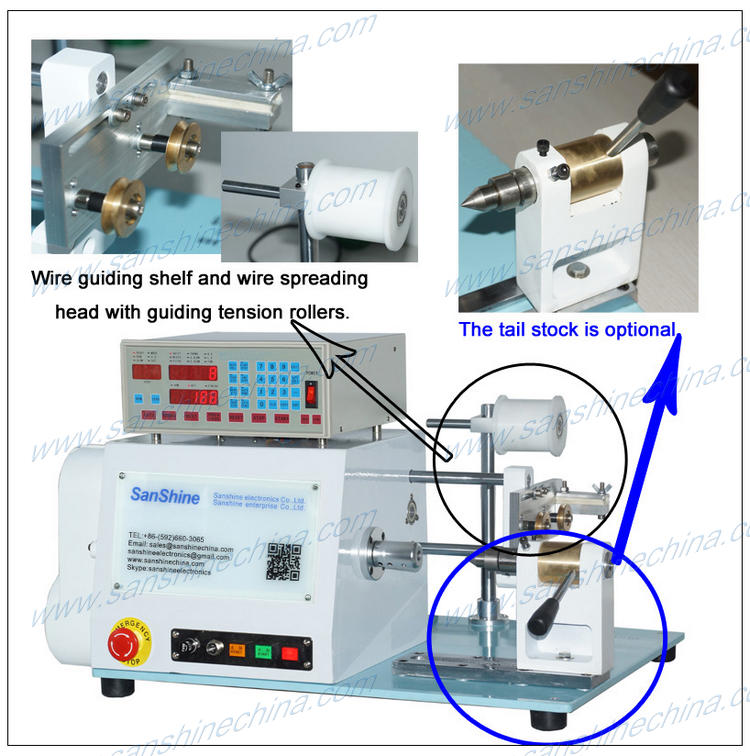

2. Constant current power supply drives stepper motor, high diffusion speed and precise winding.
3. The "starting point" can be set through the keyboard or has the teaching function. The display will show the position of the spreading head, while
surroundings.
4. The wire passes through the ceramic roller to prevent the high temperature of the enamel.
5. Multi-spindle synchronous winding, the highest efficiency.
6. Foot switch connection, higher efficiency.
7. Winding parameters and options can be set.

SS851 Precision CNC High Torque Aluminum Foil Winding Machine Specifications:

Model	SS-851	SS-852	SS-851A
Spindle number	1	2	1
wire diameter	0.05~5.0mm	0.05~1.6mm	0.05~5.0mm
Expand spacing	0~9.999mm			0.001~9.999mm
Expand width	230mm	Max 700mm
Coil diameter	200mm	110mm	up to 200mm

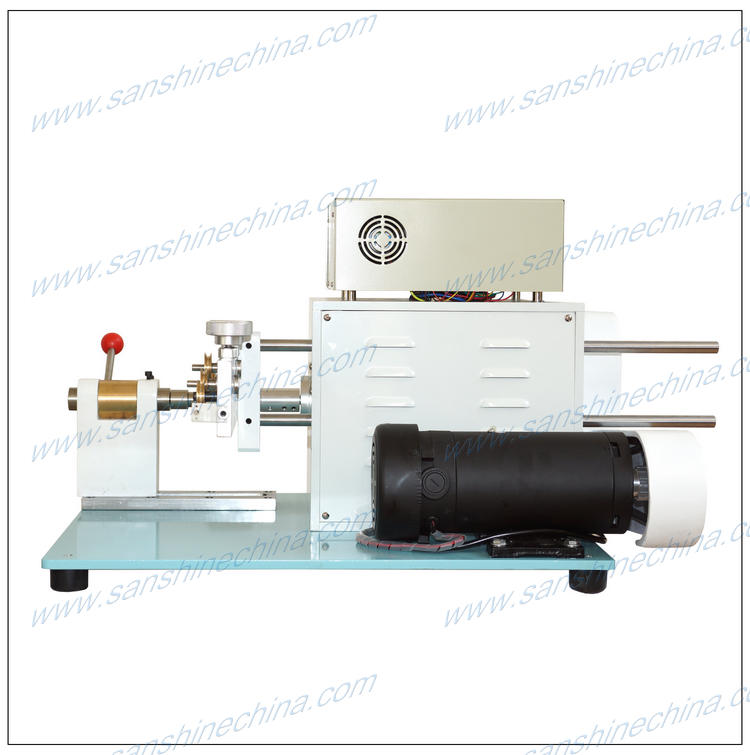

main motor	500W DC motor
Spreading motor	Four-phase stepper motor
maximum. speed	2500 rpm	2500 rpm	2500 rpm
memory	999 steps
energy source	AC220V/110V + 10%, 50/60 Hz
Dimensions (cm)	70x52x60	70x52x60	120x52x70
net weight	42 kg	44 kg	55kg
