BR/2-1100 PLC Control Automatic Transformer Double Layer Foil Wrapping Machine
-
Supplier: Shanghai Trihope International Co., Ltd. -
Region: Shanghai, China -
Contact: Ms Vicky Li -
Price: $89000.00 / 1 - 2 sets
$85000.00 / >=3 sets -
Min. Order: 1 set
| Counting accuracy: | 0.1 | Width (mm): | 250--1100 |
| Welding speed (m/min): | 0--0.7 | Tension (N): | 22000 |
| Maximum winding width(mm): | 250--1100 | Applicable industries: | manufacturing plant |
| Material: | Copper foil/aluminum foil, other | Cutting method: | Spiral Cutting Disc |
| Insulation Quantity: | 2 | Origin: | China Shanghai |
| Number of uncoilers: | 2 sets | Core components: | Programmable controller, motor |
| Marketing Type: | 2020 New Products | Main selling points: | high accuracy |
| Core component warranty: | 1 year | Video outbound inspection: | if |
| brand: | terry hope | Showroom location: | not any |
| Health status: | new | Total thickness: | Copper foil: 0.35-2; Aluminum foil: 0.6-3.0 |
| Whether CNC: | CNC system | Cutting method: | Spiral Cutting Disc |
| Cutting speed (m/min): | 1.5 | Uncoiler loading: | 3000 |
| Supply capacity: | 10 foil winding machines per month | CNC system: | server system |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, Foil Winder | Number of uncoilers: | 1 |
| Dimensions (L*W*H): | 4700*4200*2200 mm | Welding method: | Argon arc welding |
| Weight (kg): | 13000 | port: | Shanghai |
| Packaging Details: | Foil winding machine: standard packaging, seaworthy packaging. | Maximum load(kg): | 3000 |
| Warranty: | 1 year | Welding method: | Argon arc welding |
| Winding speed (rpm): | 20 | Shaft length (mm): | 800 |
| Mechanical test report: | if | Coil Type: | round, oval, rectangular |

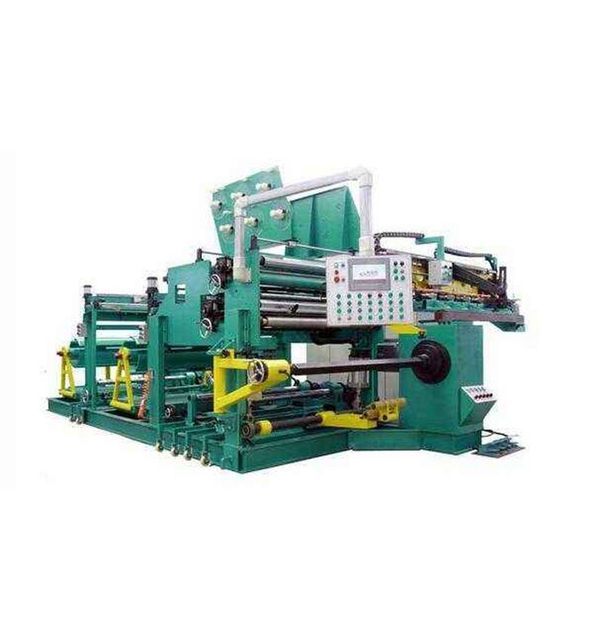

BR/2-1100 double-layer plc control cnc control automatic transformer foil winding machine
1. Main parameters:
Coil height (mm) 250--1100
Coil height (including leads) mm 500--1250
Maximum coil outer diameter mm Φ700
Maximum coil outer diameter (with leads) Φ800
Diagonal length of rectangle mm 800
Coil shape round/rectangular
2. Foil roll material
Material copper foil/aluminum foil
Width (mm) 250--1100
Total thickness of copper foil: 0.35-2; Aluminum foil: 0.6-3.0
Coil inner diameter (mm) Φ500
Maximum coil outer diameter (mm) Φ1000
3. Uncoiler
The number of uncoilers is 2 sets
Effective shaft length (mm) 1150
Expansion range (mm) Φ470--Φ520
Maximum load (kg) 3000
Pull force (N) 22000
Alignment method (deviation re-certification) manual/automatic
3. Winding machine
Winding speed (m/min) 0--20
Maximum working torque (NM) ≥8000
Winding power (kw) 18.5
Speed regulation stepless frequency conversion speed regulation
Rewinding shaft size (mm) 50*90
4. Welding device
Welding method TIG
Welding speed (m/min) 0--0.7
7. Cutting device
Shearing method Spiral shearing disc
Cutting speed (m/min) 1.5
Cutting length (mm) 1150
8. Layer insulation uncoiling device
Layer Insulation Mounting Axis 2
Outer diameter of interlayer insulation roll (mm) ≤Φ400
Inner diameter of layered insulation roll (mm) Φ76
Interlayer insulation roll width (mm) ≤1150
Installation shaft telescopic method pneumatic
Pneumatic unwinding tension, stepless adjustable
9. End insulation decoiling device
quantity 4
End insulation outer diameter (mm) ≤Φ350
Inner diameter of end insulation (mm) Φ56
End insulation width (mm) 10--40
10. Deviation correction device
Correction mode servo system
Correction accuracy (mm) ±0.5
11. Electric control system
Control mode PLC automatic control mode, with button operation
4 digits 0--999.9
Counting accuracy 0.1 turn
12. Dimensions (L*W*H) mm 4700*4200*2200
13. Total power (kW) 25
14. Power supply AC380 50HZ
15. Air source ≥ 0.6Mpa
-
Dry-type transformer coil, amorphous transformer coil low-voltage foil winding machine
-
