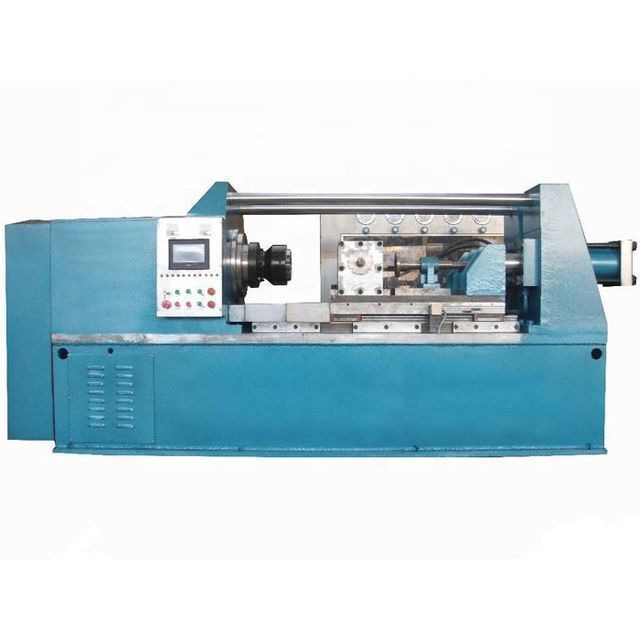

Direct friction welding machine

Supplier: Dalian Bluestar Trading Co., Ltd.
Region: Liaoning, China
Contact: Ms Yang Sun
Price: $35000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Supply capacity:	100 sets per year	brand:	blue star
place of origin; place of origin:	Liaoning, China	Weld diameter:	60-140mm
usage:	friction welding	State of health:	new
Production speed:	30-60 pieces/hour	Types of:	friction welding machine
aspect:	3500x900x1500mm	Certification:	ISO9001
Local service location:	Brazil, Russia, Thailand	Main selling points:	automatic
Core components:	PLC, bearings, motors, water pumps	Marketing Type:	normal product
Showroom location:	Italy, Brazil, Russia, Australia	Rated Capacity:	2000KN
Maximum output:	2000KN	Motor speed:	500 rpm
port:	Chinese port	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Applicable industries:	Building materials stores, manufacturing plants, energy and mining	Package preview:
After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services	Core component warranty:	1 year
Warranty:	1 year	Mechanical test report:	if
Nominal Duty Cycle:	100%	Motor output:	180KW
current:	50A	Voltage:	380V
Weight (kg):	1600 kg	Video shipment inspection:	if
Solder area:	12000mm2	weight:	13000 kg
After-sales service provided:	On-site installation and commissioning training video technical support online support	Packaging Details:	wooden box

Product Description

friction welding machine

Spin friction welding is a solid-state process in which one part is rotated at high speed and pressed against another part that remains stationary. The resulting friction heats the parts, causing them to be forged together.

Model	Maximum upsetting force (KN)	Maximum Welding Area(mm²)	welding diameter	speed(rpm)
DBS-2	20	20-140	5-13	5000
DBS-5	50	50-260	8-18	3000
DBS-12	120	150-700	14-30	1500
DBS-20	200	150-1020	14-36	1500
DBS-30	300	314-1600	20-45 years old	1200
DBS-40	400	500-2400	25-55 years old	1100
DBS-63	630	960-3400	35-64 years old	1000
DBS-80	800	1300-5000	40-75	950
DBS-100	1000	1600-6000	45-86	890
DBS-125	1250	2000-7800	50-100	600
DBS-160	1600	4300-8792	89-160	580
DBS-200	2000	5100-12500	102-189	500
DBS-250	2500	3850-15500	70-140	500
DBS-320	3200	6400-20000	90-160	380
DBS-400	4000	8000-25000	100-180	350
DBS-500	5000	8000-31400	100-200	320
DBS-700	7000	8000-44000	100-240	320

feature

This versatile compact friction welding machine for truck rollers was developed based on experience with piston rods. Ideal design provides high thrust in a compact size
PC quality assurance system for quality control (status control visibility and waveform display function). Ease of handling and high levels of repeatability produce products with high stability.
Good product grabbing area increases productivity Can be combined with commercially available loader equipment. Improve productivity.
