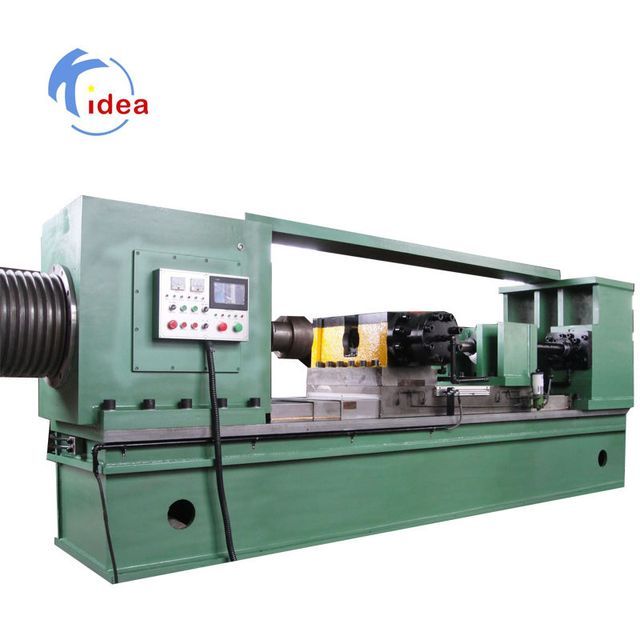

80 tons drill pipe friction welding horizontal friction welding machine

Supplier: Jiangsu Kidea Industry Co., Ltd.
Region: Jiangsu, China
Contact: Mr Kevin Zhu
Price: $150000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Core component warranty:	1 year	Voltage:	380V/440V
Rotating speed:	800 rpm	payment terms:	L/C, T/T
Maximum working stroke:	400 mm	Main selling points:	cost-effective
Oil pump motor:	37 kW	port:	Shanghai
Warranty:	1 year	Applicable industries:	Building Materials Stores, Mechanical Repair Shops, Manufacturing Plants, Construction Engineering, Energy and Mining, Aircraft/Aerospace
Local service locations:	not any	Weight (kg):	10000 kg
Video outbound inspection:	if	type:	friction welding machine
Mechanical test report:	not available	current:	50A
Weld diameter:	50-80 mm	usage:	welding
After Warranty Service:	Online support, spare parts, on-site maintenance and repair services	brand:	Kidea
Model:	C-80	Clamping length of moving fixture:	250 mm - unlimited
Swivel fixture clamping length:	100-380 mm	Marketing Type:	2020 New Products
Maximum upsetting force:	500/600/800KN	Health status:	new
Origin:	China	Rated duty cycle:	100%
aspect:	530028002200mm	After-sales service provided:	On-site installation, commissioning and training, online support
Main motor:	55/75 kW	Host size (lengthwidthheight):	530028002200mm
Packaging Details:	- Export standard packing: wooden box packing film - also can be according to your request	Package preview:
Core components:	PLC, bearings, motors, pressure vessels	Showroom location:	not any
Supply capacity:	10 sets per month

Product parameters

product name	KIDEA C-80 Friction Welding Machine
Maximum upsetting force	800KN
welding diameter	50-80mm
Swivel fixture clamping length	100-380mm
Clamping length of moving fixture	250 mm - unlimited
Maximum working stroke	4300mm
Rotating speed	800 rpm
main motor	55/75 kW
Oil pump motor	37 kW
*Host size (lengthwidthheight)*	530028002200mm
*Hydraulic station size (lengthwidthheight)*	150013501600mm
Application field	Aerospace, oil field parts, military industry, bearings, automobiles, agricultural steam, motorcycles, metal cutting tools, textile machinery, petroleum geological drilling, construction and other high-tech and traditional industries.

* The figures above are for reference only

We can produce according to your requirements!

Product Description

What is friction welding

Friction welding is a solid-state joining process that utilizes heat generated between surfaces through a combination of mechanically induced frictional motion and applied loads to create coalescence in materials. The resulting joints are of forged quality. Under normal conditions, the mating surfaces will not melt. The process does not require filler metal, flux and shielding gas.

Dissimilar material

Even metal combinations normally considered incompatible can be joined by friction welding, such as aluminum to steel, copper to aluminum, titanium to copper, and nickel alloys to steel. In general, all wrought metal engineering materials can be friction welded, including automotive valve alloys, maraging steels, tool steels, alloy steels, and tantalum. Additionally, many castings, powdered metals, and metal matrix composites are weldable.

advantage

Save cost, time, material

Since dissimilar materials can be joined, there are significant cost savings as engineers can design bimetallic parts that use expensive materials only when needed. Expensive forgings and castings can be replaced with less expensive forgings that are welded to bars, tubes, plates, etc.

Since the process is much faster than more traditional welding methods, this saves a lot of time.

Friction welding produces forged quality joints with 100% butt welds through the contact area. The solid section shows the narrow heat-affected weld zone and the resulting displaced material (flash).

Model and Application

Models and Features
Model	maximum. Upsetting force (kN)	welding diameter (mm)	Moving Fixture Workpiece Length (mm)	Rotary Fixture Workpiece Length (mm)	Speed (maximum) Changing (rev/min)
C-2.5	25	6-18	50-500 or unlimited	15-300	2500
C-4	40	6-18	50-450 or unlimited	15-300	2500
C-20	200	12-35 days	80-750 or unlimited	50-200	2000
C-20B	200	14-35	80-750 or unlimited	50-300	1800
C-25	250	14-40	80-750 or unlimited	50-300	1800
C-32	320	18-50 years old	80-850 or unlimited	50-300	1500
C-40	400	20-60	80-750 or unlimited	50-300	1500
C-50	500	18-70 years old	80-750 or unlimited	50-300	1350
C-80	800	45-80	100-1100 or unlimited	50-300	1350
SFC-10	100	12-26 days	80-750 or unlimited	50-200	0-1500 adjustable
SFC-30	300	12-50	80-750 or unlimited	50-300	0-1800 adjustable
SFC-40	400	30-60	80-750 or unlimited	50-300	0-1200 adjustable
We customize friction welding machines according to customers' requirements.
