10T Friction Welder Welding Cable Connector

Supplier: Jiangsu Kidea Industry Co., Ltd.
Region: Jiangsu, China
Contact: Mr Kevin Zhu
Price: $28000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After Warranty Service:	Online support, spare parts, on-site maintenance and repair services	Welding Diameter:	8-20mm
Rotating speed:	1500 rpm	type:	Friction Welder
Applicable industries:	Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Construction Engineering, Energy & Mining, Aircraft/Aerospace	payment terms:	letter of credit, wire transfer
Welding materials:	dissimilar metals	Showroom location:	not any
Packaging Preview:		Weight (kg):	6500kg
After-sales service provided:	On-site installation and commissioning training On-site maintenance and repair servicesOnline support	Main motor:	22kW
Main selling point:	Save cost, time, material	Rotary clamp clamping length:	50-200 mm
Supply capacity:	10 sets per month	Mobile fixture clamping length:	80-450 mm or unlimited
Maximum flipping force:	100 kN	Maximum working stroke:	300 mm
Warranty:	1 year	Oil pump motor:	9.5kW
Health status:	new	Local service location:	not any
port:	Shanghai	Packaging Details:	- Export Standard Packing: Packing film in wooden case - also according to your request
Model:	C-10

Product parameters

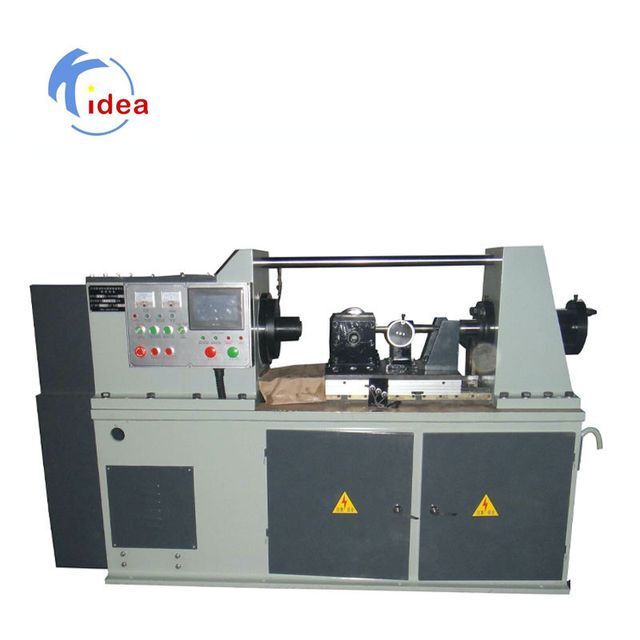

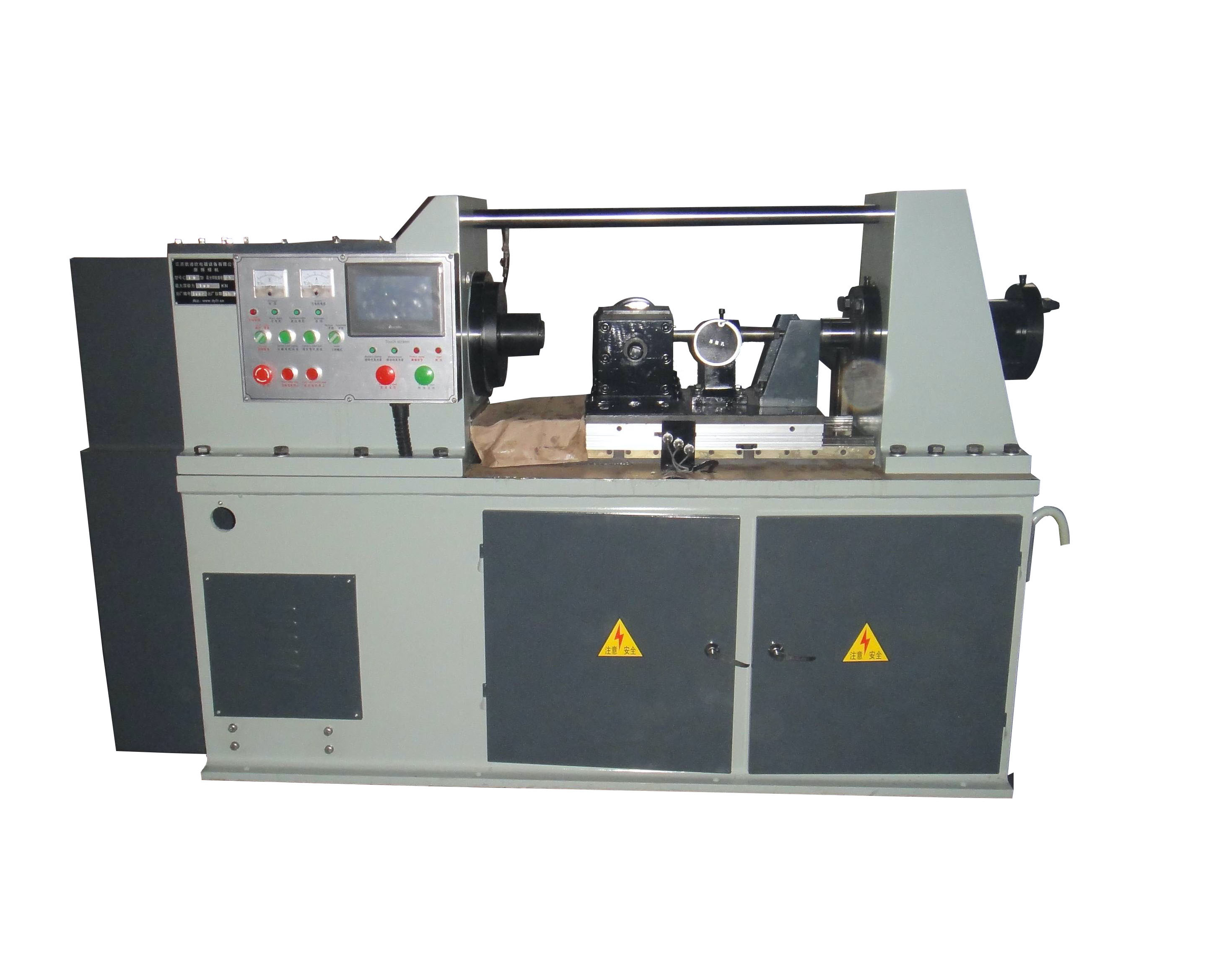

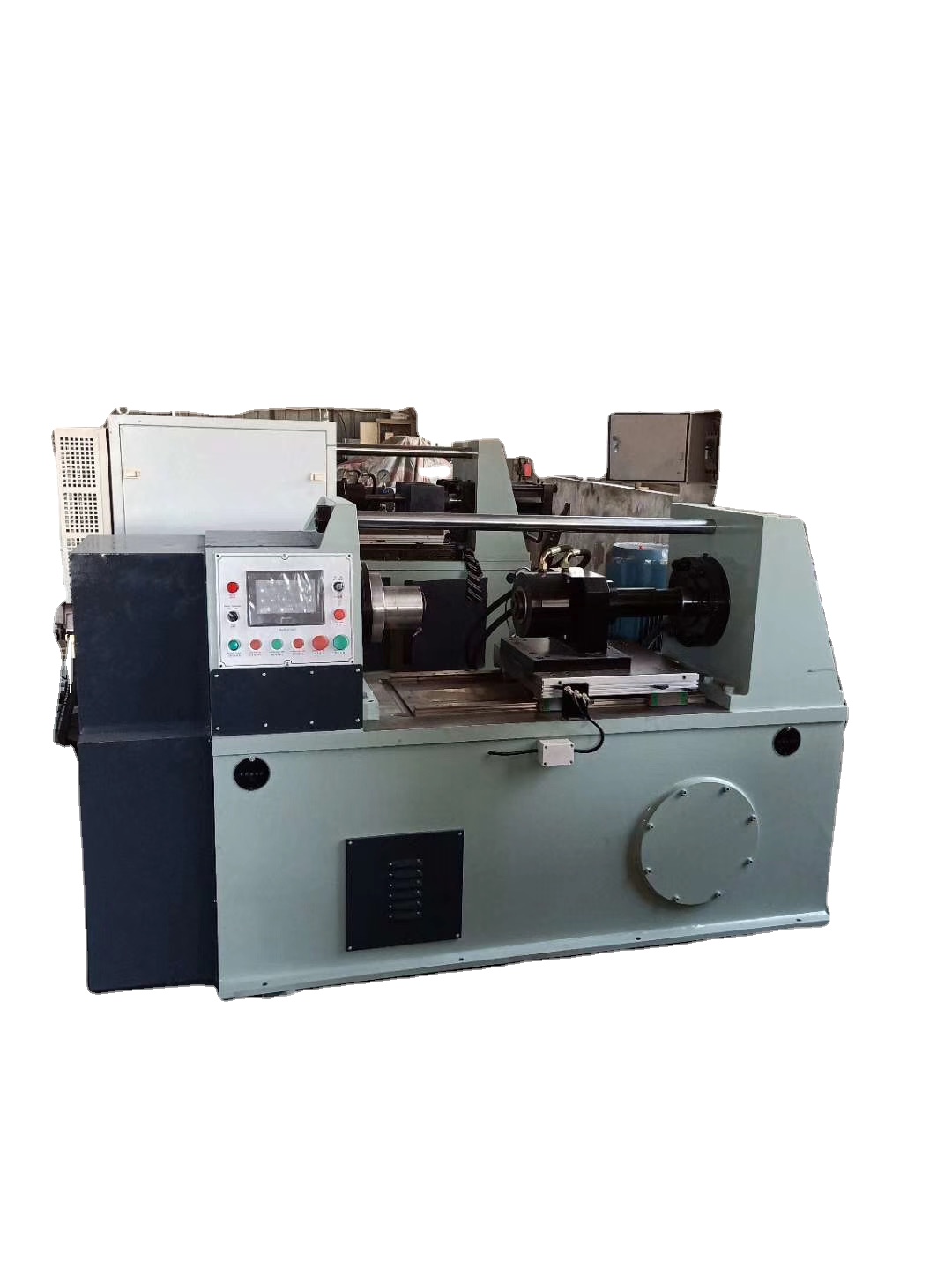

product name	KIDEA C-10 Friction Welder
Maximum upsetting force	100 kN
Welding diameter	10-20 mm
Rotary clamp clamping length	50-200 mm
Mobile clamp clamping length	80-450 mm or unlimited
Maximum working stroke	300 mm
Rotating speed	1500 rpm
main motor	18.5kW
Oil pump motor	9.5kW
*Host size (LWH)*	32007501350mm
*Hydraulic station size (LWH)*	150013501600 mm
Application field	Aerospace, electric power, bearings, automobiles, motorcycles, metal cutting tools, textile machinery, petroleum geological drilling, construction and other high-tech and traditional industries.

*The above figures are for reference only

We can produce according to your requirements! ! !

Product Description

What is friction welding

Friction welding is a solid-state joining process that uses the heat generated between surfaces to create coalescence in materials through a combination of mechanically induced frictional motion and an applied load. The resulting joint is of forged quality. Under normal conditions, the joint surface will not melt. The process does not require filler metal, flux and shielding gas.

dissimilar materials

Even metal combinations that are generally considered incompatible can be joined by friction welding, such as aluminum to steel, copper to aluminum, titanium to copper, and nickel alloys to steel. Generally, all wrought metal engineering materials can be friction welded, including automotive valve alloys, maraging steels, tool steels, alloy steels and tantalum. In addition, many castings, powder metals and metal matrix composites are weldable.

advantage

Savings - cost, time, material

Since dissimilar materials can be joined, significant cost savings can be achieved, as engineers can design bimetallic components that use expensive materials only when needed. Expensive forgings and castings can be replaced with less expensive forgings welded to bars, tubes, plates, etc.

Since the process is much faster than more traditional welding methods, it can save a lot of time.

Friction welding produces forged quality joints with 100% butt welds through the contact area. This solid section shows the narrow heat-affected weld zone and the resulting displaced material (flash).

Models and Applications

Models and Capabilities
Model	maximum. The power of distraction (kN)	Welding diameter (mm)	Moving fixture workpiece length (mm)	Rotary Fixture Workpiece Length (mm)	Speed (max) Changing (rev/min)
C-2.5	25	6-18	50-500 or unlimited	15-300	2500
C-4	40	6-18	50-450 or unlimited	15-300	2500
C-20	200	12-35	80-750 or unlimited	50-200	2000
C-20B	200	14-35	80-750 or unlimited	50-300	1800
C-25	250	14-40	80-750 or unlimited	50-300	1800
C-32	320	18-50	80-850 or unlimited	50-300	1500
C-40	400	20-60	80-750 or unlimited	50-300	1500
C-50	500	18-70	80-750 or unlimited	50-300	1350
C-80	800	45-80	100-1100 or unlimited	50-300	1350
SFC-10	100	12-26	80-750 or unlimited	50-200	0-1500 adjustable
SFC-30	300	12-50	80-750 or unlimited	50-300	0-1800 adjustable
SFC-40	400	30-60	80-750 or unlimited	50-300	0-1200 adjustable
We customize friction welding machines according to customer requirements.
