Rotary friction welding machine

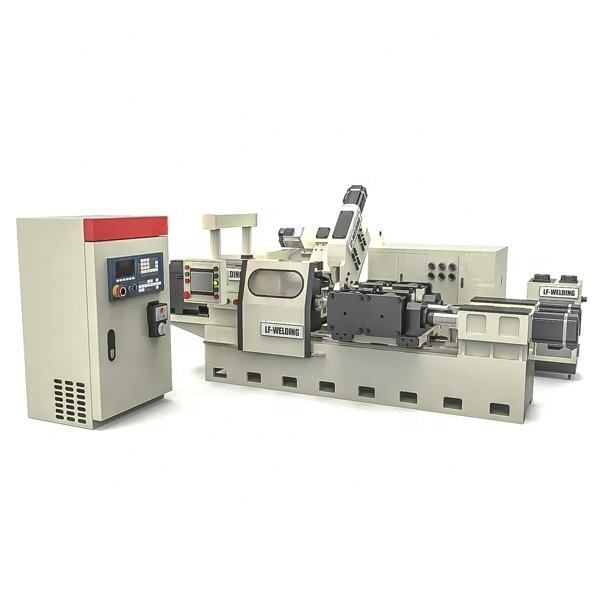

DBS-ZRC-80 Automatic Friction Welding Machine Friction Welding Machine

friction welding machine

What is Friction Welding?

• Friction welding is a solid-state process achieved by frictional heat.
• This heat is generated through controlled contact of the two components until the material reaches its plastic state, at which point the plasticized material begins to form intertwined layers.
• Friction welders control this contact through a unique set of rotational speed (rpm), axial force and time parameters.
• Once these parameters are established, they are recorded, stored, and then repeated with each cycle of the machine.

Why Friction Welding?

• Clean environment with no filler material, flux or shielding gas; no arcs, sparks, smoke or flames
• Surface impurities burn through during process
• narrow heat affected zone
• Ability to weld dissimilar metals
• Weld strength is usually as strong or stronger than the weaker material being joined
• Operators do not require manual skills
• Easy integration into manufacturing areas
• Easily automate mass production
• Minimum Plant Requirements for Installation

Energy is provided by an electric motor connected directly to the machine shaft. This energy source is infinite in time and is applied to the interface material until an appropriate total thermal or plastic state is achieved. Velocity is kept constant for a selected time and/or distance as pressure is varied. When the desired plastic state is reached, the rotating part is stopped and a forging load is applied to complete the joining process, bringing the parts together as a whole. Inertial friction welding enables greater total heat, which may slow down cooling, resulting in slightly longer cycle times.

Why choose Bluestar brand machine tools:
1) High quality and competitive price
2) More than 10 years export experience
3) CE, SGS, ISO certification
4) Provide OEM service
5) 24 hours online problem solving service (SKYPE,Trademanager)
6) 12 months quality guarantee
