Drilling milling machine ZX6350A Universal Drilling and milling machine
-
Supplier: Shandong Luzhong Machine Tool Co., Ltd. -
Region: Shandong, China -
Contact: Ms Wenjing Pan -
Price: $4390.00 /set -
Min. Order: 1 set
| Condition: | New; | Power (kW): | 1.5; |
| Table Travel (mm): | 115-1750; | Single package size: | 16.8X15.5X21 cm; |
| Applicable Industries: | Manufacturing Plant; | color: | optional; |
| After-sales Service Provided: | No after-sales service,Free spare parts; | T Slot number/width/pitch: | 3/14/70; |
| Place of Origin: | China (Mainland); | Model: | ZX6350A; |
| Certification: | CE ISO; | Spindle Taper: | MT4; |
| Selling Units: | Single item; | Precision: | drilling and milling machine; |
| Type: | Vertical; | Package Type: | Drilling milling machine ZX6350A Drilling and milling machine Type of package: Plywood case Packaging size: 1030*920*1560mm(one set in one case) N.W./G.W.: 380kg/450kgs 1680x1550x2100; |
| CNC or Not: | Normal; | Single gross weight: | 1,500 KG; |
| Machine Type: | drilling milling machines; | Model Number: | ZX6350A; |
| Power(W): | 0.85/1.1KW; | Weight: | 380kg/450kg; |
| Range of Spindle Speed(r.p.m): | 115 - 1750; | Voltage: | Customer Requirement; |
| Application: | milling drilling machine; | Table size: | 1250X320; |
| Warranty: | 1 Year; | Brand Name: | Luzhong Machine; |
| Weight (KG): | 1450; | Dimension(L*W*H): | 1030*920*1560mm; |
| Key Selling Points: | Competitive Price; | Product Name: | Drilling milling machine ZX6350A Drilling and milling machine; |

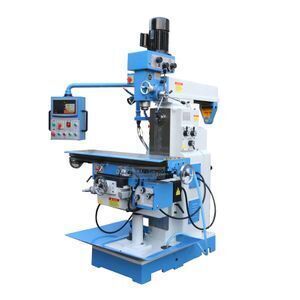

Drilling milling machine ZX6350A Drilling and milling machine

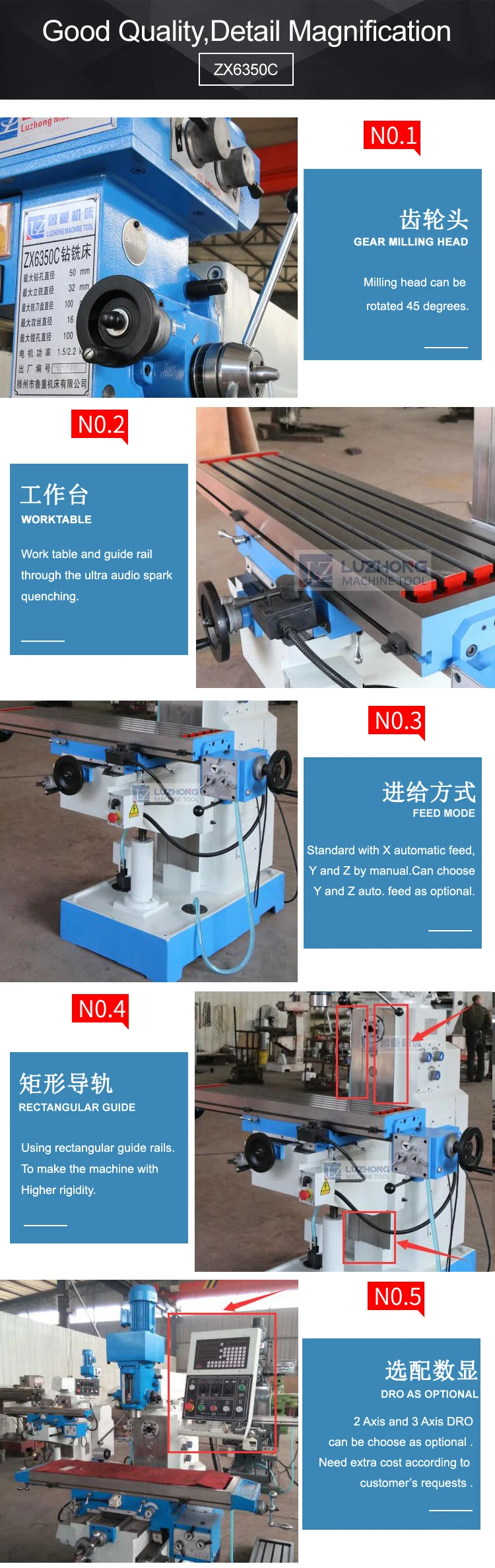

The main performance characteristics:

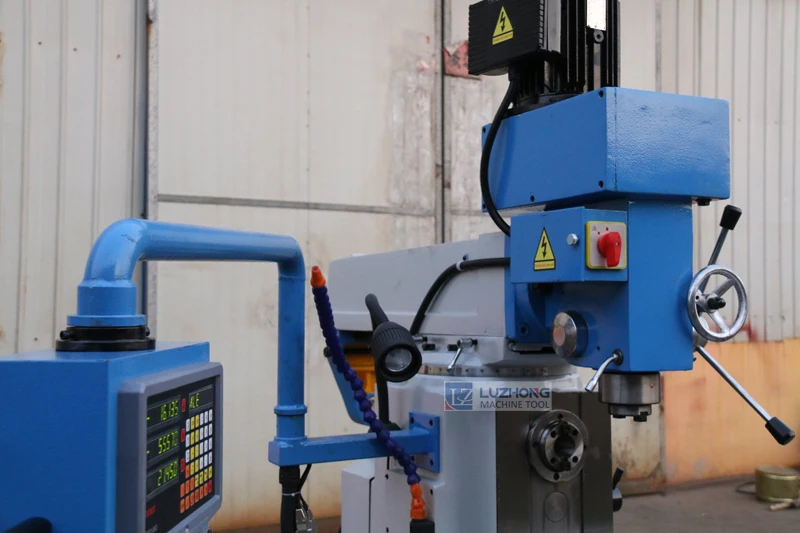

1.Gear transmission for vertical/horizontal milling head

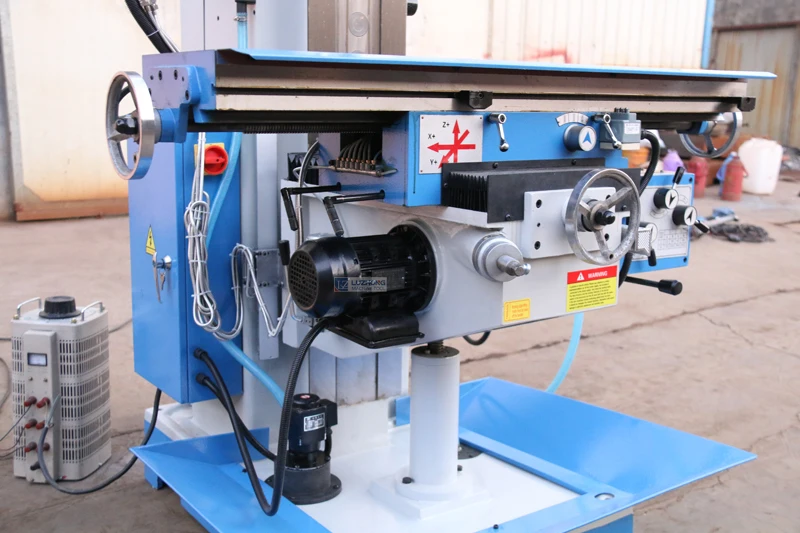

2.X /Y/Z axis auto feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching
Product main technical parameters:
Specifications | Units | ZX6350A |
Table size | mm | 1250X320 |
T Slot number/width/pitch | mm | 3/14/70 |
Longitudinal travel | mm | 600 |
Cross travel | mm | 300 |
Vertical travel | mm | 300 |
Beam travel | mm | 300 |
Vertical spindle axis to column surface | mm | 200-500 |
Vertical spindle nose to table surface | mm | 90-390 |
Horizontal spindle axis to table surface | mm | 0-300 |
Horizontal spindle axis to beam surface | mm | 175 |
Vertical spindle speeds | R/min | 115-1750 8 steps |
Horizontal milling spindle speeds | R/min | 40-1300 12 steps |
Vertical spindle taper |
| MT4 |
Horizontal spindle taper |
| MT4 |
Vertical spindle travel | mm | 120 |
Main motor power | kw | 0.85/1.5(V),2.2(H) |
Vertical milling bead swivel angle | ° | ±45 |

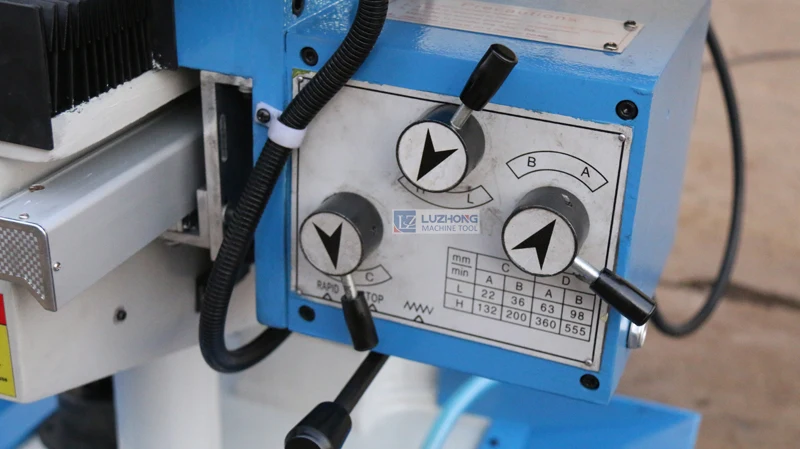

Table X/Y axis auto feed speed | Mm/min | 22-555(8 steps)(rapid:840) |
Table Z axis auto feed speed | Mm/min | 560 |
X/Y axis feed motor | w | 750 |
Z axis feed motor | w | 750 |
Overall dimensions | mm | 1680x1550x2100 |
Net weight | Kg | 1450 |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprisewith glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .
"THE BEST QUALITY ,CREATED BY LUZHONG"
All of our machines are subject to strict quality control.Especially in the production process.
The Machines like lathe machine , cnc lathe machine ,cnc milling machine , cnc turning center ,Radial drilling machines, drilling milling machines ... ... have production lines as below:
1.High strength Casting making .
2.Processing production.
3.High precision quenching process.
4.Assembling process.
5.Spray paint process.
6.And also the finished product come out .
1.Why choose us ?
We are a cnc machine manufacturer can provide the high quality, competitive price and good after-sale service.
We have our own technical team, can provide the customized solutions according to your request( your workpieces ,Your drawings and so on)
We go the full 24-hour performance and accuracy test before shipment.
2.What machines can be available in your factory?
We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
3.What certifications you have ?
We have certifications like:CE certifications
CO certifications
ISO certifications and also CIQ certifications and so on .
4.What payment terms you can accept?
Mostly using TT.
But LC also available
5.What services you can offer ?
Warranty for one year .
English manual and video for machine using and maintenance.
OEM,ODM is available in our factory.
24 hours online technical service
Engineers available to service machinery overseas
Free customers training in our plant.
