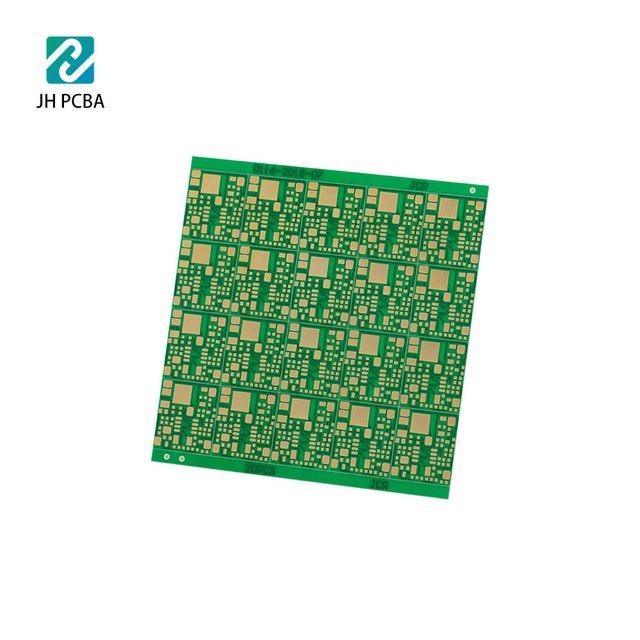

High Quality Custom Product Bom Gerber Quote Multilayer Aluminum Nitride Substrate PCB Supplier Ceramic PCB Manufacturer

  • Supplier: Jinhua Technology (Shenzhen) Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Rosia Cao
  • Price: $3.50 / 1 - 999 pieces
    $1.90 / 1000 - 4999 pieces
    $0.90 / 5000 - 9999 pieces
    $0.10 / >=10000 pieces
  • Min. Order: 1 piece
Click here to contact
Product details
type:Ceramic circuit boardusage:Foundry Electronics
product name:Order Ceramic PCBpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Certificate:ISO9001/Iso14001/CE/ROHS/IATF16949Minute line width:0.075mm
Test service:100% electronically testedPlate thickness:0.2-8mm
model:JH-PCBA-186Packaging Details:Bubble bag, pearl cotton bag, anti-static bag, vacuum bag
Minute line spacing:0.075mmMinute Hole Size:0.07mm±0.02mm
port:ShenzhenMOQ:1
Package preview:Origin:Guangdong, China
Surface treatment:Immersion Nickel/Gold/Silver/Palladium, OSPPrinted Circuit Board Services:24 hours technical service
Copper thickness:1-10ozProduct quotation:within 2 hours
Key words:Aluminum nitride circuit boardSupply capacity:50000 pieces per month
Solder mask color:Green. Black. Red. Yellow. White. Blue. Purple. Matte Green. matte blackbrand:JH-PCBA
Board Dimensions:Custom Ceramic Printed Circuit Boardslayer:1-32 floors
Substrate:aluminum, ceramic



 Why choose us?

Our company has advanced ceramic circuit board processing equipment. It has the ability to be in line with international standards in laser drilling, cutting, ceramic metallization, ceramic electroplating thickening, through-hole electroplating filling, and microcircuit manufacturing.



Our advantage:

1. High thermal conductivity
2. Excellent insulation performance
3. Very low expansion coefficient
4. Reduce dielectric constant and loss
5. Chemical corrosion resistance

Product Description
JH PCBA production capacity
1 project Ceramic substrate
2 matrix Aluminum Oxide, Aluminum Nitride
3 Conductor Thickness 10-210um
4 Thermal Conductivity Al203, 20-24W/Mk; ALN, 170-220W/Mk
5 reflection Normal: 85-92%, High: ≥93%
6 surface treatment Ni/Au, chem.AG, OSP, etc.
7 panel size

101.6*101.6mm, 114.3*114.3mm, 120*120mm, 130*140mm, 140*190mm
8 plate thickness 0.38 mm min, max. 2.0mm
9 minimum aperture 0.08mm
10 Shape Tolerance ±0.1mm
11 Peel strength E needle without broken wire, gold wire ≥ 7g
12 Dielectric constant 9-10@1MHz
13 Dielectric strength ≥2KV
14 delivery time 3-5 days for prototype, 7-10 days for production
15 Inspection standards MIL-SID-105, Class 2, AOL=0.65



layer Quick turn/Usual time mass production
2 liters 24 hours/4-5 days 8-10 days
4L 48 hours/6-7 days 10-12 days
6L 72 hours/7-8 days 12-14 days
8L 72 hours/8-10 days 16-18 days
10L 96 hours/12-14 days 18-20 days
