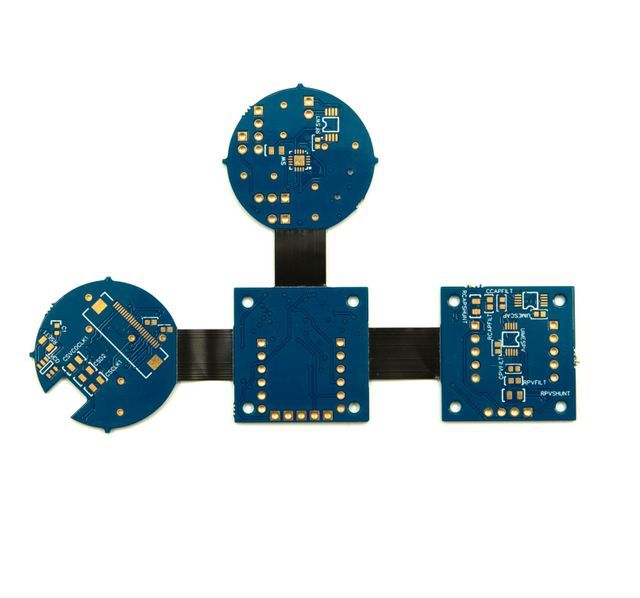

Manufacturer's HDI Quick Turn Double Sided Rigid Flexible PCB Circuit Board Design
-
Supplier: Jinhua Technology (Shenzhen) Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Rosia Cao -
Price: $3.90 / 1 - 999 pieces
$1.90 / 1000 - 4999 pieces
$0.90 / 5000 - 9999 pieces
$0.10 / >=10000 pieces -
Min. Order: 1 piece
| MOQ: | 1 | type: | Rigid-flex board |
| brand: | Jinhua | Copper thickness: | 1 oz |
| port: | Shenzhen | product name: | rigid-flex circuit board |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Packaging Details: | Bubble bag, pearl cotton bag, anti-static bag, vacuum bag |
| Serve: | Provide OEM HDI rigid-flex board service | Certificate: | ISO9001/Iso14001/CE/ROHS |
| model: | JH-RFPCB-005 | Board Dimensions: | 250*500mm, or can be customized |
| layer: | 1~12 floors | Substrate: | FR4+PI |
| Plate thickness: | 1.6 mm | Minute Hole Size: | 0.15mm |
| Key words: | Rigid-flex circuit | application: | trading platform consumer |
| Package preview: | Surface treatment: | ENIG | |
| Minute line width: | 3000000 | Testing service: | 100% AOI test |
| Origin: | Guangdong, China | Assembly service: | SMD/SMD/DIP |
| Supply capacity: | 50000 pieces per month | Minute line spacing: | 3000000 |
| custom made: | Rigid-flex PCB design |
Rigid Flex PCB Manufacturers: What Do We Offer?

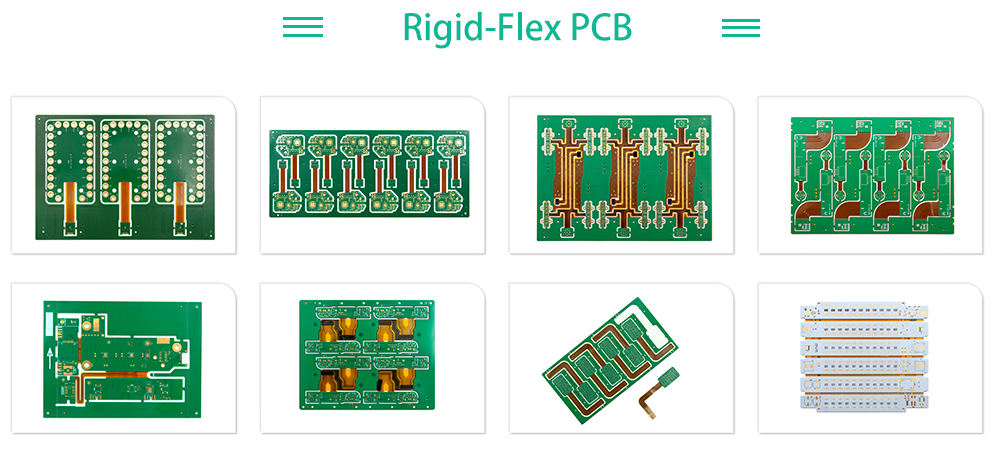

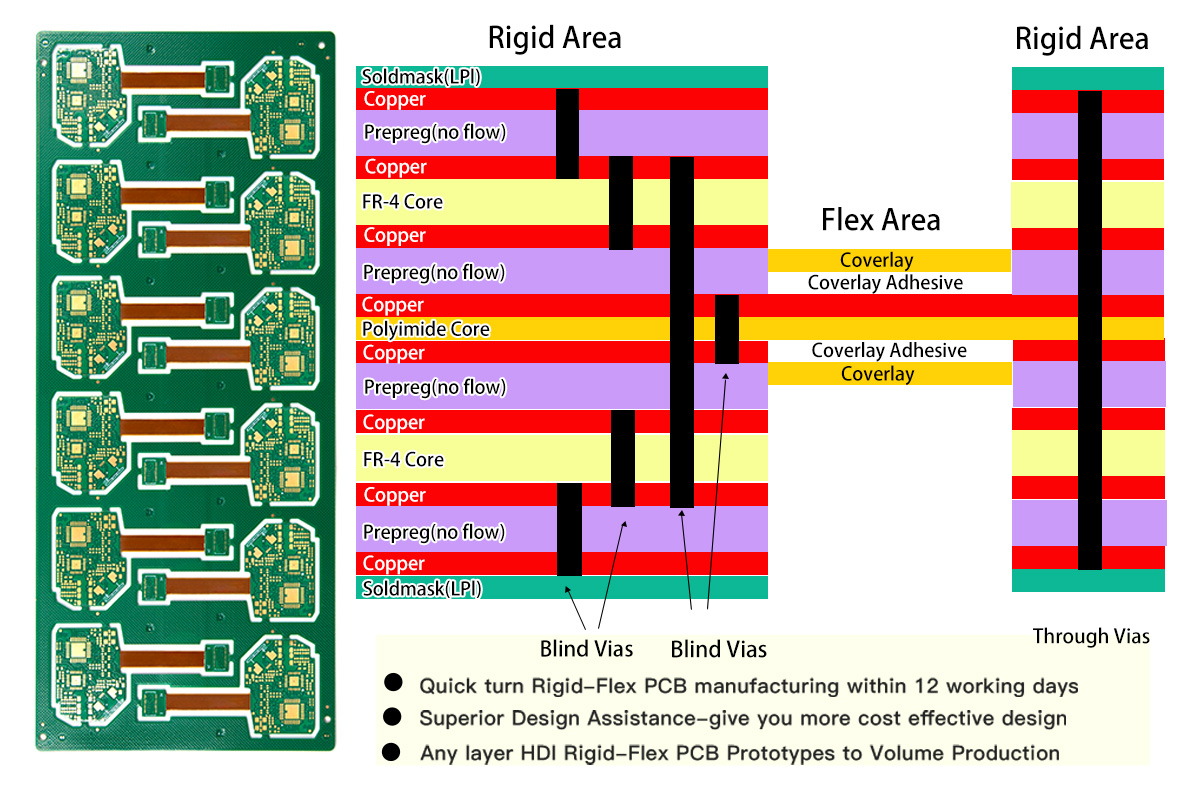

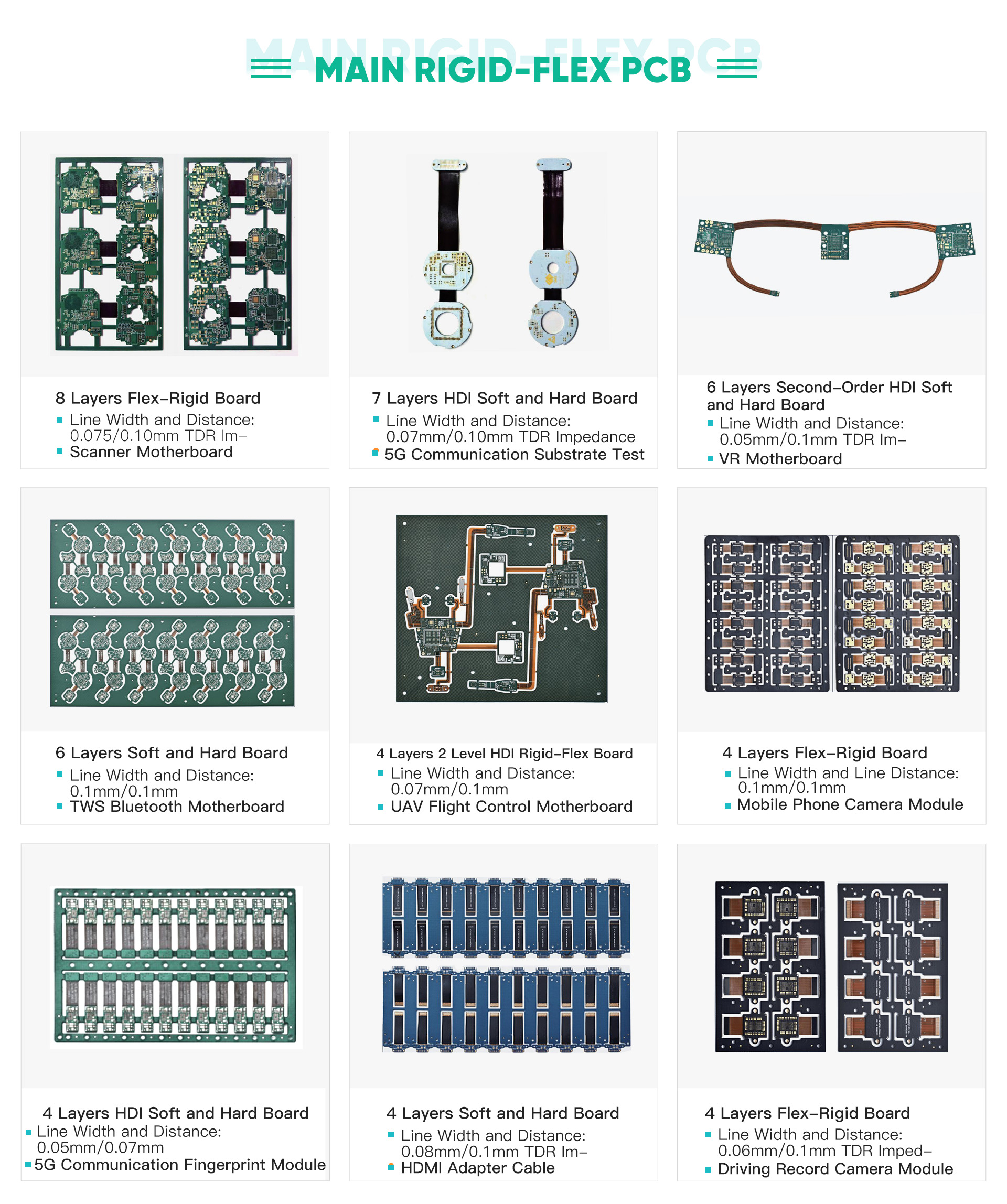

Rigid-flex printed circuit boards (PCBs) are manufactured by combining rigid and flex board technologies.Jinhua Technologies offers a wide range of rigid-flex, including 4-layer rigid-flex with ENIG finish, 10-layer rigid-flex and 4-layer flex, 12-layer rigid-flex, 14-layer rigid-flex, and more . We are one of the leading Rigid Flex PCB manufacturers.
Application of Rigid-Flexible Board
Rigid-flex PCBs are a popular solution for industrial applications. They are mainly used in military, aerospace and medical equipment as they reduce the weight of the product. This enhances the performance of the device to a great extent. Rigid-flex boards also enable building devices at feasible rates. This is due to their light weight and small size.
Other applications include:· Smart Jackets · Mobile Phones · Pacemakers · CT Scanners · ABS Sensors · Digital Cameras · Computer Servers · USB and Ethernet · Barcode Scanners

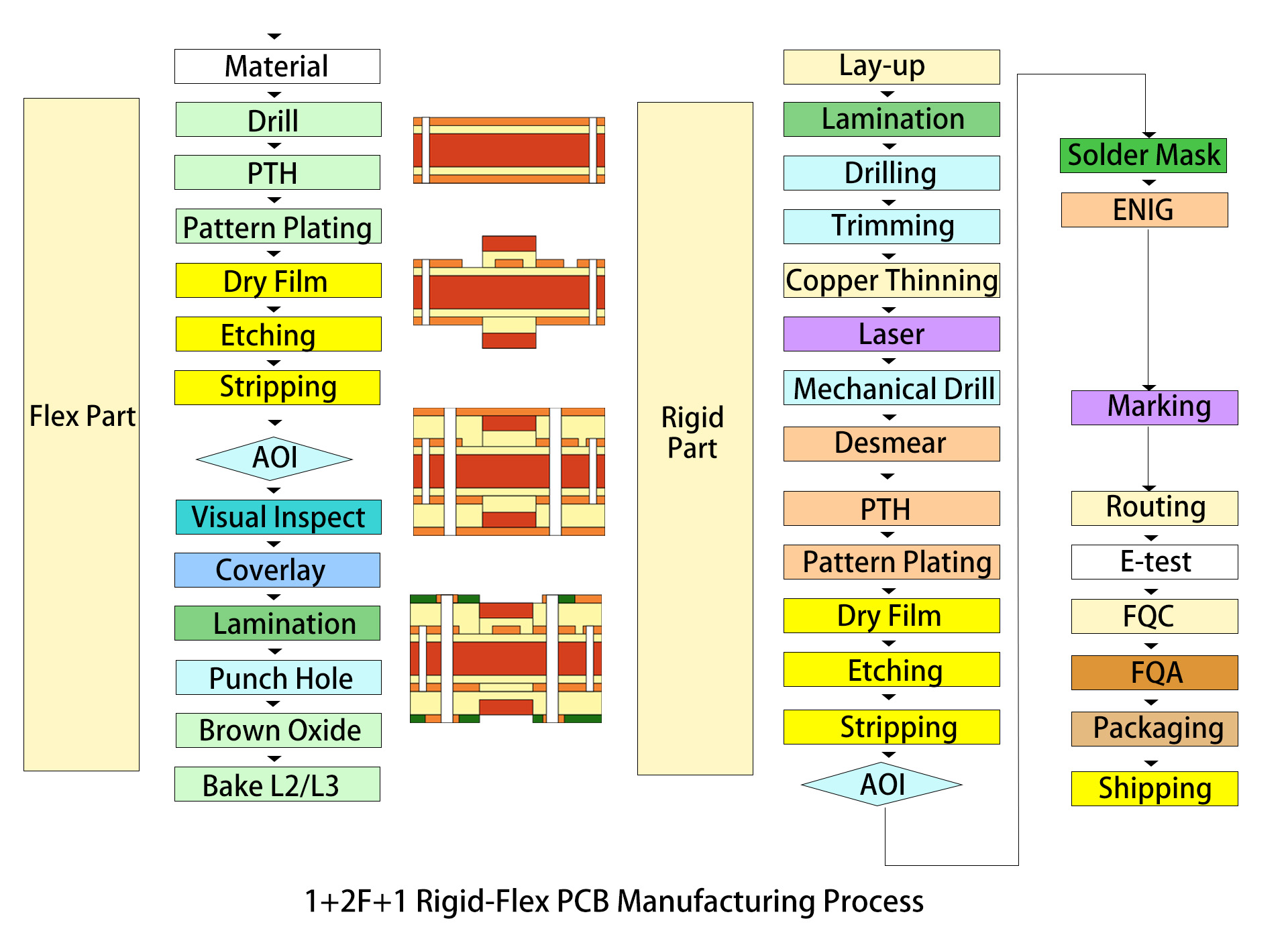

Jinhua rigid soft design process:
-
