China Ruomei PCB Factory Capacitive Touch Switch PCB Flexible and Rigid Flex PCB Board Design, Manufacturing and Assembly

Supplier: Shenzhan Ruomei Electronic Technology Co., Ltd
Region: Hubei, China
Contact: Ms Ruomei PCB
Price: $5.00 / 1 - 49 pieces
$1.00 / 50 - 199 pieces
$0.80 / 200 - 999 pieces
$0.50 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

brand:	Processing	layer:	From single side to more than 12 layers
payment terms:	L/C, D/A, D/A, wire transfer	Solder mask color:	Blue, green, red, black, white, etc.

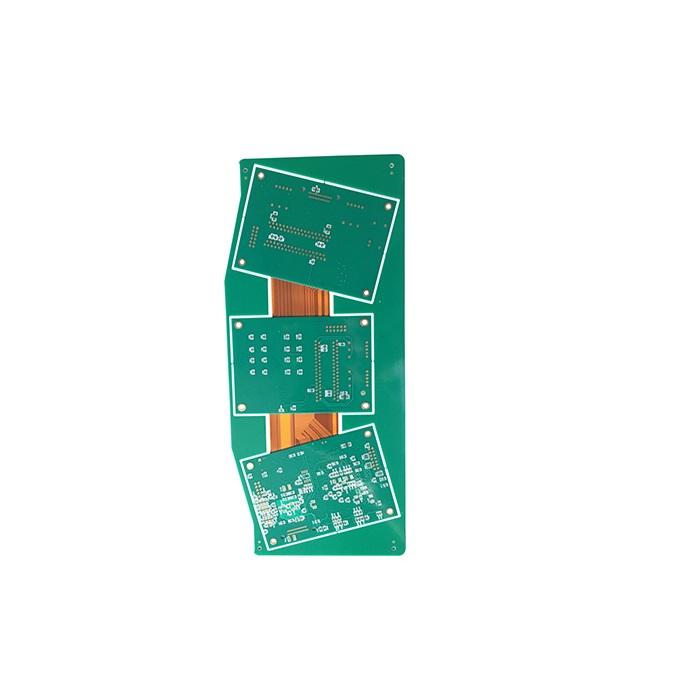

type:	Rigid-flex board	minute. Line width:	0.1mm
port:	Shenzhen Port	Copper thickness:	1 oz
maximum. Aspect ratio:	13:1	application:	Electronic equipment
Supply capacity:	1000 pieces per day	Test service:	100%
minute. Line spacing:	0.1mm	Packaging details:	Inner: vacuum packaging or anti-static packaging, outer: export carton
Plate thickness:	1.6mm	minute. Hole size:	0.2mm
Surface treatment:	ENIG OSP Hasl	Board size:	custom made
Place of origin:	Guangdong, China, Guangdong, China	model:	Custom PCB, RM-P0420
Serve:	One-stop service	Surface treatment:	Lead-free spray tin, immersion tin, tin plating, OSP, carbon, platinum, immersion gold, etc.
Supplier type:	Processing	Base material:	FR-4PI
Package preview:

Video description

Product Description

PCBA technical capabilities

quantity	Prototype and volume PCB assembly
Assembly type	SMT and through hole
Solder type	Water-soluble solder pastes, leaded and lead-free
Element	Passive component sizes as small as 0201 BGA and VF BGA Leadless Chip Carrier/CSP Double-sided SMT assembly Fine pitch to 08 mils BGA Repair and Ball Grafting Parts removal and replacement - same day service
Bare board size	Minimum: 0.250.25 inches; Maximum: 2020 inches
file format	Bill of Materials (BOM) Gerber file Pick and place files (XYRS)
Service type	Turnkey, Partial Turnkey or Consignment
Component packaging	Cut the tape tube reel loose parts
Turn time	Same day service to 15 days service
test	Flying probe test XRAY detection, AOI testing
PCB+assembly process	Drilling-----Exposure----Electroplating-----Etching and Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering ----.Assembly-----ICT-----Functional test-----Temperature and humidity test

Specification

Number of layers	From single side to more than 12 layers
Copper thickness	0.5-6 ounces
Material	FR4 (China Shengyi, ITEQ, KB A+, HZ), HI-TG, FR06, Rogers, Taconic, Argon, Nalco, Isola, etc.
solder mask	Green, yellow, white, blue, black, red, etc.
Finished surface	Conventional spray tin, lead-free spray tin, immersion gold, immersion gold (hard gold, soft gold), immersion silver, silver plating, lead-free, spray tin), immersion tin, tin Electroplating, OSP, carbon, platinum, ENENIG...
Silk screen color	white, black
product type	HF (high frequency) & (radio frequency) board, impedance control board, HDI board, BGA & fine pitch board
minute. line width/gap	3.5/4mil (laser drilling)
minute. hole size	0.15mm (mechanical drill)/4mil (laser drill)
minute. annular ring	4 million
Maximum copper thickness	6 ounces
Minimum solder mask bridge	0.08 mm
Plugging ability	0.2-0.8 mm
