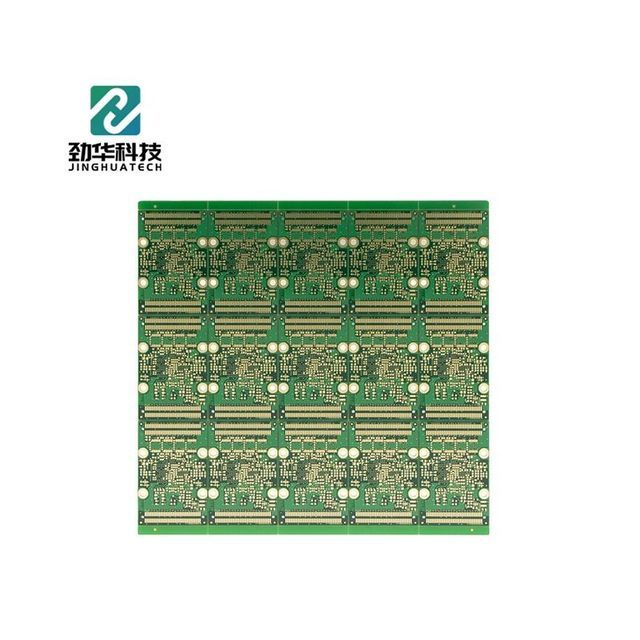

Finished product inspection pcb production gerber circuit board pcb board design

  • Supplier: Jinhua Technology (Shenzhen) Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Rosia Cao
  • Price: $3.90 / 1 - 999 pieces
    $2.90 / 1000 - 4999 pieces
    $0.90 / 5000 - 9999 pieces
    $0.10 / >=10000 pieces
  • Min. Order: 1 piece
Product details
Certificate:ISO9001Serve:One-stop service
Origin:Guangdong, Chinapayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Solder Mask:greenproduct name:PCB Assembly
Substrate:customMinute Hole Size:0.2 mm
type:Electronic board, hdi pcbport:Shenzhen/Hong Kong
Minute line width:3000000Packaging Details:Depends on the size of PCBA. Anti-static bag + insulating bag + carton
Material:FR4/Aluminum/Ceramic CEM1Name:PCB board production
Plate thickness:1.6mm, can be customizedBoard Dimensions:custom
Supply capacity:60000 pieces per monthMinute line spacing:3000000
Surface treatment:customusage:Foundry Electronics
application:Electronic equipmentmodel:custom
thing:custom circuit boardbrand:Jinghua
Copper thickness:1 oz



HDI stands for High Density Interconnect PCB. Due to their increased density, they provide an essential routing solution for large pin-count chips used in mobile devices and other high-tech products.

What types of HDI boards can you get from us?

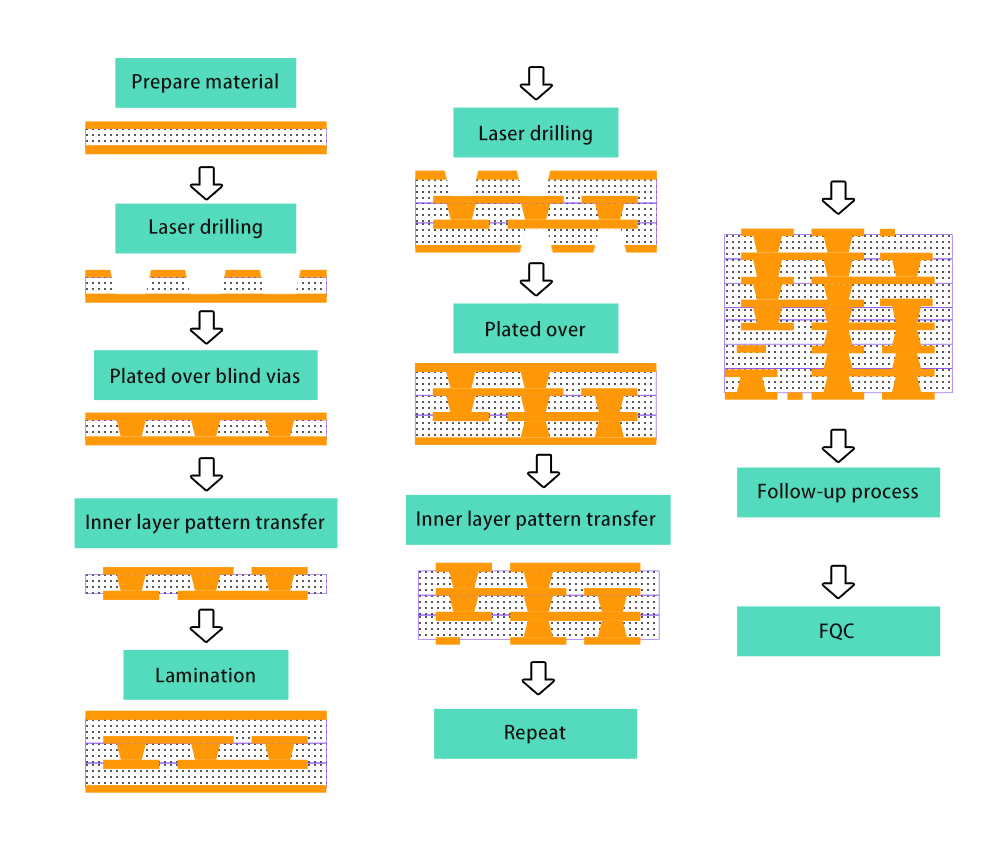

Due to design constraints, HDI PCBs have much higher routing and pad connection densities than conventional PCBs. The structure construction is explained below.

1+N+1– The PCB contains 1 "build-up" high-density interconnect layer.

i+N+i (i ≥ 2)– The PCB consists of 2 or more "stacked" high-density interconnect layers. Microwells on different layers can be staggered or stacked.

Any layer HDI– The layers of the PCB are high-density interconnect layers that allow conductors on any layer of the PCB to freely interconnect with copper-filled stacked microvia structures.

> > > Click here to send a free sample inquiry! ! !

Application of HDI PCB:

·Automobile industry:Engine control unit, GPS, dashboard electronics.

·Telecommunications Industry:Computers, Laptops, Tablets, Wearable Electronics, Internet of Things

·army:Military routers, COTS boards, etc.

· medical:35 micron trace space board, pacemaker

· Semiconductor:MCM/Flip Chip/Wire Bonding, Stacked Microvias

HDI production process:

Product Description
HDI PCB process capability
project content production capacity
1 layers 4-22 floors standard, 30 floors advanced
2 Material FR4 Standard, FR4 High Performance, Halogen Free FR4, Rogers
3 Copper products 18um-70um
4 Minimum tracks and clearances 0.075mm/0.075mm
5 PCB thickness 0.4mm-6.0mm
6 biggest size 610mm*450mm, depending on the laser drilling machine
7 surface treatment OSP, ENIG, immersion tin, immersion silver, electrolytic gold, gold finger
8 minute mechanical drill 0.15mm
9 minute laser drill 0.1mm standard, 0.075mm advanced
10 Quality Standard IPC-600, 6012, Class II and Class III
11 HDI technology 4+N+4, 4-step arbitrary layer connection

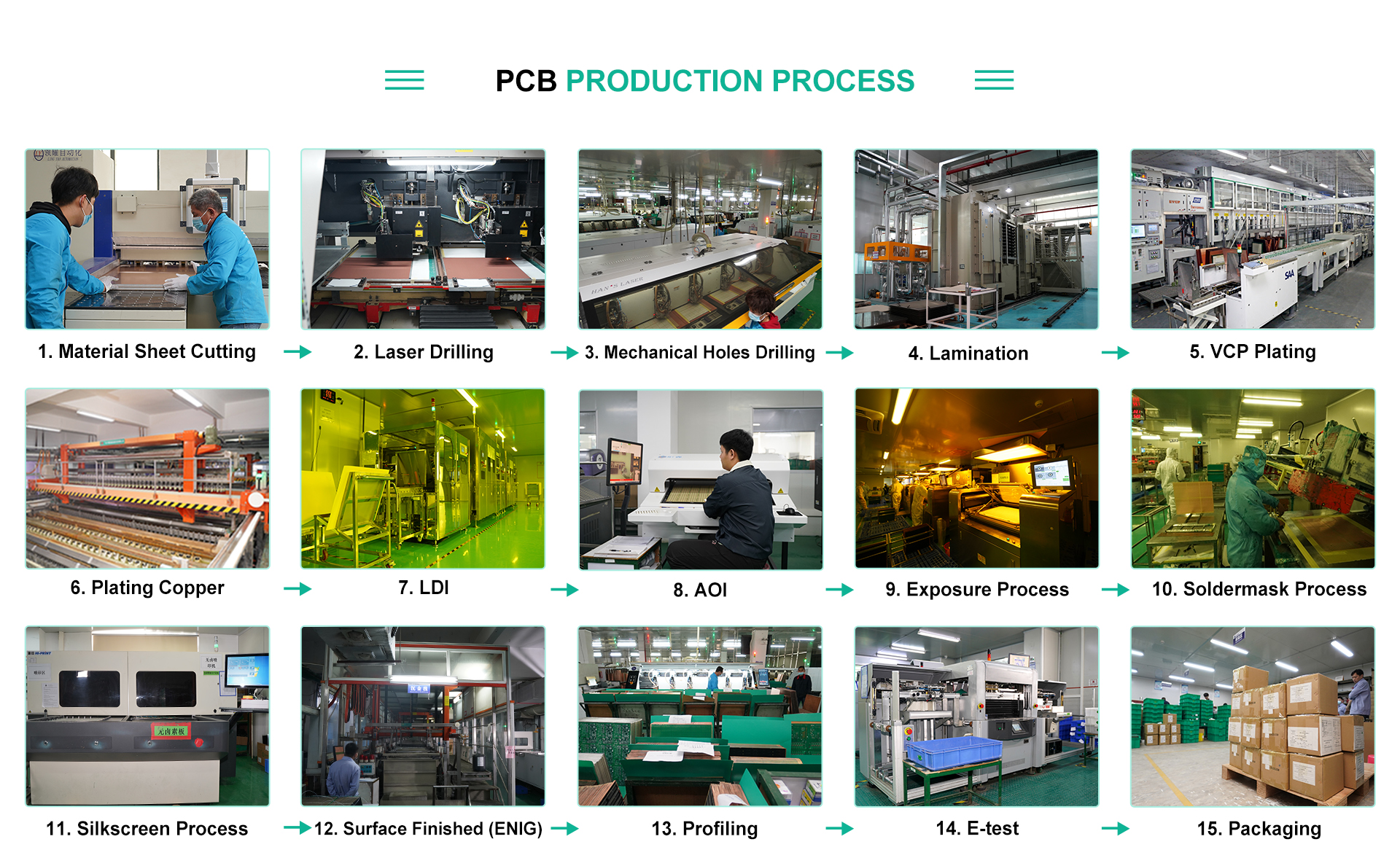

production process
