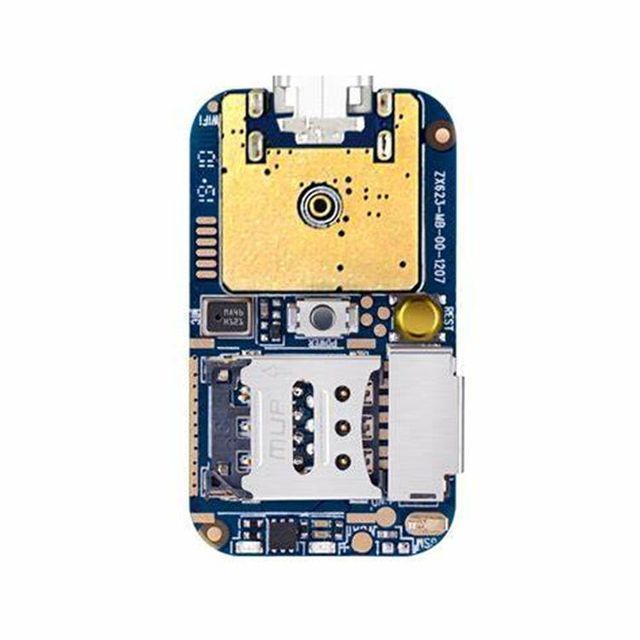

GPS locator PCB circuit board PCBA belt project development service
- 4.25 10 - 99 pieces
- 3.85 100 - 999 pieces
- 2.08 1000 - 9999 pieces
- 1.01 >=10000 pieces
| Board Dimensions: | 500*500mm | model: | JXPCBA-001 |
| Types of: | HDF | Testing service: | AOI X-Ray ICT function test |
| Copper thickness: | 2 oz | Minute Hole Size: | 300000 |
| Serve: | One-stop turnkey | Substrate: | FR4/CEM-1/CEM-3/Hi TG/Aluminum/Rogers |
| layer: | 1 - 32 floors | Minute line spacing: | 300000 |
| Package preview: | Solder mask color: | Blue.Green.Red.Black.White etc. | |
| Certificate: | ISO9001/Iso14001/CE/ROHS | Material: | FR4/CEM-1/CEM-3/FR1/Aluminum |
| port: | Shenzhen, Hong Kong | Packaging Details: | Customized, anti-static bag/vacuum packing+bubble bag, |
| Product Category: | Custom HDI PCBAs | Surface treatment: | HASL\OSP\Immersion Gold,HASL\OSP\Immersion Gold |
| payment terms: | Western Union, T/T, MoneyGram, PayPal | place of origin; place of origin: | China |
| brand: | Jiaxing PCBA | Supply capacity: | 180000 pieces per day |
| Minute line width: | 300000 | Plate thickness: | 0.2mm - 7.0mm, 1.6mm |
| application: | Electronic Equipment/Household Appliances |
|
Printed Circuit Board Specifications |
|
|
layers |
1,2,4,6, up to 32 floors |
|
plate |
FR-4, Glass Epoxy, FR4 High Tg, Rohs Compliant, Aluminum, Rogers, etc. |
|
PCB type |
Hard, Flexible, Rigid and Soft |
|
shape |
Any shape: rectangular, round, slotted, hollowed out, complex, irregular, etc. |
|
Maximum printed circuit board size |
22 inches*22 inches or 550mm*550mm LED PCBA board: 500*1200MM |
|
plate thickness |
0.4~4.0mm |
|
Thickness Tolerance |
± 10% |
|
copper thickness |
1/2 oz 1 oz 2 oz 3 oz |
|
Copper Thickness Tolerance |
± 0.25 oz |
|
Solder mask |
Green, red, white, yellow, blue, black, etc. |
|
silk screen |
White, yellow, black or negative film, etc. |
|
surface finish |
HASL, Nickel, Imm Gold, Imm Tin, Imm Silver, OSP etc. |
|
Minimum drilling diameter |
0.01'',0.25mm. or 10 million |
|
PCB cutting |
Cut, V-score, tab-routed |
|
PCB assembly capability |
|
|
Mounting accuracy |
QFP, SOP, PLCC, BGA |
|
SMT bonding capability |
1206, 0805, 0603, 0402, 0201 |
|
Certificate |
ISO9001,ISO14001,ROHS,CQC |
|
Assembly service |
PCB fabrication, component sourcing and in-house assembly, providing total project management |
