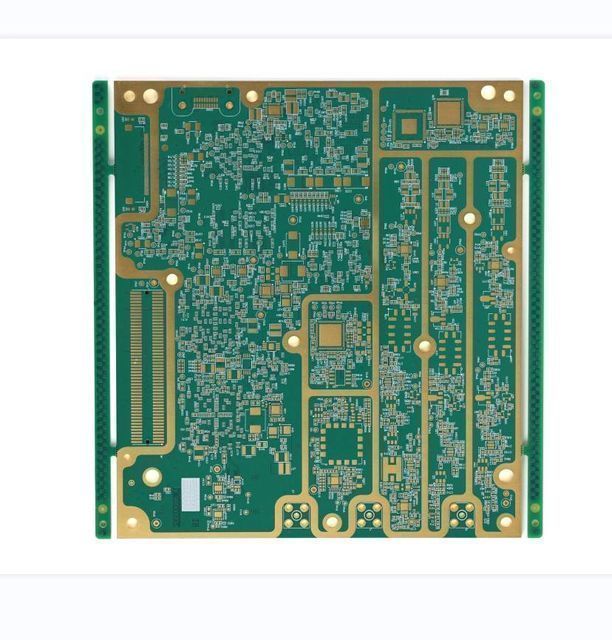

JINHUA PCB serves Immersion Gold Multilayer PCB with high density PCB

Supplier: Jinhua Technology (Shenzhen) Co., Ltd.
Region: Guangdong, China
Contact: Ms Rosia Cao
Price: $3.50 / 1 - 999 pieces
$1.50 / 1000 - 4999 pieces
$0.50 / 5000 - 9999 pieces
$0.10 / >=10000 pieces
Min. Order: 1 piece

Click here to contact

Product details

Surface treatment:	ENIG	Plate thickness:	Can be customized, 1.6mm
Types of:	HDF	layer:	1~20 floors
Packaging Details:	Bubble bag, pearl cotton bag, anti-static bag, vacuum bag	Substrate:	FR4,FR4
Certificate:	ISO9001/Iso14001/CE/ROHS	Minute line spacing:	3000000
product name:	High Density Circuit Board	MOQ:	1
Key words:	Immersion Gold High Density PCB	model:	JH-HDI-027
Minute line width:	3000000	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:	60000 pieces per month	Testing service:	100% AOI test
application:	electronic product	brand:	Jinhua
Copper thickness:	1 oz	Package preview:
Minute Hole Size:	0.15 mm	port:	Shenzhen
Board Dimensions:	300*600mm, or can be customized	place of origin; place of origin:	Guangdong, China
Serve:	Multi-layer immersion gold high-density pcb service

HDI stands for High Density Interconnect PCB. Due to their increased density, they provide an essential routing solution for large pin-count chips used in mobile devices and other high-tech products.

What types of HDI boards can you get from us?

Due to design constraints, HDI PCBs have much higher routing and pad connection densities than conventional PCBs. The structure construction is explained below.

1+N+1– The PCB contains 1 "build-up" high-density interconnect layer.

i+N+i (i ≥ 2)– The PCB consists of 2 or more "stacked" high-density interconnect layers. Microwells on different layers can be staggered or stacked.

Any layer HDI– The layers of the PCB are high-density interconnect layers that allow conductors on any layer of the PCB to freely interconnect with copper-filled stacked microvia structures.

Application of HDI PCB:

·Automobile industry:Engine control unit, GPS, dashboard electronics.

·Telecommunications Industry:Computers, Laptops, Tablets, Wearable Electronics, Internet of Things

·army:Military routers, COTS boards, etc.

· medical:35 micron trace space board, pacemaker

· Semiconductor:MCM/Flip Chip/Wire Bonding, Stacked Microvias

HDI production process:

Product Description

HDI PCB process capability
project	content	production capacity
1	layers	4-22 floors standard, 30 floors advanced
2	Material	FR4 Standard, FR4 High Performance, Halogen Free FR4, Rogers
3	Copper products	18um-70um
4	Minimum tracks and clearances	0.075mm/0.075mm
5	PCB thickness	0.4mm-6.0mm
6	biggest size	610mm*450mm, depending on the laser drilling machine
7	surface treatment	OSP, ENIG, immersion tin, immersion silver, electrolytic gold, gold finger
8	minute mechanical drill	0.15mm
9	minute laser drill	0.1mm standard, 0.075mm advanced
10	Quality Standard	IPC-600, 6012, Class II and Class III
11	HDI technology	4+N+4, 4-step arbitrary layer connection
