uni-t UT511 Digital Insulation Resistance Tester Megohmmeter Low Ohm Ohmmeter Voltmeter Auto Range 1000V LCD Bac
- 99.90 1 - 3 pieces
- 89.90 4 - 39 pieces
- 79.90 40 - 999 pieces
- 69.90 >=1000 pieces
| aspect: | 202mm*155mm*94mm | Measuring range: | 0.1MΩ~500MΩ |
| Sales unit: | single product | Gross weight per piece: | 19.000 kg |
| weight: | 500 g | Operating temperature: | -40--1000 degrees |
| Accuracy class: | ±(3%+5) | place of origin; place of origin: | Guangdong, China |
| Display type: | analog and digital | Test voltage: | 100V/250V/500V/1000V |
| model: | UT511 | brand: | unit |
| Single package size: | 30X20X10 cm |
Product Specifications:

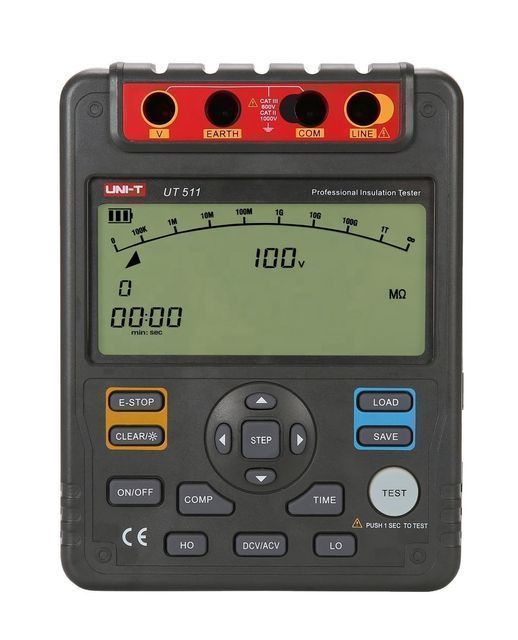

UT511 Digital Insulation Resistance Tester Megohmmeter Low Ohm Ohmmeter Voltmeter Auto Range 1000V LCD Backlight
UT511 series insulation resistance tester adopts a new design combining large-scale integrated circuits and digital circuits, and integrates insulation resistance, DC voltage, AC voltage and other parameter measurement functions; it has higher precision, stable performance, and convenient and reliable operation. It is suitable for insulation resistance measurement of electrical equipment and insulating materials such as transformers, motors, cables, switches, electrical appliances, etc. It is a tool for maintenance, testing and verification of various electrical equipment.
|

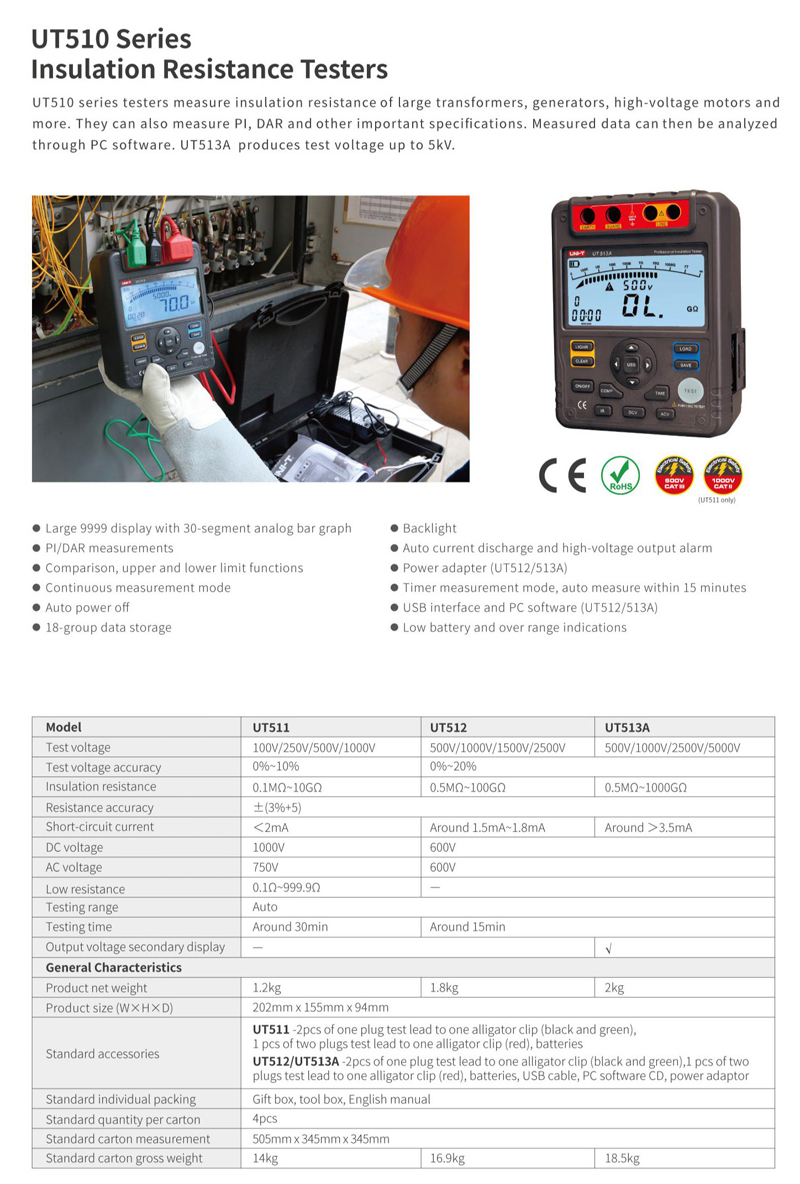

Specification |
scope |
best accuracy |
|
|
Model |
UT511 |
||
|
Insulation resistance (Ω) |
Test voltage |
100V/250V/500V/1000V |
0%~20% |
|
100V |
0.1MΩ~500MΩ |
±(3%+5) |
|
|
250V |
0.5MΩ~2GΩ |
±(3%+5) |
|
|
500V |
1MΩ~4GΩ |
±(3%+5) |
|
|
1000V |
2MΩ~10GΩ |
±(3%+5) |
|
|
short circuit current |
<2mA |
||
|
DC voltage (V) |
1000V |
±(2%+3) |
|
|
AC voltage (V) |
750V |
±(2%+3) |
|
|
Low resistance (Ω) |
0.1Ω~999.9Ω |
±(1%+3) |
|
|
strength |
1.5V alkaline battery (LR14) x 8 |
||
|
LCD screen size |
123 mm x 58 mm |
||
|
Product color |
red & gray |
||
|
Product Weight |
1.2Kg |
||
|
Product Size |
202mm×155mm×94mm |
||
|

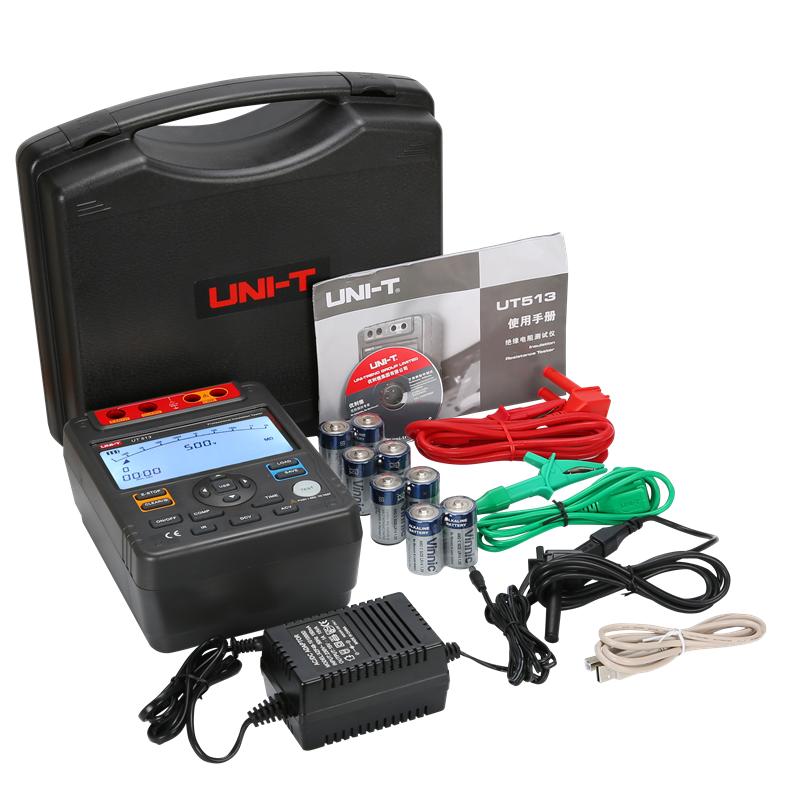

Standard accessories |
2PCS one-plug test lead to one alligator clip (black and green), 1PC two-plug test lead to one alligator clip (red), battery, tool box. |
||
|
Standard Individual Packaging |
Gift box, English manual |
||
