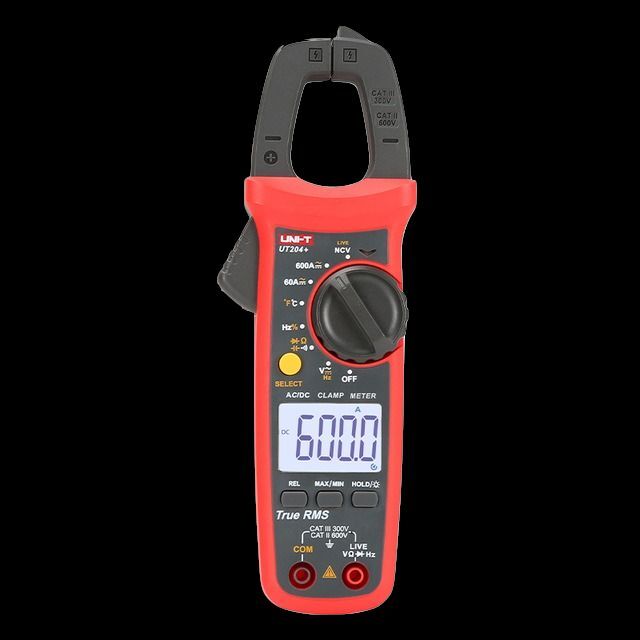

Digital clamp tester Uni-T UT204 + newest Clamp meter voltage current resistance

Supplier: Gongying Electron (Huizhou) Co., Ltd.
Region: Guangdong, China
Contact: Mr William Wang
Price: $32.90 / 1 - 39 pieces
$31.90 / 40 - 1999 pieces
$28.90 / 2000 - 2999 pieces
$26.90 / >=3000 pieces
Min. Order: 1 piece

Click here to contact

Product details

color:	red and grey	Measuring voltage range:	200mV/2V/20V/200V/600V
model:	UT204+	place of origin; place of origin:	Guangdong, China
Measuring current range:	2A/20A/200A/400A	Display type:	analog and digital
aspect:	210mm X 75.6mm X 30mm	brand:	unit
Measuring capacitance range:	60nF~60MF	Sales unit:	single product
Measuring inductance range:	not any	LCD size:	35.6mm X 18mm
Single package size:	20X10X6 cm	Operating temperature:	0~1000
Measuring resistance range:	200Ω/2kΩ//2MΩ/20MΩ	weight:	338 grams
Gross weight per piece:	1.000 kg

Related Products

Product Description

Specification	scope	UT204+
AC current (A)	400A
AC current (A)	600A	±(2.5%+5)
AC current frequency (Hz)	50Hz~100Hz
DC current (A)	400A
DC current (A)	600A	±(2.5%+5)
AC voltage (V)	600V	±(0.8%+5)
AC voltage frequency (Hz)	10Hz~10kHz
AC voltage frequency (Hz)	10Hz~60kHz	±(0.5%+2)
DC voltage (A)	600V	±(0.5%+2)
Resistance (Ω)	40MΩ
Resistance (Ω)	60MΩ	±(0.8%+2)
Capacitance (F)	4mF
	40mF
	60mF	±(4%+5)
Temperature (℃)	-40℃~1000℃	±(1.5%+5)
Frequency (Hz)	10Hz~10MHz	±(0.1%+4)
show count		6000
jaw open		28mm
strength	1.5V battery (R03) × 2
exhibit	37mm x 25mm
Product color	red and grey
Product Weight	235 grams
Product Size	215mm x 63mm x 36mm
Standard accessories	Batteries, Test Leads, Thermocouples
Standard individual packaging	Gift box, tote bag, English manual
Standard quantity per carton	40
Standard carton measurement	485mm x 295mm x 385mm
Standard carton gross weight	17.3 kg
