Promotion UNI-T UT204A Digital Clamp Meter
- 25.59 1 - 499 pieces
- 24.99 500 - 999 pieces
- 21.90 1000 - 4999 pieces
- 18.35 >=5000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| place of origin; place of origin: | Guangdong, China | Sales unit: | single product |
| Measuring voltage range: | 4-400V | brand: | unit |
| Gross weight per piece: | 5.000 kg | Measuring capacitance range: | 60nF~60MF |
| weight: | 338 grams | Measuring current range: | 40~400A |
| color: | red and grey | Display type: | analog and digital |
| Single package size: | 20X10X6 cm | Measuring inductance range: | not any |
| model: | UT204A | aspect: | 230*70*37mm |
| Measuring resistance range: | 400-40M | Operating temperature: | 0~1000 |
Product Description

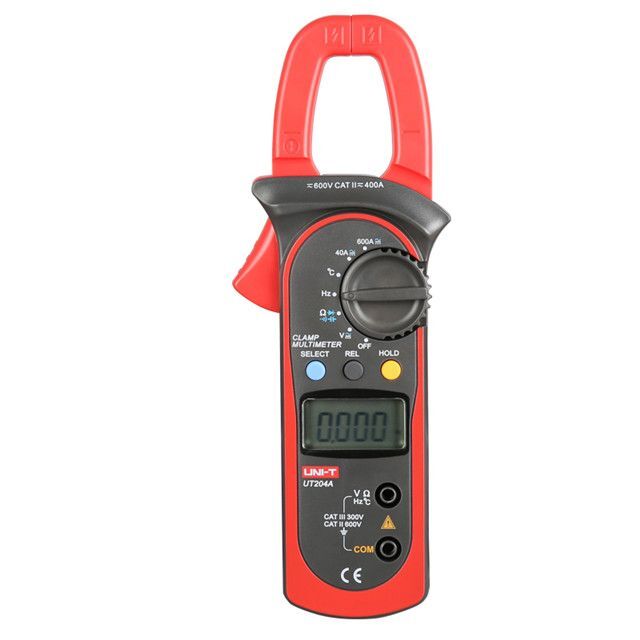

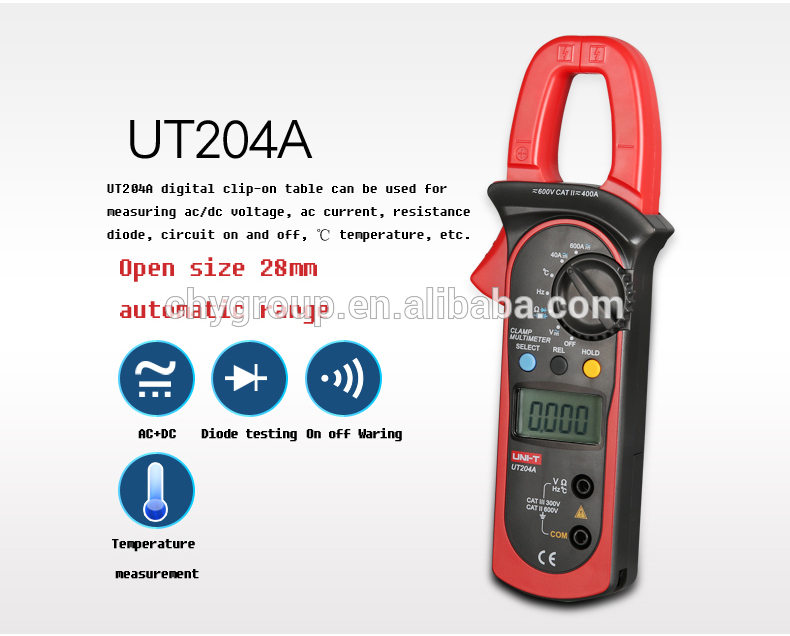

UNI-T's UT204A is a 600A auto-ranging digital clamp meter with temperature and capacitance measurements.

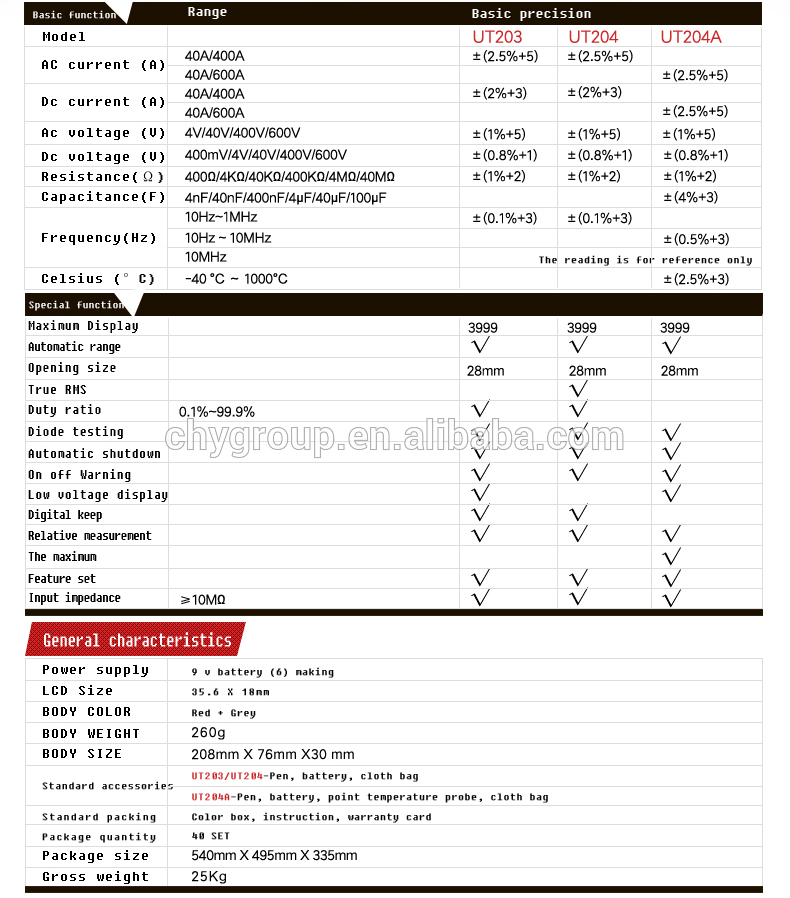

| Specification | ||
| Model | UT204A | |
| AC current (A) | 40A/600A | ±(2.5%+5) |
| DC current (A) | 40A/600A | ±(2%+5) |
| AC voltage (V) | 4V/40V/400V/600V | ±(1%+5) |
| DC voltage (V) | 400mV/4V/40V/400V/600V | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1%+2) |
| Capacitance (F) | 4nF/40nF/400nF/4μF/40μF/100μF | ±(4%+3) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.5%+3) |
| Temperature (°C) | -40°C~1000°C | ±(2.5%+3) |
| feature | ||
| show count | 3999 | |
| Autoranging | √ | |

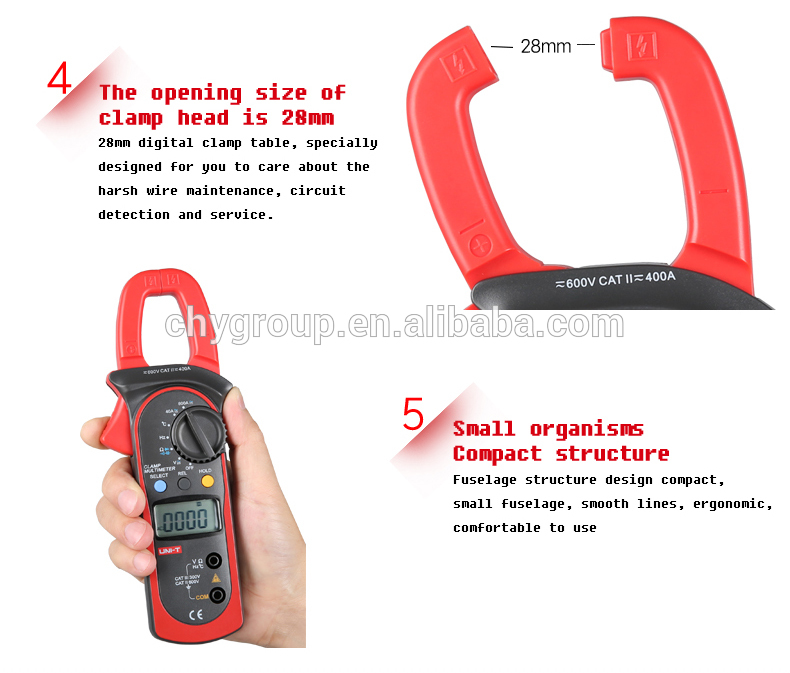

| Jaw capacity | 28mm | |
| diode | √ | |
| Automatic shut-down | √ | |
| Continuity buzzer | √ | |
| low battery indicator | √ | |
| data retention | √ | |
| max mode | √ | |
| set up | √ | |
| Input Impedance of DCV | About 10MΩ | √ |
| General Features | ||
| strength | 9V battery (6F22) | |
| LCD size | 35.6mmx18mm | |
| Product color | red and grey | |
| Product Weight | 260 grams | |

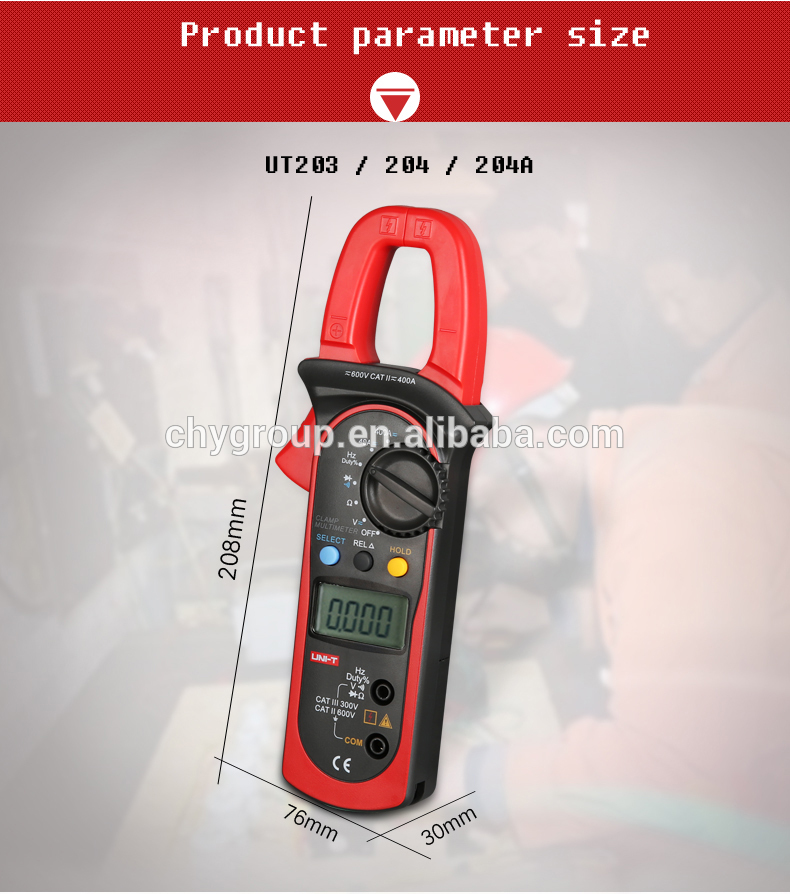

| Product Size | 208mm X 76mm X 30mm | |

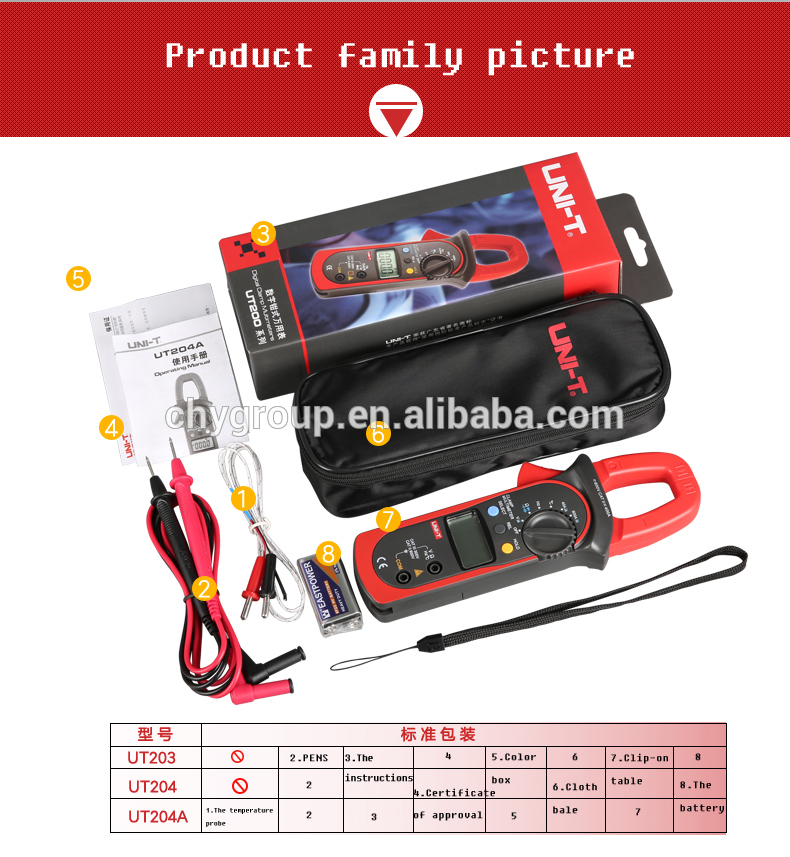

| Standard accessories |
Batteries, Test Leads, Carrying Case, point contact temperature probe |
|
| Standard individual packaging | Gift box, English manual | |
| Standard quantity per carton | 48 | |
|
Standard carton Measurement |
503×485×295mm (0.072 CBM per standard carton) | |
| Standard carton gross weight | 58 kg | |
advantage
